China PACO 20Amp 24V to 12V DC DC Converter

Product Overview

Description

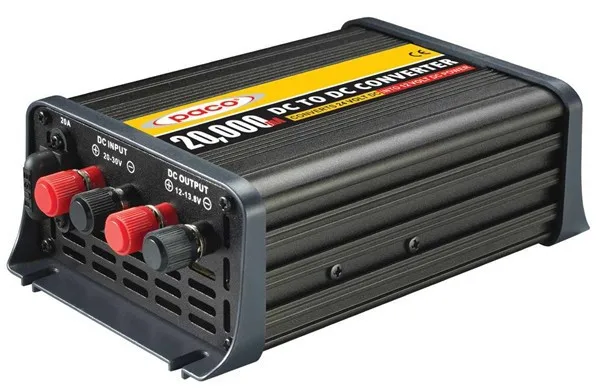

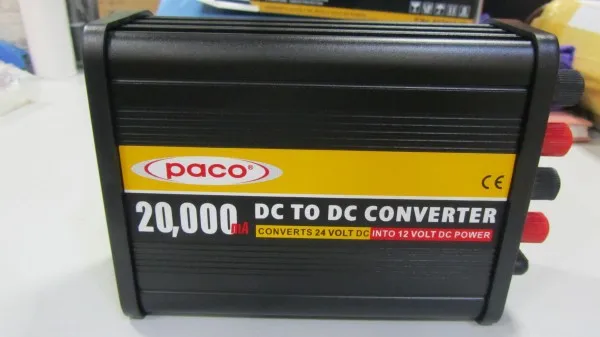

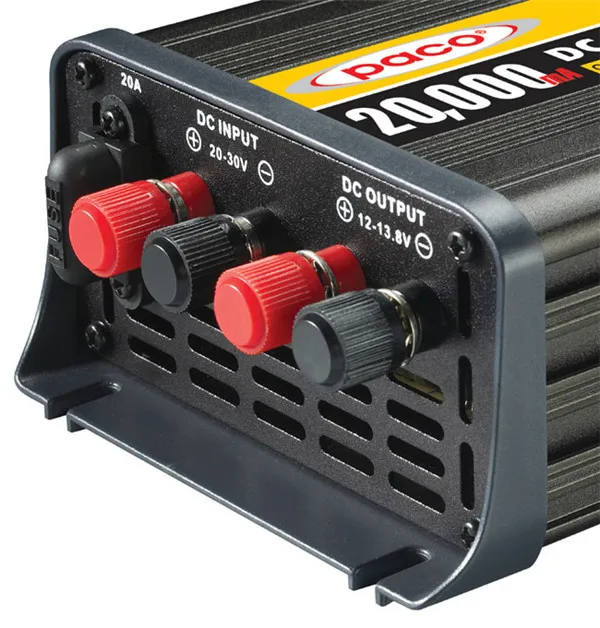

China PACO 20Amp 24V to 12V DC DC Converter



1. CE/CB/ROHS
2. Auto cooling system
3. Integrated Fuse protection
4. Aluminium made,portable and rugged





Specifications

Model No.	PV2412-20
Input Voltage	20-30V
Output voltage	12-13.8V
Output Power (Continuous)	20Amp
Output Power (Max)	30Amp
Standby Current	≤70mA
Input Fuse	20A
Efficiency	Fuse Location Input 85~90%
Thermal Protection	65 ℃ +/- 5 ℃
Connection Cable	2.5mm2/900mm
Fuse Location	External

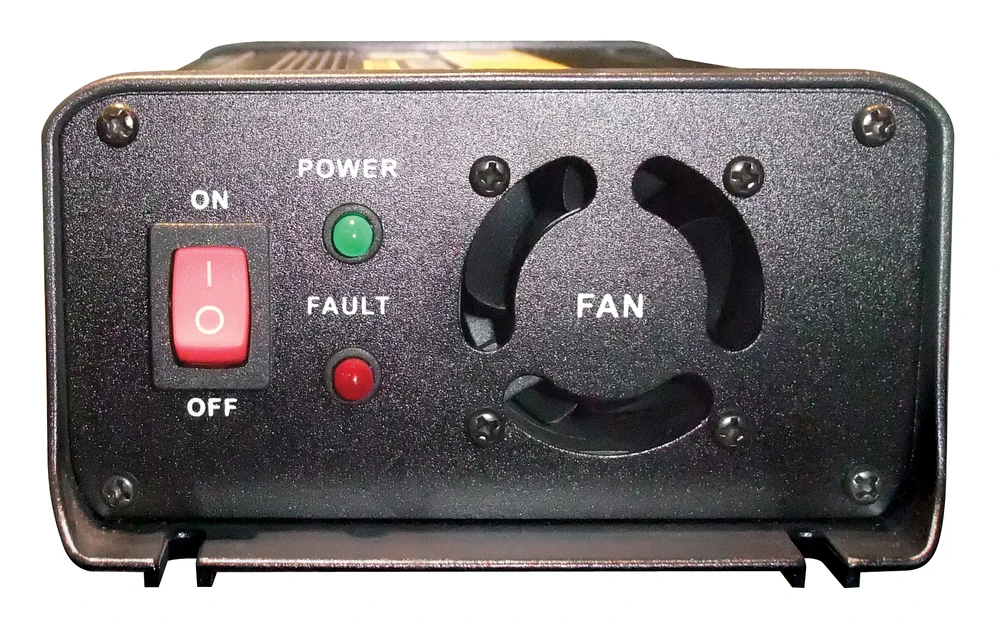

Cooling Fan	Automatic temperature controlled
Input Polarity Reverse	Diode Protection
Output Polarity Reverse	Circuit Protection
Output Short	Circuit Protection
Over Heating	Circuit Protection
Over Load	Circuit Protection
Dimension (L x W x H)	182 x 115 x 62 mm
Weight	0.7kg





Switchmode

1. Input polarity reverse: Diode protection
2. Output Polarity: Circuit protection
3. Output short: Circuit protection
4. Over heating: Circuit protection
5. Over load: Circuit protection



Features

24V DC to 12V DC Step down

20A Output

Automatic tepmerature controlled

Portable and  modern design

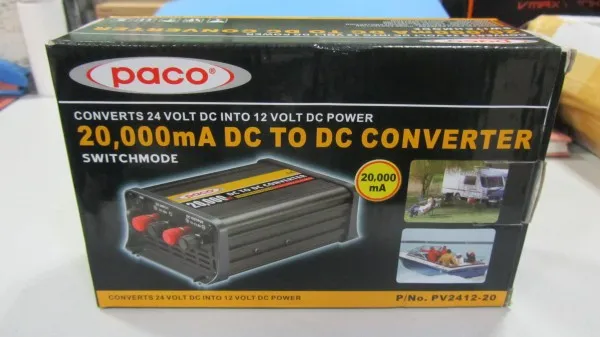

Package & Delivery:



1. Cargo carton or depends on customer's request.

2. 35-45 working days upon receive the deposit







Term



MOQ: 500 sets

Port: Zhongshan

Payment term: L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability: 30000 pieces per month
