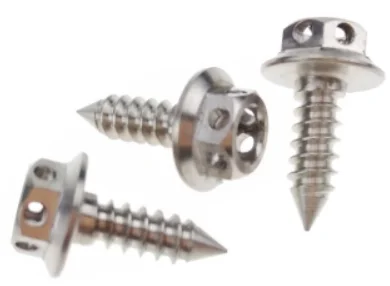

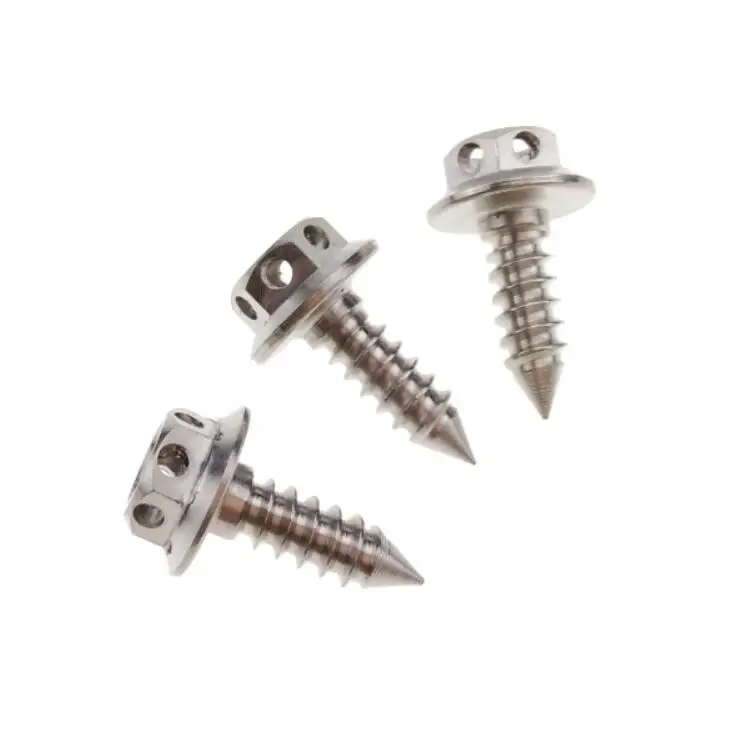

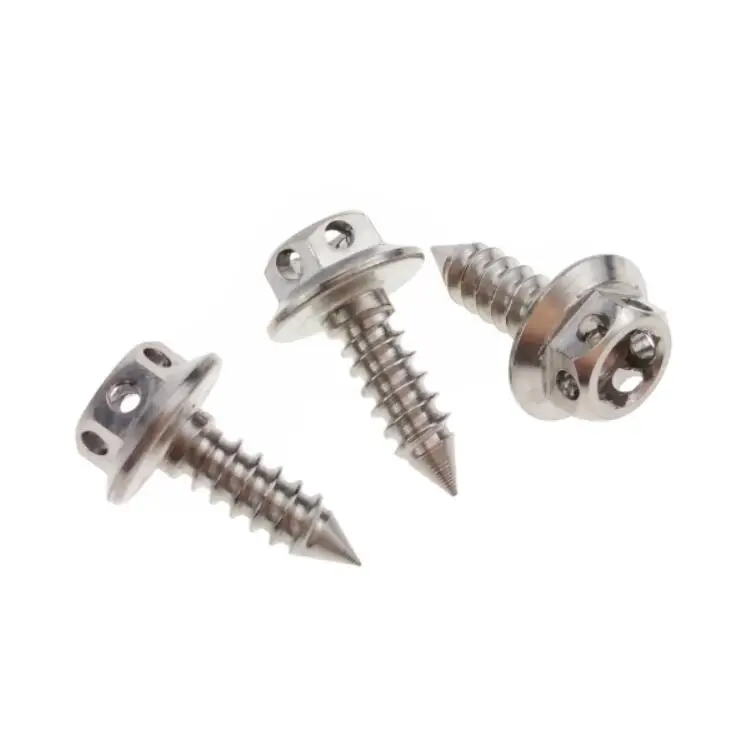

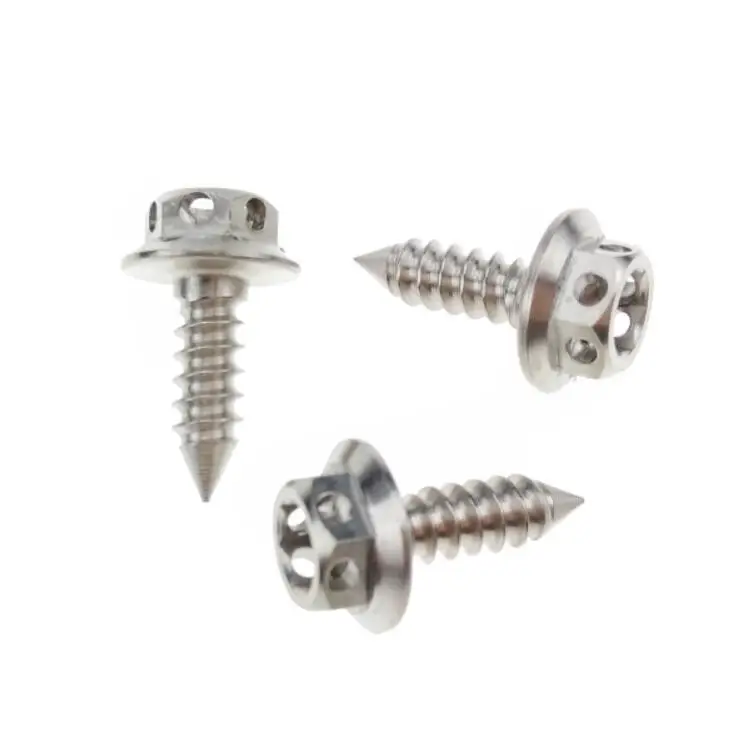

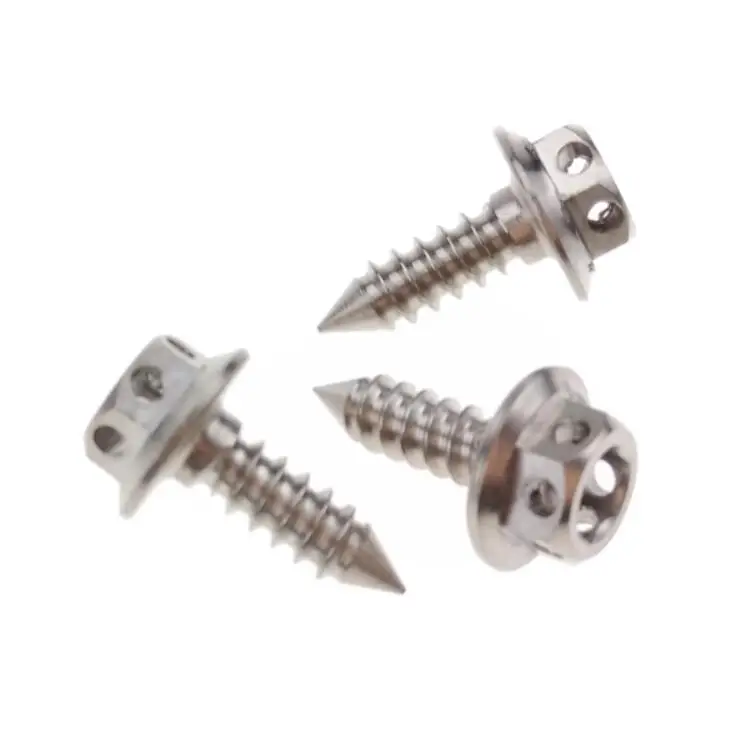

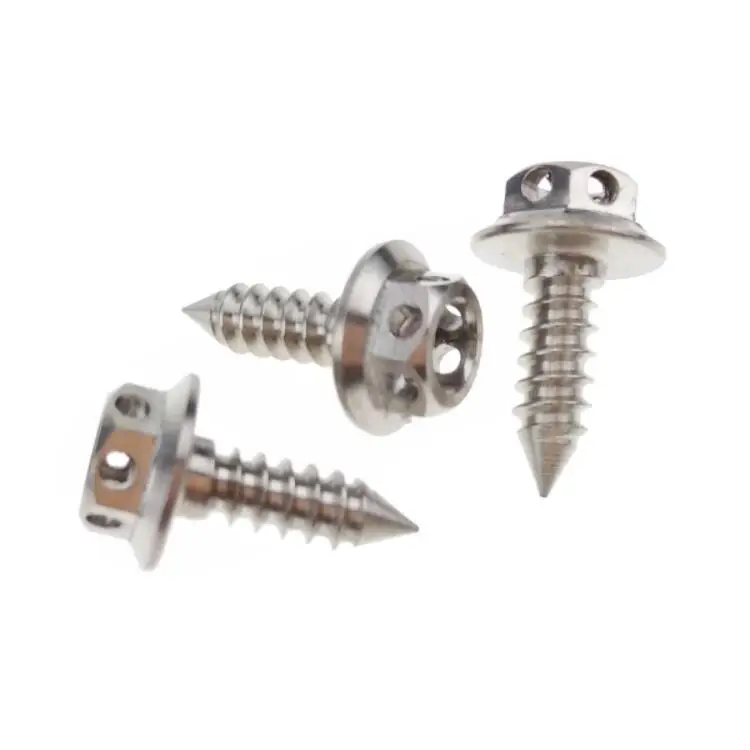

M6 Self Tapping Titanium Screws Hex Washer Head Fastener for Motorcycle Spare Parts TC4
General Description
Hex washer head self tapping screws are made from titanium alloy with grade TC4 , high tensile strength and resistance high temperature , hex washer head with holes in hex head side design and self-tapping threads , it is used for motocycle .
Technical Data
Material
Titanium
Physical Properties
Hardness ( HV )
350
Yield Strength ( Mpa )
490
Elongation ( % )
25
Tensile Strength ( Mpa )
680
Torque
10
Reduction Area ( % )
40
Specification
Thread diameter
M6
Thread Length
16
Pitch
Head Diameter
13
Head Height
4
Drive
Hex
Optional Specifications
d
P
L
#0
40
3-5
#1
32
4-8
#2
32
4-10
#3
28
5-12
#4
24
5-15
#5
20
8-20
#6
18
8-25
#7
16
8-30
#8
15
10-30
#10
12
10-60
1/4
14
15-80
5/16
12
20-100
7/16
10
30-200
Finish
Type
Thickness
Color
RoHS / REACH
Polish
5
Silver
RoHS
Product Features
1 . Harden material
Hex washer self tapping screws are made from titanium with high tensile strength .
2 . Not easy to be broken
Titanium screws with high tensile strength and harden material .
3 . Resistant high temperature
Max working temperature is 500 degree .
4 . Not easy to be rusted
Titanium screws with good anti-rust performance .
5 . Nice and smooth surface .
No burrs or scratch on surface
6 . No toxic and magnet
7. Solid stability .
8 . Long-service .
Applications
Hex washer head self tapping titanium screws are used for motocycle .
Tips for Use
1 . Use a six drive bit to drive screw .
2 . The thread moving direction is from right to left to drill into workpiece , and back out in reverse direction .
3 . Do not use a sharp tool or bladed tool to drive the screws .
4 . Do not scratch the screw in harden something in order to keep bright surface .
5 . Keep screw in the dry warehouse .
Packing Details
Bulk ( Bags + Carton )
Kg / Bag : 3
Kgs / CTN : 15
L X W X H : 20 X 20 X 20 cm
Boxes ( Boxes + Carton )
Kgs / Bag : 3
Kgs / CTN : 15
L X W X H : 20 X 20 X 20 cm
Pallets
Kgs / pallet : 1800
L X W X H : 1 X 1 X 2 m
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
