Product Overview

Description




     FOM is HWATEL PDH optical multiplexer serial equipment. FOM consist of Standard PDH, network PDH, Optical APS PDH, Optical MODEM, Multi Service PDH, Voice PDH, PDH poll, Modular PDH and Network Management System 7 serial over 30 models of device. All of PDH are equipped with HWATEL elaborate designed core ASIC give much higher technical performance than ITU-T standard.

    Over 20 years history , over 50 countries,OEM to Alcatel(SHANGHAI), Marconi, HUAWEI, ZTE, WRI, DLINK and many TAIWAN company





FOM-4E1-4Eth

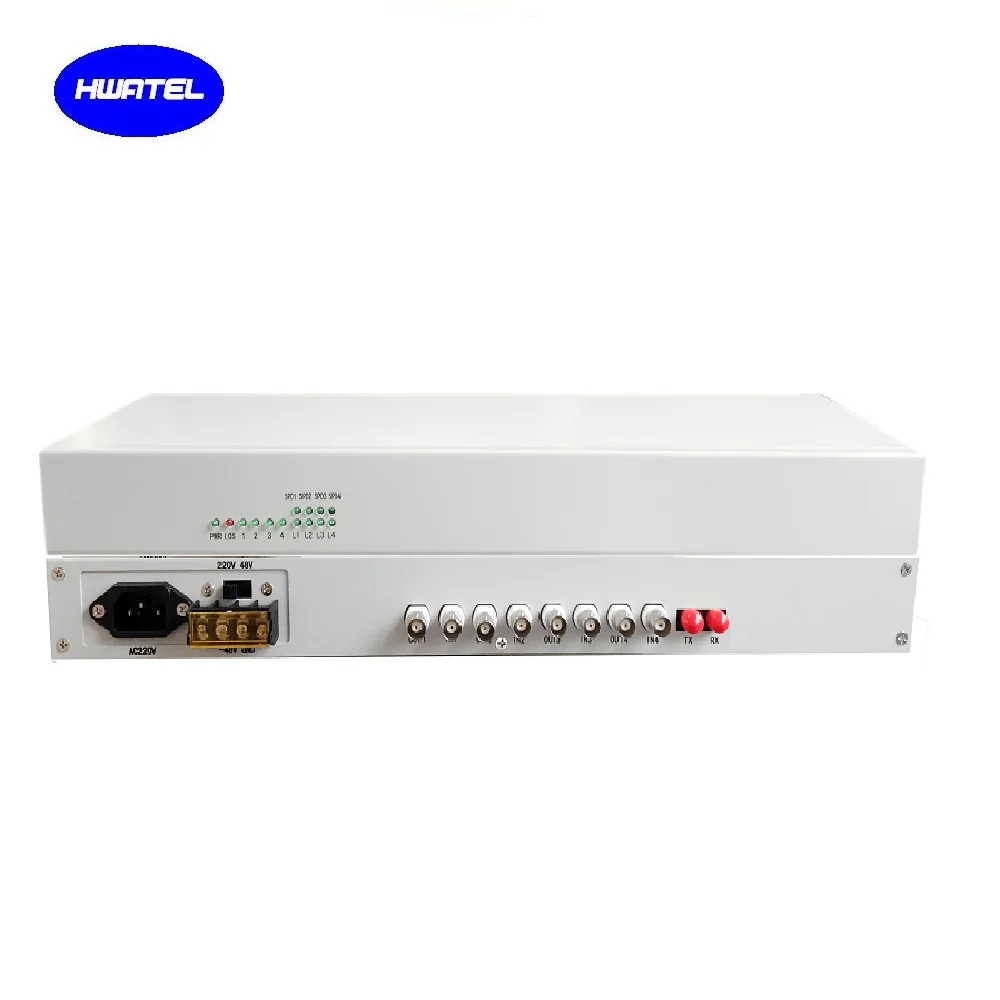

4 port E1 75 ohm 4 Ethernet PDH Fiber Optcial Multiplexer



HWATEL PDH Family


 Feature

  • Optical speed : 155 Mbps
  • 4 E1 ports
  • 4 port Fast Ethernet
  • Impedance: 75 ohm, BNC connectors or 120 ohm ,RJ45
  • share 100 M bps bandwidth
  • Support 850 nm, 1310 nm and 1550 nm, range from 1 Km to 120 Km
  • Option single mode single fiber (WDM)
  • Support DC, AC, AC+DC and DC+DC redundancy
  • Standalone 19” 1U Shelf
  • Card for 6U HT-COMM Rack
  • Diagnostic capabilities including local and remote loop back
  • all products feature LED status indicators, AIS alarm generation
  • Support ALS
  • Option order wire
  • Option RS-232 asynchronous
  • Option RS-232 configuration and monitoring port is provided for dumb terminal. Commander Line interface easy to configure
  • HTView for FOM NMS, user-friendly, GUI-based software runs on PC/Windows

Detailed Images

 FOM-4E1-4Eth-ALL




Order Information



  • FOM-4E1-PS-ohm-F:                   4 E1 75 ohm  1U
  • FOM-4E1-PS-ohm-F-desktop:       4 E1 120 ohm desktop
  • FOM-4E1-4Eth-PS-ohm-F:           4 E1 120 ohm +4 Ethernet, 1U

             ohm:

                  75: 75 ohm,

                  120: 120 ohm

             PWR:

                  DC: DC48V;

                  AC:AC220;

                  AD: DC+AC

             F:

                   D20/D40/D60/D80/D100/D120  Dual core 20/40/60/80/100/120 KM

                   S10/S20/S30/S40/S60/S80        Single core 10/20/30/40/60/80 KM
