fryums extruder screw and barrel for pet food/fried food /food processing screw and barrel plastic & rubber machinery parts

Product Overview

Description

As our special advantage products,food screws used for inflating machines to make leisure food like rice bread,rolling snack,etc.

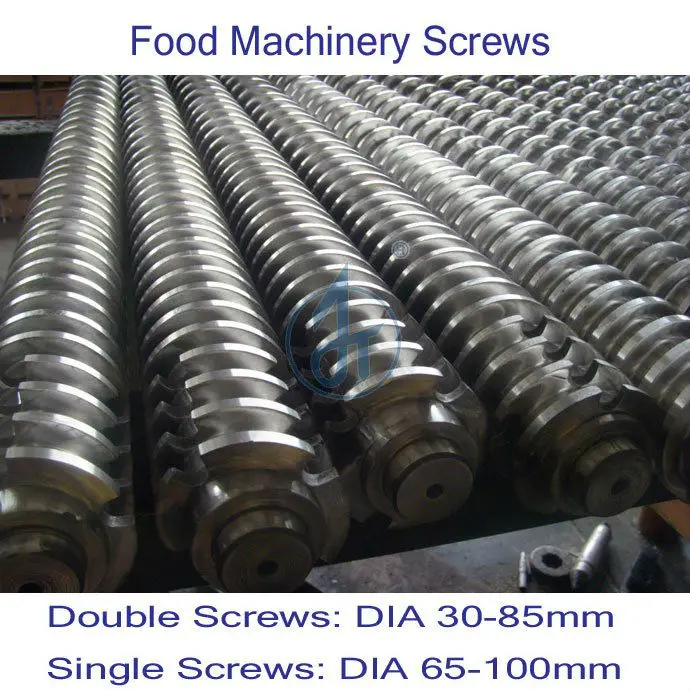

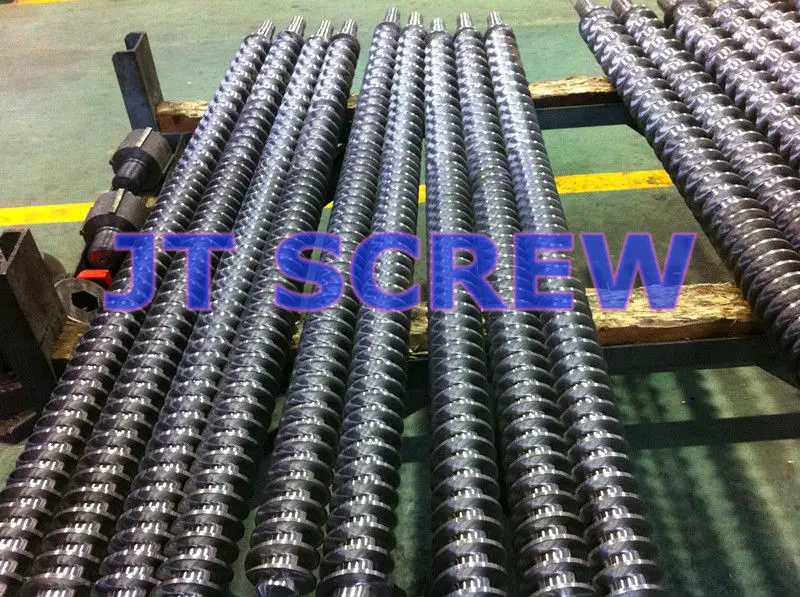

Screws for inflating food extruders

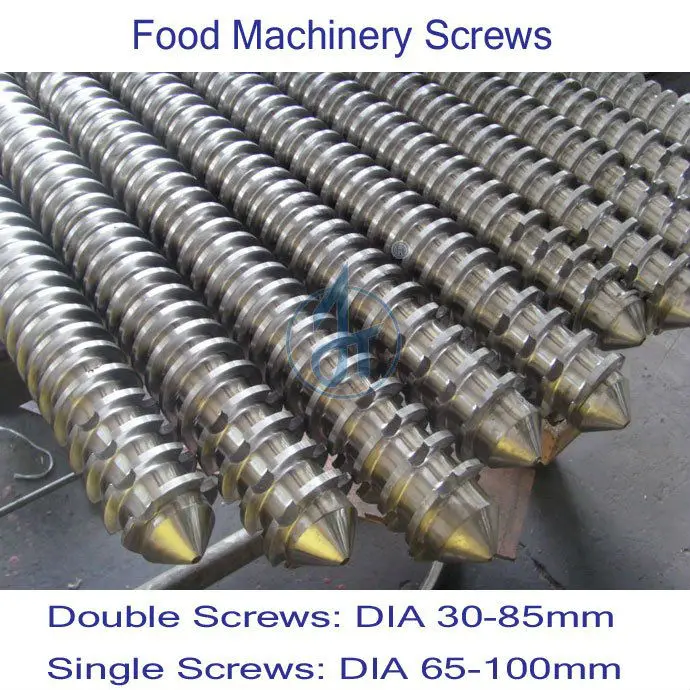

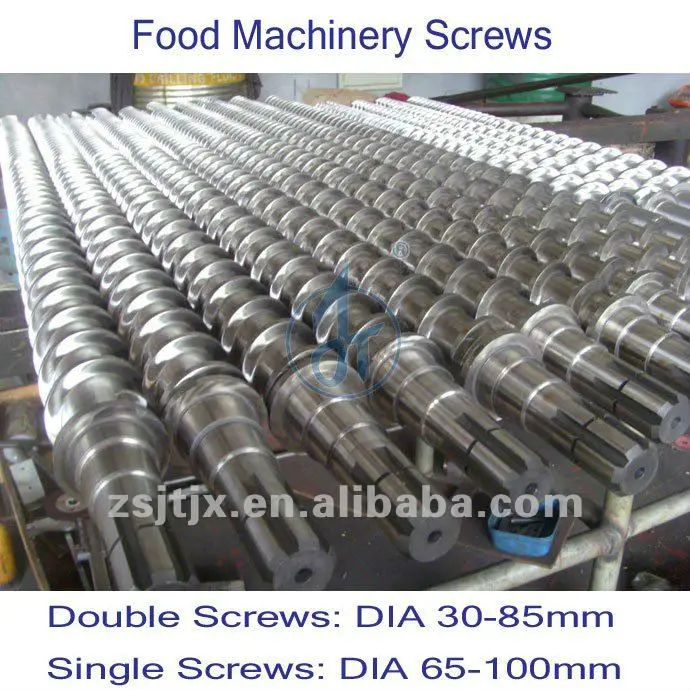

Double screw extruders: Dia30--85mm

Single: Dia65--100mm



The compression ratio of the screw can be designed according to different products and mixtures.









Technical Index





1.Hardness after hardening and tempering: HB280-320

2.Nitrided Hardness: HV850-1000

3.Nitrided case depth: 0.50-0.80mm

4.Nitrided brittleness: less than grade 2

5.Surface roughness: Ra 0.4

6.Screw straightness: 0.015 mm

7.Surface chromium-plating's hardness after nitriding: ≥900HV

8.Chromium-plating depth: 0.025~0.10 mm

9.Alloy Hardness: HRC50-65

10.Alloy depth: 0.8~2.0 mm





Materials & Processes



1.Quality 38CrMoAlA (JIS SACM645)

2.Quality Duplex Stainless Steels

3.42 CrMo (JIS SCM440)

4.40Cr

5.GH113

6.SKD11

7.SKD61 (H13)

8.Gr12MoV

9.Quality Powder Metallurgy Raw Materials

10.Cold/Thermal Spray Hard Metal Process

11.Advanced nitriding Process

12.Corrosion & Abrasion Resistance Bimetal Spraying Process

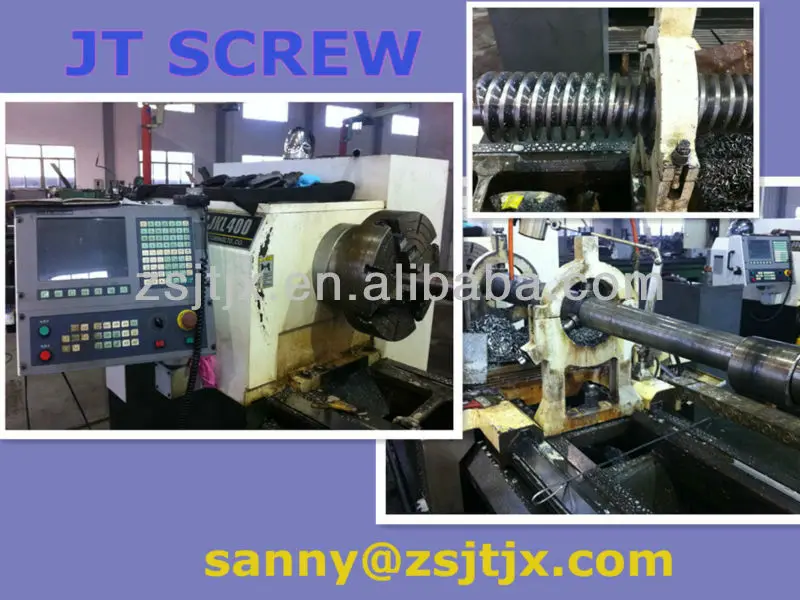

CNC Milling Machine











7.2 meters pit tempering furnace

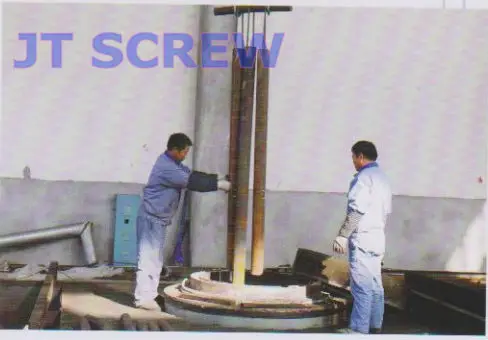

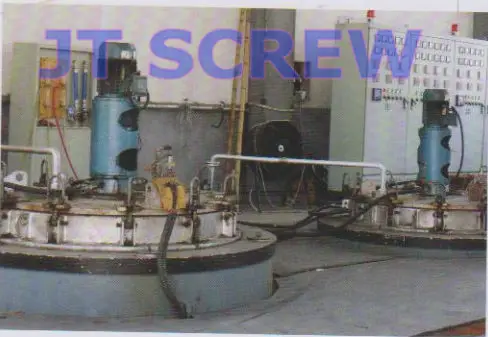

7 meters pit nitriding furnace







Corner of the workshop

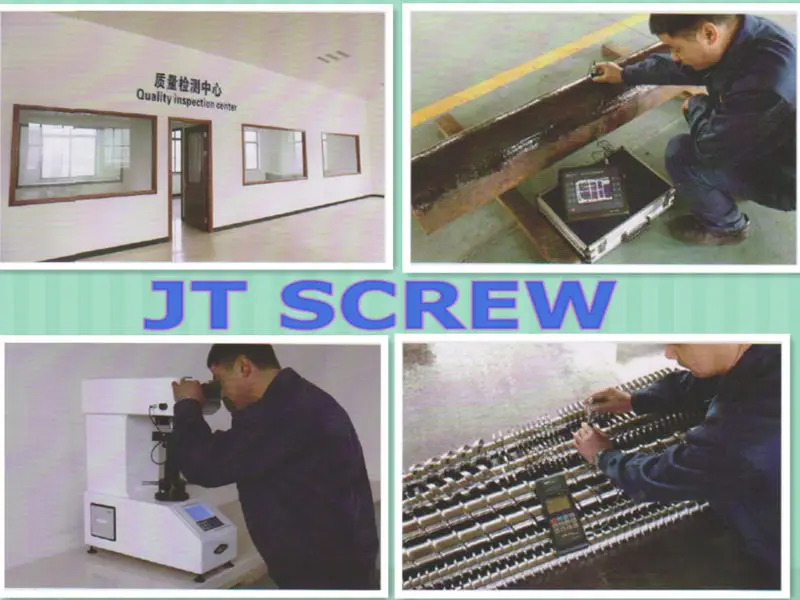

Quality Control



1.Management System:ISO9001:2008



2.Advanced quality inspection center





3.Digital vickers hardness tester





4.Portable’s hardness machine





5.Metal ultrasonic flaw detector











Packing

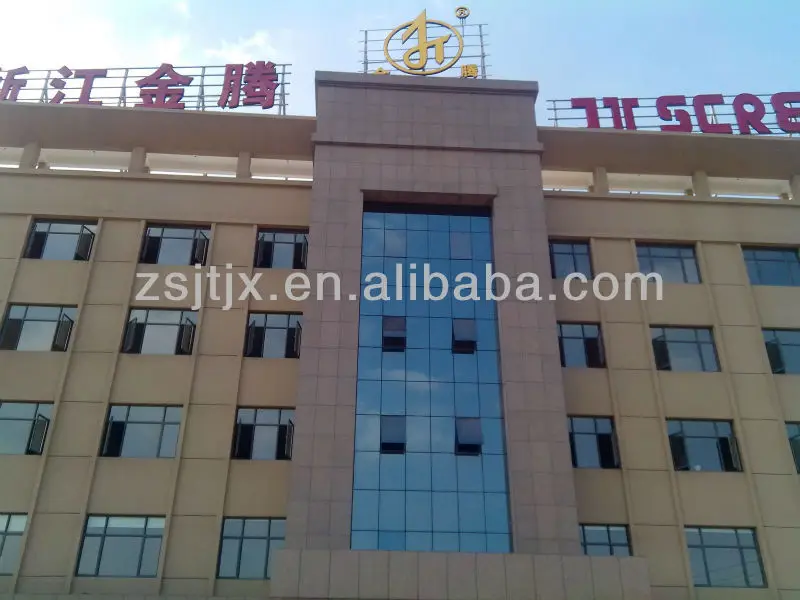

office building









Welcome your inquiry about any more info you like.
