China Famous Brand Automatic UV LED Drying Machine for Bottles Cups Jars New and Used Condition for Paper Cutting

Share on (796324195):


Price:$5,180.00

Quantity:


Product Overview

Description



Product Description

       LED UV is a low-temperature light source with low heat radiation. It can replace the traditional mercury UV lamp, which can reduce the defects of high temperature on the surface of the illuminated object and cause product deformation. The LED-UV light source emits high-purity single-band ultraviolet light, which has less damage to the skin and eyes. In addition, the LED UV light source can emit light without the excitation of instantaneous high voltage, and the safety is greatly enhanced.
       The LED UV light source is installed on the flat UV curing machine and the curved UV curing machine to become a special LED UV curing machine. It has a good application in the cosmetics industry with the screen printing machine, and the application in the automatic screen printing machine is also gradually popular.

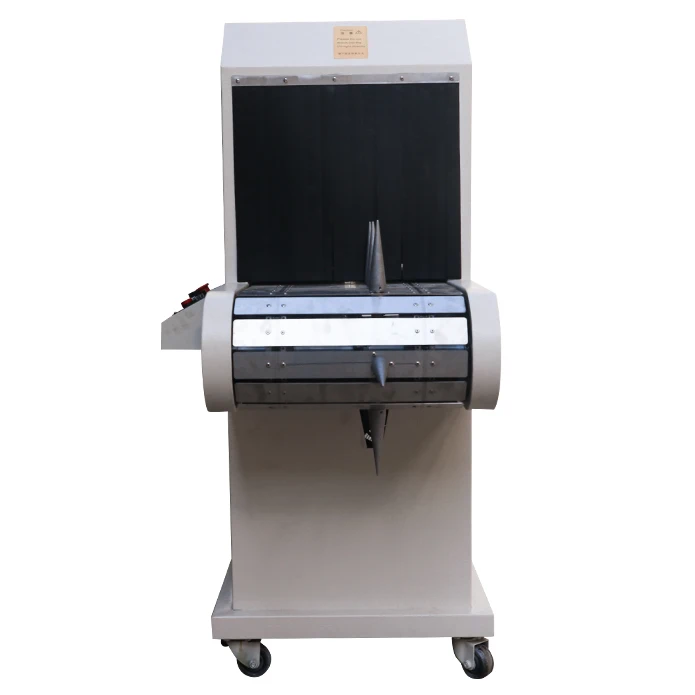

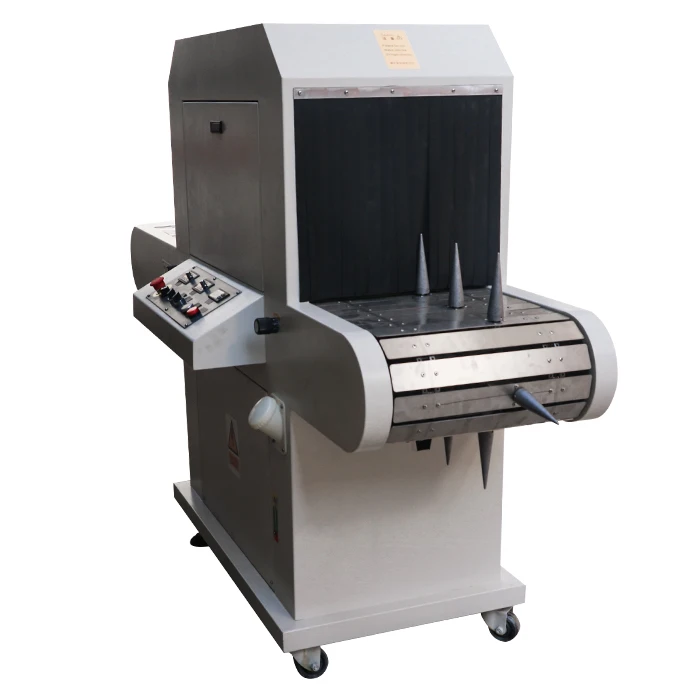

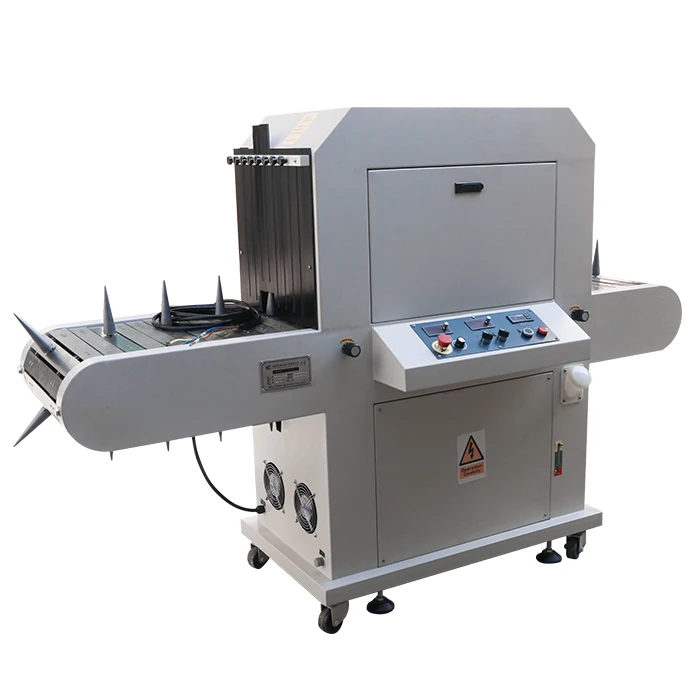

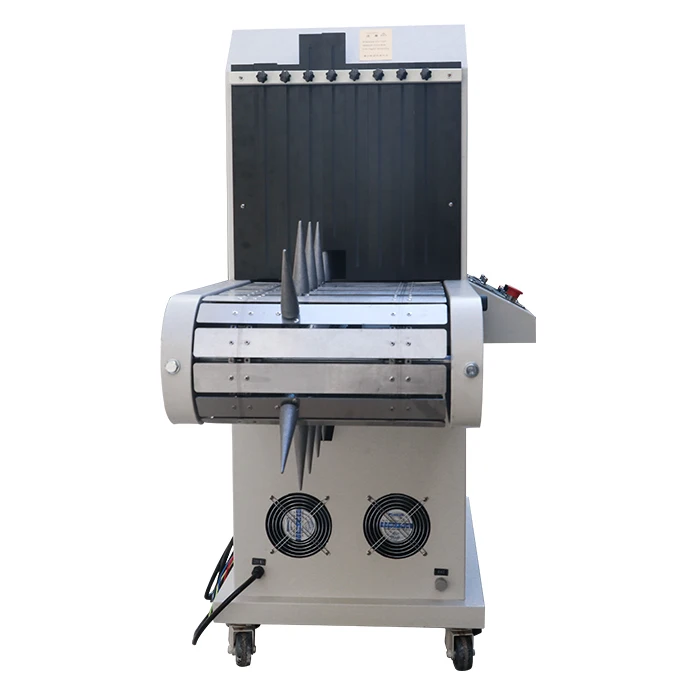

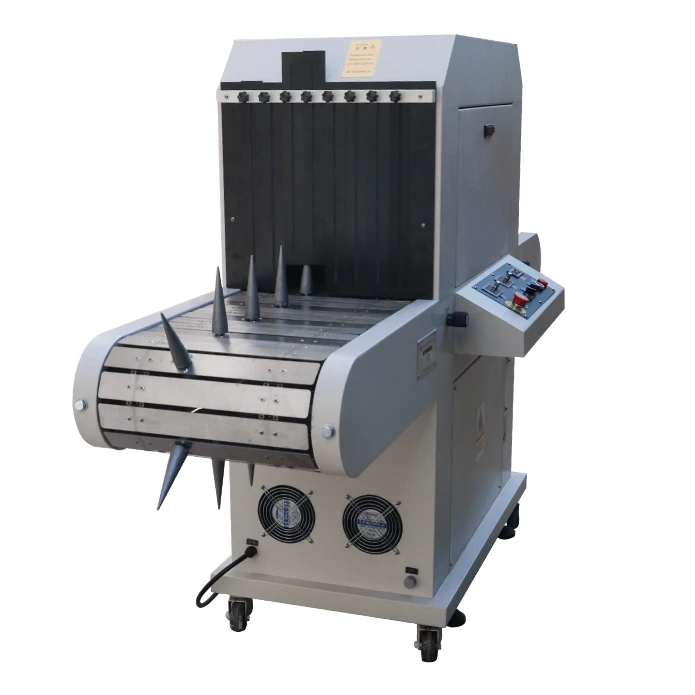

M-3000LEDUVS Cylinder UV Drying Machine//Usage and characters



Guide




  • It is mainly used for drying the ink layer after printing UV ink on hollow bottle products made of various plastics, metals and glass;

  • Compact structure, high curing efficiency, widely used in cosmetics, plastic packaging and other industries;

  • The bottle can be automatically rotated after entering the curing unit, so that the UV light can completely irradiate the surface of the bottle and improve the curing efficiency;

  • Stainless steel sheet conveyor belt, better temperature resistance;

  • At present, the more environmentally friendly ink drying method;

  • A light-emitting diode is used to light up and emit ultraviolet light with a main peak of about 400 nm, and the acrylic resin of the ink is irradiated on the ink layer to cause cross-linking and curing of the ink.

  • Water cooling system is adopted to improve the service life of LED UV light source.



Application fields




  • Electron, Hardware, Auto, Toys, Gifts, Plastics parts,

  • Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .



M-3000LEDUVS Cylinder UV Drying Machine//Parameter



Technical parameters




  • Max. curing size of workpiece: Cylinder:300X200mm

  • Conveyor speed:0~10m/min ;

  • Total power:3.5KW;

  • Outline dimension:2100X600X1700mm ;

  • Conveyer width: 400mm;

  • LED Lamp Wattage: 2*1500W;

  •  Power supply: 1 Phase 220V.



Works supply




  • Power: 1 phase 220V.



Package list




  • Package dimension:2.250×0.870×1.900m;

  • Gross weight:330KG;

  • CBM: 3.7193



H.S.Code



8443198000



Certificate



CE



M-3000LEDUVS Cylinder bottle UV Curing Machine//Advantage



Function




  • Stainless steel conveyor belt, high temperature resistance;

  • Driven by a famous brand motor, the speed can be adjusted steplessly, which is convenient to adjust the conveying speed according to the product characteristics;

  • LED UV light source, the surface temperature of the product is low, and the product is not easily deformed during the curing process;

  • No need for high pressure excitation, high safety performance, saving tender tubes

  • With a water cooling system, it can effectively reduce the temperature of the LED tube and improve the service life;

  • UV ink light curing for the surface of round objects improves the light curing effect of round objects.



Main configuration




  • Operation panel

  • LED UV system

  • Water cooling system

  • Conveyor and rotating device



Accessories included




  • Operation instruction in English;




Details

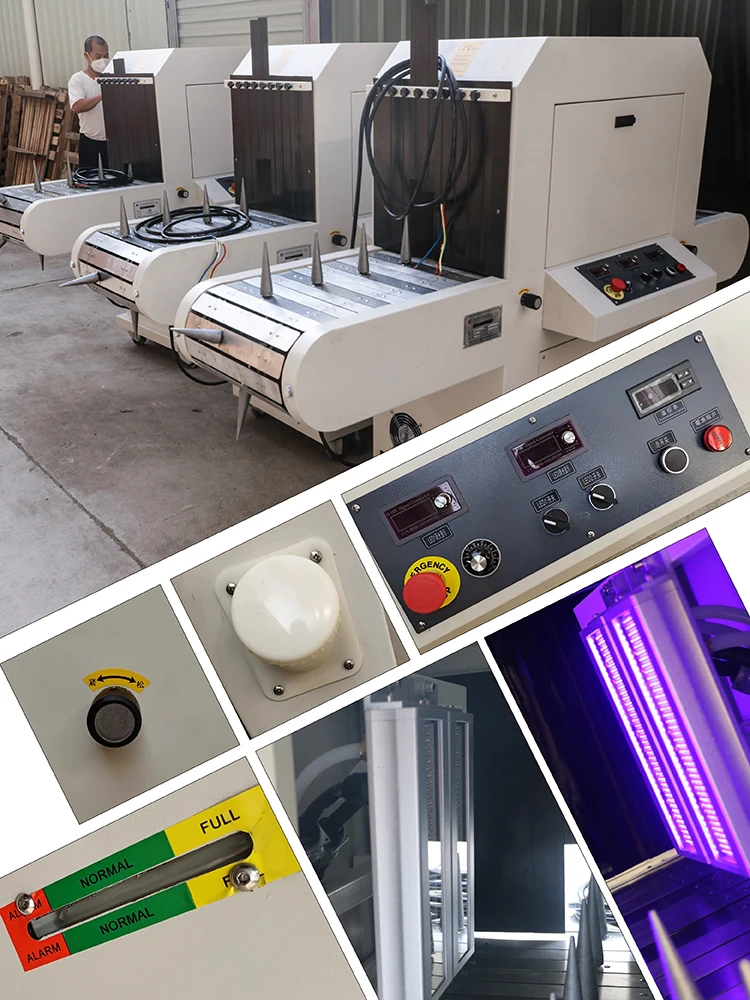

LED UV.jpg

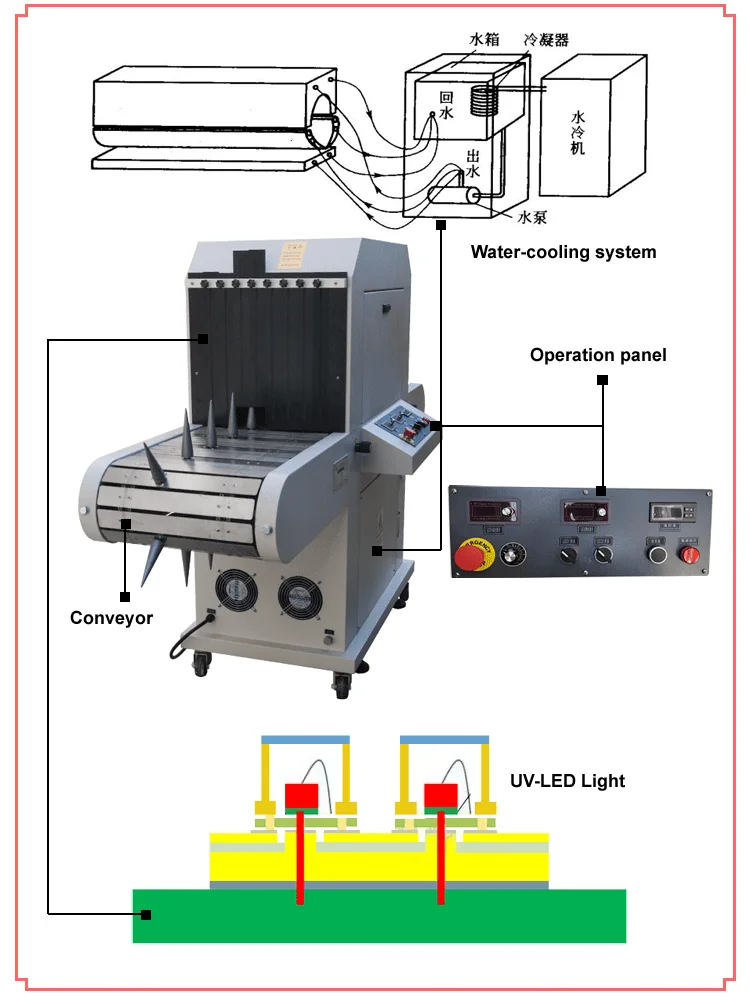

Structure

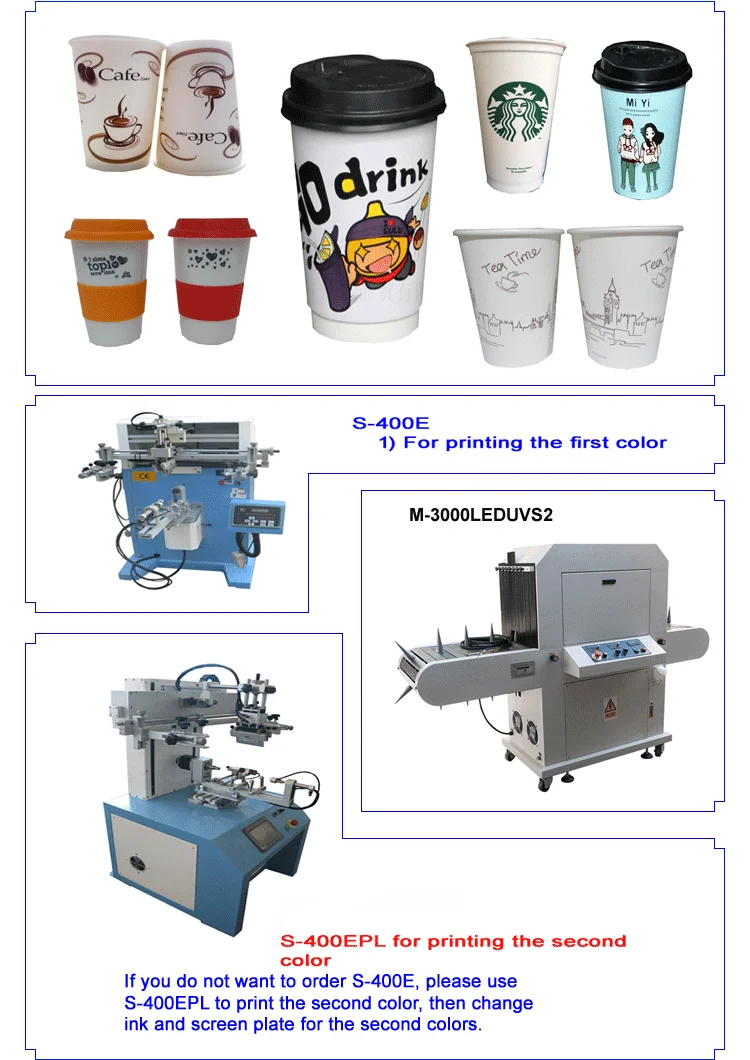

Application



LED UV is a low-temperature light source with low heat radiation. It can replace the traditional mercury UV lamp, which can reduce the defects of high temperature on the surface of the illuminated object and cause product deformation. The LED-UV light source emits high-purity single-band ultraviolet light, which has less damage to the skin and eyes. In addition, the LED UV light source can emit light without the excitation of instantaneous high voltage, and the safety is greatly enhanced.
The LED UV light source is installed on the flat UV curing machine and the curved UV curing machine to become a special LED UV curing machine. It has a good application in the cosmetics industry with the screen printing machine, and the application in the automatic screen printing machine is also gradually popular.







Why use LED UV curing machine


     The LED UV curing machine uses ultraviolet light with a luminous wavelength of 400NM as the curing light source, which has low luminous temperature, low thermal radiation, and low surface temperature of the illuminated object. Compared with mercury ultraviolet lamps, LED UV light causes less skin damage and less damage to human eyes. Moreover, LED-UV light source emits high-purity single-band ultraviolet light with almost no infrared output. Will not be deformed by heat.


LED UV lamps do not need too high voltage when starting, thus saving energy, high safety, and reducing electric shock accidents caused by high voltage.







Our clients







Our Services


service



  • Printing machinery industry  Alibaba 17 years golden supplier .

  • 25 years of sales experience. areal understanding of customer need.

  • Clearly marked price, earn consciencemoney. Profits no more than 20%.





Company Information


       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!













Excellence in product quality depends on the high precision machining equipment;

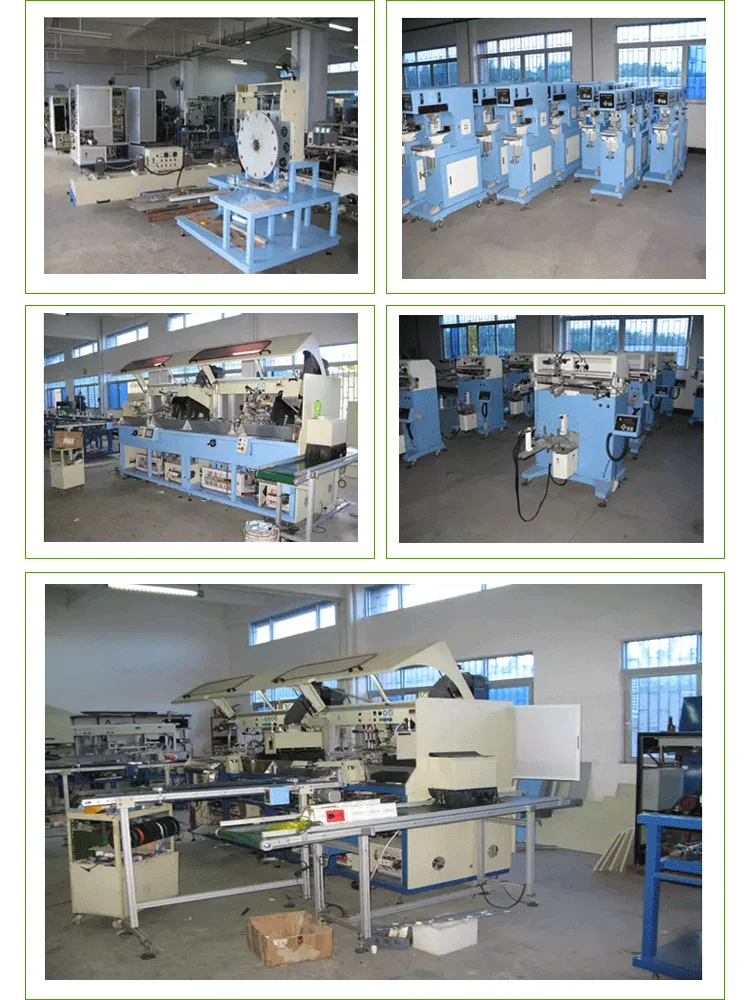

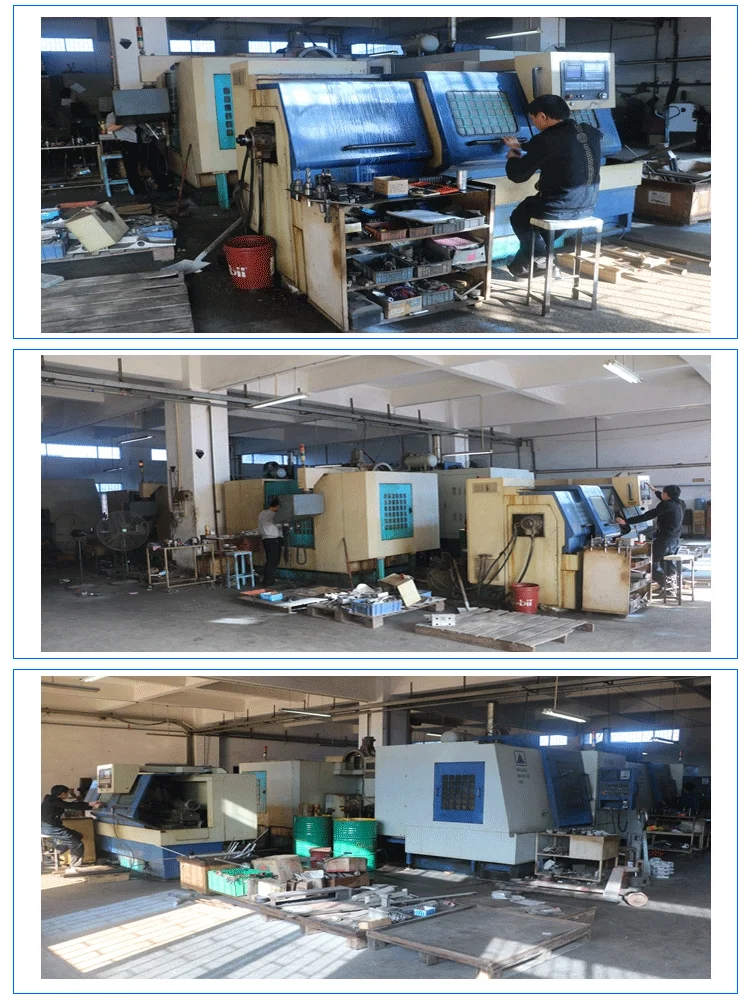

The company has dozens of leading domestic CNC, pad printing machines, silk screen printer, hot foil stamping machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment.
