SWP series plastic PVC Pipe profile shredder grinder crusher machine

Product Overview

Description

SWP series plastic shredder grinder crusher machine



Specifications

SWP series plastic shredder grinder crusher machine

1. applied for crushing plastic material,pipe,profile,noard etc

2. easy to operate

SWP series plastic shredder grinder crusher machine



SWP series plastic shredder grinder crusher machine is mainly used for breaking relatively long PVC special shaped material, such as plastic door & window, plastic pipe, sheet, etc. there is no need to cut. Once continuous feeding can be conducted. Internal design of SWP Series Horizontal Plastic Breaking Machine is rather distinct.

It is a new kind of crushing machine used for crushing plastic profiled material with large hardness and tenacity. It is improved and extended on the basis of SWP series two models. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair is rather simple. It is an ideal model for crushing all sorts of pipe material and profiled material.



Main technical parameters:



Model			SWP300	SWP400	SWP500	SWP600	SWP500A	SWP500B	SWP600A	SWP600B
Rotary Knife Diameter(mm)			400	400	400	400	400	600	400	600
Rotary Knife Quantity (unit)			3	5	5	10units/2groups	6units/2groups	6units/2groups	6units/2groups	6units/2groups
Rotary Knife rpm(r/min)			600	500	500	480	500	480	480	480
Static Knife Quantity(unit)			2	2	2	2x2	2	2units	4units/2groups	4units/2groups
Sieve Aperture(mm)			φ10	φ12	φ12	φ12orφ14	φ10	φ12	φ14	φ14
Crushing Capacity(kg/h)			150-200	300-400	400-500	500-700	250-350	300-450	350-500	400-650
Power(kw)			13.2	18	18-22	33	25	25-30	33-40	33-40
Power Source			3 380V 50Hz
Feed Door Caliber(mm			300x200	350x300	500x300	650x300	500x280	500x350	650x280	650x350
Weight(kg)			950	1300	1500	1800	1600	1800	2250	2800
Dimensions(mm)			1600x800x1600	1800x900x1800	1800x900x1800	1800x1100x1850	1800x1000x1850	1800x1160x1880	1800x1200x1900	1800x1200x2000

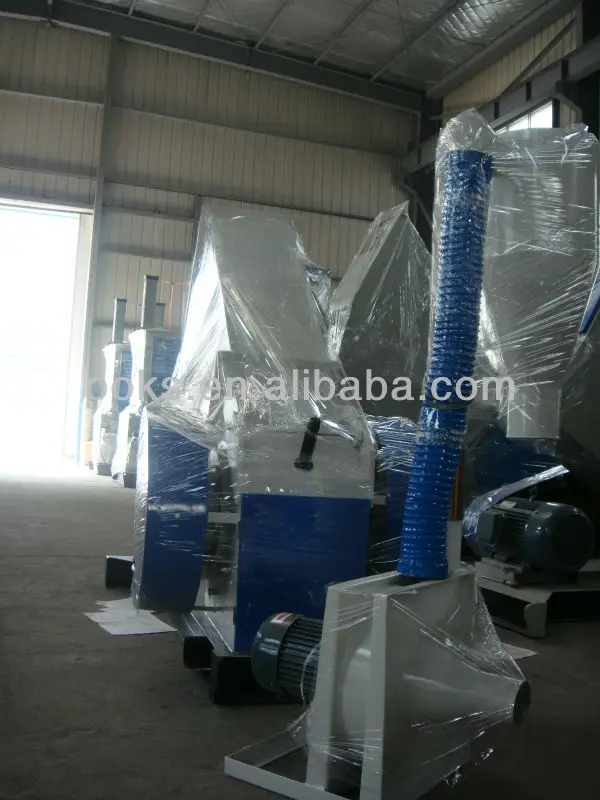

Pictures for reference:

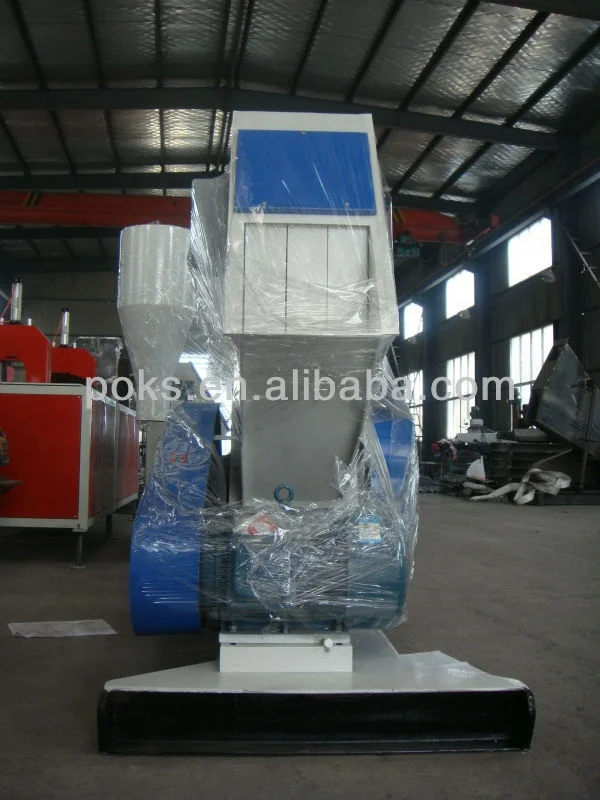

From the front

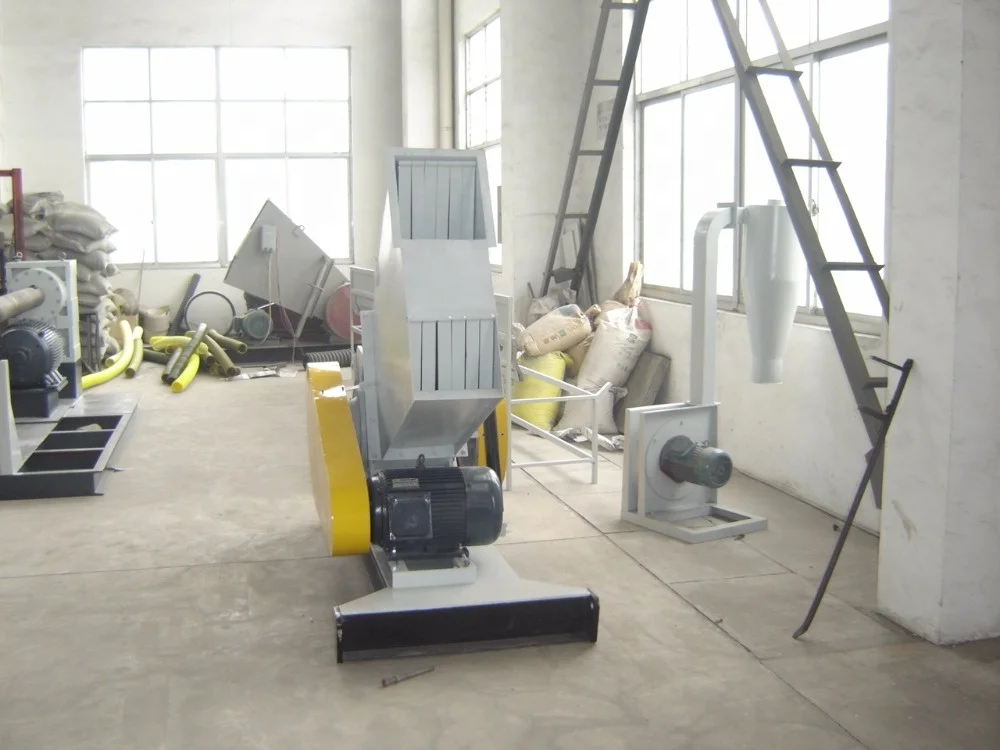

From the side

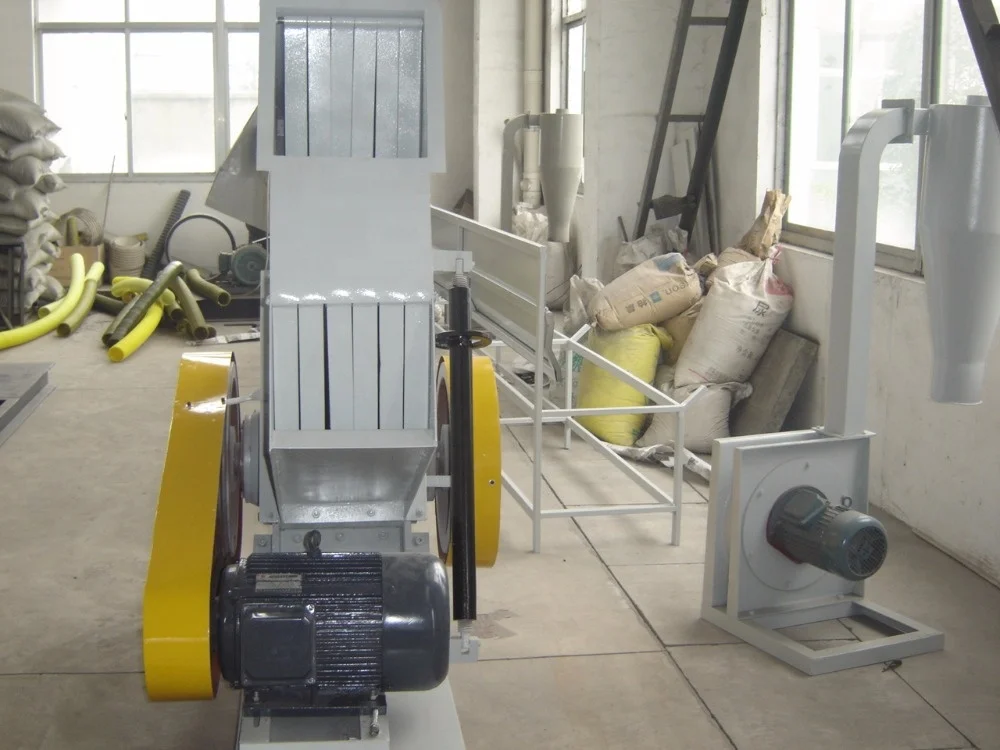

From the back

For more information,please feel free to contact us!
