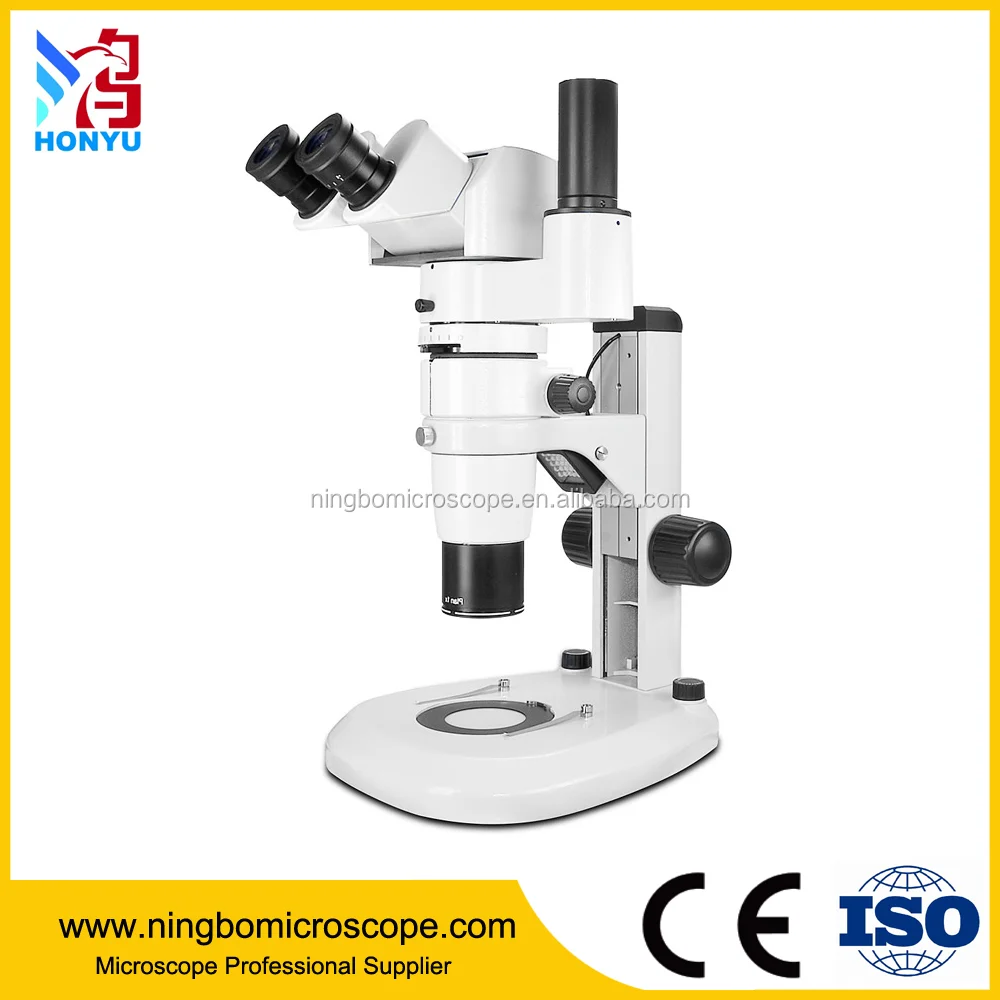

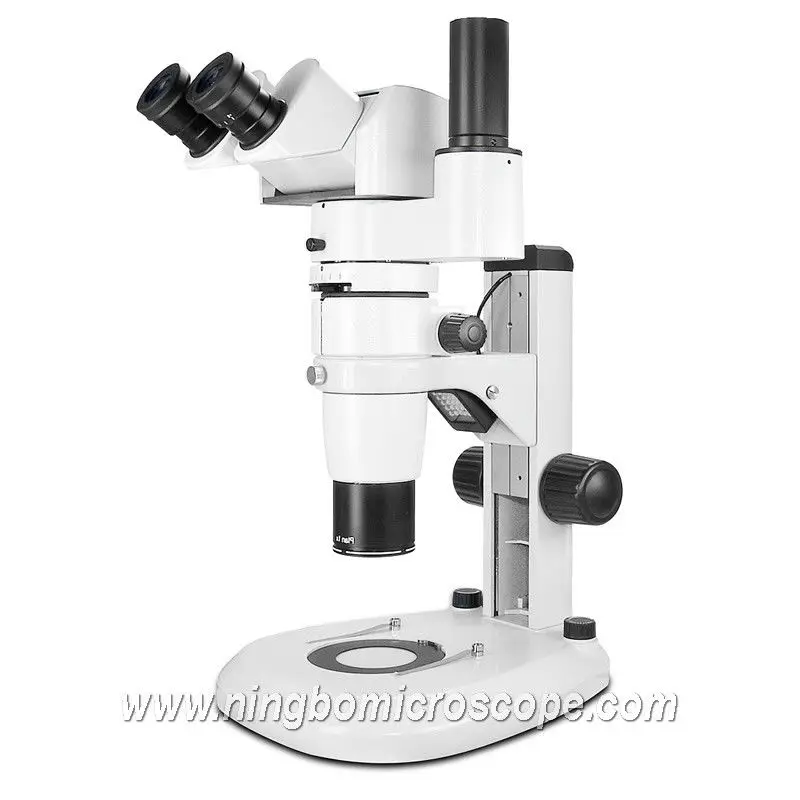

ZOM.06.SZT8T 0.8 8x/0.8 6.4x/0.8 5x Trinocular Stereo Zoom Microscope

Product Overview

Description



   Stereo Zoom Microscope



Description and Notes



--Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.



--Comfortable Operation with Ergonomic Design Principle.



--With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.



--A Wide Range of Accessories to be Equipped with the Microscope for Multi-purposeIt is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.



Specification



ZOM.06.SZT		810T	808T	806T
Head	Tilting Trinocular Head, 0°-35°	*	*	*
Eyepiece	EW10X/22	*	*	*
Zoom Objective	0.8x-5x	-	-	*
	0.8x-6.4x	-	*	-
	0.8x-8x	*	-
Zoom Ratio	1: 6	-	-	*
	1: 8	-	*	-
	1: 10	*	-	-
Objective	Plan Achromatic Objective 1x	*	*	*
Working Distance	78mm	*	*	*
Focusing	Focusing Range 105mm	*	*	*
	Coaxial Coarse & Fine Focusing Unit	*	-	-
Illumination	Transmission or Reflection LED Illumination, Brightness Adjustable	*	*	*

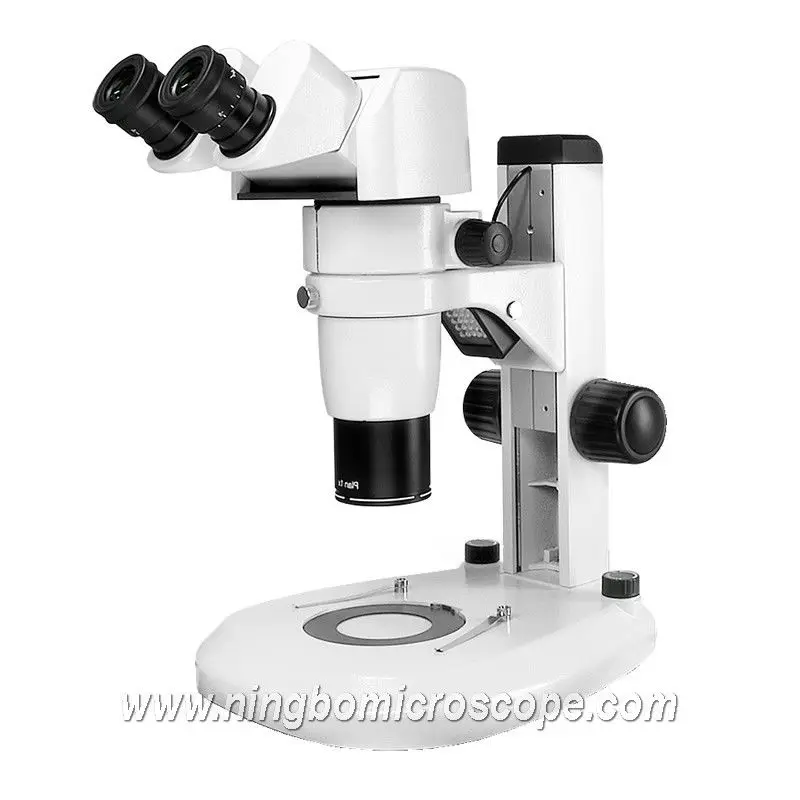

This microscope also has the Binocular  model - ZOM.06.SZT8



Optinonal Accessory



Name of Parts
Drawing Tube	Photo Attachment(one way photo tube)
	Photo Attachment(two way photo tube)
Eyepiece	WF15x/16
	WF20x/12
Objective	Plan Apo-chromatic Objective 0.5x
	Achromatic Objective 0.5x
	Plan Achromatic Objective 2x
	Achromatic Objective 0.3x
Fluorescent Attachment
Dark Field Attachment
Simple Polarization Set
Iris Diaphragm
Stage	Mechanical Stage
	Temperature Stage
Photo Attachment
Video Attachment
