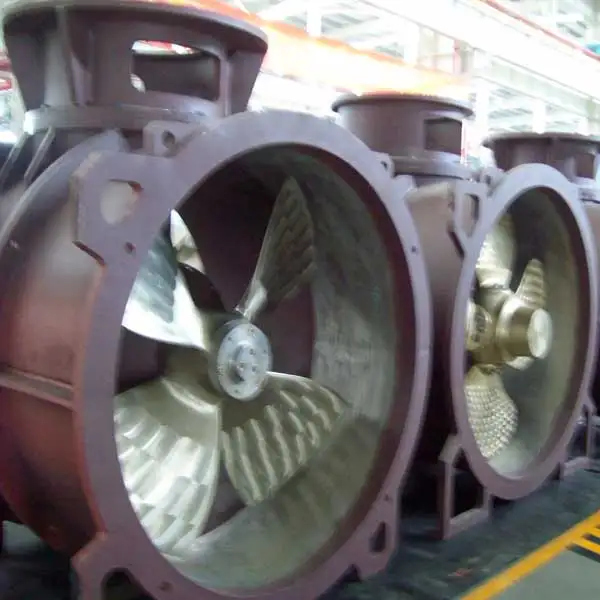

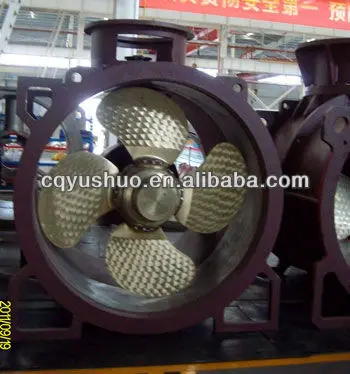

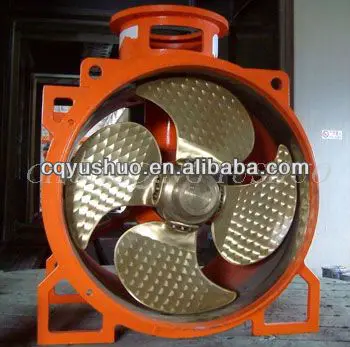

Управляемый шаг пропеллера типа туннель Thruster/лук Thruster для корабля

Product Overview

Description

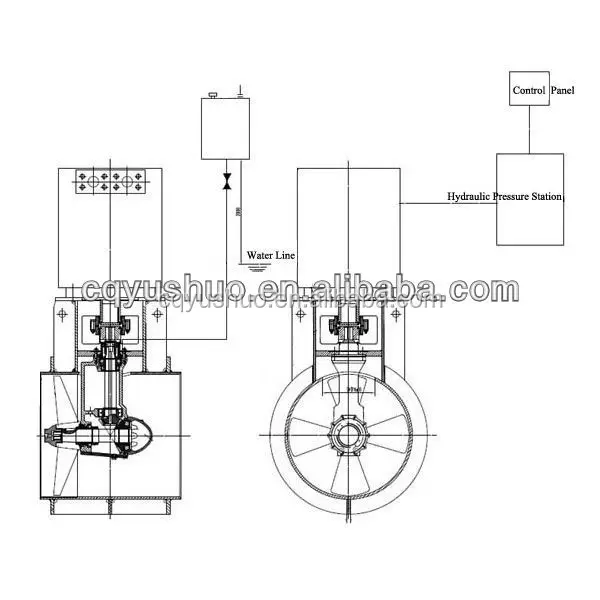

 The controllable pitch propeller type tunnel thruster is normally including prime mover, hydraulic system, remote control system and thruster itself. The prime mover is usually electric motor; sometimes, it also could be the diesel engine or hydraulic motor; the remote system can connect Joystick and DP interface. The thruster itself can be transformed to be retractable configuration when coupled with the hydraulic cylinder.



Input power: 30kW to 700kW

Rotate speed: 590rpm/min to 1750rmp/min

Frequency: 50Hz, or 60Hz

Diameter of propeller: ø1100mm to ø3300mm

Length of barrel: 1045mm to 2685mm

Wall thickness: 12mm, 15mm



Bow Thruster, Stern Thruster, Side Thruster







I. Packaging Methord:

    1. Wooden Csse;

    2. Iron Frame;

For different shipping methods and destinations, we will suggest different packaging. If you have any requirement for the packaging, please let me know during enquiry.



II. Shipping:

    We offer our clients one-stop service. The shipping tool can be by sea, by air or by train. It depends on the destination of our products. And we will suggest you the min. cost and min. damage of the products.



  Product Range: Marine Equipemnet, Offshore Equipment & Dock Equipment, etc.

  Customer Range: Shipyards, Shipowners, Ship Managers, Engineering Companies, Constructors, Trading Companies, Wholesalers, etc.

   Design Ability: We have a very experienced, creative, and cooperative team, which can design the whole propulsion system according to different vessels and requirements.

   Material Preparation: our purchasing dept. will choose the material from many aspects, such as cost, quality, machining, environment protection, etc.

   Machining & Test: We have advanced processing equipment with responsible crews. Our factory also have strict quality control process and test skills.

   After-sale Service: You will get the after-sale service all over the world. Convenient, Fast, High Efficiency, World-wide, etc.



Best service will be enjoyed by cooperating with us.





And different certificates will be availbale, such as CCS, ABS, BV, DNV, NK, KR, LR, GL, RINA, etc.
