Password PIN Code and MF Card Reader Time Attendance and Access Control System with TCP/IP (SC105)
- Category: Time Recording >>>
- Supplier: Vanshui Enterprise Company Limited
Share on (798676116):
Product Overview
Description
Product Description

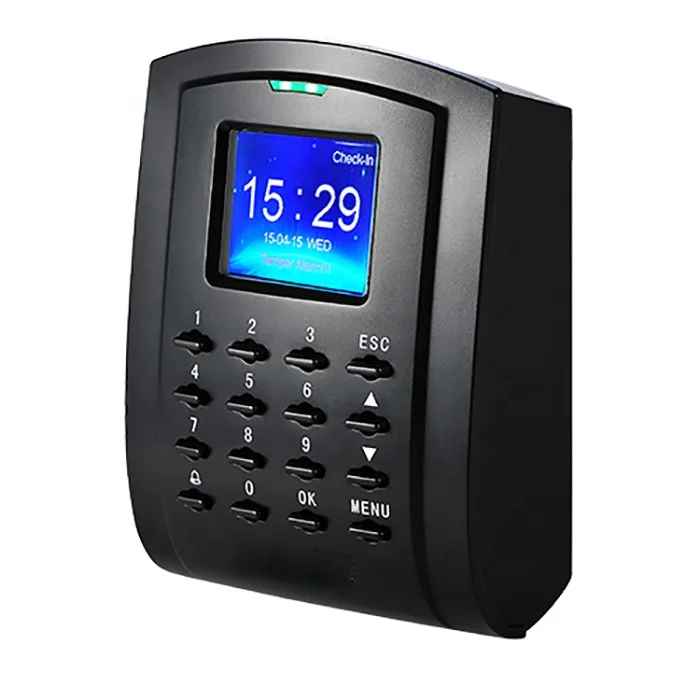

SC105 is a RFID Access Control Terminal which possesses a 2.0-inch color display with graphical UI, enabling simple and easy control. It has a built-in auxiliary input function which enhances the flexibility to be connected with wired detector or emergency switch. With multi-verification methods by combinations of PIN, password and card, high level of security and flexibility are guaranteed. Moreover, the product supports USB flash drive for offline data management, as well as is equipped with multiple alarm outputs such as Tamper Proof Switch and Duress Alarm. Its convenience and adaptability allow it to be well deployed in
residential housing, offices and any other public facilities.
Basic Features
• 2.0-inch color display with graphical UI for easy operation
• Up to 24 user-defined schedules that can be activated on a daily bell alert
• Prompt audio acceptance or rejection signals for valid or invalid cards
• TCP/IP or RS485 communication for various networking environments
• Supports USB flash drive for offline data management
• Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
• Multi-verification methods to enhance security level
• Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
• Duress Alarm offers effective protection against duress by threats
• Tamper Proof Switch and multiple alarm outputs
• Multi-languages
Specification
Color Screen | |
Speaker | Voice prompt(Language can be selected) |
Language | More than 40 language can be selected |
Capacity | MF Cards: 30,000 Logs:80,000 |
Verification | Verification speed(1:1)<=0.5s Identification speed(1:1)<=20s |
Attendance Status | Check in , Check out, Break in, Break out, OT in, OT out |
Communications | TCTP/IP, RS232/485, USB Host/Client, Wiegand in/out |
Access Mode | Card only, PIN only, Card+PIN |
Function Support | Work code, SMS, 9 PIN user ID, Auto status |
Environment | Operation temperature: 0-45 degree Operation humidity: 20%-80% |
Power Supply | 110/220VAC-12VDC 3A(PS-3A is optional item) |
Access Control | 50 times zones, 5 groups, 10 open door combination, supports multi-users enter, TTL for connecting to lock, door sensor, exit button, alarm |
Package Info. | Machine size: 13.5(L)*9.5(W)*4.5(H)cm Unit packing:25*15*9cm Carton packing:53*33*45cm Real weight:0.75KG Volume Weight: 1.5KG |
Customize Function | Websever; Anti-pass back; ID card reader |

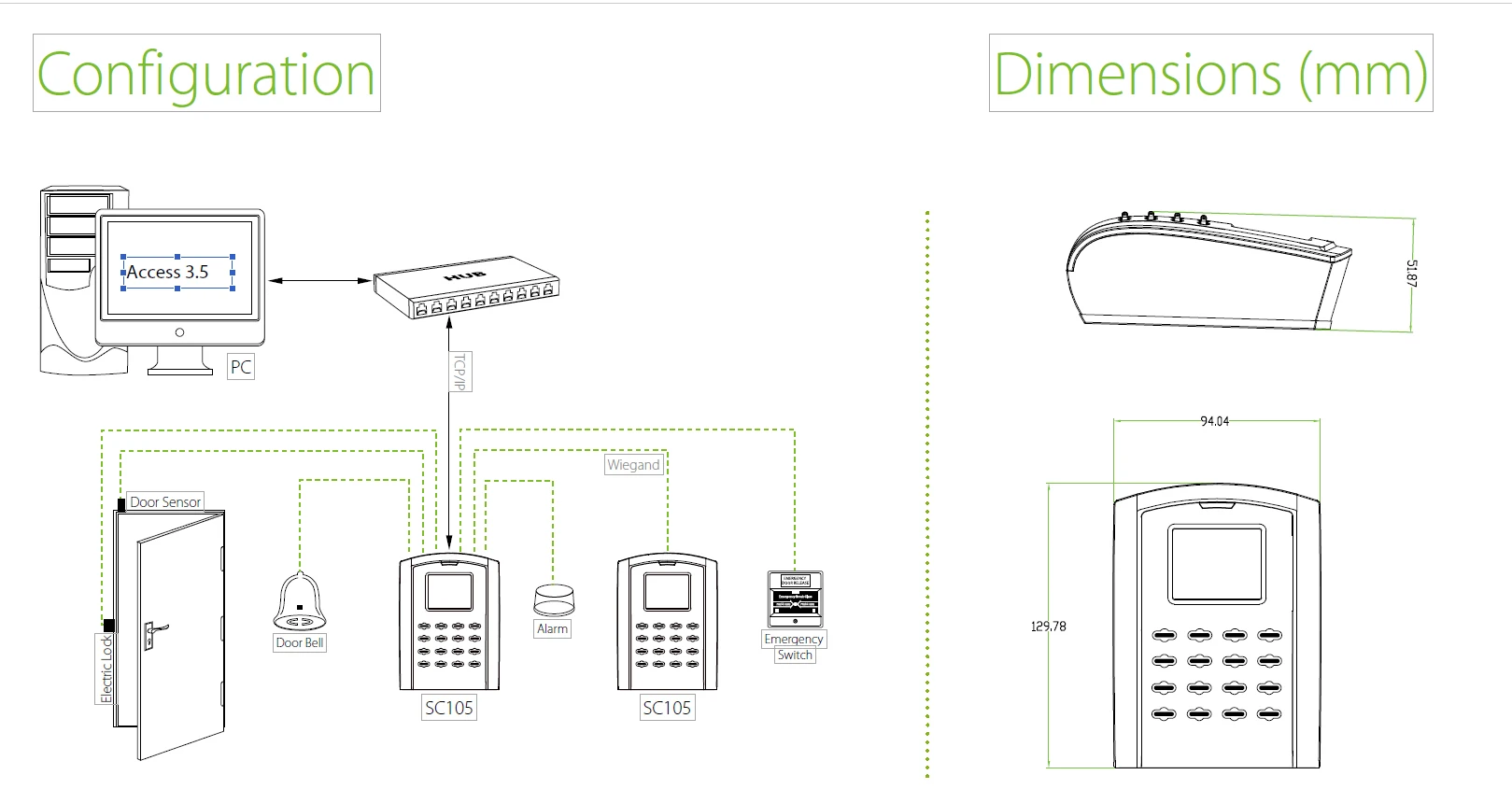

Connection Diagram
SC105 ORDER ITEMS | |
SC105/ID | Proximity ID card access control system |
SC105+MF | Proximity MIFARE card access control system |
