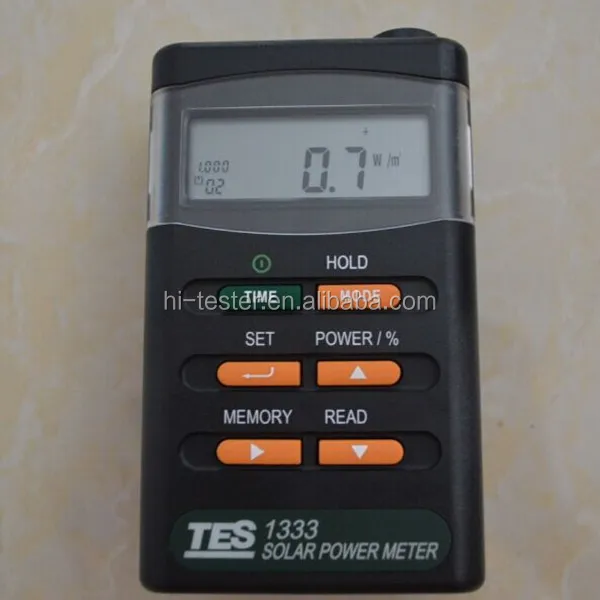

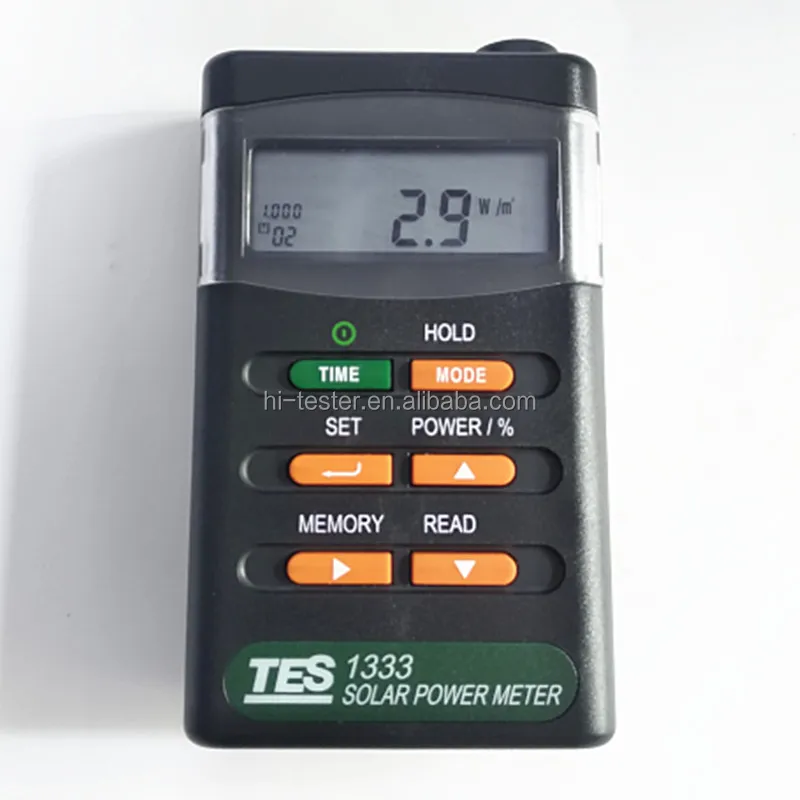

TES1333 Солнечный измеритель мощности, TES 1333 солнечной энергии измеритель радиации
- Category: >>>
- Supplier: Shenzhen Pantai Precision Instruments Co. Ltd.
Share on (799186072):
Product Overview
Description
Features:
Introduction:
Wide spectral range
Solar energy measurement
W/m2 and Btu / (ft2 × h) units display
Current time setting function
AVG / MAX / MIN mode
Sourcing the best efficiency of Solar Energy Reception
Features:
Wide spectral range.
Automatic transmission measurements
Cosine corrected.
Current time setting function.
Select either power or transmission.
Solar energy measurement.
End-mount light sensor
User calibration factor setting function.
Select either W/m2 or Btu / (ft2 x h) units.
End-mount light sensor
Data Hold AVG / MAX/ MIN / modes.
Auto Data Memory and RS232 interface to PC. (Only TES 1333R)
Applications:
Agriculture
Meteorology
Solar radiation measurement
Solar transmission measurement
Physics ans optical laboratories
Solar power research
Identify high performance windows
Specifications
Display | 3-1/2 digits.Max.indication1999 |
Range | 2000W/m 2,634Btu/(ft 2 * h) |
Resolution | 1W/m2.1Btu/(ft2*h) |
Spectral response | 400-1100nm. |
Accuracy | Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / C [ ±0.12 Btu / (ft2*h)/ c] from 25C |
Angular accuracy | Cosine corrected <5% for angles <60 |
Drift | <±2% / per year |
Calibration | User recalibration available |
Over-input | Display shows" " |
Sampling Time | Approx. 0.4 second |
Manu data memory and read | 99 sets |
Auto data memory | 32000 sets (TES-1333R) |
Battery | 4pcs size AAA |
Battery Life | Approx. 100 hours |
Operating temp and humidity | 0 C to 50 Cbelow 80%RH |
Storage temp and Humidity | -10 c to 60c below 70% RH |
Weight | Approx. 165g |
Dimension | 111(L)*64(W)*34(H)mm |
Accessories | Carrying Case, Operation Manual, 4 pcs size AAA, RS- |
