VF Series Bonfiglioli Like Speed Transmission Gearbox for Crane

Product Overview

Description

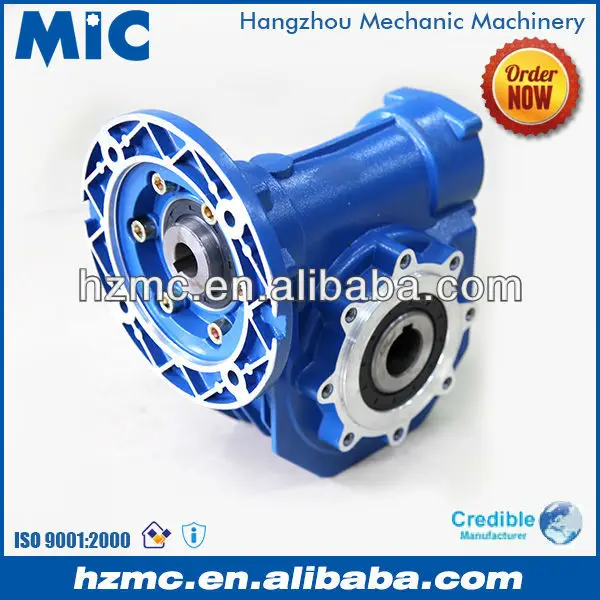

VF Series Bonfiglioli Like Speed Transmission Gearbox for Crane









Specifiction:

Type:	Worm Gear Speed Reducer
Model:	VF063
Ratio:	1:7.5,10,15,20,25,30,40,50,60,80,100
Color:	Blue/Silver Or On Customer Request
Material:	Housing: Die-Cast Aluminum Alloy
	Worm Gear-Copper-10-3#
	Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
	Shaft-chromium steel-45#
Packing:	Carton and Wooden Case
Bearing:	C&U Bearing
Seal:	NAK SKF
Warranty:	1 Year
Input Power:	0.37KW,0.55KW,1.1KW,1.5KW
Usages:	Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass.
IEC Flange:	71B5,71B14,80B5,80B14,90B5,90B14
Lubricant:	Synthetic&Mineral







Permitted Output Torque:

Ratio	Model
	030	040	050	063	075	090	110	130
7.5	18	40	71	128	185	290	480	750
10	18	40	72	130	195	310	520	820
15	18	40	74	140	200	360	570	920
20	18	39	73	135	210	355	560	910
25	21	38	70	130	200	340	590	930
30	20	45	84	160	230	410	630	1040
40	18	41	76	145	220	360	610	1050
50	17	39	73	135	210	340	600	980
60	16	36	68	130	200	320	560	900
80	13	33	65	122	190	285	490	840
100		29	55	118	180	270	460	740







Product Feature:

1.Compact structure, light size, small and high efficiency

2.Good funciation of heat exchange, rapid heat rejection

3.Easy installation aand flexible connecting style. Easy for maintaining and checking

4.Large in both transmission ratio and twisting distance resulting to a high capacity of bearing and loading

5.Widely application, little noise, long lasting

6.Widely applicable and liable









Process Of An Order:

1. Please check product detailed information above.

 A. Model/Size   B. Transmission Ratio   C. Shaft Direction  D. Order Quantity.



2. Our Export Service Team will contact you with a quotation file within 3 hours after our

    team get your enquiry.



3. When you place an order, our team will confirm with you about color,

    package,method of payment and delivery, then a sales contract will be sent to you to

    confirm.



4. Packing: Carton and Wooden Case.



5. How to delivery:

    By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for

                    buyers.

    By air   - Buyer offer collect express account, or our sales team find suitable  express

                    for buyers. (Mostly for sample)

    Others - We arrange to delivery goods to some place in China appoint by buyers.













Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
