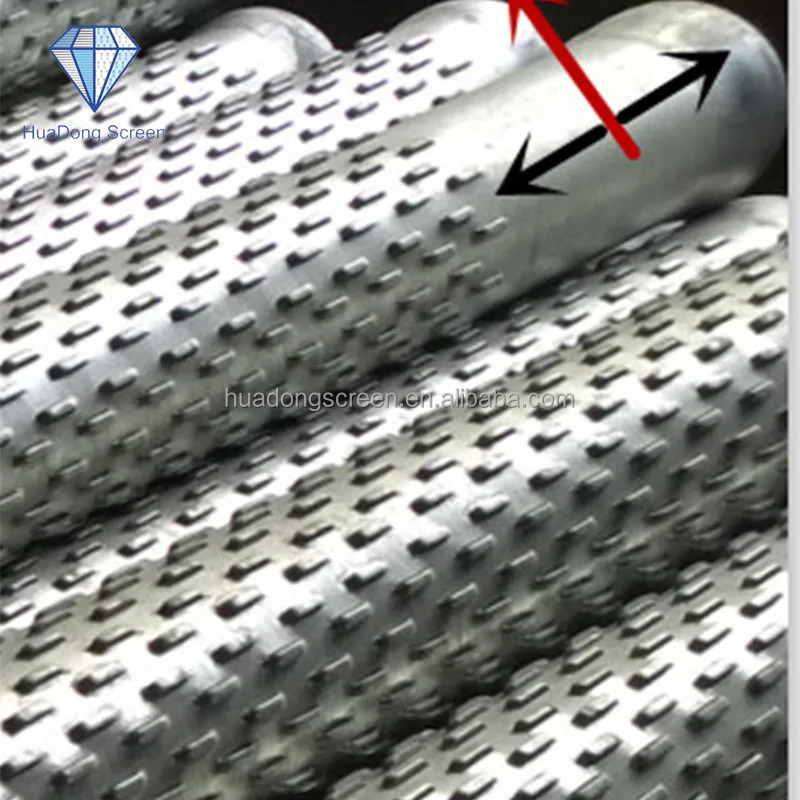

Stainless Steel Serpentine Pipe/Bridge Type Filter Pipe/filter Tube

Product Overview

Description

About Huadong :



Huadong Screen Co., LTDis a manufacturer and exporter of water well screen and johnson screens ,we offer a wide variety well screens, such as water well screen, bridge slot screen, Johnson well screen, wedge wire well screen, etc. We have been in line of water well screen for nearly 20 years.

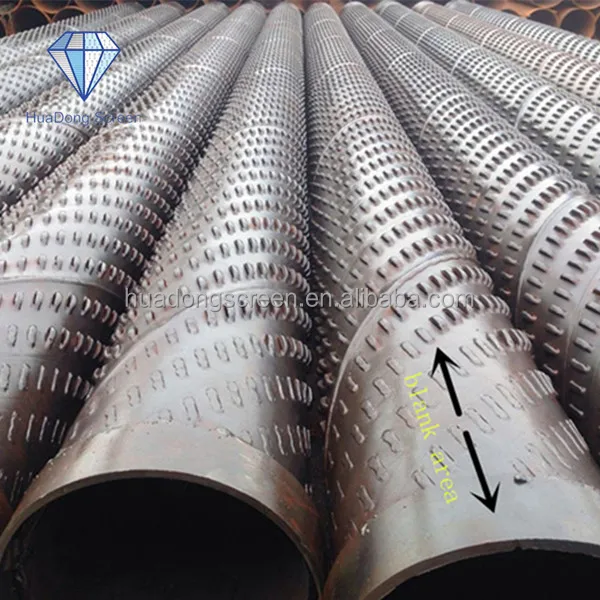

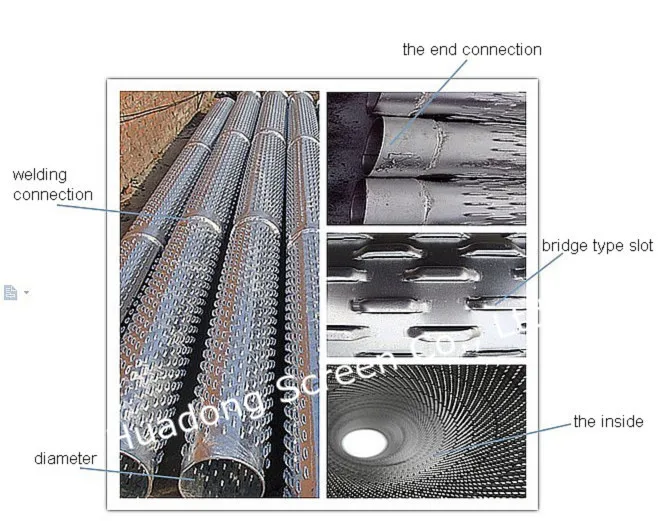

Bridge Slot Screen:

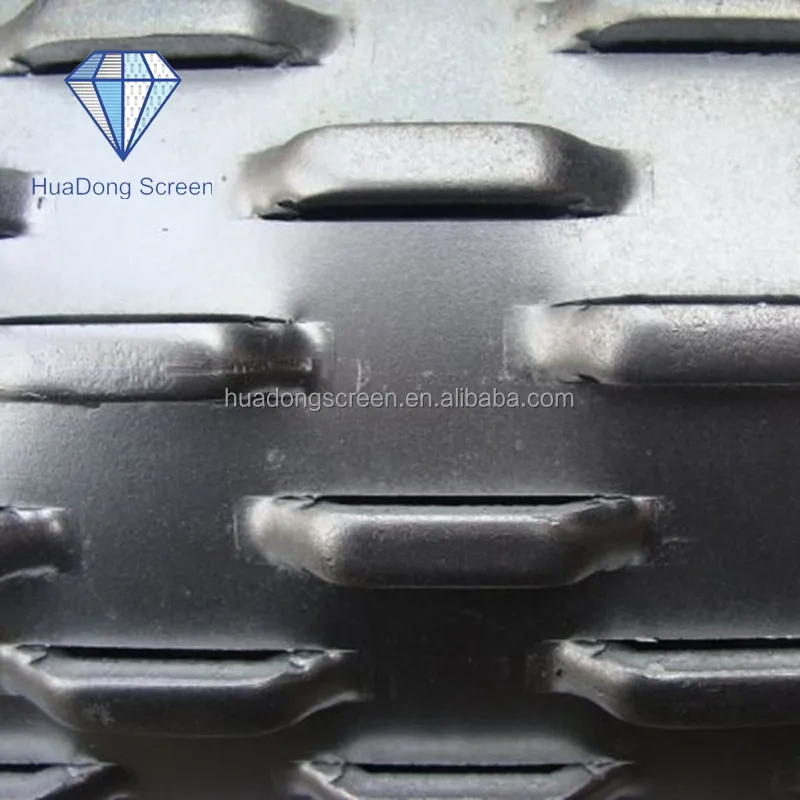

The sand and gravel can't easily block the slot because of the special bridge style design, and Bridge Slot Screens has great mechanical strength and water entering capacity. Meanwhile, Water Well Screens use steel punching technology and is rolled in many ways, so they are light, cheap and easily operating. We use CNC to punch, so the slot can change as your requirements. In order to give customers more convenience, we can offer any diameter Bridge Slot Screens and Water Well Screens. We also offer galvanized Well Screens to prolong the operational life.



Technical Parameters :





nominal  specifications (MM)	146	159		219		273			325			377			426			529
inside diameter	130	140	138	200	198	254	250	246	305	300	297	357	350	346	406	400	398	502	500	498
thickness	5	5	6	5	6	5	6	8	5	6	8	5	6	8	5	6	8	6	7	8
coupling outside diameter	146	160	162	220	226	274	278	278	325	328	329	377	378	379	426	428	432	529	530	531





Pipe Sizes



• OD:from 279-630 mm
• WT from 3 mm / 0.12 in. to 10mm / 0.4 in.

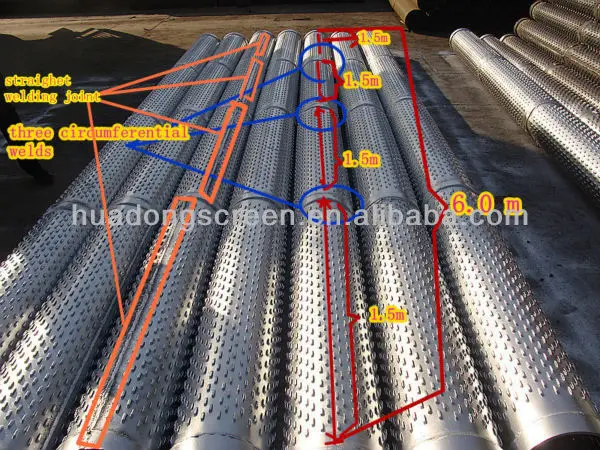

• lengths up to 6m



Materials of Construction





• All types of steel such as carbon steel, galvanized steel, coated steel and stainless steel types 304, 304L, 316, 316L , for example.

Strainer pipe Slot Sizes



• Between 0.5 mm / 0.002 in. and 5mm / 0.2 in., depending on the wall thickness



Advantages:







1) High strength through resistance to twisting, compressive, and tensile forces



2) A smooth bore that does not impede the passage of probes, tools, etc.



3) Formations with large particle sizes



4) Large diameter wells



5) Low to medium flow rates







Application

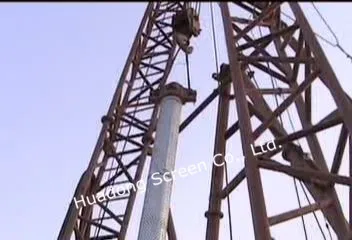

water wells, mining & Mineral Processing, municipal water supply, refining & petrochemical, water treatment, architecture and construction, etc.

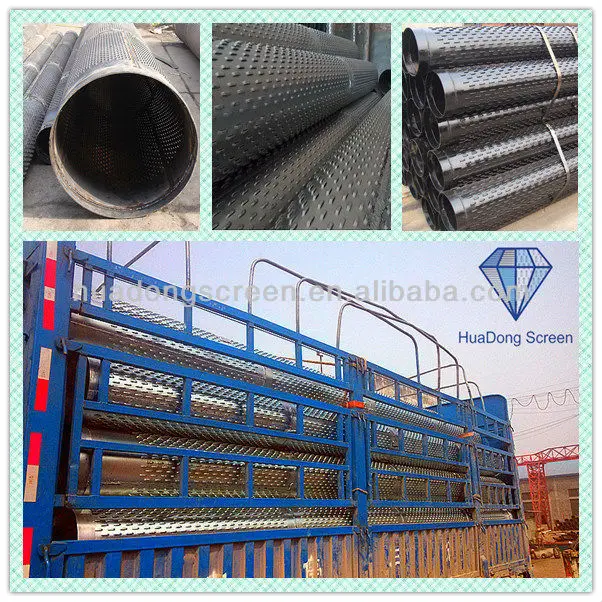

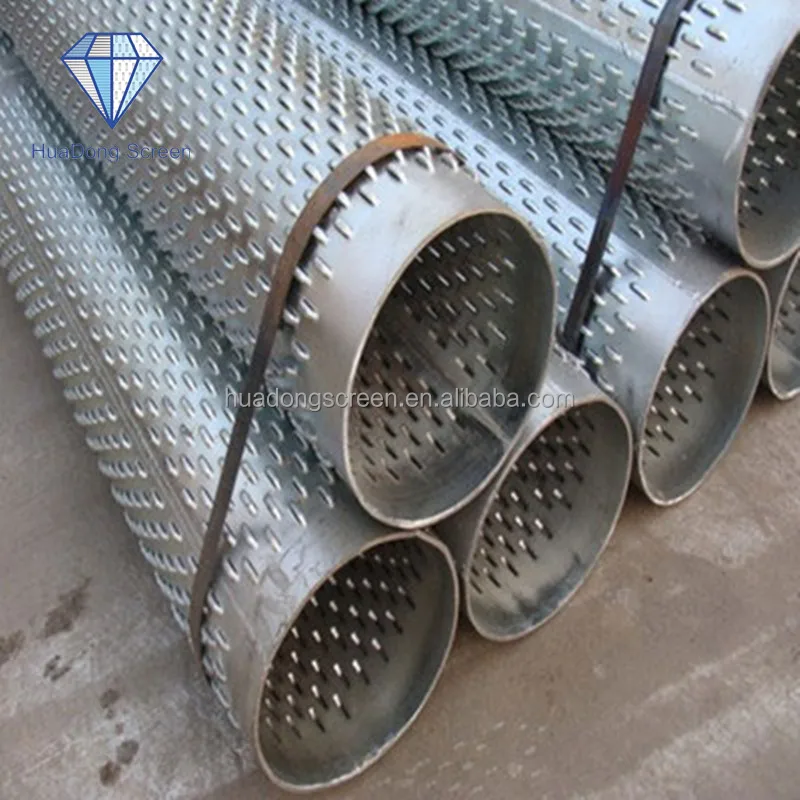

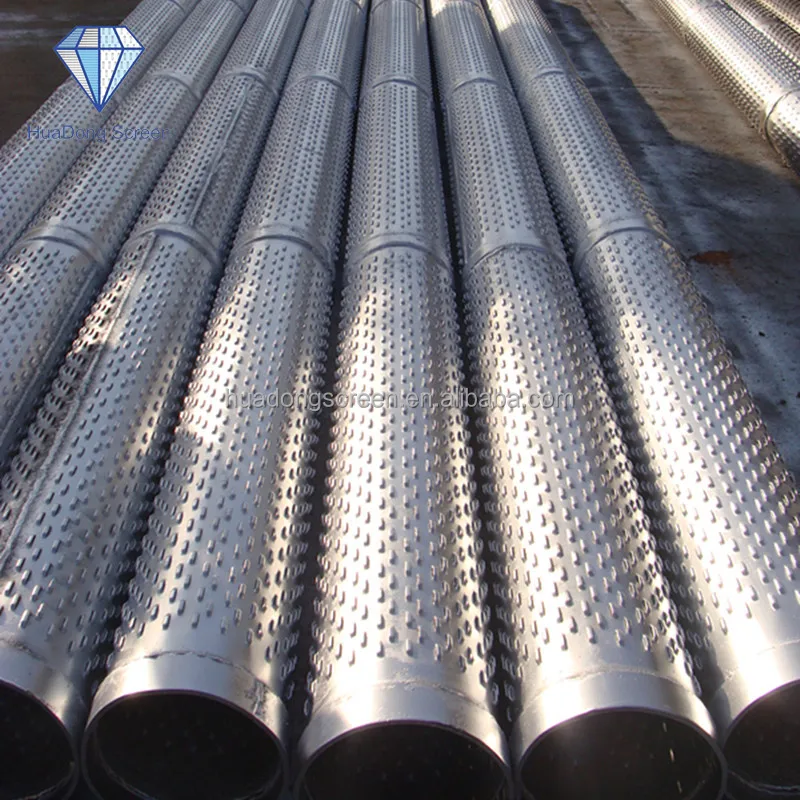

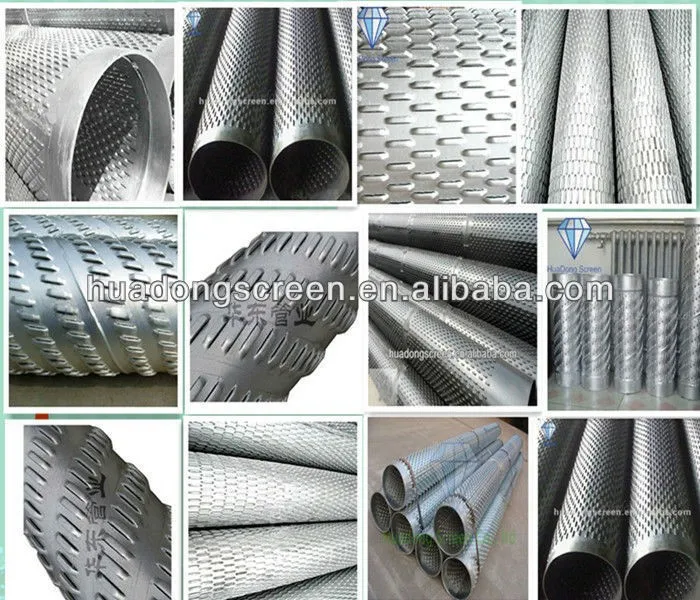

Product Display :

















MOQ	10 pieces/60meters
FOB price(USD)	15-150/m
Port	xingang/shanghai/qingdao
payment	L/C , T/T
Delivery	10 work days or less
packing	standard export packages





 If you have any questions, pls contact me any time.
