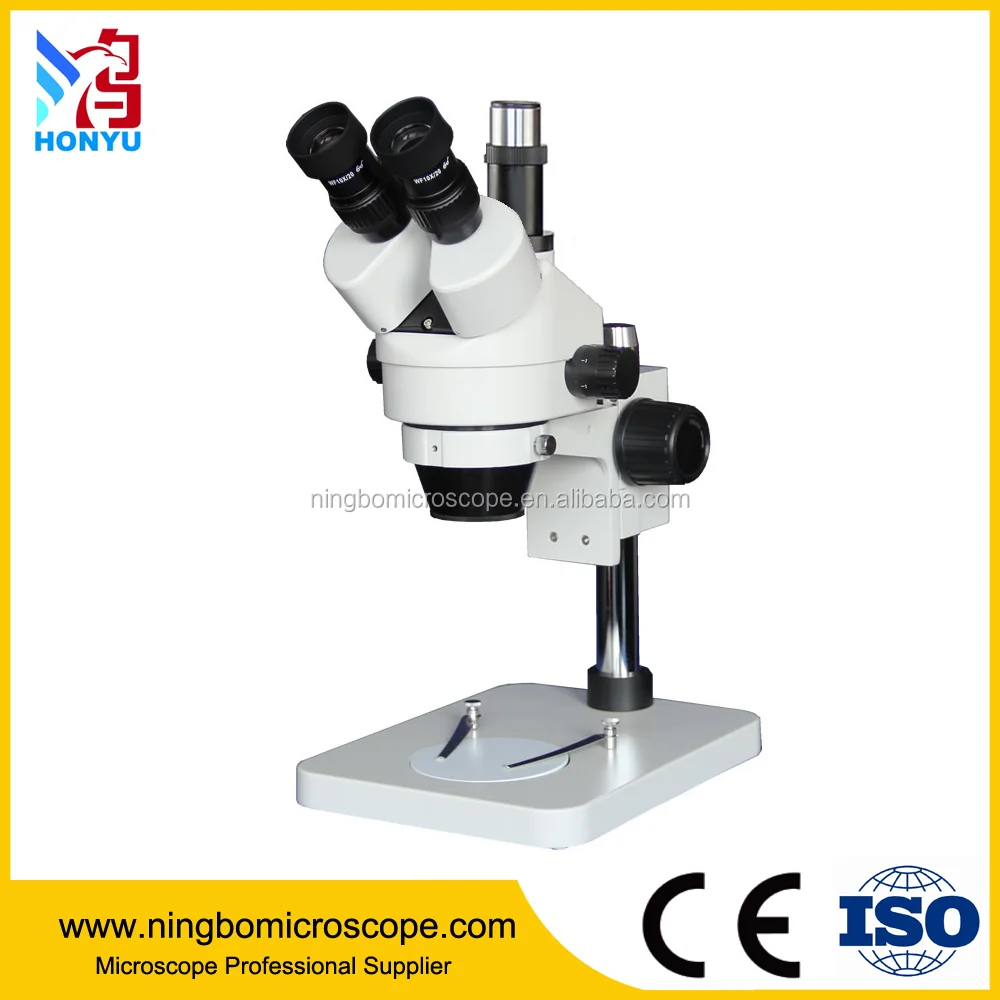

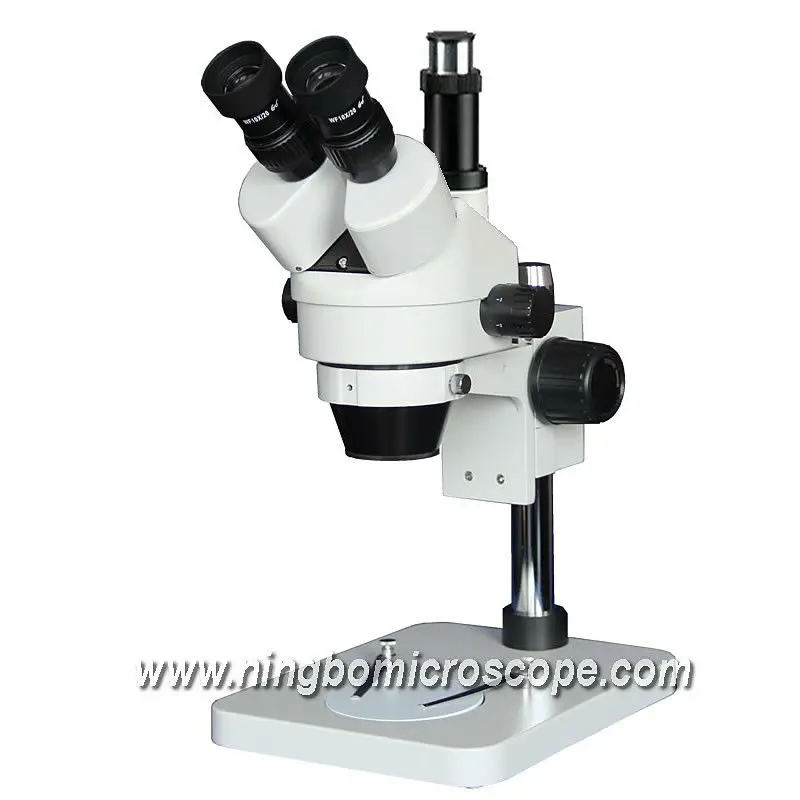

ZOM.03.MT45B1 0.7 4.5x Trinocular Zoom Stereo Microscope

Product Overview

Description





    Zoom Stereo Microscope



Description and Notes



Key Features:



--7X-45X super widefield zoom magnification power



--Sharp clear stereo images, large field view and long working distance



--Sturdy pillar stand with both incident and transmitted LED lights



Specification



Name of Parts	ZOM.03.MT45B1 ZOOM Trinocular with Pole stand
Head	Trinocular Head, 360°Rotatable, 45° inclined, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm

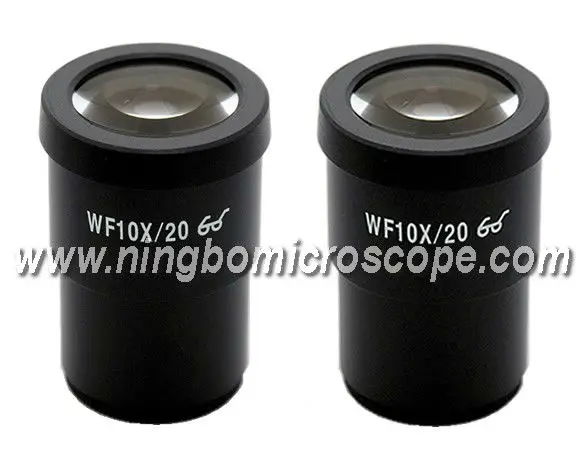

Eyepiece	WF10X/FN20 High Eyepiont Eyepiece
Zoom Range	0.7X-4.5X
Zoom Raito	1: 6.5
Total Magnification	Standard Mag.45x ; 3.5X-180X (with Optional auxliliary objective)
Field of View	1.1mm-57.1mm(with auxiliary lens)
Working Distance	Standard : 100mm
Pole Stand	Post Diameter: 32mm

WF10X/FN20 High Eyepiont Eyepiece

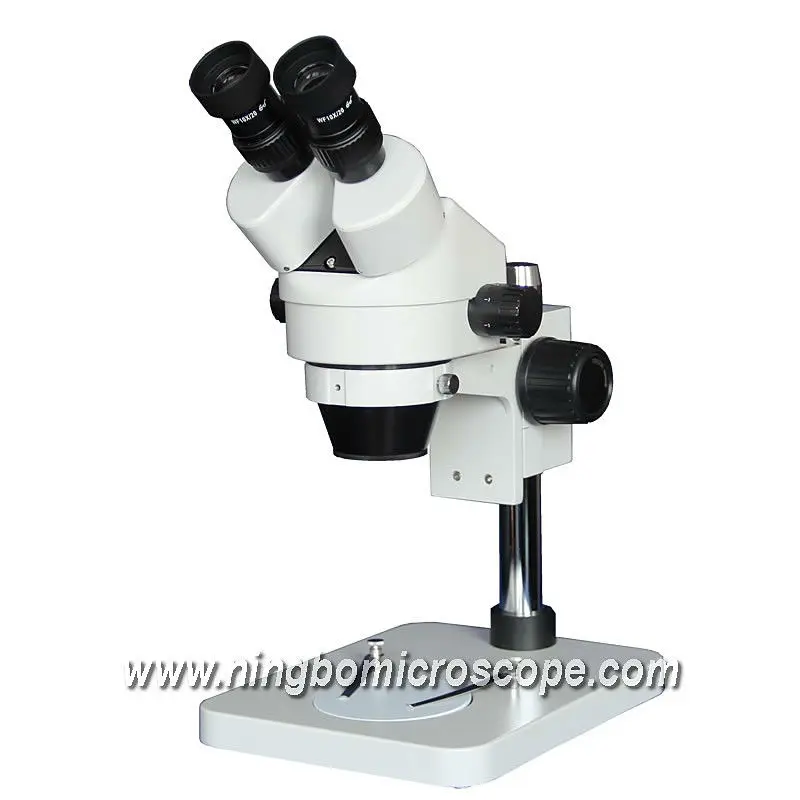

This microscope also has the Binocular  model -  ZOM.03.MB45B1



Optics Parameter

Eyepiece	Standard Specification		Auxiliary Objective 0.5X		Auxiliary Objective 1.5X		Auxiliary Objective 2X
	WD= 100mm		WD= 165mm		WD= 45mm		WD= 30mm
	Mag	View field	Mag	View field	Mag	View field	Mag	View field
10X/20mm	7.0X	28.6mm	3.5X	57.1mm	10.5X	19mm	14X	14.3mm
	45.0X	4.4mm	22.5X	8.9mm	67.5X	3mm	90X	2.2mm
15X/15mm	10.5X	21.1mm	5.25X	42.8mm	15.75X	14.3mm	21X	10.7mm
	67.5X	3.3mm	33.75X	6.7mm	101.25X	2.2mm	135X	1.7mm
20X/10mm	14.0X	14.3mm	7.0X	28.6mm	21.0X	9.5mm	28X	7.1mm
	90.0X	2.2mm	45.0X	4.4mm	135.0X	1.5mm	180X	1.1mm



Optional Accessoires



Name of Parts	Spece	Order No.
Eyepieces	WF10X/20	EYE.03.10X20
	WF15X/15	EYE.03.15X/15
	WF20X/10	EYE.03.20X/10
Objective	0.5X WD=165mm	OBJ.03.ZM0.5
	1.5X WD=45mm	OBJ.03.ZM1.5
	2X WD=30mm	OBJ.03.ZM2.0

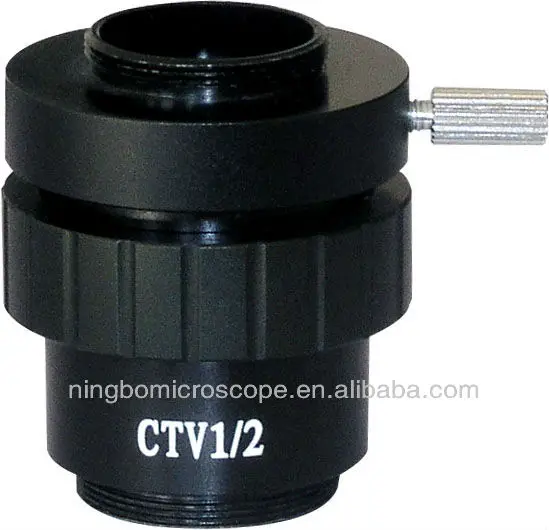

CCD adapter	0.5XCCD	ADA.03.ZM0.5X
Optional Light	Addiontal Light source

ADA.03.ZM0.5X :



Addiontal Light source as the following link:

//www.ningbomicroscope.com/ensite/Products/List_32.html
