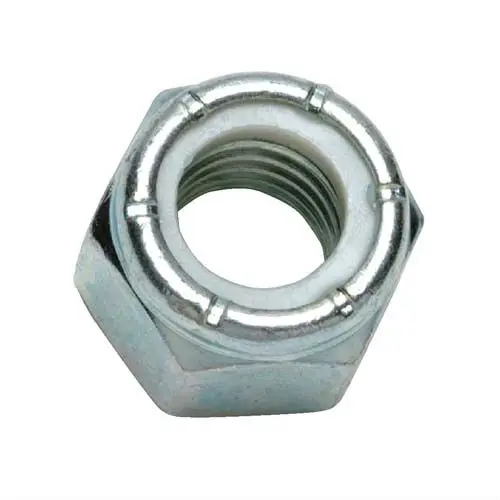

ASME B18.16.6 Grade 8 Nylon Insert Lock Nut
- Category: >>>
- Supplier: Wenzhou Bangxin Fastener Co. Ltd.
Share on (801264372):
Product Overview
Description
Grade8 Nylon Insert Lock Nut /ASME B18.16.6
Specification Requirements:

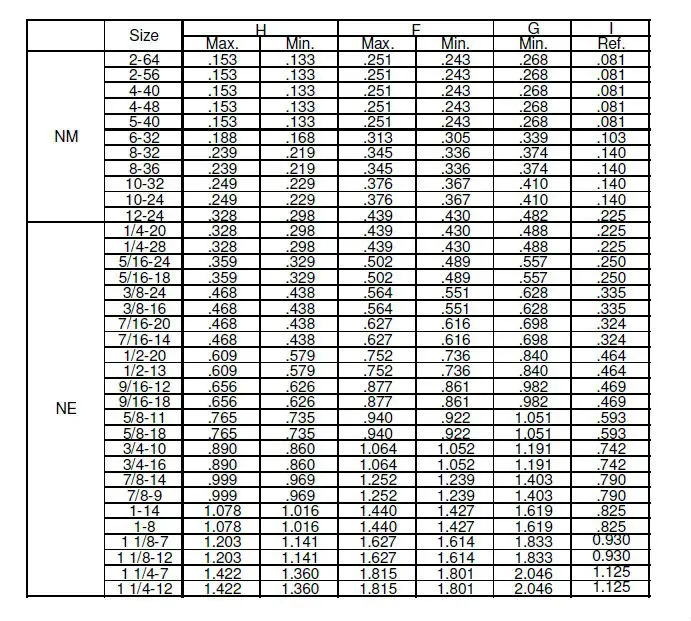

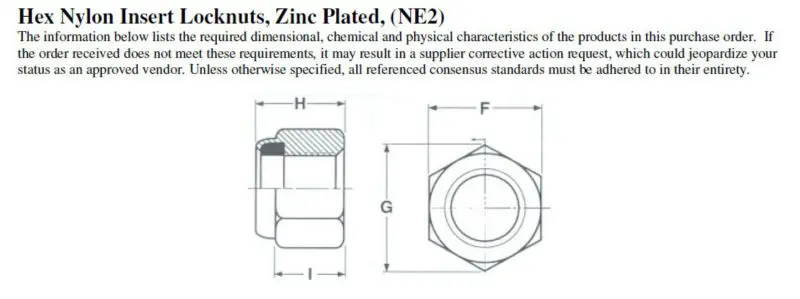

• Dimensions: NM and size 2 3/4-12: See dimensions above
NE: ASME B18.16.6
• Material, Performance,and Mechanical Properties: Nylon 6/6 material shall be in compliance with European Union Directive 2002/95/EC (RoHS).
NM Type per IFI 100/107, Grade A including prevailingtorque NE Type per According to tables 2 or 3 of B18.16.6
Size 2-3/4-12 shall meet the hardness of ASME B18.16.6
• Thread requirements: ASME B1.1 UNC and UNF, Class 2B.
• Grade Marking: Manufacturer’s ID
• Finish: Fe/Zn 3AT Per ASTM F1941
