XINYOO SK2V Vertical Vacuum Tube Furnace Dental Porcelain

Product Overview

Description

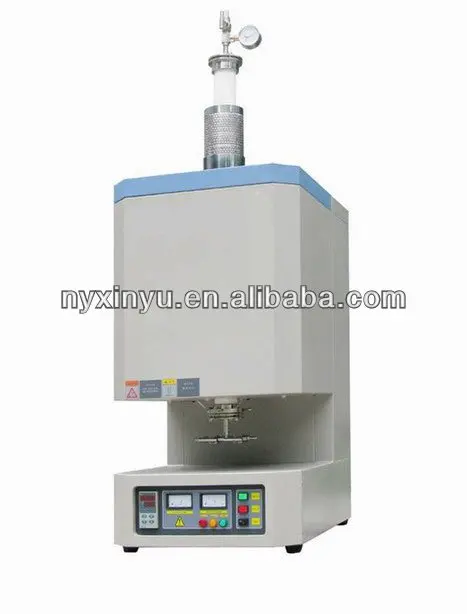

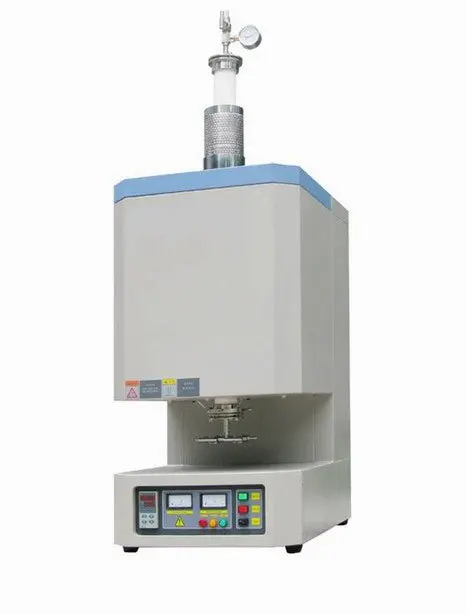

SK2V  Vertical Vacuum Tube Furnace

Our products have  the advantages warming faster 20-40 mins, energy saving, high precision temperature control, heat preservation performance , the microcomputer control, programmable automatic temperature, temperature at furnace wall to such high interest conditions, Widely used in ceramic industry, chemical industry, electronic, metallurgy, new materials, machinery, fire-proof material, building materials, special materials of experiment and production. welcome old and new customers.

All the hearth material are made by the imported Morgen fiber, and its effect of energy-saving is more that 80% of the old furnace.



SK2V  Vertical Vacuum Tube Furnace is vertical tube furnace with 6" diameter one end closed alumina tube and stainless steel flange / ball valve.  It is designed for processing advanced material up to 1700^oC.  The Precision digital temperature controller with 51 segments programmable is built in the furnace with +/- 1^oC accuracy.

Main Specifications
Inside chamber Size	13" Diameter x 10 " high
Alumina Tube Size	One end closed alumina tube with purity .99.8% Outside Diameter: 150mm Inside Diameter:   140mm Length: 600mm
Max. Working Temperature	1700C
Standard working temperature	1600C
Temperature Control	30 segments programmable and PID auto control
Vacuum Flange	Stainless steel with double hi-temperature silicone O-rings ( <300oC) Ball valve and vacuum gauge is installed for immediate use Vacuum pressure up to 10Pa by mechanical pump One porous ceramic disk is included.  Must put the refractory disk in front flange to avoid flange over-heated
Heating rate	0~10 oC / min     (suggestion at  =< 5 oC)
Temperature accuracy	± 1C
Heating Element	1800 Type MoSi2 Heating Element
Working Voltage	AC 220V  50HZ
Max. Power	9.5KW
Net Weight	180kg



















































Information request for Lab furnace Quotation, Please Specify:

XINYOO Crucible Furnace   Model:  SK2V Vertical Vacuum Tube Furnace



Package

 Plastic paper inside, Polyfoam filled, Wooden box outside.



Payment

 L/C T/T, West union,etc.



Shipping and Delivery

 by air , in 15 days after receiving the payment



Warranty

Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.

Replacement will be shipped to you after photo or other evidence are provided and investigated.
