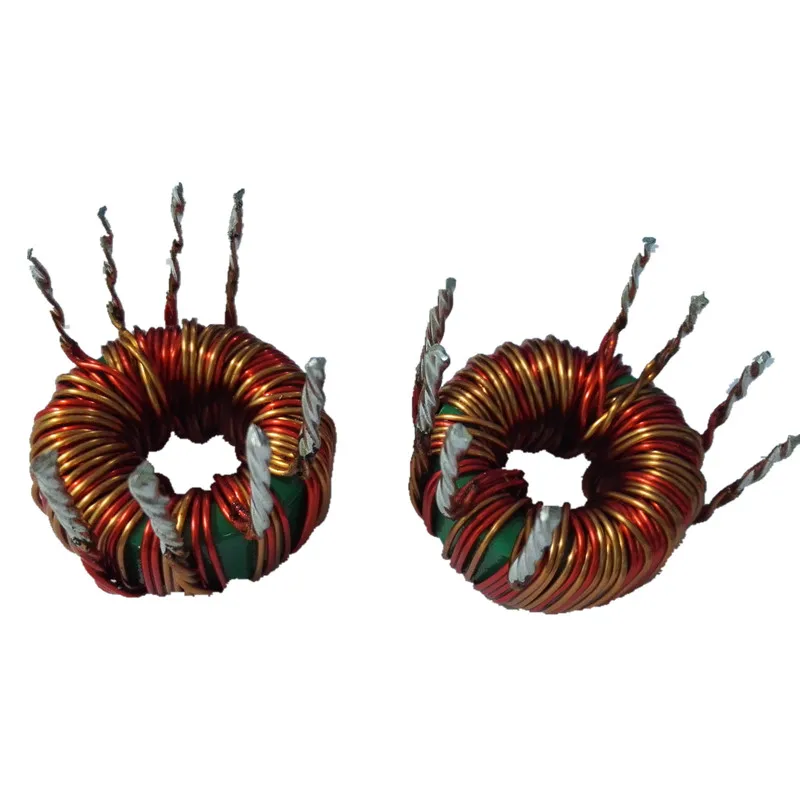

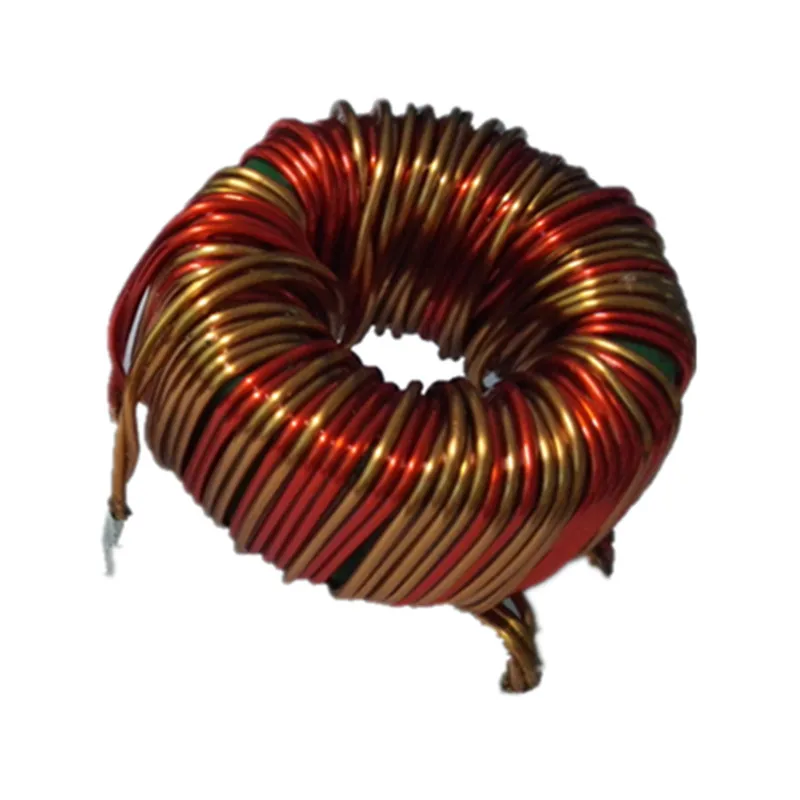

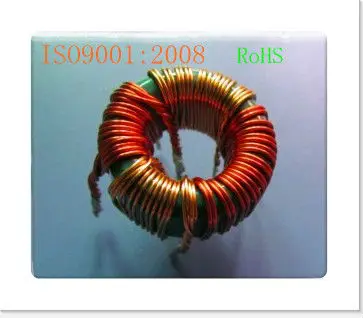

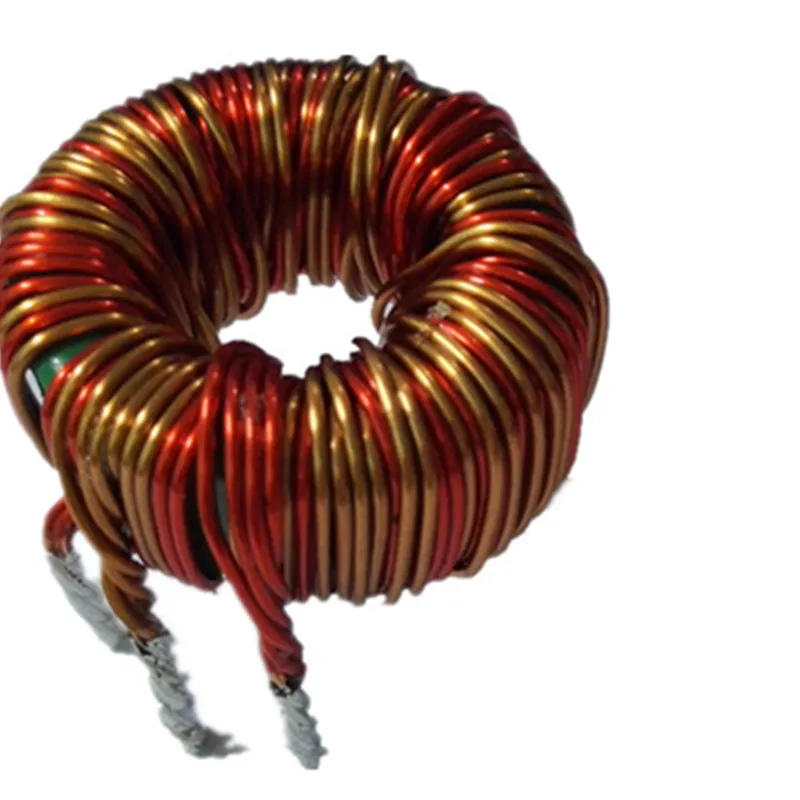

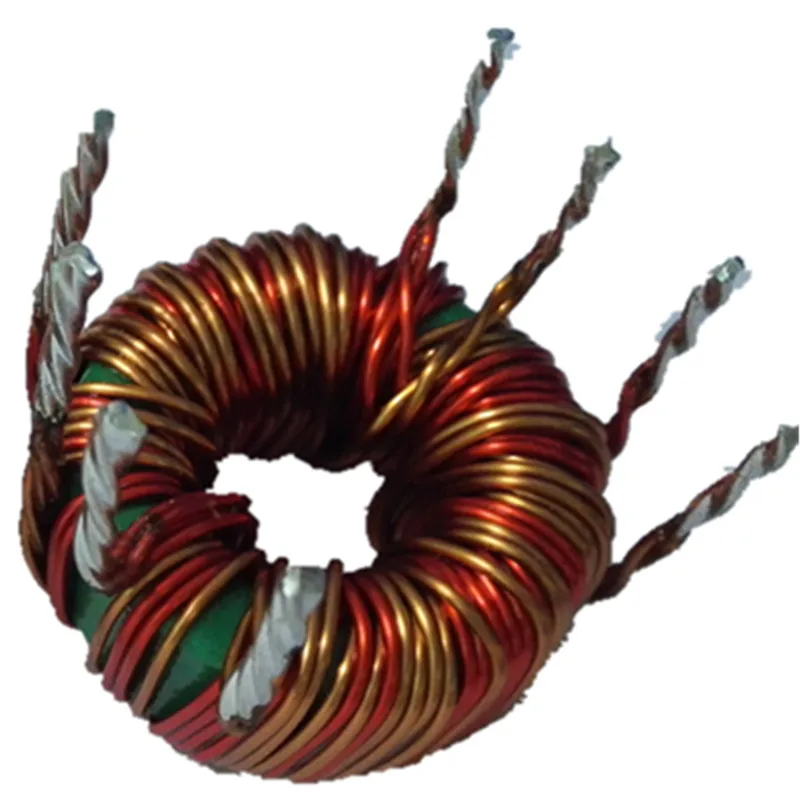

3V Car amplifier transformer

Product Overview

Description



Vehicle-mounted transformer Series
Model :OR8-OR102(inductance coil color:green, gray, red, yellow and white)
No.	Model	Outer diameter(mm)	inside diameter(mm)	High(mm)
1	OR8x5x3	8.0	5.0	3.0
2	OR10x6x5	10.0	6.0	5.0
3	OR12x6x4	12.0	6.0	4.0
4	OR13x6x7	13.0	6.0	7.0
5	OR13x7x5	13.0	7.0	5.0
6	OR14x8x7	14.0	8.0	7.0
7	OR16x9x5	16.0	9.0	5.0
8	OR18x10x10	18.0	10.0	10.0
9	OR19x13x11	19.0	13.0	11.0
10	OR20x12x10	20.0	12.0	10.0
11	OR22x14x8	22.0	14.0	8.0
12	OR25x15x12	25.0	15.0	12.0
13	OR28x18x13	28.0	18.0	13.0
14	Or29x19x15	29.0	19.0	15.0
15	OR31x18x14	31.0	18.0	14.0
16	OR31x19x13	31	19	13
17	OR36x23x15	36	23	15
18	OR38x19x13	38	19	13
19	OR38x19x15	38	19	15
20	OR40x23x20	40	23	20
21	OR40x25x20	40	25	20
22	OR42x26x18	42	26	18
23	OR45x30x15	45	30	15
24	OR47x27x15	47	27	15
25	OR48x30x10	48	30	10
26	OR48x30x15	48	30	15
27	OR49x31x19	49	31	19
28	OR50x25x20	50	25	20
29	OR51x31x13	51	31	13
30	OR56x32x18	56	32	18
31	OR58x40x18	58	40	18
32	OR60x38x20	60	38	20
33	OR63x38x25	63	38	12.7
34	OR68x44x15	68	44	15
35	OR74x40x13	74	40	13
36	OR80x50x20	80	50	20
37	OR87x54x14	87	54	14
38	OR87x54x30	87	54	30
39	OR100x50x20	100	50	20
40	OR102x66x15	102	66	15
