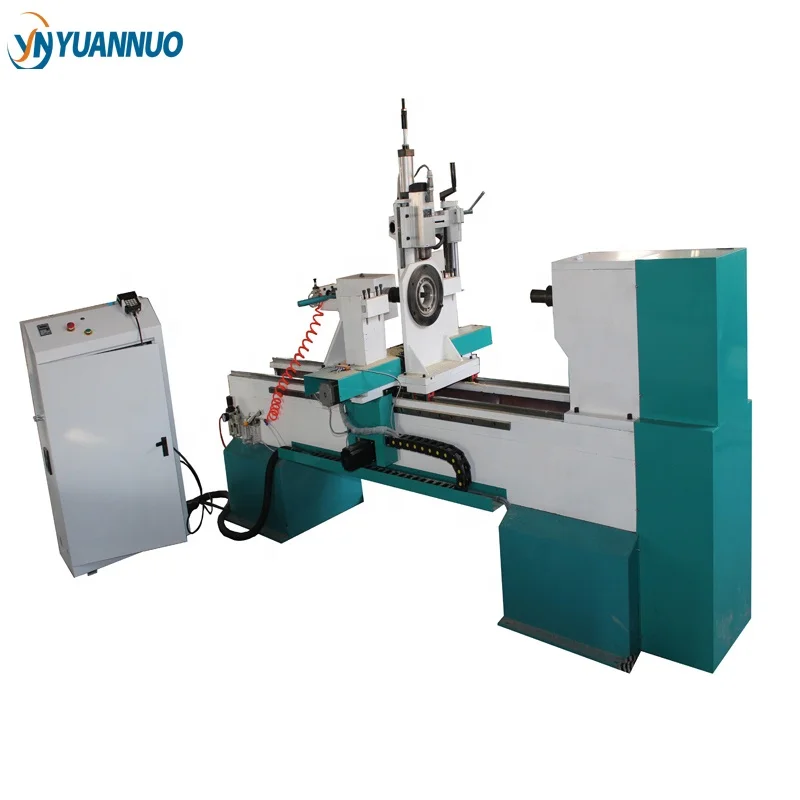

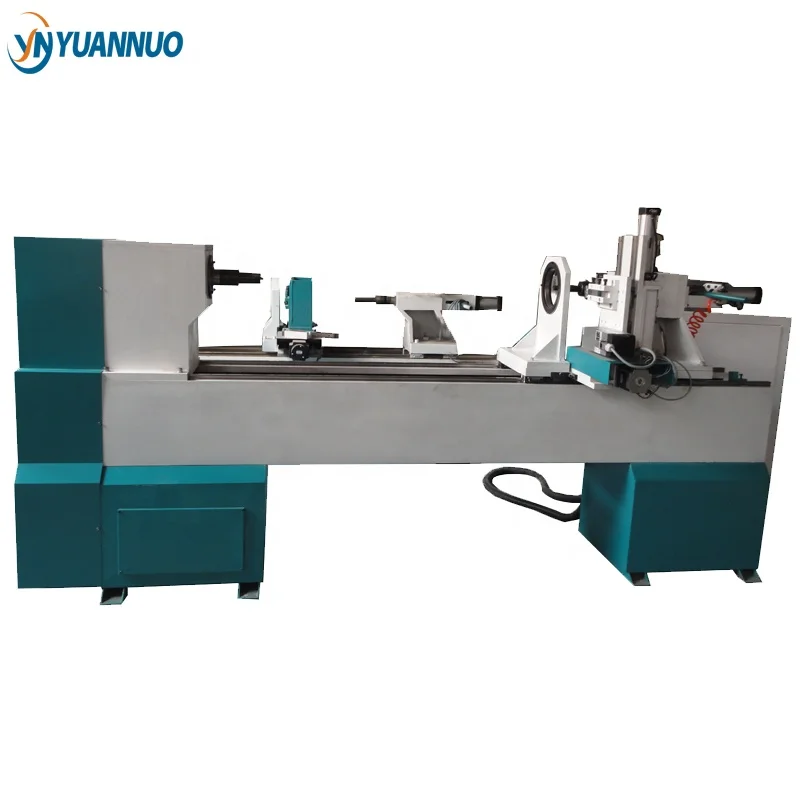

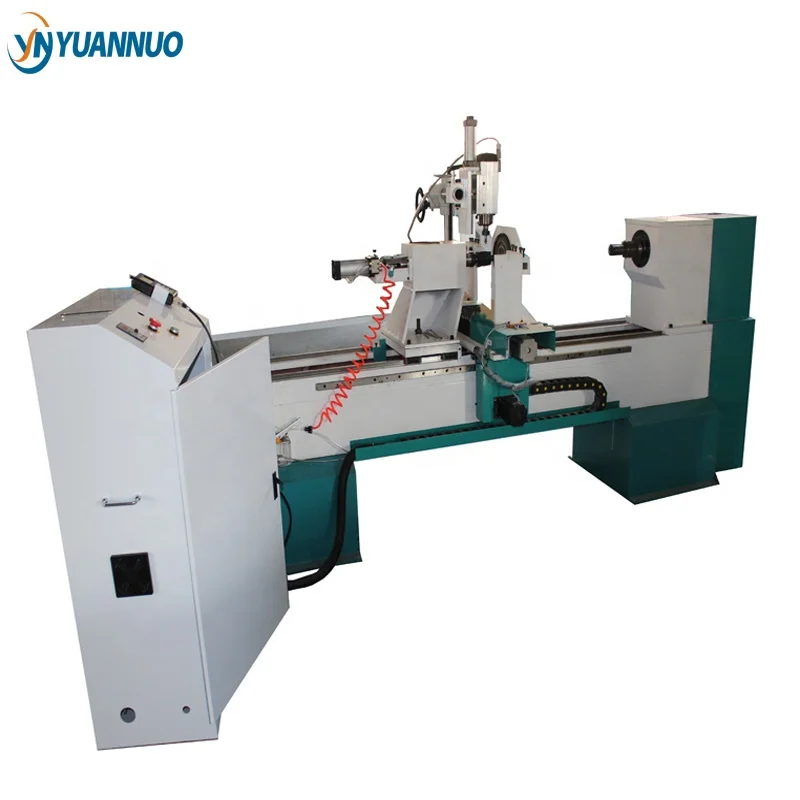

YN1530 YN2030 hot sale automatic wood turning lathe for sale

Product Overview

Description



YN1530 YN2030 hot sale  automatic wood turning lathe for sale





According the requirement and characteristics of woodworking industry, CNC woodworking lathe combining CNC and other mechanical technology, could process the complex shape of the wood rotary products or semi-finished wood products. , such as cylindrical, conical, curved, spherical etc. It is especially suitable for the mass production of small or medium-scale wood enterprises, set shape flexibly and changing processing style rapidly.



Main Features:

1) whole casted strong structure with high durability and won't be deformed in long life time

2) fast speed but high precision with our advanced configuration: Japanese frequency converter, Taiwan TBL high quality straight line sliding rails and Germany NEFF precise ball screw,high subdivision stepper motor.

3) Easy to use and practice-oriented operation. Workers just know Arabic numerals could control the machine

4) Infinitely variable DC feed motor with feeding speed of 0 to 3600rpm.



Application:

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column,tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.



Model	YN1530	YN2030
Outline dimension	2700*800*1250mm	3500*800*1400mm
Spindle power	4KW	4KW
Net weight	1600kgs	2200KGS
Spindle turning speed	0-4000 RPM	0-4000 RPM
X axis turning speed	0-2800RPM	0-2800RPM
Z axis turning speed	0-2800RPM	0-2800RPM
Max turning depth	20mm	20mm
Max process diameter of single spindle	300mm	300mm
Max process diameter of two spindles	160mm	160mm
Processing length	1500mm	2000mm

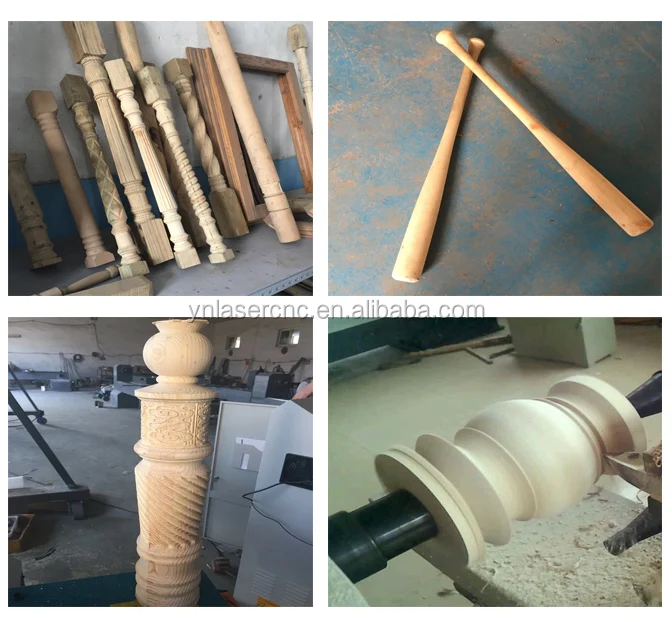

Accessories and samples for YN1530 YN2030 hot sale  automatic wood turning lathe for sale:
