WHIMS Wet High Intensity Magnetic Separator Mining Separation Machine

Product Overview

Description

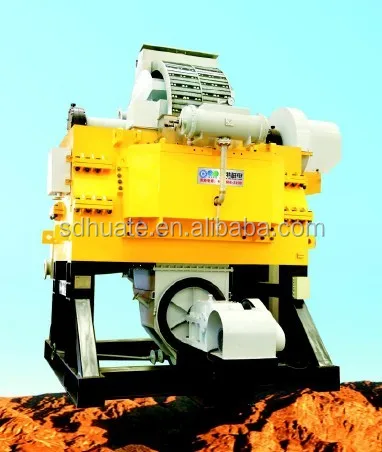

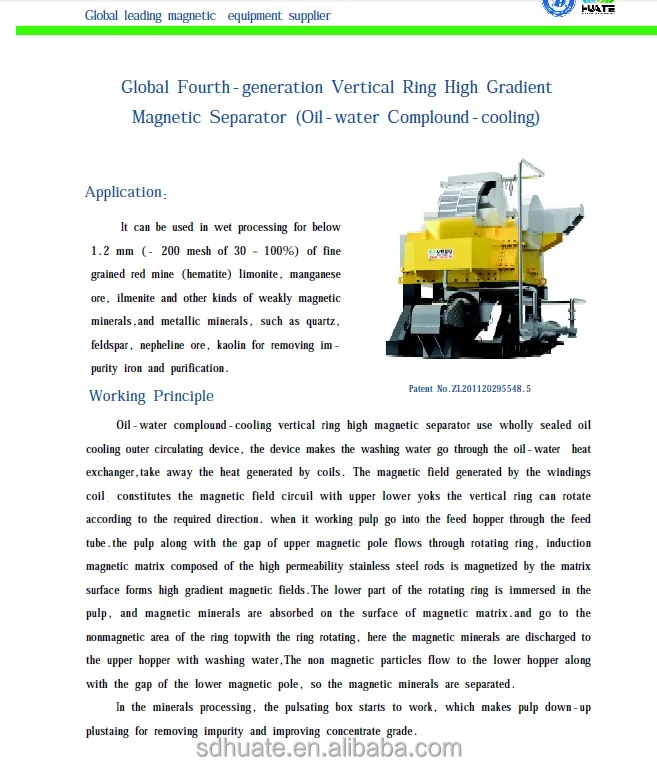

  LHGC vertical ring high gradient magnetic separator



Application:







It can be used in wet processing -1.2 mm(-200 mesh of 30~100%) red ore (hematite and limonite, siderite etc.), manganese ore, ilmenite, chromite, tungsten ore and other kinds of weakly magnetic minerals and metallic minerals, such as quartz, feldspar, nepheline ore, kaolin for removing impurity iron and purification.





Advantages:

  With advance structure, easy maintenance and reliable operation, good performance, wide applicability to ore    granularity, ore density and ore grade which realize the goal of good concentration and good reclamation.









Model:



Model	Diameter of revolving ring (mm)	Background field intensity≤(T)	Rated excitation Power (kW)	Motor Power (kW)	Pulse motor power (kW)	Dry ore capacity (t/h)	Pulp through capacity (m³/h)	Feeding density(%)
LHGC-500(Z)	φ500	0.6~1.3	6-30	0.37	0.37	0.03~0.125	0.25~0.5	10~40
LHGC-750 (Z)	φ750		6-30	0.75	1.5	0.1~0.5	1~2	10~40
LHGC-1000 (Z)	φ1000		10-40	1.1	2.2	4~7	12.5~20	10~40
LHGC-1250 (Z)	φ1250		12-50	1.5	3	10~18	20~50	10~40
LHGC-1500 (Z)	φ1500		15.5-60	3	3	20~30	50~100	10~40
LhGC-1750 (Z)	φ1750		23-72	4	4	30~50	75~150	10~40
LHGC-2000 (Z)	φ2000		29-85	5.5	7.5	50~80	100~200	10~40
LHGC-2500 (Z)	φ2500		39-98	11	11	100~150	200~400	10~40
LHGC-3000 (Z)	φ3000		48-110	18.5	18.5	150~250	350~650	10~40
