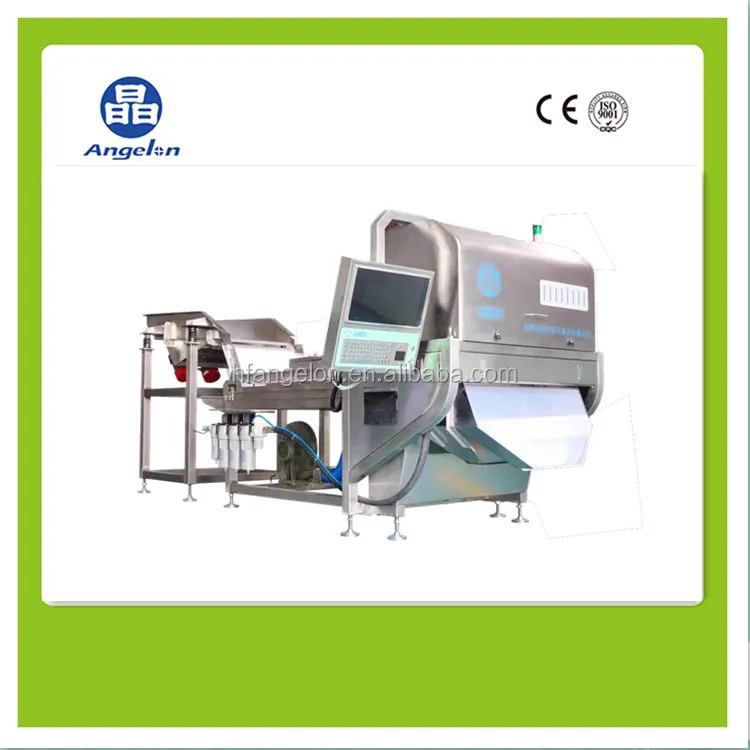

walnut pecan kernel color sorter nuts processing grading machine cashew nuts color srter
- Category: >>>
- Supplier: Hefei Angelon Electronics Co. Ltd.
Share on (803183246):
Product Overview
Description
Products Description
Model Name | C212C8-128VS6 |
Camera | 4 |
Number of ejectors | 128 |
Capacity(t/h) | 1-2 |
Sorting accuracy(%) | 99.8 |
Optimized carryover(bad: good) | >8:1 |
Voltage(V) | 220 |
Dimensions(L×W×H，mm) | 2730*1220*1580 |
Weight(kg) | 700 |
Why Choose Us
1.\tLED
(1) LED long lifetime gives a consistent and reliable output, and reduces the cost of maintenance and running. (2) LED ensures the high-definition image quality and meets 1000kinds of color separation, as well as identifies subtle color changes.
2. Optical CCD Color Cameras High resolution CCD camera can recognize the target just like the human eyes do, improving the removal of slight color defectives and challenging foreign materials. With world-class optics, camera can identify subtle color and minimal defects.
3. High accurate ejector system High accuracy and high speed ejection, together with high precision detection accomplish the highly efficient removal of unwanted products. 4. Belt-type structure Unlike the traditional chute-type causing collision, frication and large vertical movement which would not only damage the machine and worsen the materials, but also shorten the lifetime of machine and increase the fee of maintenance, the belt-type design contributes many excellent sorting solutions. On the one hand, belt-type color sorter transports the material on the belt in horizontal direction, which makes less collision happens and lower damage rate. On the other hand, stable speed transportation on the belt leads to better camera detection and more precise foreign material ejection. Unique double layer belt-type design can also increase the accuracy and could finish all the processing procedure at the same time.
2. Optical CCD Color Cameras High resolution CCD camera can recognize the target just like the human eyes do, improving the removal of slight color defectives and challenging foreign materials. With world-class optics, camera can identify subtle color and minimal defects.
3. High accurate ejector system High accuracy and high speed ejection, together with high precision detection accomplish the highly efficient removal of unwanted products. 4. Belt-type structure Unlike the traditional chute-type causing collision, frication and large vertical movement which would not only damage the machine and worsen the materials, but also shorten the lifetime of machine and increase the fee of maintenance, the belt-type design contributes many excellent sorting solutions. On the one hand, belt-type color sorter transports the material on the belt in horizontal direction, which makes less collision happens and lower damage rate. On the other hand, stable speed transportation on the belt leads to better camera detection and more precise foreign material ejection. Unique double layer belt-type design can also increase the accuracy and could finish all the processing procedure at the same time.
Pictures of Sorting Solution
Angelon Color Sorter Discolored, rotten, membrane, shell and foreign material such as sticks, stones, glass and plastics are removed effortlessly from both walnut halves and pieces.
RAW MATERIALS | GOOD | BAD |
RAW MATERIALS | GOOD | BAD |
RAW MATERIALS | GOOD | BAD |
RAW MATERIALS | GOOD | BAD |
For more cases: https://colorsorterblog.wordpress.com/
