Multi story Prefab Steel Building with Construction Plan

Product Overview

Description

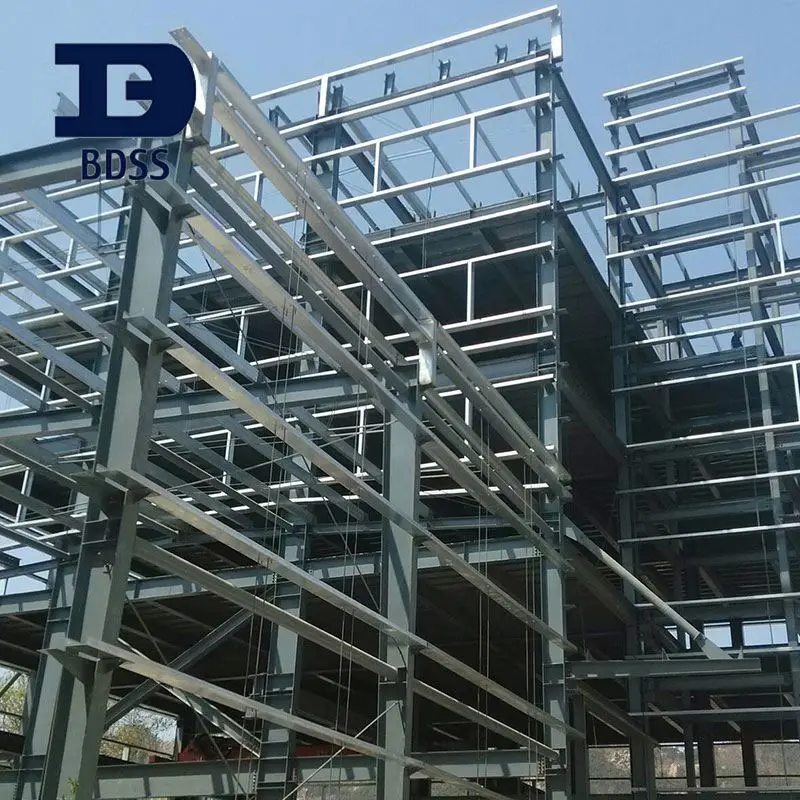

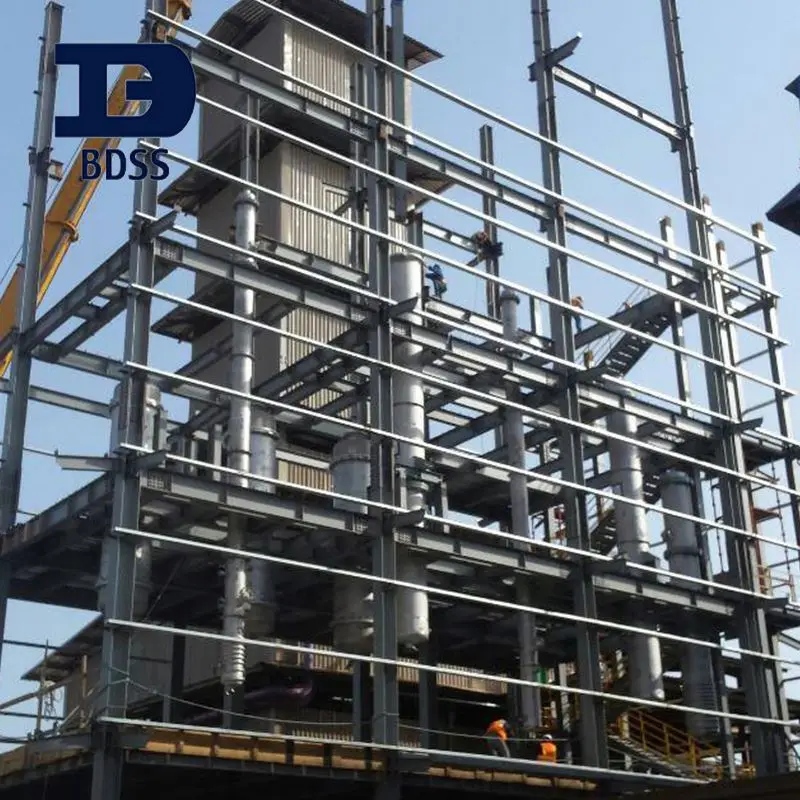

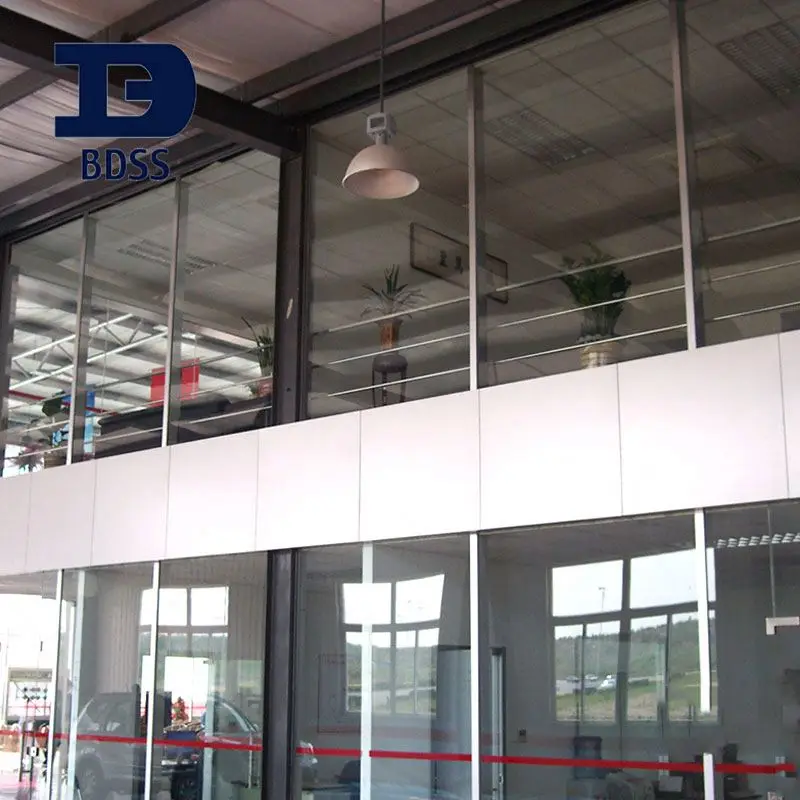

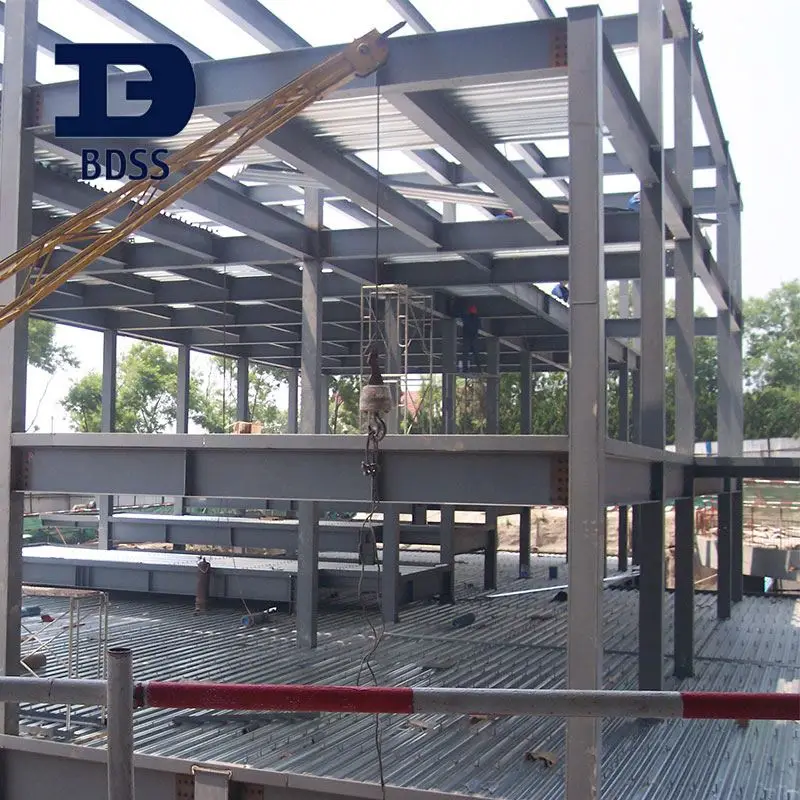

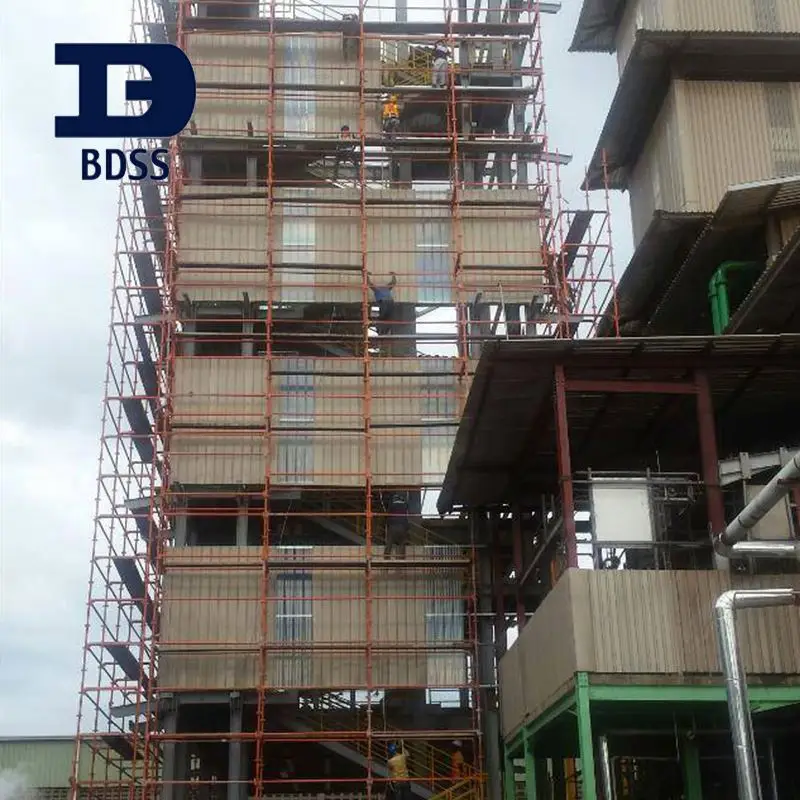

Multi-story Prefab Steel Building with Construction Plan in the pictures were designed, constructed and installed by BDSS who are professional and practical in designing, processing and installing.

You may give us your own drawings to enable us construct as per your request or you might just give us your ideas. we could design the project as per your ideas.



Dimension	Length x width x Eave height, roof slope
Type	Single slope, double slope, multi slope Single span,double span, multi span Single floor, double floors
Foundation	concrete and steel foundation bolts
Purlin	size from C100~C320,Z160~Z300
Bracing	X or V or other type bracing made from angle , round pipe etc.
Roof and wall	Single colorful corrugated steel sheet; Sandwich panel with insulation of EPS, ROCK WOOL or PU
Accessory	Semi-transparent skylight belts, Ventilators, down pipe, out gutter etc
Surface	Painting or hot dip galvanized
Package	Nude cargo loaded into 40'HQ / 40' OT





We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if needed.





1. Quality Gurantee

    High strength, light weight, good material, high reliability and short-duration high level of industrialization.

2. Capacity of engineer

    Based on the concept of modern design and corresponding national standards

    Most optimized design high-efficiently with the use of advanced internal aid design software, such as PKPM and 3D3S

    Complete set of production and installation drawings of steel structure to ensure the high-efficient and accurate operation

3. Production capacity

    Own light/heavy H steel production line, BOX production line ,C/Z purlin production line and various types of profiling steel sheet machines.

    The annual production capacity: main steel structure 20000mts,secondary steel 15000mts, various profiling steel sheet 300000 sqm annual

4. Our manufacture,installation experience

   15years of accumulation and exploitation.

   Formed our own complete set of building system for wall and roof of steel structure .

   Rich experience in waterproof and insulation technology. Support quality assurance of our clients.





















* Drafting structural drawing and shop drawing;

* Steel fabrication;

* Pricise welding : SAW / MIG;

* Sand blasting and well painting;

* Complete construction drawing for guide erection;

* Pre-sale service and after-sale service.
