MB4020Z Double pillar high speed four side moulder
- Category: >>>
- Supplier: Weihai Rico Machinery Co. Ltd.
Share on (805416726):
Product Overview
Description

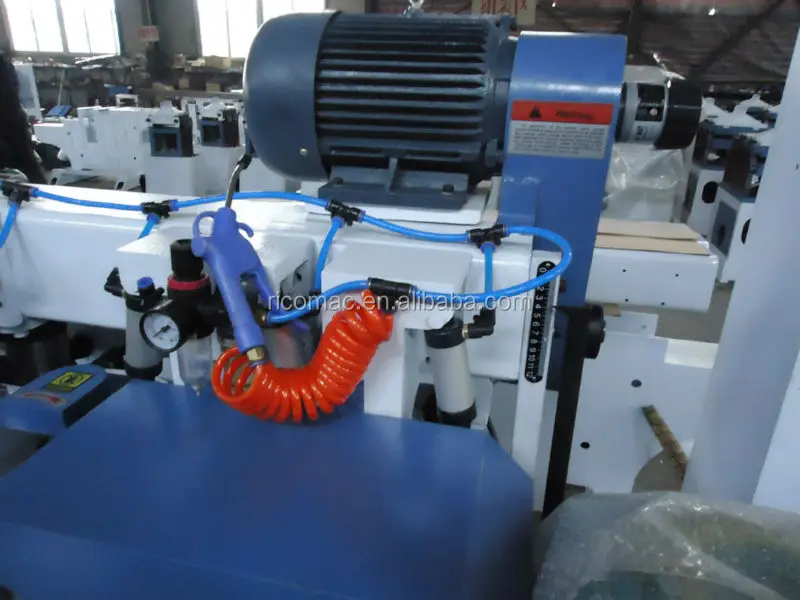

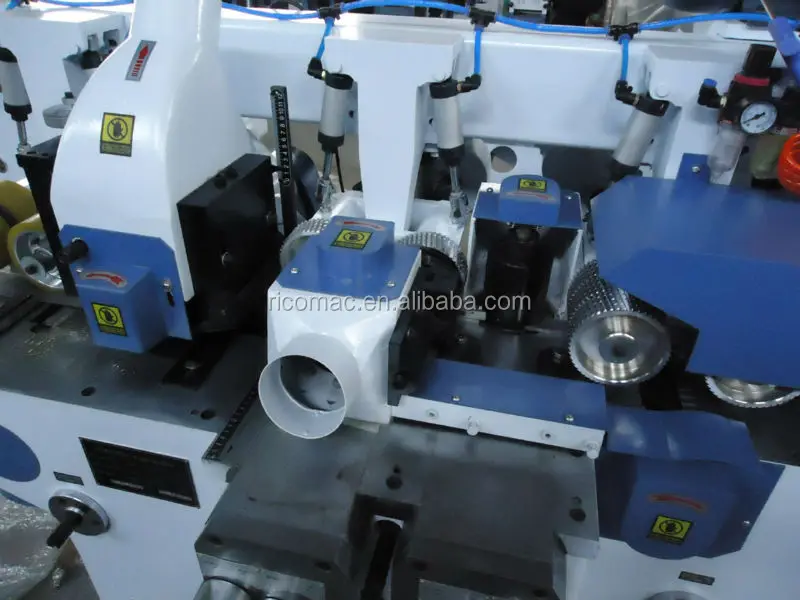

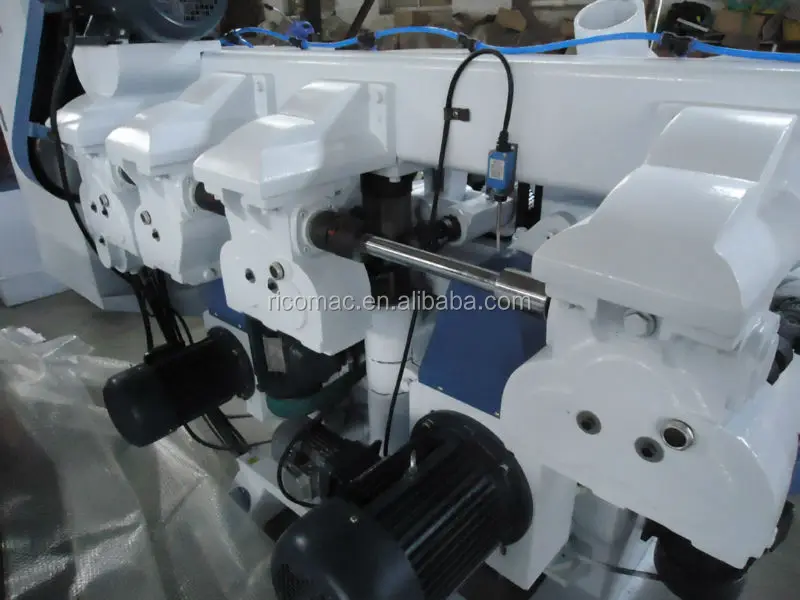

Double pillar high speed four side moulder
Model | MB4013Z | MB4016Z | MB4020Z |
Process width | 15-130mm | 15-170mm | 15-200mm |
Process thickness | 10-110mm | 10-110mm | 10-110mm |
Feeding speed | 8-33mm | 8-33mm | 8-33mm |
Feeding motor power | 2.2kw | 4kw | 5.5kw |
Up and down knife speed | 6800r/min | 6800r/min | 6800r/min |
Up and down knife diameter | 100mm | 100mm | 100mm |
Up and down motor power | 4kw/2.2kw | 4kw/2.2kw | 7.5kw/3kw |
Right and left knife speed | 6800r/min | 6800r/min | 6800r/min |
Right and left knife diameter | 100mm | 100mm | 100mm |
Up/left/right knife Max cutting roun | φ160 | φ160 | φ160 |
Down knife max cutting round | φ125 | φ125 | φ125 |
Right and left motor power | 3kw/3kw | 3kw/3kw | 4kw/3kw |
Lifting speed | 222mm/min | 222mm/min | 222mm/min |
Lifting motor power | 0.37kw | 0.37kw | 0.75kw |
Total power | 14.77kw | 16.57kw | 23.75kw |
Overall dimensions | 2460*1210*1580mm | 2460*1250*1580mm | 2530*1290*1580mm |
Guarantee&Aftersales service:
1.Guarantee for one year,spare parts can be change within this time, but for normal wear not human error damage
2.24 hour technical support by email or calling
3.User-friendly English manual for machine using and maintaining
4.As the improvement of the products, any change of the machines and parts should not be advised separately.
Pls send us the qty/model/size of the four side moulder machine, we will contact with you within 24hours.Any problem pls let us know asap,we will carefully and committed to serve you!
