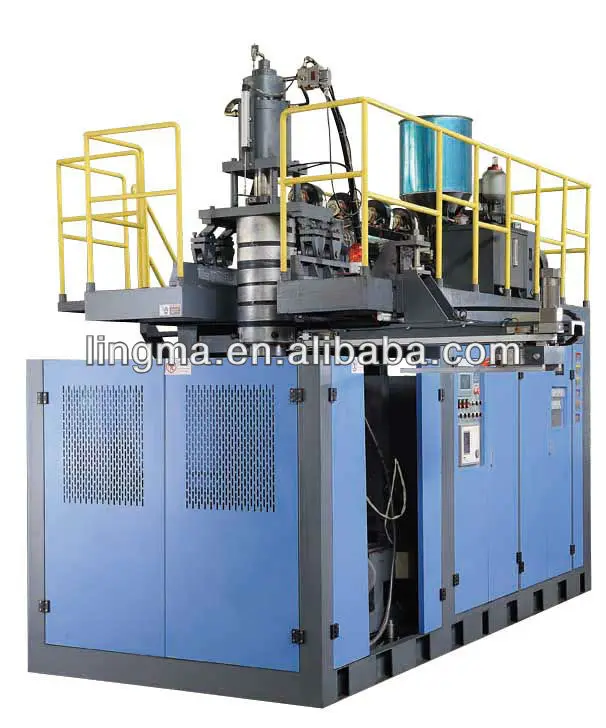

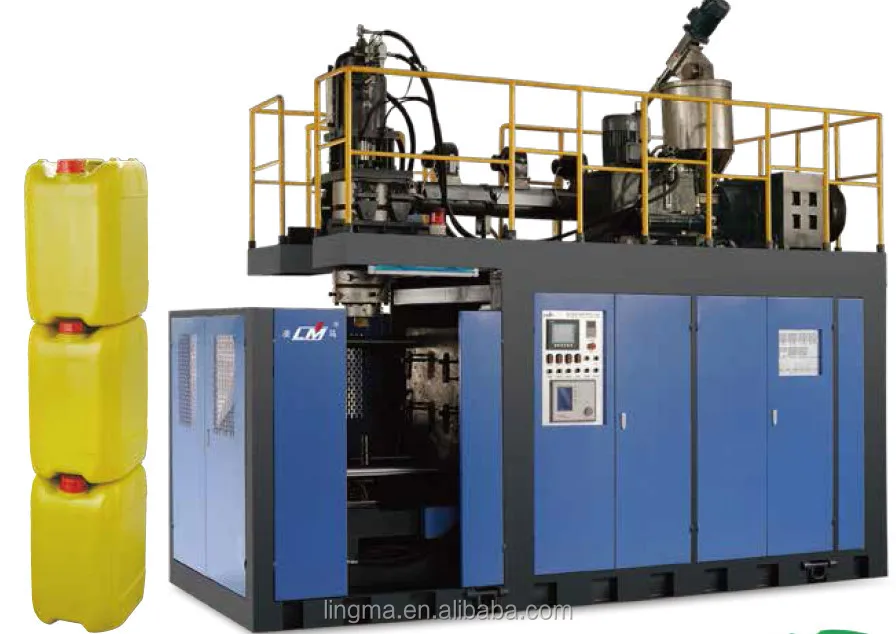

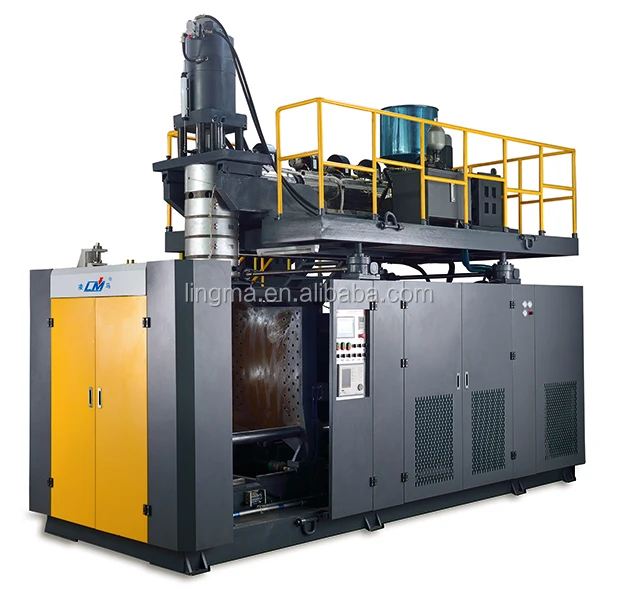

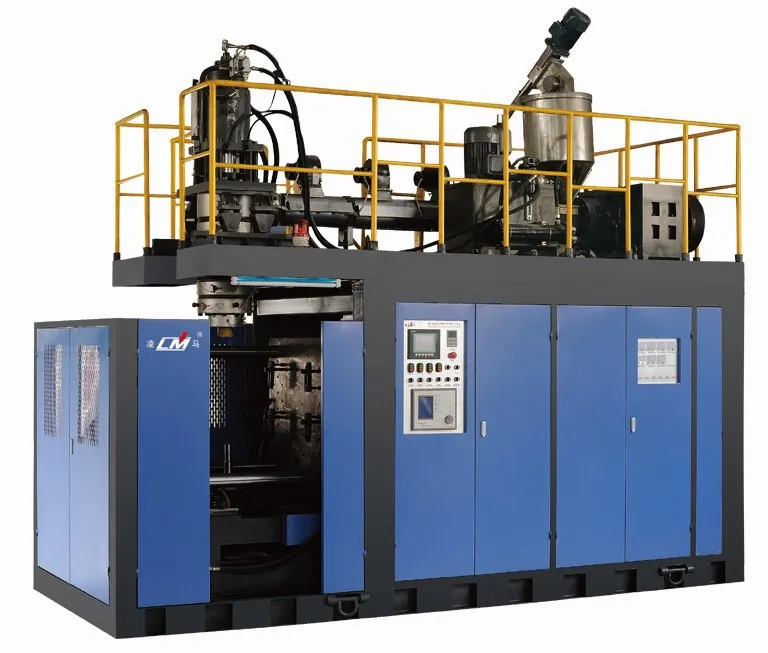

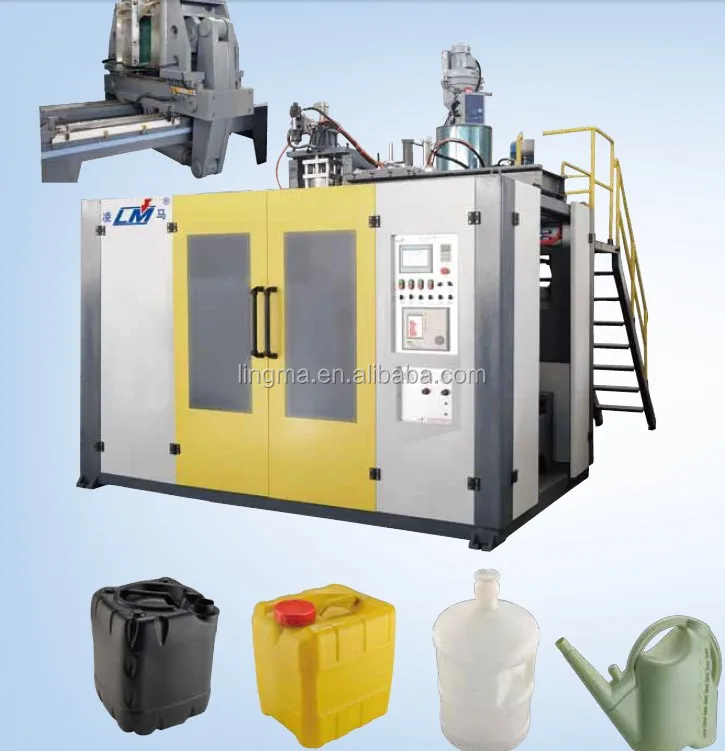

Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine
Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine
Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine
Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine
Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine
Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine
Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine

Hdpe Plastic container Extrusion Blow Moulding Machine for 20lt big oil tank making machine

Share on (805477440):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

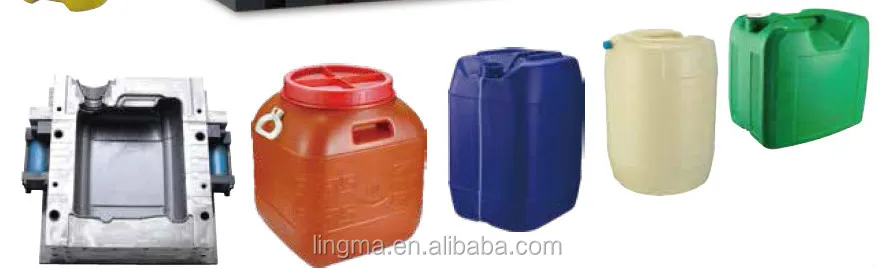

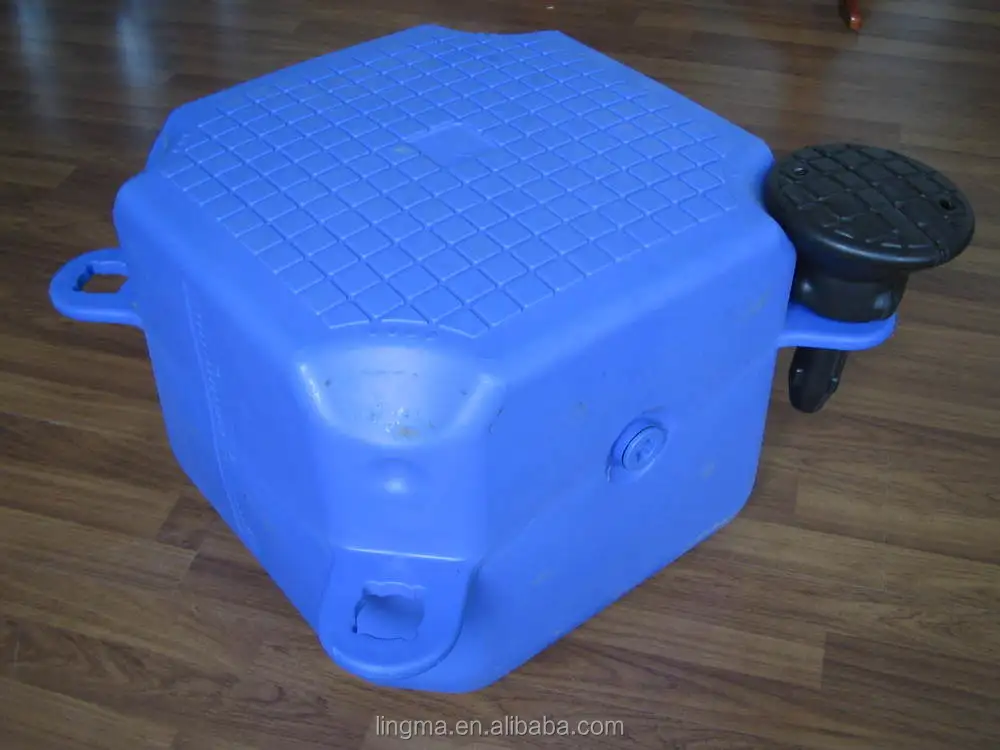

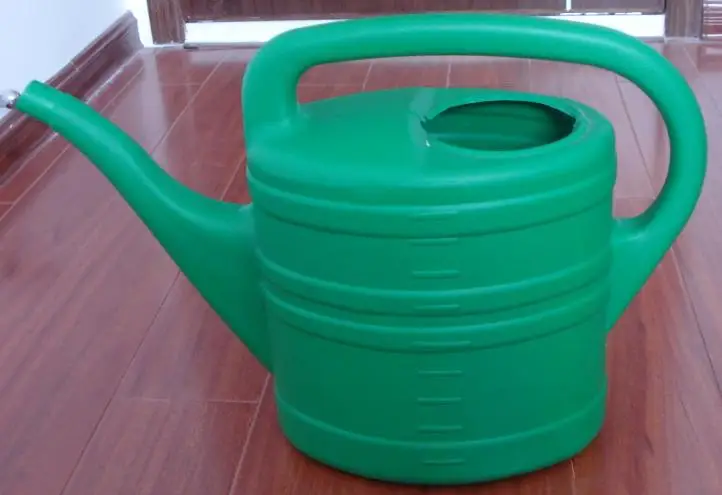

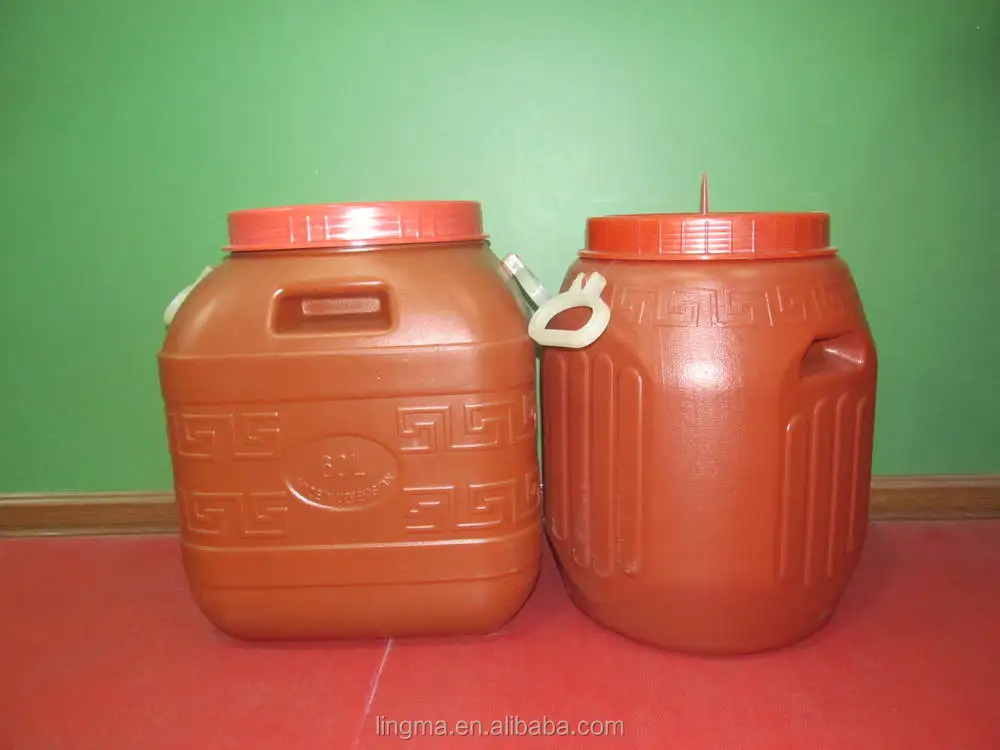

our machine is equipped with SEIMENS PLC control system,operating manual in English, hydraulicy system operated, clamping by hydraulic system .Moreover,It is also equipped with de-flashing system, resulting in saving time and manual cost for clients, servo motor elected for energy saving. its Suitable for various materials, such as PE/PP/PVC/PS/EVOH/EVA/PET and so on. it was used to make various kinds of plastic products, such as oil jerry can, detegent bottle ,cosmetics bottle, pharmaceutical bottle, food package, plastic toys, Christmas ball, plastic lubricating oil bottle .

.

\t
Basic Parameters
\t
suitable material
\t
PE,PP,PVC,PS,PETG,so on
\t
max volume
\t
30L
\t
Die head number
\t
1
\t
Size
\t
5.6×2.3×4.4(M)
\t
weight
\t
11T
\t
Total power
\t
70kw
\t
station
\t
1
\t
System
\t
specification
\t
parameters
\t
Extrusion System
\t
Summarize
\t
High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
\t
\t
reducer
\t
Hard finishing, high intension, low noise reducer
\t
\t
screw
\t
∮85mm,L/D ratio 22-24/1,38CrMoALA with nitriding surface HV≥800, brittleness≤2;
\t
\t
Plasticization
\t
130Kg/H
\t
\t
Screw Heating zone
\t
7 Aluminum heater
\t
\t
Screw Heating power
\t
8.2Kg/H
\t
\t
extrusion Motor
\t
three phase asynchronous motor(380V,50HZ)75HP
\t
\t
Cooling Fan power
\t
\t
Die System
\t
Summarize
\t
high-grade alloy steel,center feeding
\t
\t
Max die mouth
\t
∮300mm
\t
\t
Die Heating zone
\t
7 Stainless steel heating cycle
\t
\t
Die Heating power
\t
15KW
\t
Clamping System
\t
Summarize
\t
High intension,rigidity,center mold locking,stable mould opening and clamping system
\t
\t
Clamping force
\t
200KN
\t
\t
Template distance
\t
400-1100mm
\t
\t
Template stroke
\t
550-6401mm
\t
\t
Max mould size
\t
W*H: 500×680mm
\t
\t
Mould material
\t
High grade 50 ﹟steel
\t
Electric System
\t
Summarize
\t
PLC+touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault alarm, auto counting, auxiliary function available)
\t
\t
Operate interface
\t
10 inch colorful touch screen, automatic self-diagnose alarm system
\t
\t
Temperature control
\t
Automatic temperature control module Temperature controlling precision: Various in ±1%;
\t
\t
Movement control
\t
SEIMENS, Chinese/English Version
\t
\t
Electric protection
\t
Ampere overload, electric short circuit self-portection function
\t

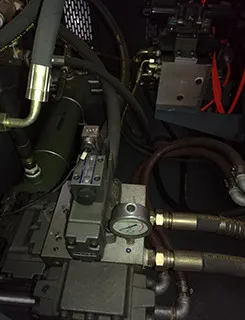

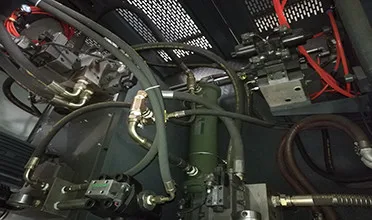

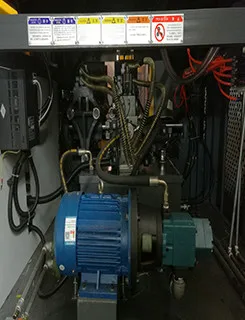

Hydraulic System
\t
Summarize
\t
Multipel function hydraulic integrated block proportional control, high eficient
\t
\t
Oil pump motor
\t
three phase asynchronous motor(380V/220V, 50/60HZ)15KW
\t
\t
Oil pump
\t
Japanese double Vane pump
\t
\t
Valves
\t
YUKEN valves and connections
\t
\t
Oil pipes
\t
double layer overpressure resistant
\t
\t
system pressure
\t
60Kg/cm²
\t
\t
cooling system
\t
separate water cooling cycle, oil cooler cooling system
\t

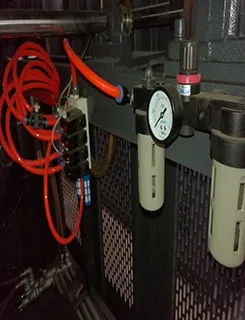

Pneumatic System
\t
Summarize
\t
FESTO an airtac pneumatic system
\t
\t
Air pressure
\t
0.8Mpa
\t
\t
Air displacement
\t
1.2M3/min
\t
\t
Electromagnetic valve
\t
FESTO
\t
Cooling System
\t
Summarize
\t
Sparate cooling system of mould, barrel and oil system
\t
\t
Cooling medium
\t
Water
\t
\t
Water flow
\t
50L/min
\t
\t
Water pressure
\t
0.3-0.6Mpa

Main Features

1. The machine adopts toggle articulated clamp system to ensure bigger clamp force and more beautiful goods. The servo valve and controller are from MOOG(USA),and both devices are able to ensure the evenness of wall thickness and the products’ elegant appearance.
2. It can be installed with programmable computer control and realize whole line automatic. The low-voltage electrical apparatus comes from Siemens(Germany), and Schneider(France).
3. Provide products with high stability for customers
4. Using famous server driver, special close loop calculated solution best energy saving. The servo drivers and energy accumulator are used to be more economical

Detailed Images

Machine Parts

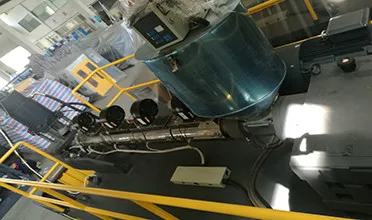

Name:Extrusion system

Drives by a generator with frequency conversion, our extrusion system can realize the requirement of a transformable rotate speed of the screw for the blow machine process,Screw with a big length-diameter ratio, has a good capability for processing all kinds of plastic with high plasticizing efficiency, low power expenditure.
Controlled by computer, the raw material accumulator heats by resistance-circle can be heats promptly with a stable and well-distributed temperature.

Main Features

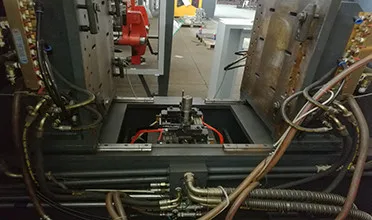

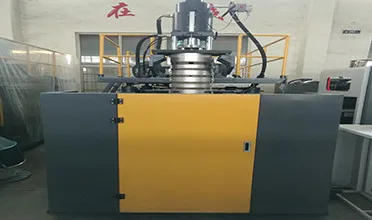

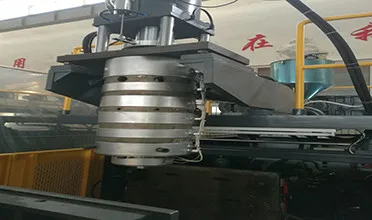

Name: diehead system
Products with content level line or double-layer, triple-layer can be produced when 2 or 3 machines work together on the team extruding system with different die-head one each machine.

Machine Parts

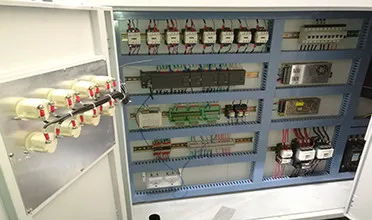

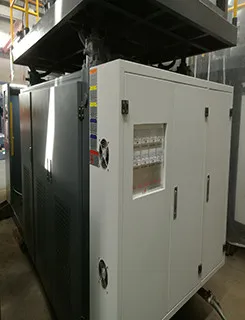

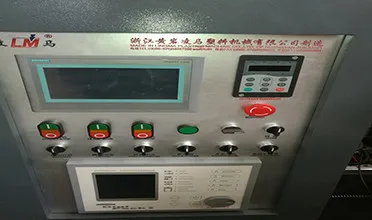

Name:Electrical control system
     Siemens PLC human-machine interface control system, automatic fault-alarm, credible and highly automatic work, available for 40 molding process data in the computer. Capable of manual, half-automatic and full-automatic operating methods.

Main Features

Electrical and mechanical safety structures (stop working automatically when safety door open) guarantee operating security. Straight-insert and skew-insert blowing devices for two kinds of blowing function.
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

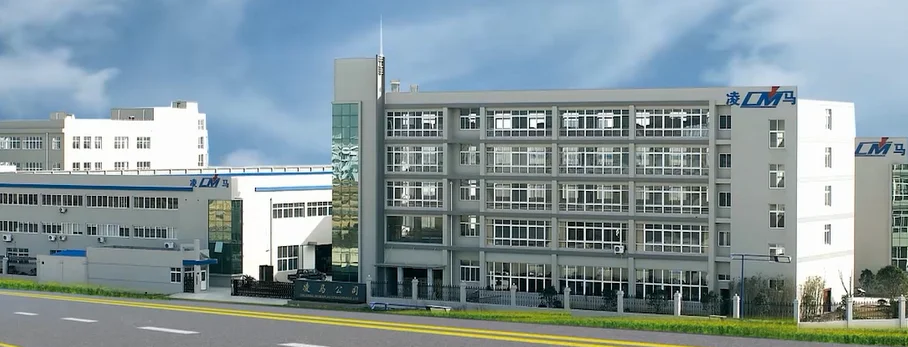

Our Company
Packing & Delivery
\t
Packaging
\t
Size
\t
4.2 (L) * 2.7 (W) * 3.5 (D)
\t
Weight
\t
11 T
\t

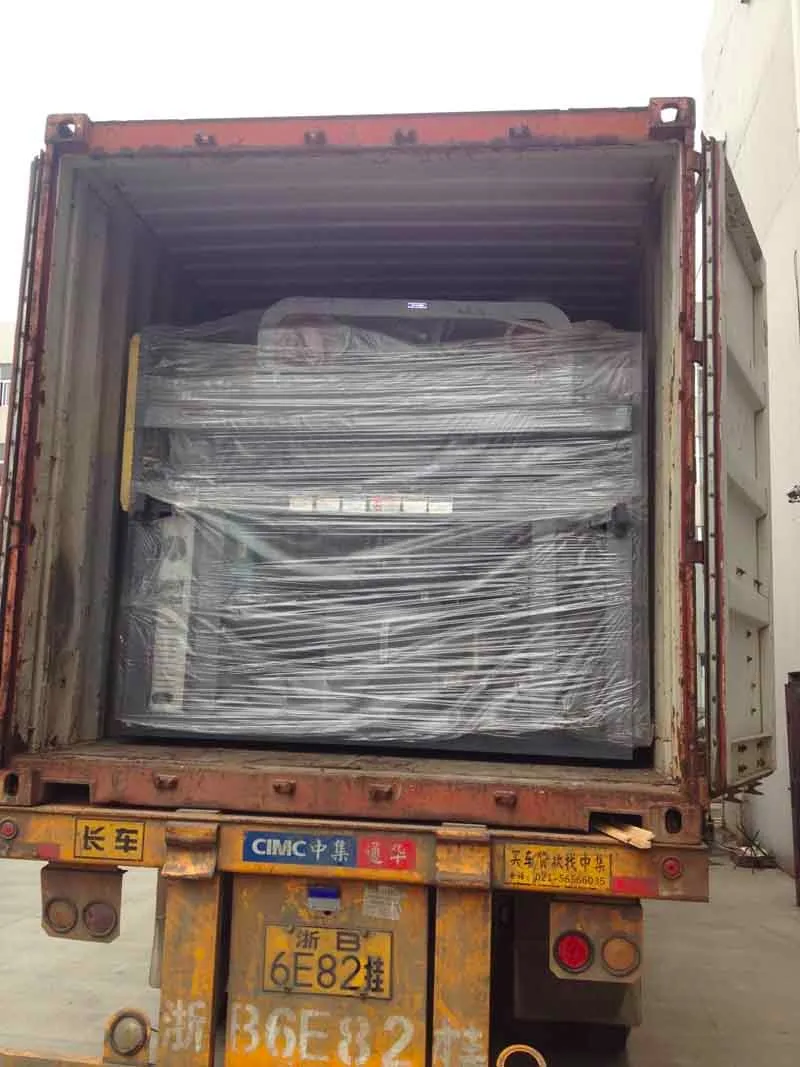

Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

1.your inquires will be replied professionally in the first time .
2.High quality machines, competitive price, fast delivery time.
3.Our staff will communicate with you in time through all kinds of ways,such as the email, whatsapp ,skype and so on ,let you fully understand the detail situation of our enterprises and products

After-Sales Service

1.We will provide good overseas service ,our engineer will be able to provide you with technical support ,for you personally to overseas assembly and test equipment.
2.Our after-sale service staff will put your feedback to the technical staff in the first time, timely solve your problem
