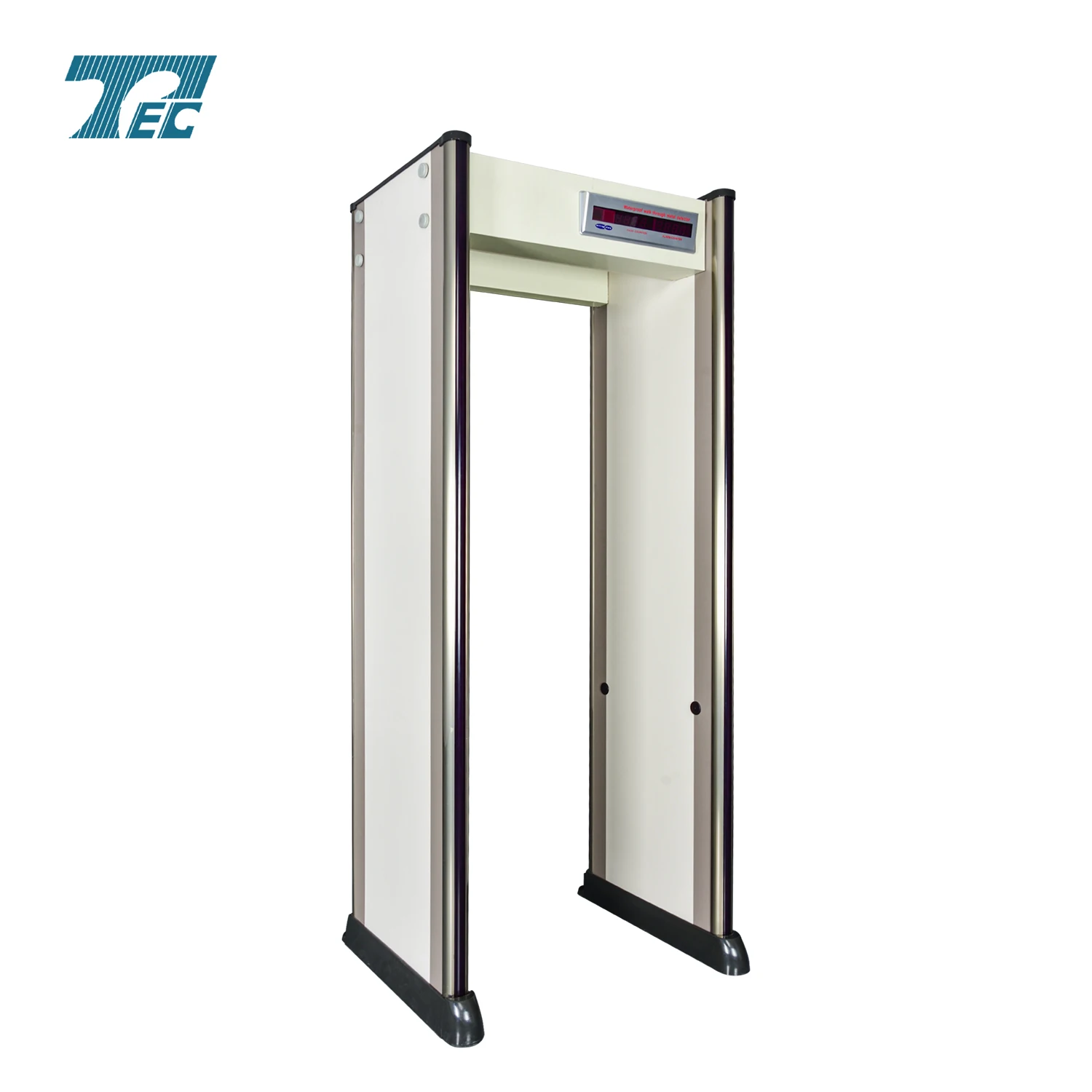

Professional Walk Through Security Body Scanner Door door frame metal detector PD 6500i

Product Overview

Description

Professional Security Body Scanner Door,door frame metal detector PD 6500i







The PD 6500i is an advanced Digital Signal Processor (DSP) -Pinpointing based walk through metal detector that provides superior target detection with excellent metal discrimination capabilities.



Traffic flow:



Pacing lights with international "wait" ( ) and "proceed" ( ) symbols are located on the entrance side of each panel and allow smooth and efficient traffic flow. The PD 6500i traffic counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates the
alarm percentage.



TECHNICAL SPECIFICATIONS
1.1 DIMENSIONS
Passage Interior: Width: 30" (0.76m) Height: 80" (2m) Depth: 23" (0.58m)
Overall Exterior: Width: 35" (0.9m) Height: 87" (2.2m) Depth: 23" (0.58m)
Shipping Weight: 100 kg
1.2 OPERATING CONDITIONS
Temperature: -4 (-20) to +158 (70)
Humidity: Up to 95% non-condensing.
1.3.BAR GRAPH
The LED bar graph is comprised of a series of lights. The bar graph light activity represents the level of metal detection intensity occurring within the archway. The detection intensity is dependent upon the quantity and composition of the metallic object(s), and the program and sensitivity
settings of the unit. the bar graph also indicates the presence of electrical interference and
interference from nearby moving metallic objects.
1.4. READY LIGHT
The green READY light appears when power is on and the PD 6500i is ready to detect metal. The ready light must be illuminated before a patron is permitted to enter the walk-through.
1.5 BACKLIT LCD
The LCD is a visual display located in the overhead panel. The LCD reports calibration and operational information, including program and sensitivity settings, operator functions and fault indication. The LCD displays all self-prompting regulation and control functions as well as traffic count information.



Features	Detail
Detection zones	33 Pinpoint Zones to precisely identify multiple target locations from head to toe and pinpoint the location f metal object on 11 sections LED bar graphs horizontaly on the frames eages.
Coil design	Advanced Broadband Detection Technology provides superior target analysis, ferrous  and non-ferrous weapons detection, discrimination and higher patron throughput.
Alarm indication	High visible LCD Display, alarm lights, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.
Easy Assembly	ProCheck3  is easily assembled with only 4 (four) pieces  screws and simple to follow instructions.
Multiple scanning	The ProCheck3 uses multi-dimensional scanning which ensures maximum throughput and uniform screening with a minimum of false alarms. Multiple coil circuitry with dual alarm lights inform operators on which side of the detector the target is located. With “hot spots” eliminated, the unit’s detection field is uniform throughout the archway and false alarms are significantly minimized.
Microprocessor Controlled	State of the art microprocessors ensure sensitivity and flexibility of programming with a maximum of 100 distinct sensitivity levels in each program.
Audible/Visual Alarms	Audible alarm with 10 alarm delay indicating target on 6 independent zones
Detection Field	Unique coil design offers multidimensional detection field with total uniformity both horizontally and vertically. This design, plus a choice of three levels of ankle level boost, eliminates traditional hot spots and weak signals. Target detection is precise regardless of its location in the archway.
Programming	ProCheck 3 offers 3*11 independent zones with 1 to 99 levels (200 level is available for request) of sensitivity adjusting to meet exactly the end users requirement.
Operating Temperatures	-4°F (-20°C) to + 158°F (70°C); Humidity: To 95% non-condensing.
Power	100  to 240 VAC, 50 or 60 Hertz, 55 watts; no  rewiring, switching or adjustments required.
Interference Suppression	Advanced analog and digital filtering—as well as adjustable operating frequencies—eliminate the potential effects from x-ray units,radios and other electrical interference sources.
Traffic Counter	Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.

the connection of the power cord to either side of the base of the unit.



Passage Interior: Width: 30" (0.76m) Height: 80" (2m) Depth: 23" (0.58m)
Overall Exterior: Width: 35" (0.9m) Height: 87" (2.2m) Depth: 23" (0.58m)



LCD Panel---green READY light appears when power is on and the PD 6500i is ready to detect metal .

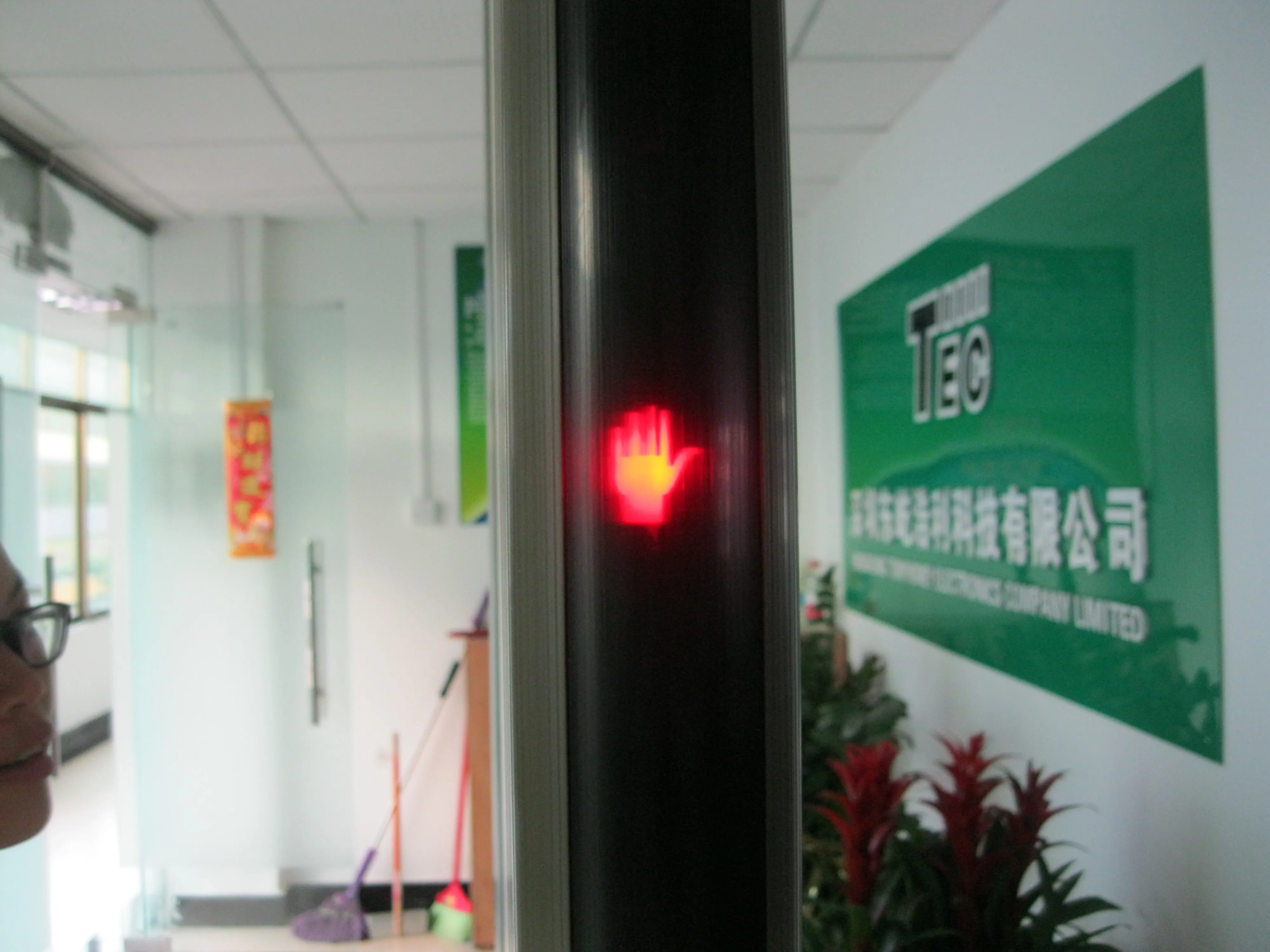

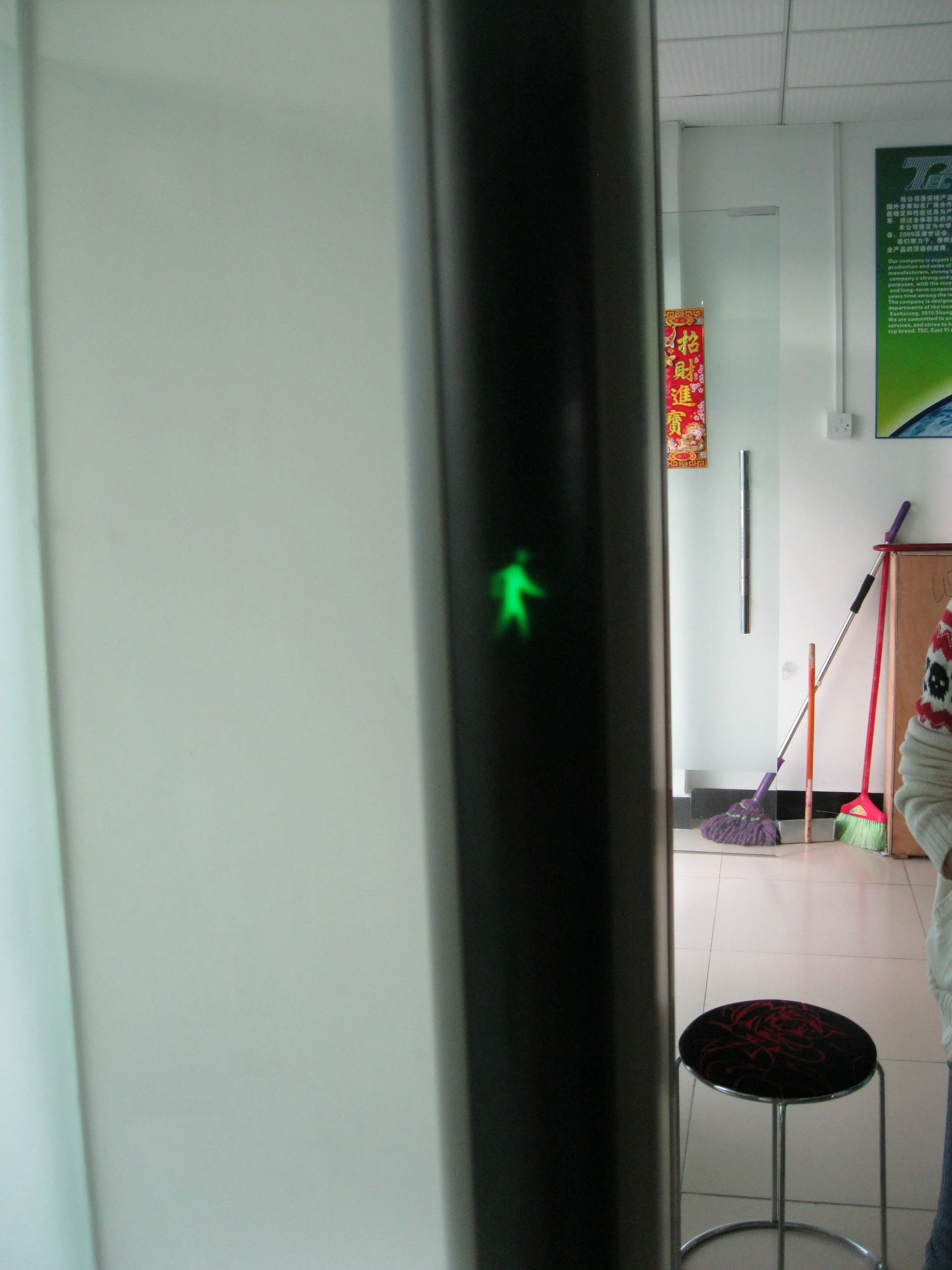

Red is wait,Green is Proceed







Package:

Net Weight:75kg

Gross Weight:96Kg

Carton Box Size: 27*42*86 / 21*66*231mm

Wooden Case Size: 45*30*88 / 24*68*233mm

Wooden Package(best package for long distance transportation)



Carton Package



Shipping Ways:

Due to its heavy weight and large cubic,by air is the best choice.



By Sea is also a good choice,if you are not in a hurry.





1. Choose Guidance

If you have not your confirm your needed type,just tell me your requests,then the most suitable model will be recommended to you.

2. Help you find the most economical transportation way



3. Guidance on how to make payment

Many customers are first time to purchase from overseas,so they know little about the internation payment ways and do not know how to operate.Under this condition,we will provide guidance or service line.

4.Products Test and Inspection

To guarantee our customers receive the perfect products,we will check the goods again and again,.



6. 12 Months Warranty

During this period,if anything happen to the goods,not including the artificial damage,the free after-sale service will be provided.
