steel shell Intermediate frequency furnace

Product Overview

Description

Introduction

1.Power source adopts a parallel resonant circuit, the control circuit is fully integrated, intermediate frequency power source zero voltage soft start. Convenient operation and maintenance, stable,reliable, low repair cost.

2. Intermediate–frequency power source has many function, including overvoltage, overcurrent, lack-phase, under-voltage, lack of water, cooling water temperature overrun alarm protection ,it’s safe and reliable.

3.Melting fast and high production efficiency when Stable power and stable operation.

4.Three-phase full-bridge rectifier, small hign-order harmonics, without interference on power grid, the transformer does not heat and low loss.

5.When power source works, electric and water is saved. Small volume, light weight, safty, wide used



Heating characteristics



1. Intermediate frequency furnace smelting process is stable, the castings have high mechanical strength



2. Oxidation loss, no oxidation melting, reduction of the melting loss



3. Liquid iron have electromagnetic stirring itself and homogeneous metal components, can smelt any chip and small scrap, reducing cost



4. Reduce environmental pollution



5. High power density, fast melting, start melting conveniently



6. Flexible and convenient operation, selected frequency



7. Low construction costs



8. Superb coil design, high quality thick-walled copper tubes , Rational selection of induction loop interturn distance makes the highest conversion efficiency of induction coil ,resistance minimum,so more energy can be used for melting, heating, high strength, coils are prone to damage due to arc and expansive fo rce.



small capacity intermediate frequency and melting furnace

1-ton intermediate frequency furnace technical parameters



Model GWT-1/750		Index(6 pulse)		Index(12 pulse)
Rated power		750KW		750KW		750KW
Phase voltage		3*660V		3*660V		6*660V
Rated voltage		2800V		2800V		2800V
Rated capacity		1T		1T		1T
Rated temperature		1600°C		1600°C		1600°C
Power specifications		KGPS-1/750		KGPS-1/750		KGPS-1/750
Single set price
Complete configuration:	Fast 12 pulse intermediate frequency power source		A set
	Compensation capacitor		A set
	Intermediate frequency furnace		Two
	Reducer		Two
	Water cooled cables		Two
	Crucible film		One
	Instructions for use		One
	Warranty period		1 year
Price

Notice:

1)6 phase 12 pulse intermediate frequency power source control system can eliminate 5, 7high-order harmonic,and significantly reduces the power grid harmonic interference.

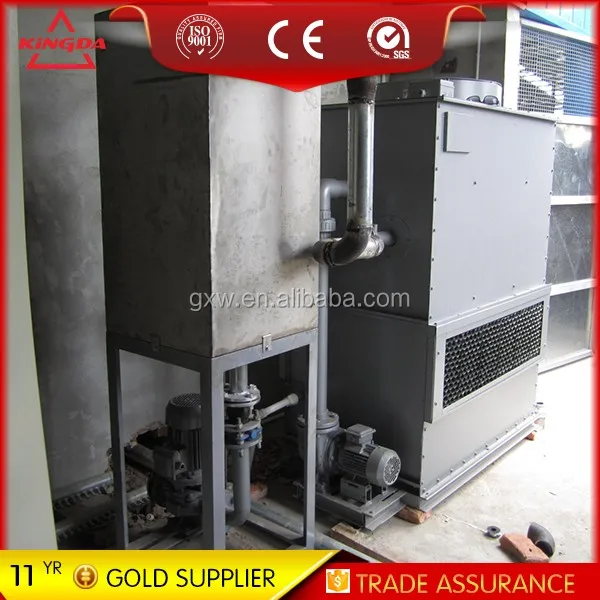

2)Closed circuit cooling tower is used to improve the effect of the cooling system and equipment service life,without building the pool.
