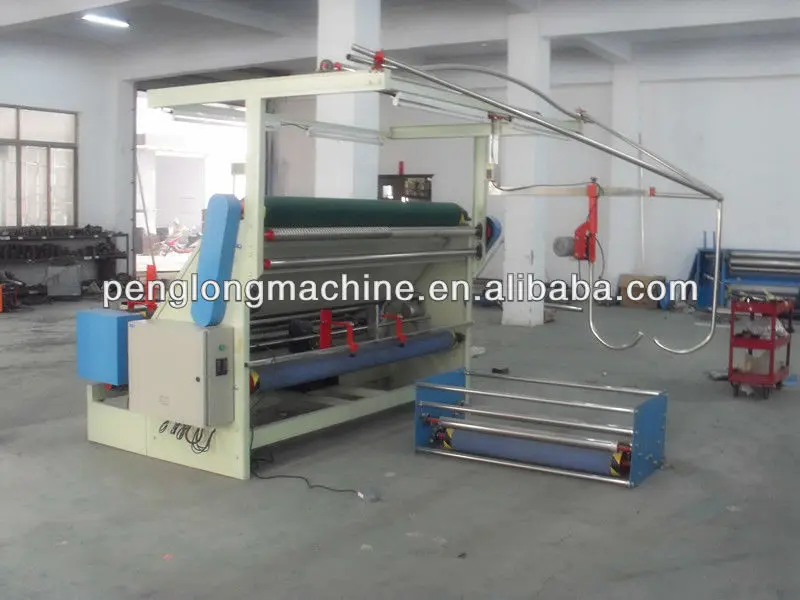

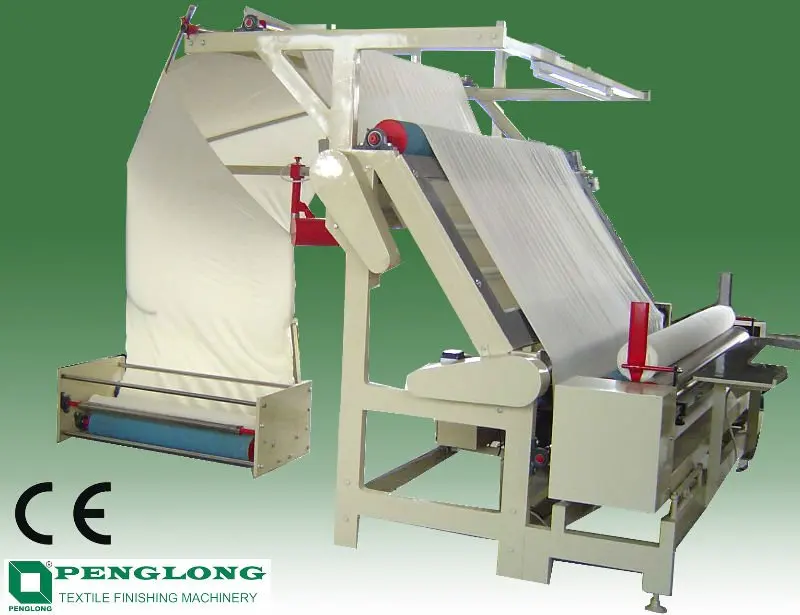

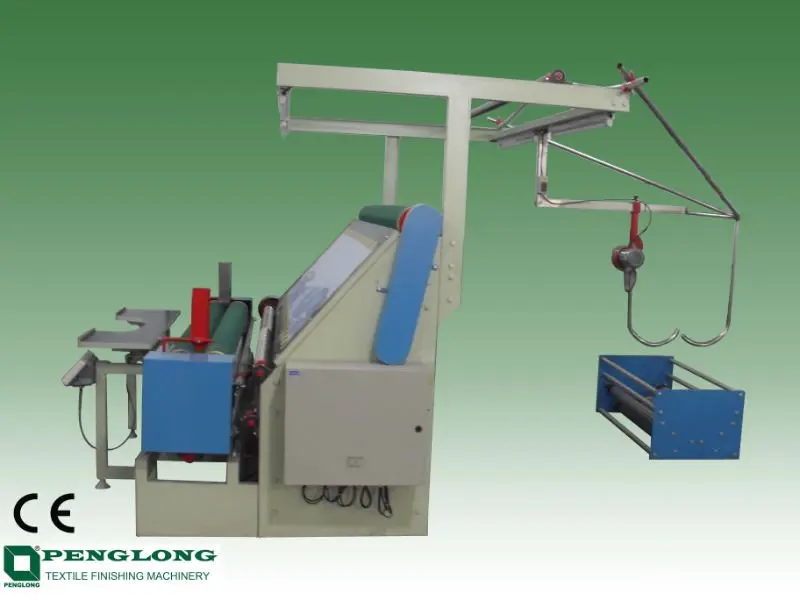

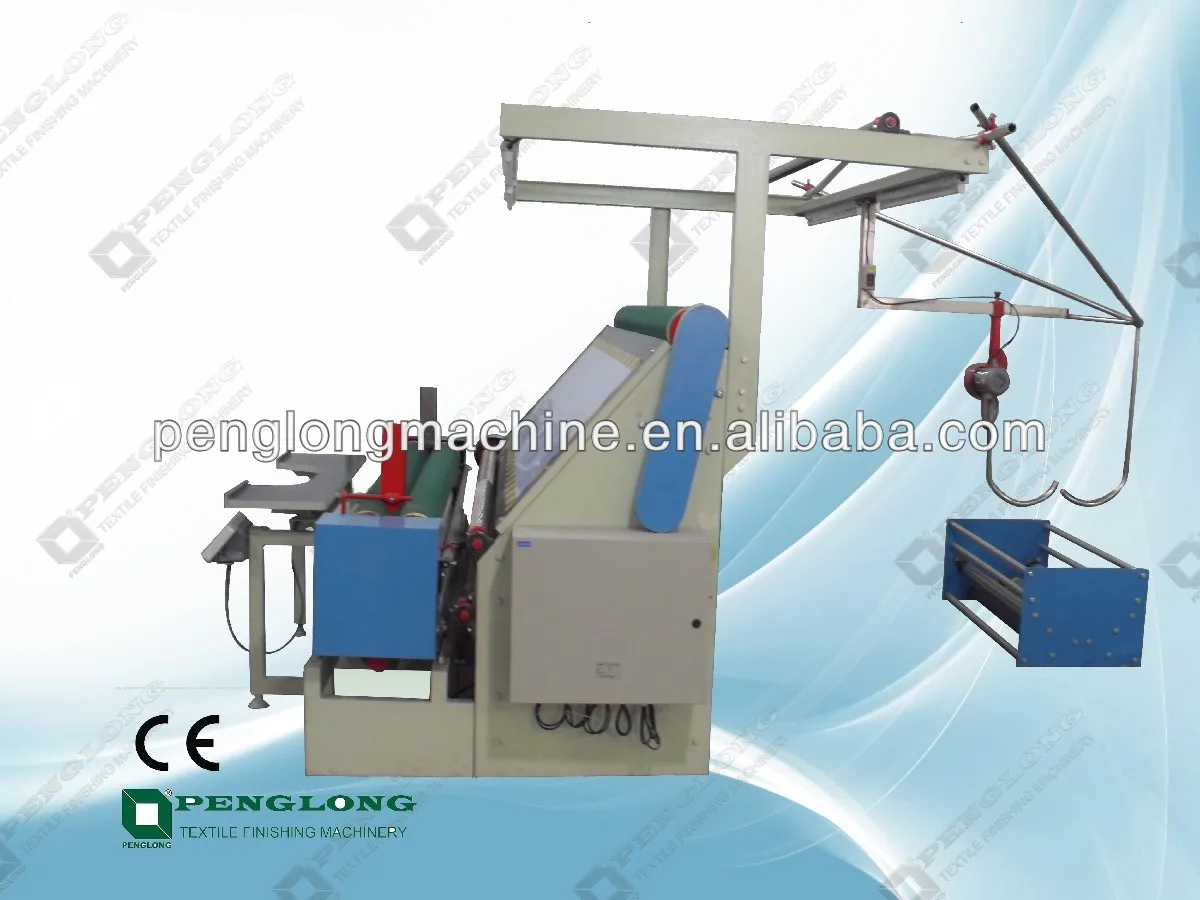

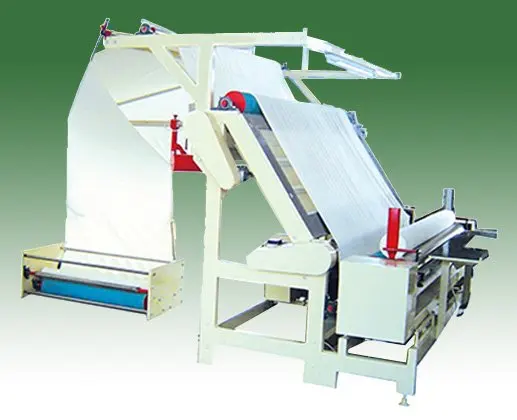

Multifunction Fabric Inspecting and Winding with Cutting Machine

Product Overview

Description

Description of  Multifunction Fabric Inspecting and Winding with Cutting Machine



Usage:  Multifunction Fabric Inspecting and Winding with Cutting Machine  is specially designed for inspecting various fabrics such as cotton,knitted fabrics,tricot,woven and so on.With dual function of inspecting fabrics from roll to roll or roll to piles.











Characteristics

1.  Multifunction Fabric Inspecting and Plaiting Machine  which could inspect fabrics from roll to roll and from roll to plaited pile.

2.Auto edge-aligning system consists of edge sensor and hydraulic station has been adopted to promote the efficiency on inspection.

3.Sprial expanding rollers will be adopted according to different fabrics to spread fabrics without any curled edge.

4.Fabric tension is adjustable by the speed difference between main motors managed by inverters.

5.All the speed adjustment,tension controlling and other controls are available on the control panel which offers an easy operation.

6.All the feeding rollers and winding roller are driven by imported gear motors.

7.Digital Length counter makes accurate fabric length.



Technical Parameters

Max.Working Width	2000-3600mm
Diameter of Fabric Roll	500mm
Max.Speed	80m/min
Main Motor	1HPx3
Edg-aligning Tolerance	±3mm
Dimensions	LxWxH 2150x2300x2500mm

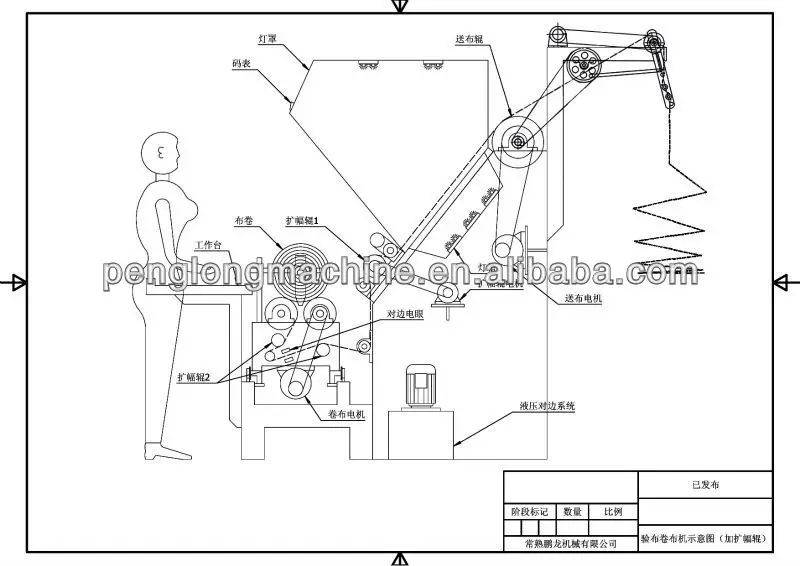

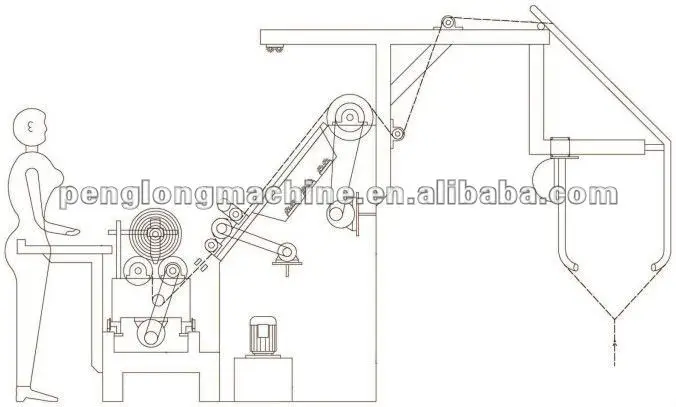

Drawing





\\

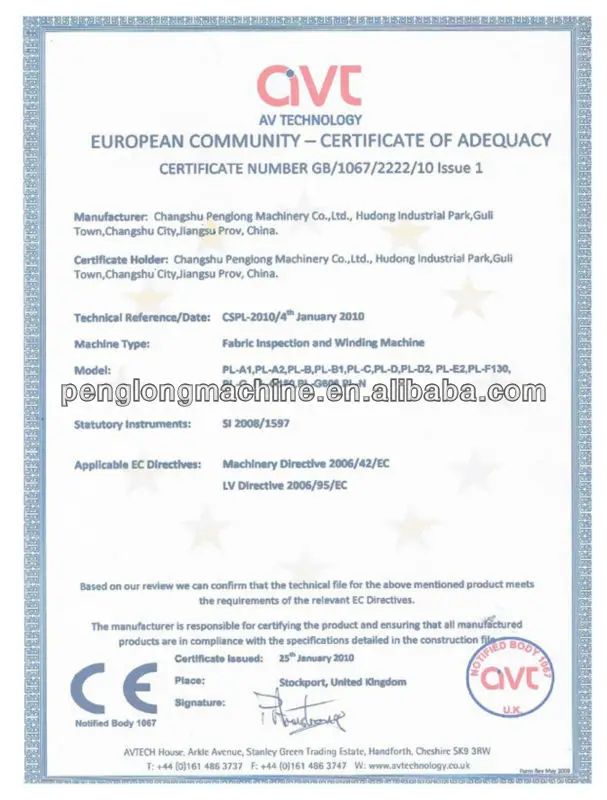

CE Proved







Welcome to Inquiry our Machine



Company introduction



Changshu Penglong Machinery Co,. Ltd is a famous cloth inspecting,finishing and packing machinery manufacturer in textile dyeing and finishing equippment industry,just 80km away from Shanghai,with convenient ports and good highway transportation.



Our leading products include cloth slitting-inspecting-wnding combination machines,fabric inspection machine,rope opener,fabric relaxing machine,automatic centering machine,high-speed tubular slitting machines,swarch cutter,automatic edge sewing machine,tensionless fabric inspection machine,fabric unwinding and plaiting machine,fabric folding machine,pneumatic batch winding machine,vacuum cloth packing machines,tubular slitting inspection machine,infrared hydraulic trackers and other dyeing and finishing machines and spare parts.
