Automatic filler hot milk,soya milk filling machine,Milk beverage filling equipment
- Category: >>>
- Supplier: Zhangjiagang Keerman Machinery Co. Ltd.
Share on (808379745):
Product Overview
Description
Product Description
The whole line contacts 6 main parts:
1.Bottle blowing machine
2.Water treatment sytem
2.Water treatment sytem
3.Fruit juice pretreatment equipment
4.Water bottle washing filling and capping three in one machine
5.Labeling machine
6.Shrink Packing machine
4.Water bottle washing filling and capping three in one machine
5.Labeling machine
6.Shrink Packing machine
1.Bottle blowing machine
To Blow the preformers to be bottles.
To produce mineral water or pure water from well,lake,river and other source water
3. Fruit juice pretreatment equipment
The above flow chart for general configuration, for reference only! We will determine the final pretreatment equipment configuration according to your specific situation

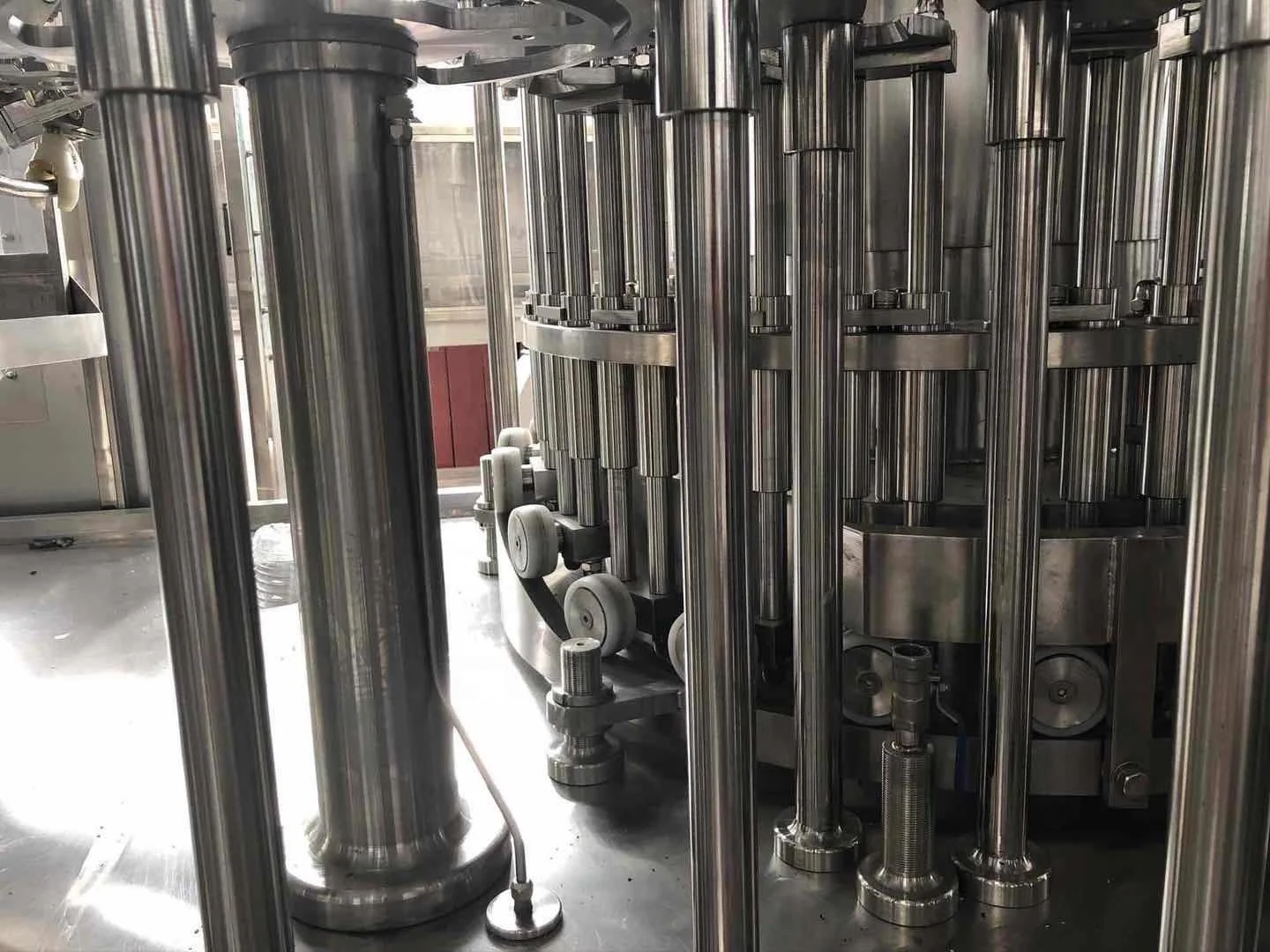

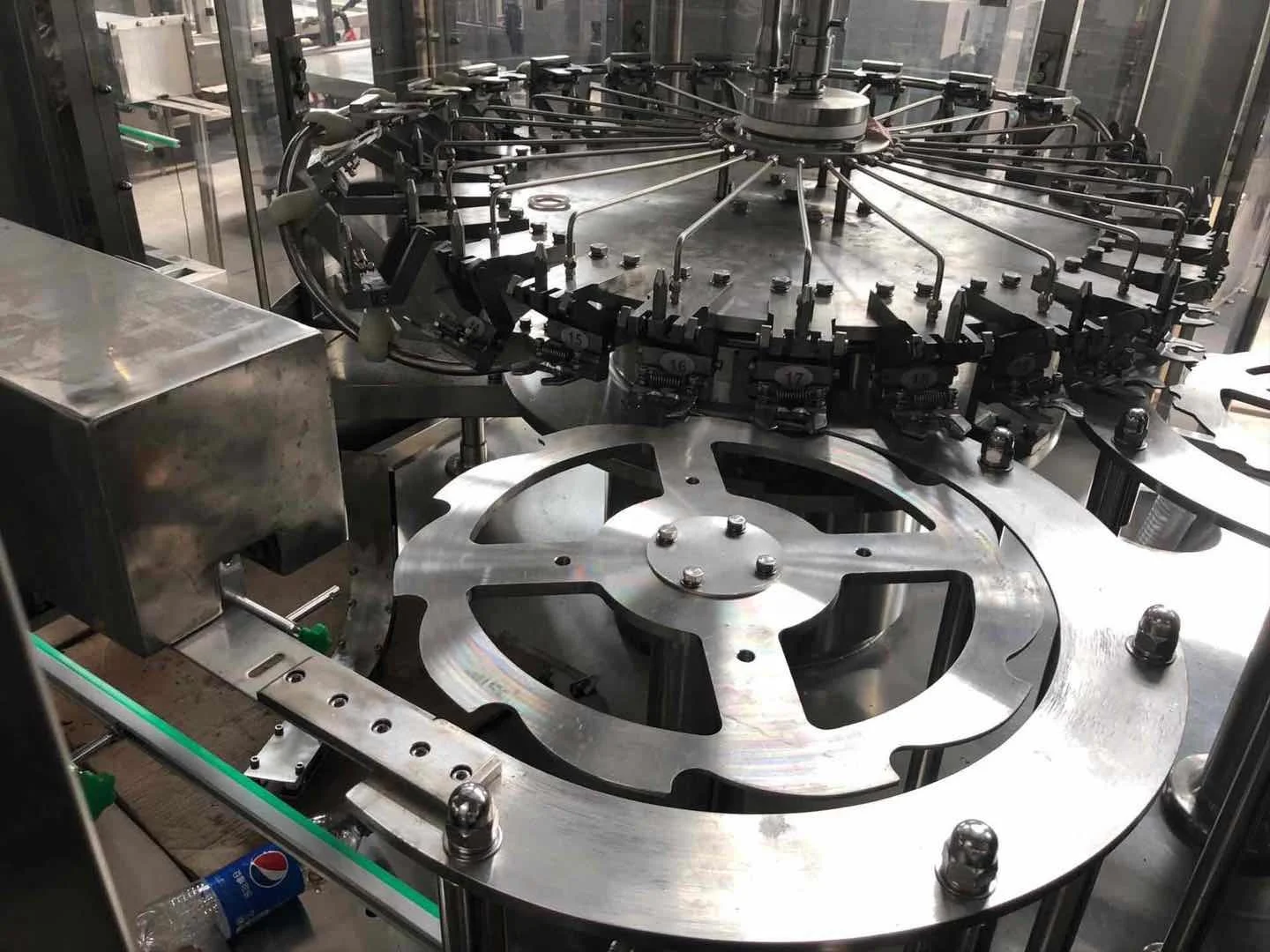

To wash the bottles ,fill drinking water into bottles,seal bottles with caps.
Washing bottle
Product Paramenters
Model | RCGF12126 | RCGF18186 | RCGF24248 | RCGF323212 | RCGF404015 | RCGF505018 | RCGF606020 | ||||||
Head of washing, filling, sealing | 12-12-6 | 18-18-6 | 24-24-8 | 32-32-12 | 40-40-15 | 50-50-18 | 60-60-20 | ||||||
Production capacity (bottle/hour) | 4000-5000 | 6000-8000 | 8000-10000 | 10000-12000 | 12000-14000 | 15000-16000 | 18000-20000 | ||||||
Suitable bottle diameter(mm) | 50-90 H=150-310 330-1500ml | ||||||||||||
Spraying pressure | 0.25 | ||||||||||||
Motor power（kw） | 3.13 | 3.84 | 4.1 | 5.6 | 7.5 | 9 | 11 | ||||||
Power of outer vacuum pump | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | 0.3-0.7 | ||||||
Overall dimension (mm) | 2100×1650×2 300 | 2400×1900×2 300 | 2800×2100×2 300 | 4200×2300×2 300 | 5000×2800×2 400 | 5900×3100×2 400 | 6500×3500×2 400 | ||||||
Weight(Kg) | 2500 | 3000 | 4000 | 5000 | 7500 | 9000 | 11000 | ||||||
5. Sleeve labeling machine
Company Profile
Processing Equipment
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customers Visit
Connection debugging before delivery
We will connect all the machines and pipes in the factory, simulate the operation in your factory, and disassemble and pack them into containers for transportation after they are qualified.
After sales and return visits
Certifications
One year warranty
During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period
Remote services
solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period
Remote services
solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
