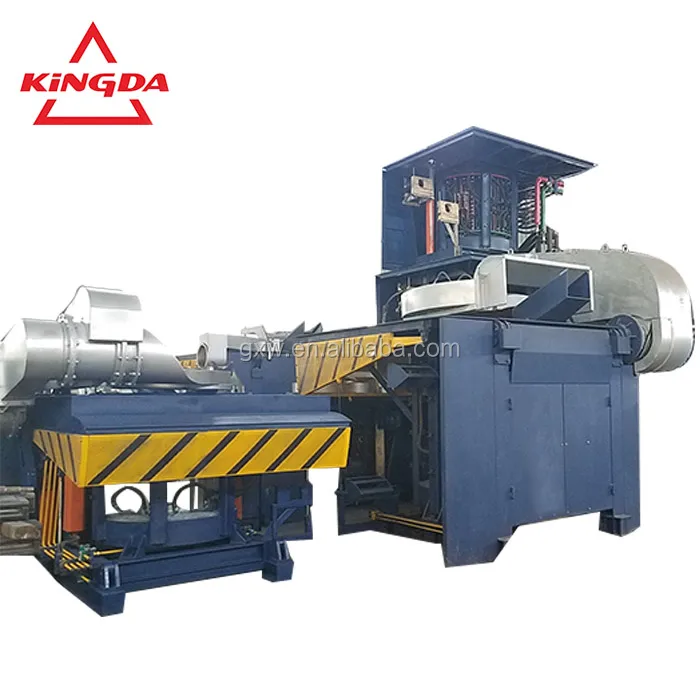

steel shell intermediate frequency furnace

Product Overview

Description

Introduction

1.Power source adopts a parallel resonant circuit, the control circuit is fully integrated, intermediate frequency power source zero voltage soft start. Convenient operation and maintenance, stable,reliable, low repair cost.

2. Intermediate–frequency power source has many function, including overvoltage, overcurrent, lack-phase, under-voltage, lack of water, cooling water temperature overrun alarm protection ,it’s safe and reliable.

3.Melting fast and high production efficiency when Stable power and stable operation.

4.Three-phase full-bridge rectifier, small hign-order harmonics, without interference on power grid, the transformer does not heat and low loss.

5.When power source works, electric and water is saved. Small volume, light weight, safty, wide used

Heating characteristics

1. Intermediate frequency furnace smelting process is stable, the castings have high mechanical strength

2. Oxidation loss, no oxidation melting, reduction of the melting loss

3. Liquid iron have electromagnetic stirring itself and homogeneous metal components, can smelt any chip and small scrap, reducing cost

4. Reduce environmental pollution

5. High power density, fast melting, start melting conveniently

6. Flexible and convenient operation, selected frequency

7. Low construction costs

8. Superb coil design, high quality thick-walled copper tubes , Rational selection of induction loop interturn distance makes the highest conversion efficiency of induction coil ,resistance minimum,so more energy can be used for melting, heating, high strength, coils are prone to damage due to arc and expansive fo rce.

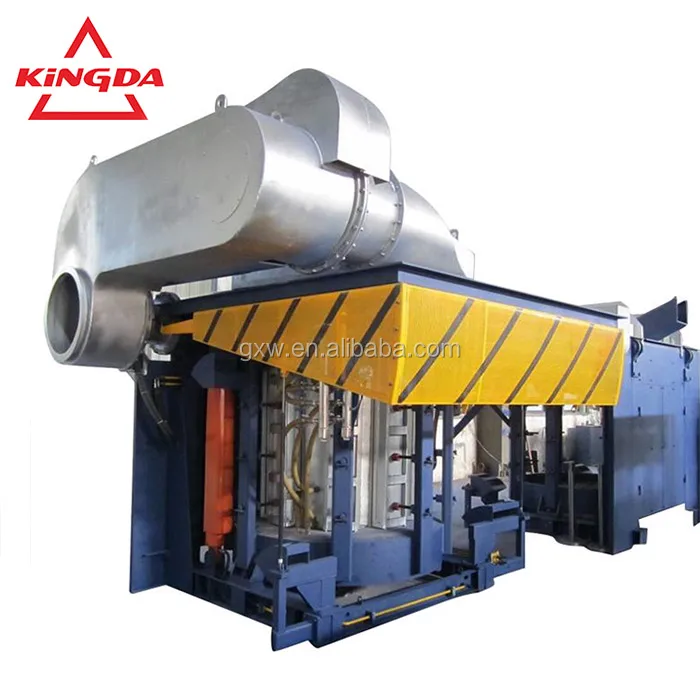

20 ton/10000KW intermediate frequency furnace standard configuration table

NO.		Name	Models and notes	Number	Price
A 20-ton intermediate frequency induction furnace set scope of supply and pricing

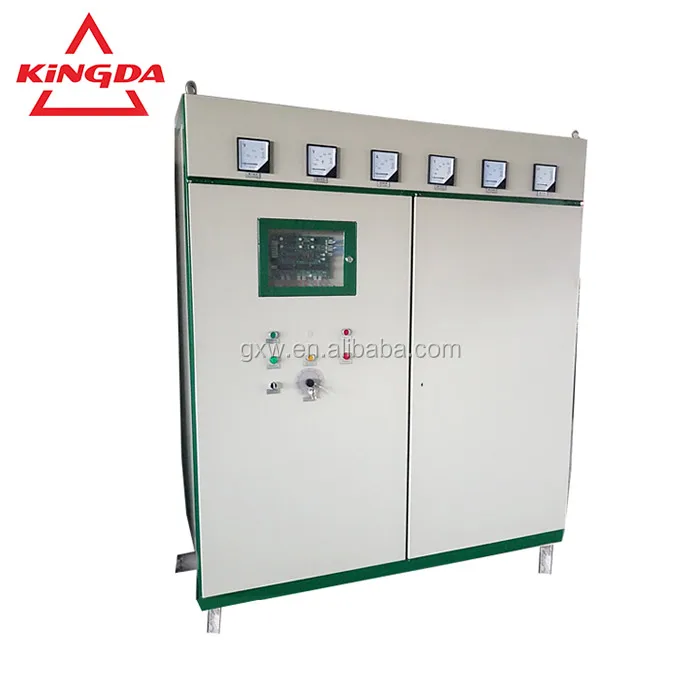

1	24 pulse intermediate frequency power source Cabinet		10000KWwith 20 ton intermediate frequency melting furnace	1 set

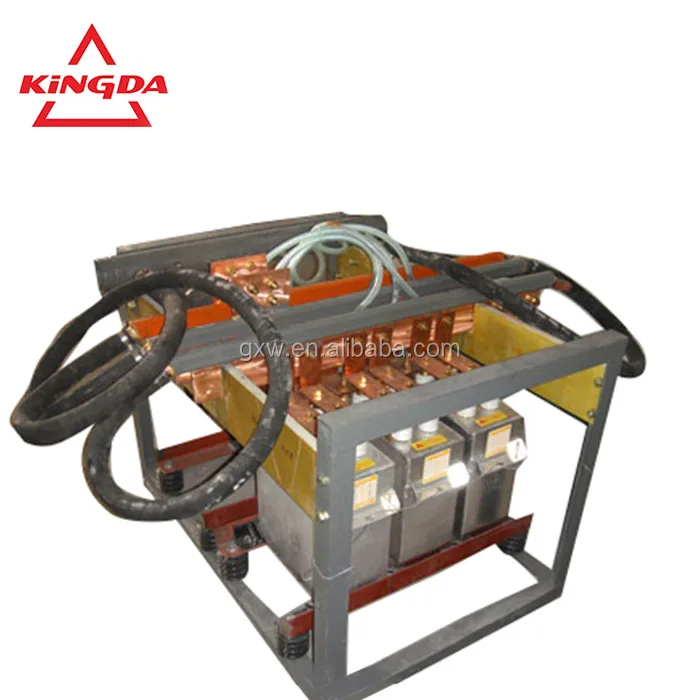

2	Capacitor
3	Furnace leakage alarm

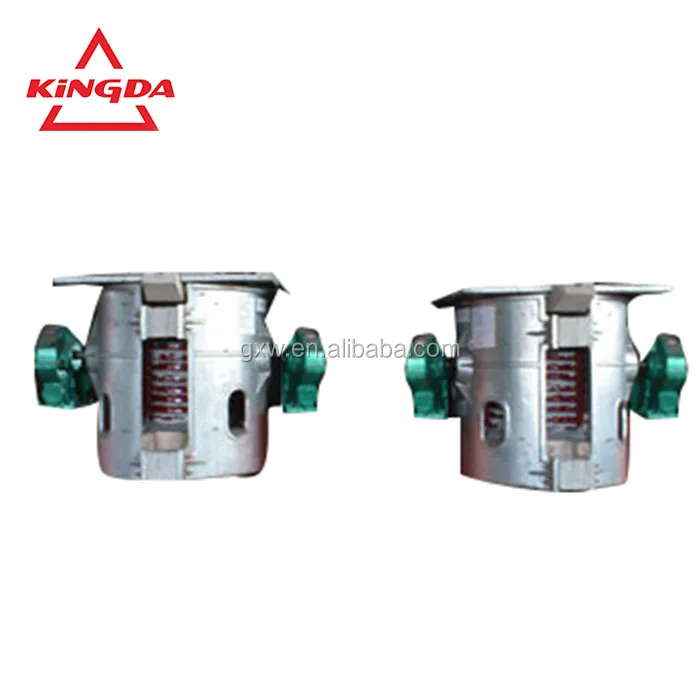

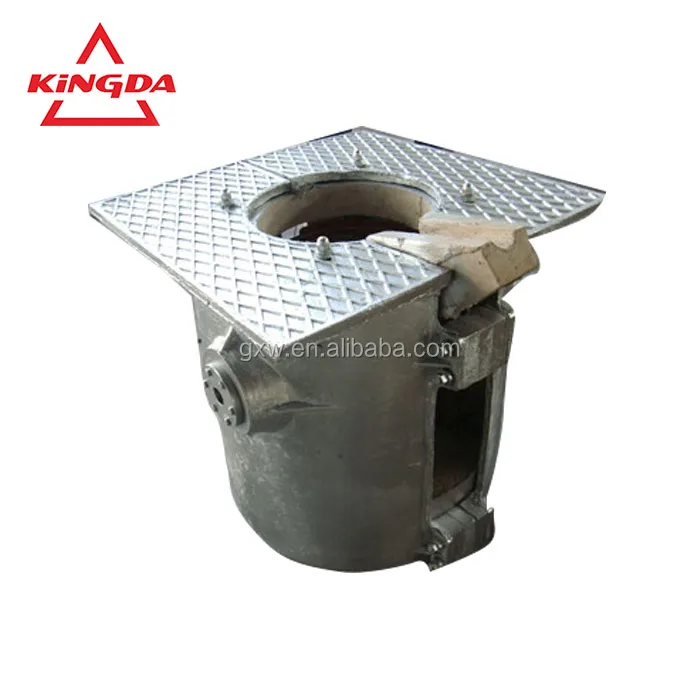

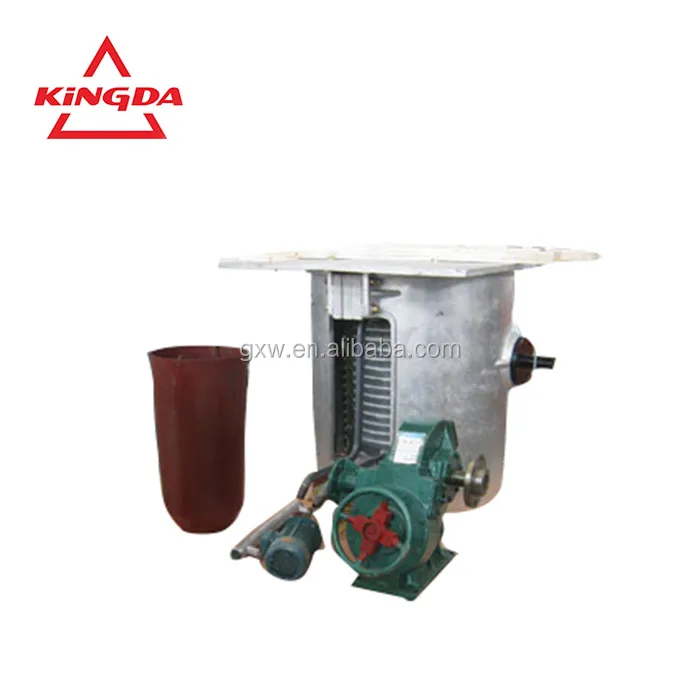

4	Furnace (includes cylinder core, supportor Induction coil etc)		20T melting furnace	1 set
5	Crucible mould
6	Water cooled cables		Water cooled cable side outlet	2 set
7	Hydraulic system			1 set
8	Tilting furnace Control Panel		Rexroth series components	1 set
9	Re-designing			1 set
10	Instructions for use			1 set
11	Certificates and test reports			1 set
Tota	Total price of a full set



20 ton/10000KW intermediate frequency furnace main technical parameters

No	Item	Index	Notes
1	Line voltage	1050V  50Hz	Grid voltage 35KV
2	Rated capacity	20T	10000KW power of melting and holding
3	Rated power	10000KW	12 phase 24 pulse frequency power source
4	Rated intermediate frequency	350 Hz
5	Rated temperature	1700°C
6	Melting rate	About 10T/H	Continuous use
7	Unit energy consumption	About 550-600kwh/T	Continuous use
8	Power source cooling water consumption	35T/H	Continuous use
	Furnace cooling water consumption	30T/H	Continuous use
9	Capacity of hydraulic station	200 L
10	Transformer	ZSS-6300 /10KV/1250x2	Special rectifier transformer(supply 6000KW)
11	Hydraulic medium	46# Hydraulic oil
12	Water supply pressure	0.2-0.3 MPa	To electric port location
13	Working pressure of hydraulic station	15 MPa	Up to 18 MPa
14	Inlet water temperature	35°C
15	Qotlet water temperature	55°C

1)6 phase 12 pulse intermediate frequency power source control system can eliminate 5, 7high-order harmonic,and significantly reduces the power grid harmonic interference.

2)Closed circuit cooling tower is used to improve the effect of the cooling system and equipment service life,without building the pool.
