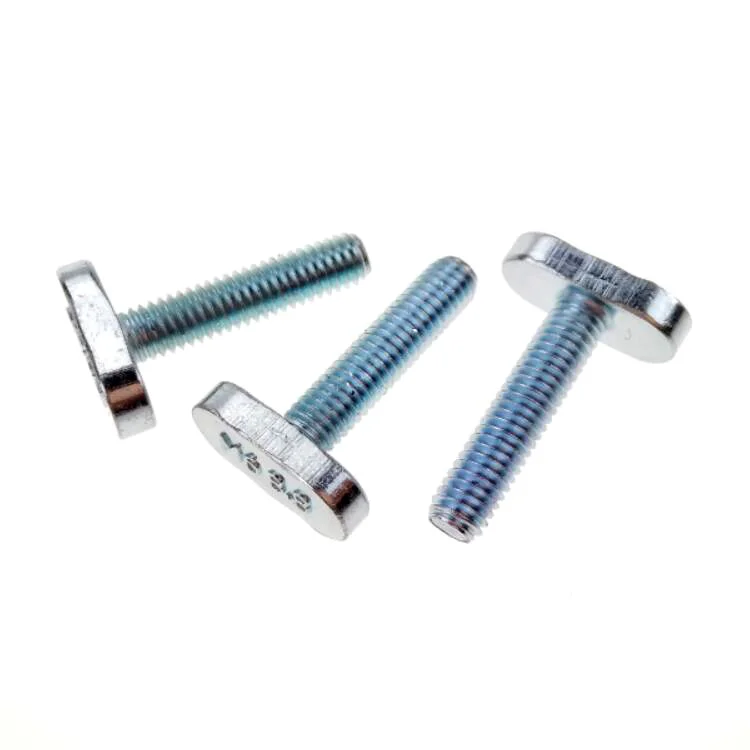

Galvanized Harden Metal Steel T Bolts High Tensile Strength Fastener M8 X 25
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (808543663):
Product Overview
Description
Galvanized Harden Metal Steel T Bolts High Tensile Strength Fastener M8 X 25
General Description
T bolts are also known as T head bolts , are one of fasteners , it is as a " T " shape , normally , T bolts with full threads and flat point , the head is a rectangle or parallelogram for some designs , and chamfered edge .
T bolts are especially for securing corner pieces together with flange nuts . Different hardness of t bolts are for different objects
Technical Data
Material
Harden steel with grade 10.9
Physical Properties
Hardness ( HV ) | 450 | Yield Strength ( Mpa ) | 210 | Elongation ( % ) | 35 |
Tensile Strength ( Mpa ) | 320 | Torque |
| Reduction Area ( % ) | 45 |
Specification
Thread diameter | M8 | |
Thread Length | 25 | |
Pitch | 1.25 | |
Head Diameter | 16 | |
Head Height | 4.5 |
Finish
Type | Thickness | Salty Spray Hours | RoHS / REACH |
Zinc | 8 | 24 | RoHS |
Product Features
1 . Harden material
T bolts are made from harden steel with grade 10.9
2 . Good self locking performance
3 . Resistant corrosion
4 . Not easy broken
High tensile strength and harden material
5 . Easy operation
6 . Quick installation
Applications
T bolts are mainly used for securing aluminum corner pieces and also for metal sheets etc .
Tips for Use
1 . Should be used with a nut to secure objects .
2 . Do not put over torque on T bolts
3 . Far from acid-base surroundings .
4 . Clean threads before installation .
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
Pcs / Bag : 4 Kgs / CTN : 16 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kgs / Bag : 1 Kgs / CTN : 15 L X W X H : 25 X 25 X 20 cm | Pallets
Kgs / pallet : 1800
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry .
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q . Can you provide custom service ?
A . Yes , we provide standard and custom service for all our products .
Q. What products you produce ?
A. We are produce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
