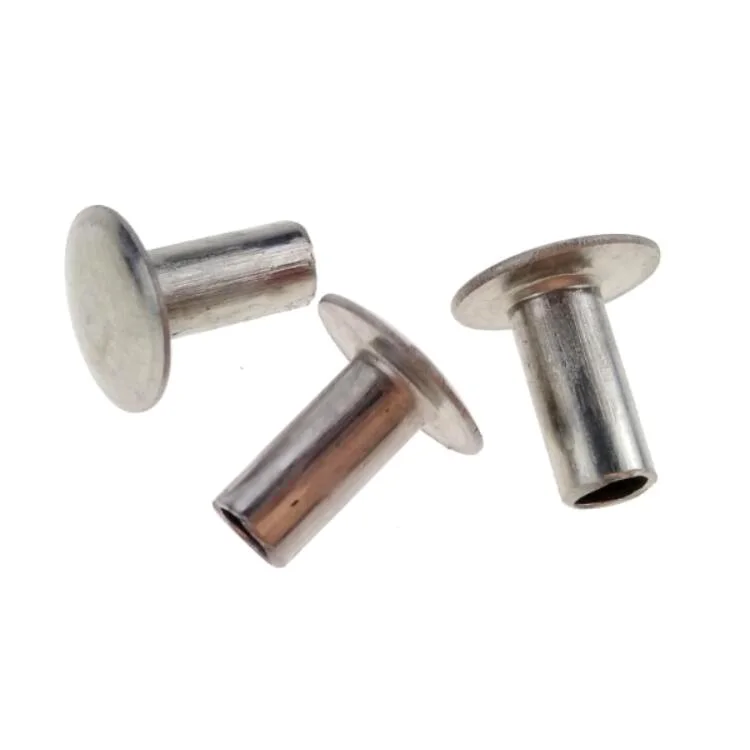

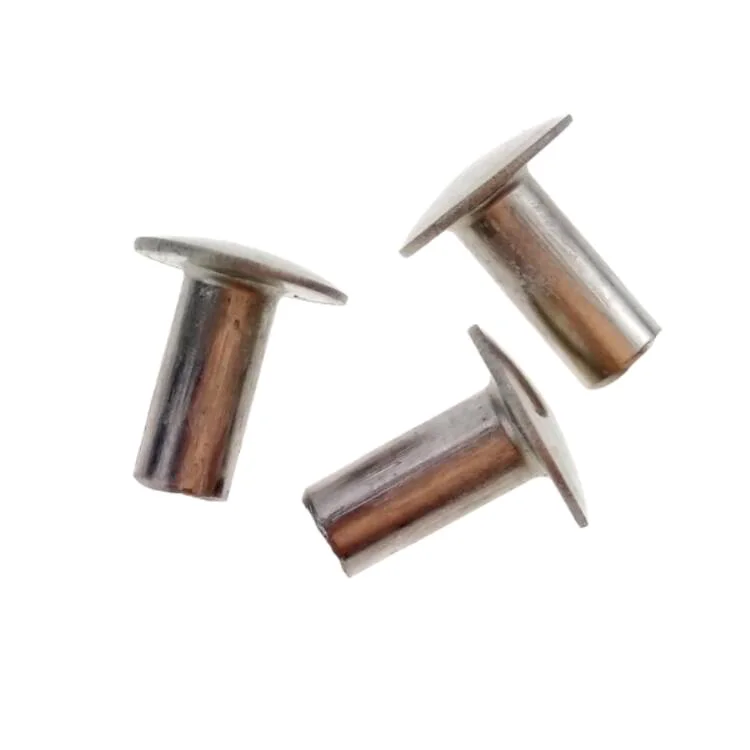

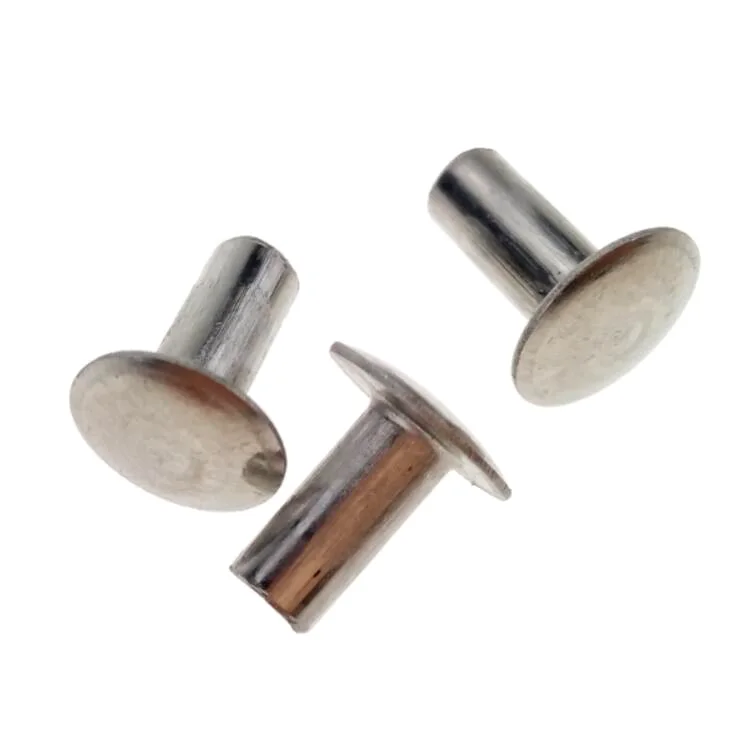

Round Head Semi-tubular Rivets Steel Galvanized Fastener Standard DIN 6791 4 x 15
General Description
Carbon steel round head rivets with semi-tubular hole at the end section , it is used to secure objects via riveting ends , the hole in the end will be pressed and spread to all directions so that lock objects are not slipped out .Carbon steel semi-tubular rivets are available for objects with light duty
Technical Data
Material
Carbon steel
Physical Properties
Hardness ( HV )
190
Yield Strength ( Mpa )
205
Elongation ( % )
35
Tensile Strength ( Mpa )
310
Torque
Reduction Area ( % )
45

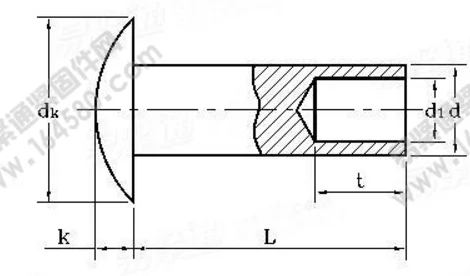

Specification
d
4
d1
2.7
L
15
dk
8
k
1.8
t
4.5
Optional Specificatons
d
L
d1
dk
k
t
1.6
5-10
0.9
3.2
0.7
2
2
6-15
1.2
4
0.9
3
2.5
8-20
1.7
5
1.1
3
3
10-30
1.9
6
1.3
3.5
3.5
10-35
2.2
7
1.5
4.5
4
12-45
2.7
8
1.8
4.5
5
15-60
3.5
10
2.2
5.5
6
18-70
4.2
12
2.6
7
8
20-90
6
16
3.5
8.5
10
25-100
7.6
20
4.4
10.5
Finish
Type
Thickness
Salty Spray Hours
RoHS / REACH
Nickel
5
12
RoHS
Product Features
1 . Resistant wear
Nickel finish and good material .
2 . Good secure and locking perfomance
3 . Standard dimensions
4 . Easy operation
5 . Long service
Applications
Semi-tubular rivets are normaly used to secure objects with light duty , there are a wide application on shoes and clothes and suitcase
Tips for Use
1 . Operate semi-tubular rivest in riveting gun .
2 . Make sure check object riveting thickness before installation .
3 .Put enough power during installtion so that rivets are riveted firmly .
Packing Details
Bulk ( Bags + Carton )
kg / Bag : 2
Kg / CTN : 18
L X W X H : 25 X 20 X 15 cm
Boxes ( Boxes + Carton )
Kg / Box : 1
Kg / CTN : 15
L X W X H : 25 X 25 X 20 cm
Pallets
Kg / Pallet : 1500
L X W X H : 1 X 1 X 2 m
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
