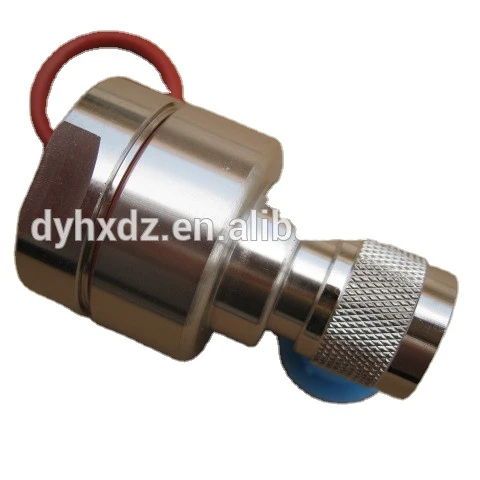

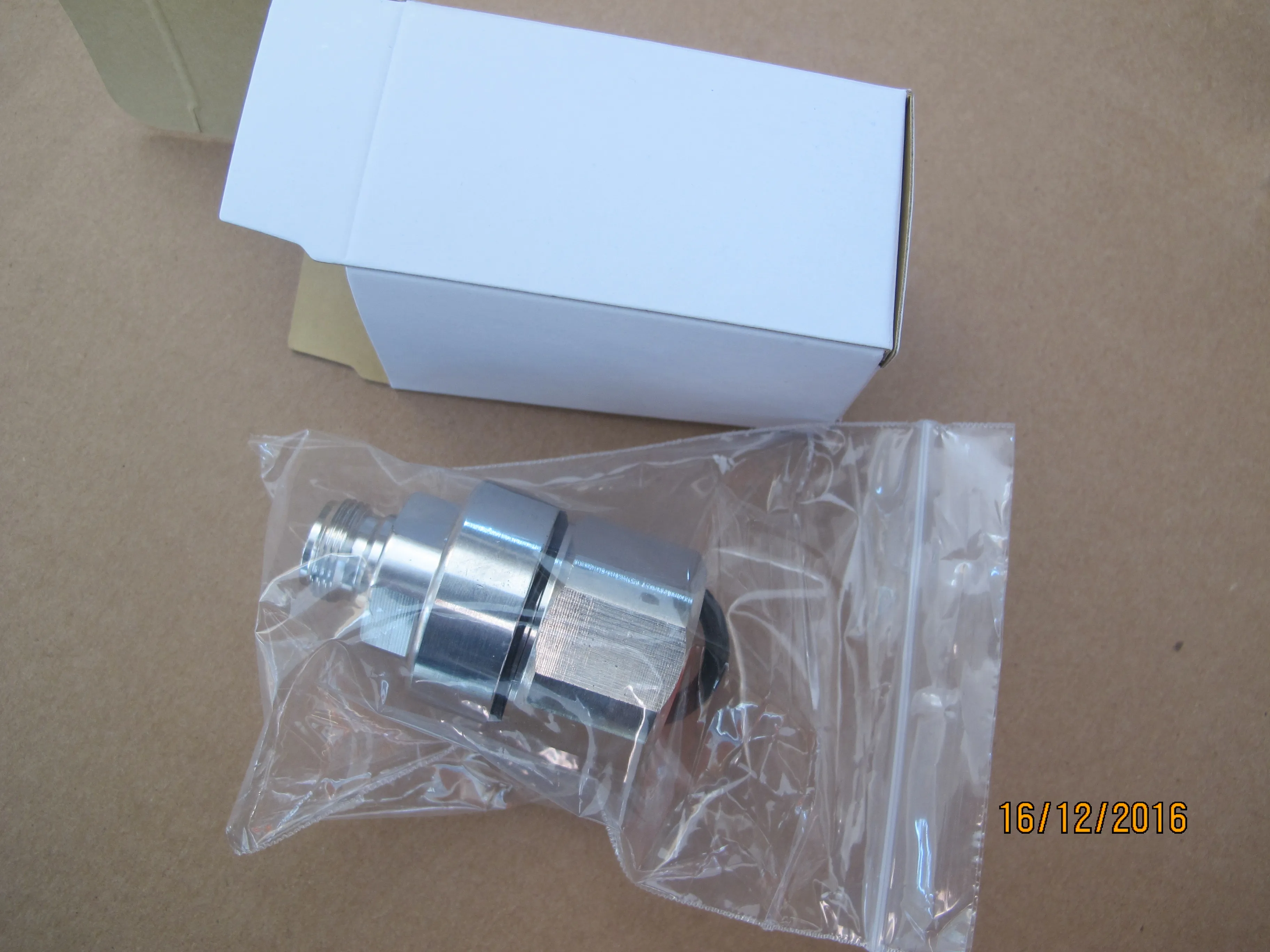

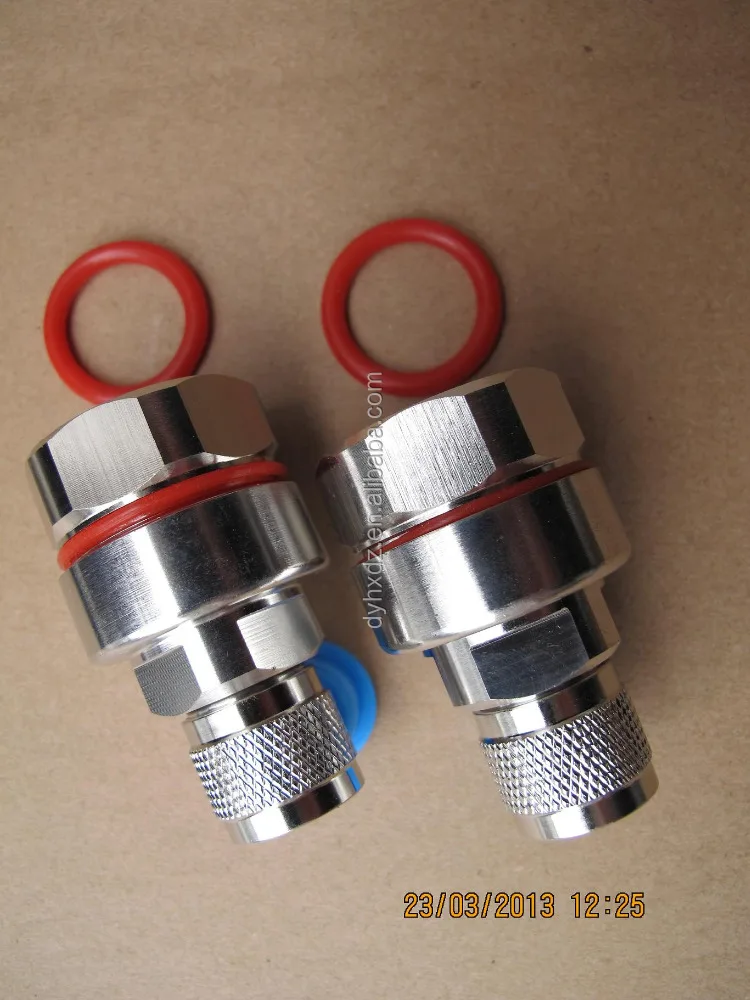

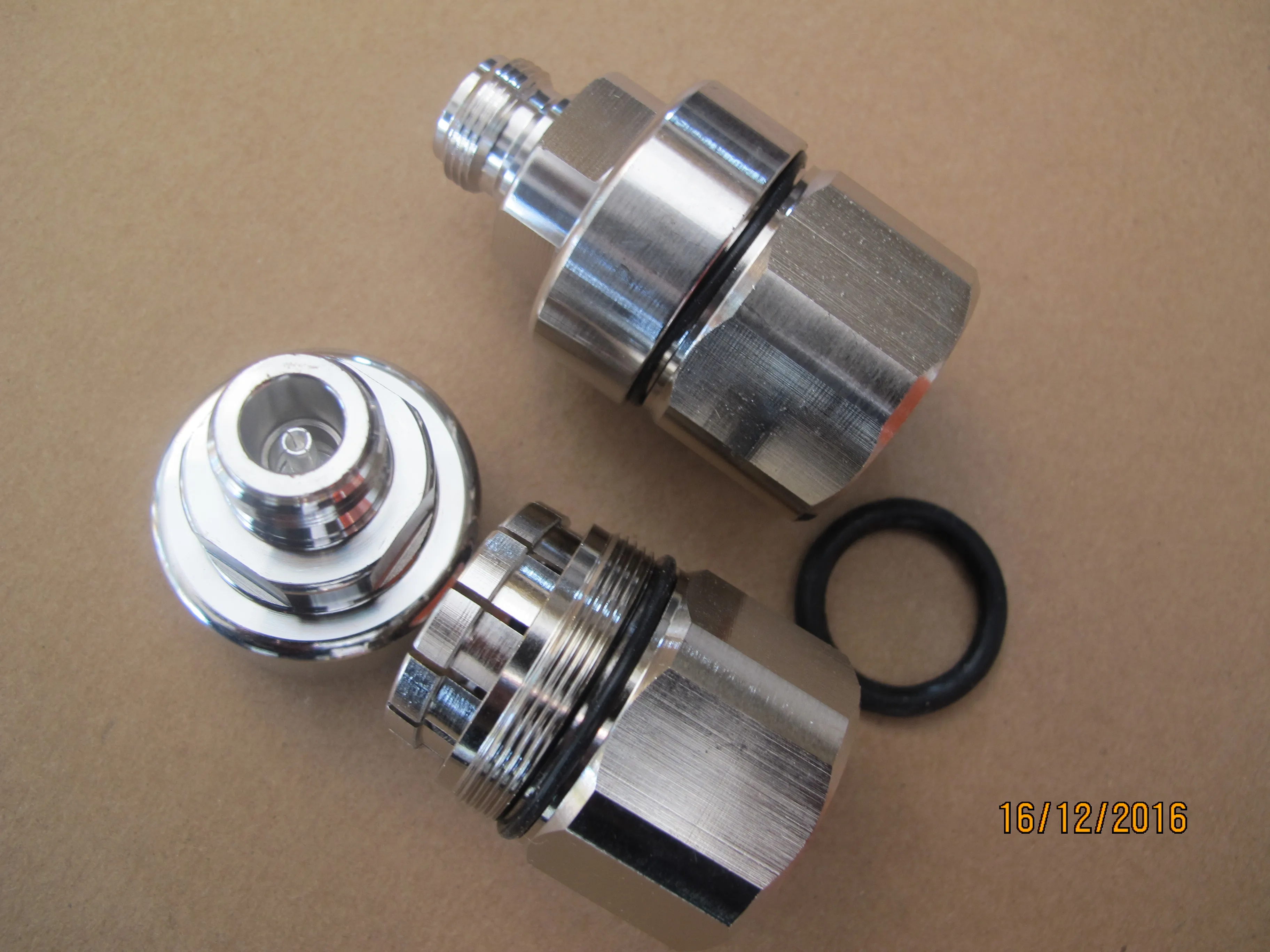

N male connector for 7/8 coaxial feeder cable

Product Overview

Description

N male connector for 7/8 coaxial feeder cable





 Interface
  IEC 60169-16;MIL-C-39012;CECC-22210
Electrical

Characteristic Impedance
50ohm
Frequency Range
   DC-11GHz
VSWR
   ≤1.15@DC-3000MHz
Insertion Losss
≤0.24dB(6GHz)
3rd Order IM (PIM3)
—
Working Vlotage
1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage
≥2500V RMS,50Hz,at sea level
Dielectric Resistance
 ≥5000MΩ
Contact Resistance
 Center Contact ≤1mΩ
  Outer Contact ≤0.25 mΩ
Mating
—
Mechanical

Durability
 Mating cycles  ≥500
Material and Plating


Parts Name
Material
Plating
Body
Brass
Tri-Metal(CuZnSn)or Ni
Insulator
PTFE
—
Inner Conductor
Phosphor Bronze
Au
Coupling Nut
Brass
Ni
Gasket
 Silicone Rubber
—
Cable Clamp
Brass
Ag
Ferrule
—
—
Environmental


Operating Temperature
45 ℃-85  ℃
Weatherproof Rate
IP67
RoHs (2002/95/EC)
Compliant  by exemption
Suitable Cable Family
LMR400/RG213/RG8/CNT400 cable
