Extruder machine bimetallic screw barrel extruder single screw and barrel extruder machine single screw barrel

Product Overview

Description

Extruder machine screw barrel single screw and barrel extruder machine single screw barrel



Welcome to inquire!



We manufacture and supply a wide range of Screw Barrel product for our esteemed customers. These components are produced from high quality raw materials that result in unmatched durability and efficiency. To cater to the needs of our clients and their setup, we work in conjunction with them to design and fabricate the size of the Scroo-Barell. They are safe, cost-effective and match the high international standards of numerous industries



We can supply single screw barrel/cylinder parallel twin screw barrel conical twin screw barrel bimetallic screw barrel nitrided screw barrel injection moulding machine screw barrel extruder machine screw barrel rubber machine screw barrel.



Technical Parameter For Extruder Machine
Base Material	1)38CrMoAlA(JIS SACM645);2)Cr12MOV(JIS SKD-11) ; 3)4Cr5MoSiV1(JIS SKD-61) ;4)42CrMo(AISI 4140)
Bimetallic Alloy Materials	1)Fe-based alloy  2)Ni-based alloy/Deloro alloy  3)Co-based alloy  4)NiCo-based alloy  5)Tungsten carbide/Wolfram carbide
Double-alloy level	Level A - containing Tungsten of 40% Level B - containing tungsten of 25% Level C - containing tungsten of 9.5%
Surface Treatment	Heat Treatment High Frequency Treatment Nitriding treatment(120 Hours): Depth of Nitrided Layer: 0.5-0.8 mm Hardness of Nitrided Layer: 900-1020Hv (HRC56°-65°) Hard Chrome Plating treatment: Thickness of Hard Chrome Plating Layer: 0.05-0.10mm Hardness of Hard Chrome Plating Layer: ≥950HV Nickel alloy plating.treatment: Bimetallic Barrel/Cylinder: Centrifugal Casting (Inlay Alloy) Bimetallic Screw: Plasma Alloy Coating Spraying Depth of Bimetallic Layer: >2mm Hardness of Bimetallic Layer: HRC55°-72° Spraying corrosion wear-resisting dual metal layers
Basic information	Roughness of the surface:Ra0.4um Linearity of the screw: ≤0.015mm Linear axis limit: ≤0.02mm Hardness after Hardening & Tempering: HB240-280 Fragility of Nitration:≤Two class
Material Application	1)General Plastics 2)ABS,PA,PC,PE,PET,PP,PS,EVA,PU,PVC,U-PVC,etc 3)PA + GF(Glass Fiber) 4)Flame-resistant Reinforced Plastics 5)Modified Engineering Plastics 6)All kinds of Mixed Recycled Material(in Scrap or Granule), PVC + 30% CaCo3, etc

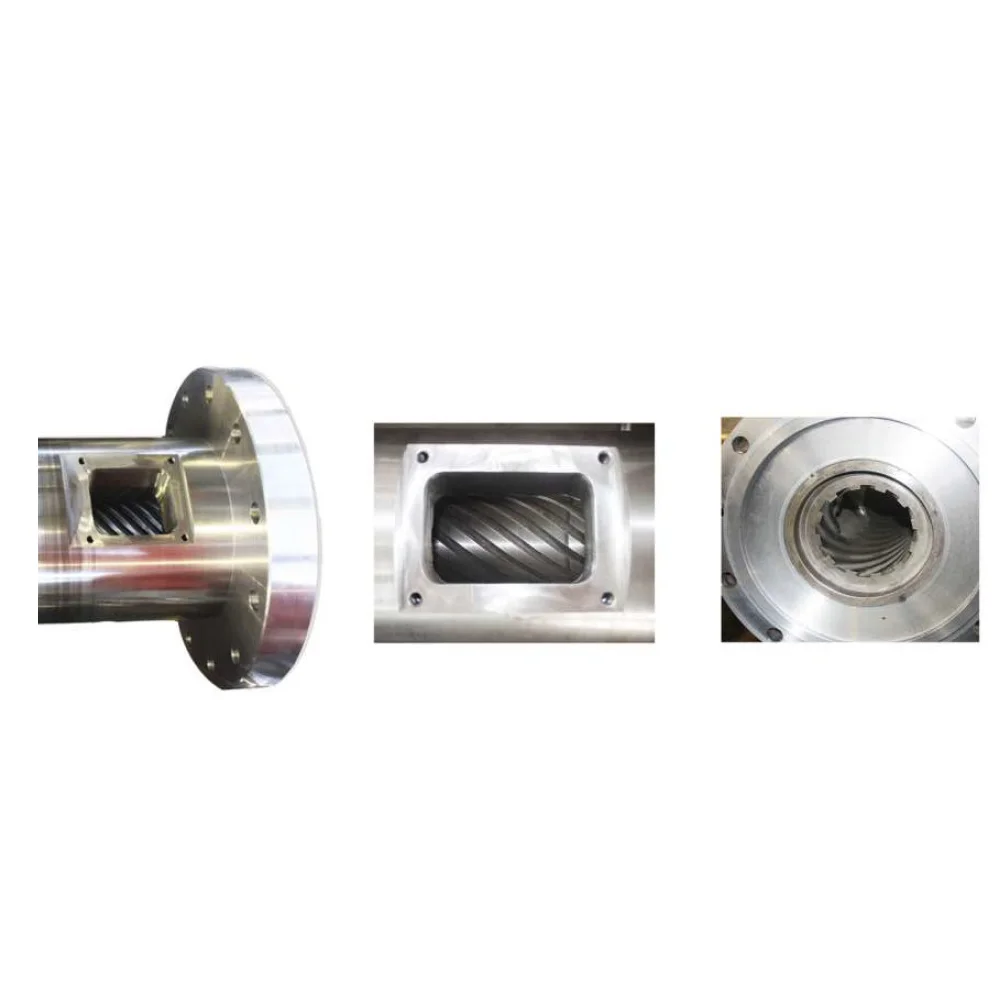

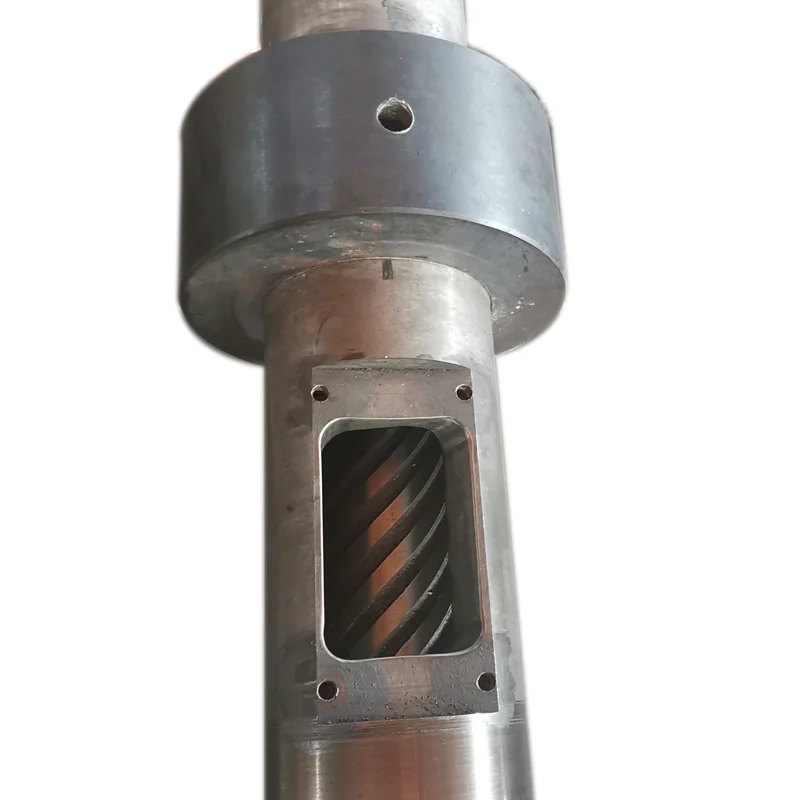

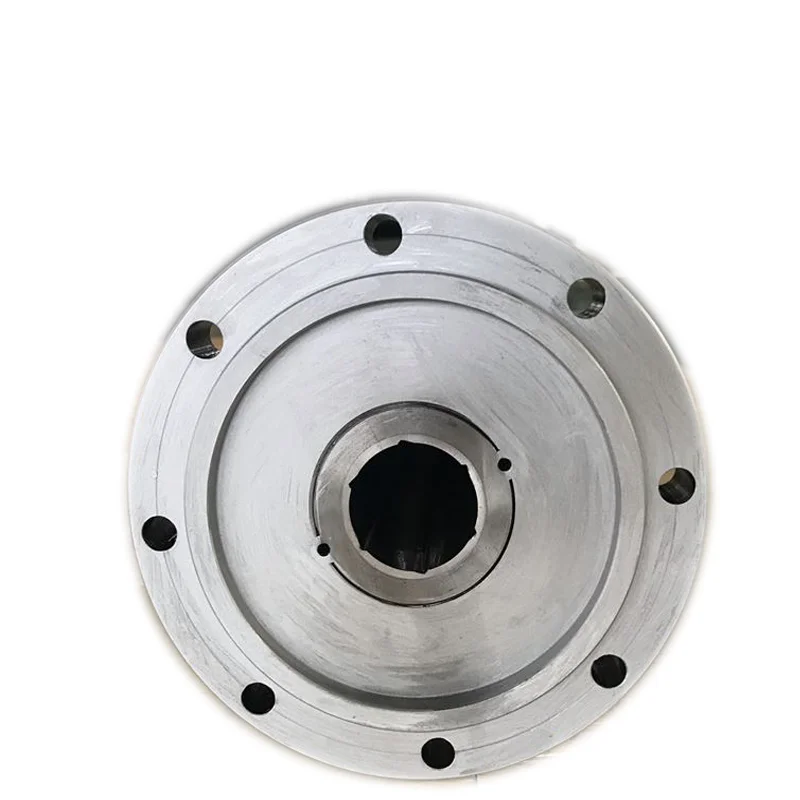

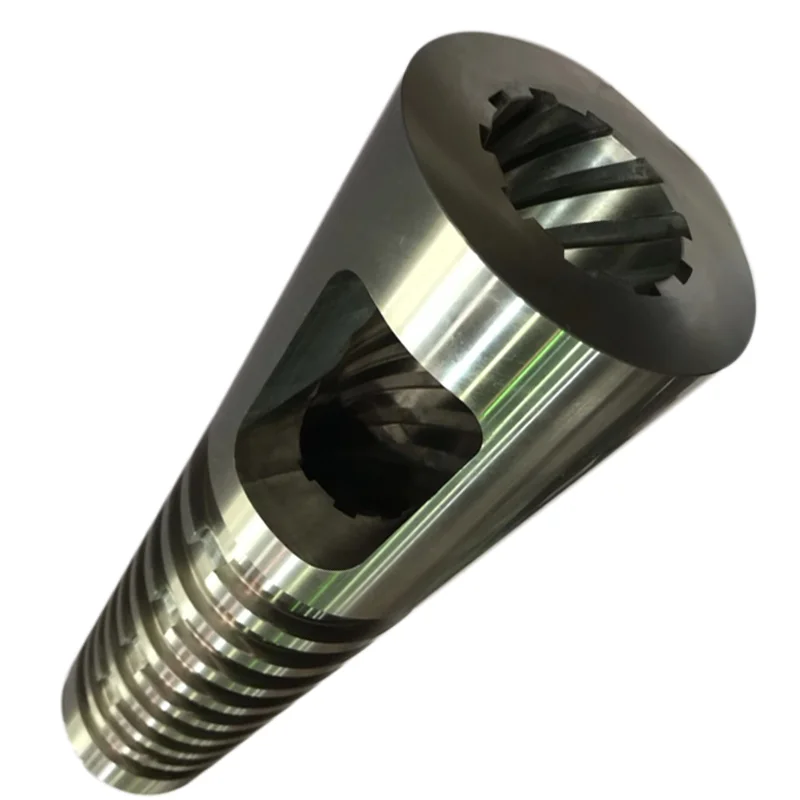

Following are our products' photoes for screw barrel.All produced by ourself,our factory.







Scope of application

WPC sheet,pallets,pinch,pipe,profiles,soft pvc,pvc foam sheet,film,tape,recycled,tape tube,water pipe,drainage pipe,etc.



Our factory details:

About US:



QunYing Screw is leading supplier of SCREW and BARREL in china,including designing,manufacturing and sales for these products,we can make any specification of extruder screw barrel and injection molding screw barrel for Haitian,Chende,Chenxiong,Demag,Engle,Nigrobossi,KMD,NPM,BOY,HUSKY,Nippon Steel,Toshiba, Nissei,Mitsubishi,CINCINNATI,BATTENFELD,KRUSSMAFFEI,BAUSANO,WEBER,AMUT and etc. We also can supply all types of screw and barrel according to your different requirements.





Our advantages:



1. Screw and barrel for various models



2. Professional engineers design for you



3. Over 10-year exprience in this line



4. Insist on developing screw and barrel for more injection and extruder machine models



5. Main market: Southeast Asia,Eastern Europe, Africa
