C6251 C6256 Metal Spinning Turno Lathe Machine Mini Lathe
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (811673477):
Product Overview
Description
Lathe machine C6251 C6256
Product Description
Lathe machine C6251 C6256
The guide way and all gears in the headstock are hardened and precision ground.
The spindle system is high rigidity and accuracy.
The machines have powerful headstock gear train, high rotating accuracy and smooth running with Iow noise.
An overload safety device is provided on the apron.
Pedal or electromagnetic braking device.
Tolerance test certificate, test flow chart included
Lathe machine C6251 C6256
| SPECIFICATION | MODELS | |||
| C6251× 1500/2000/3000 | C6256× 1500/2000/3000 | |||
| CAPACITY | ||||
| Swing over red | 510mm(20" ) | 560mm(22" ) | ||
| Swing in gap | 300mm(11-7/8" ) | 350mm(13-3/4" ) | ||
| Swing of gap | 738mm(29" ) | 788mm(31" ) | ||
| Length of gap | 200mm(8" ) | |||
| Distance between centers | 1500mm(60" ) | 2000mm(78" ) | 1500mm(60" ) | 2000mm(78" ) |
| Center height | 1135mm | 1160mm | ||
| Width of bed 350mm(13-3/4" ) | ||||
| HEADSTOCK | ||||
| Spindle nose | D1-8 | |||
| Spindle bore | 80mm(3-1/8" ) | |||
| Taper of spindle bore | No. 7Morse | |||
| Range of spindle speed | 12changes25-1600r/min | |||
| FEEDS AND THREADS | ||||
| Max. travel of compound rest | 130mm(5-1/8" ) | |||
| Max. travel of cross slide | 326mm(12-15/16" ) | |||
| Leadscrew pitch | 6mmOr4T. P. L | |||
| Max. section of tool | 25× 25mm(1× 1" ) | |||
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev(0.0022" -0.0612" /rev) | |||
| Cross feeds range | 35kinds0.020-0.573mm(0.00048" -0.01354" ) | |||
| Metric threads range | 47kinds0.2-14mm | |||
| Inch threads range | 60kinds2-112T. P. L | |||
| Diametrical pitches range | 50kinds4-112D. P. | |||
| Module pitches range | 39kinds0.1-7M. P. | |||
| TALLSTOCK | ||||
| Dia of tailstock sieeve | 75mm(3" ) | |||
| Travel of tailstock sleeve | 180mm(7" ) | |||
| Morse taper of tailstock sleeve | No. 5Morse | |||
| Cross adjustment | ± 13mm(± 1/2" ) | |||
| MOTOR | ||||
| Power of main motor | 7.5kw(10HP)3PH | |||
| Power of coolant pump | 0.1kw(1/8HP), 3PH | |||
| DIMENSION AND WEIGHT | ||||
| Overall dimension(L× W× H)cm | 290× 112× 143 | 340× 112× 143 | 290× 112× 146 | 340× 112× 143 |
| Packing size(L× W× H)cm | 296× 113× 182 | 346× 113× 182 | 296× 113× 182 | 346× 113× 182 |
| Net weight/Gross weight | 2335/2700 | 2685/3070 | 2370/2740 | 2720/3110 |
| Lathe machine C6251 C6256 STANDARD ACCESSORIES | ||||
| 1 Three Jaw Chuck and Adapter 2 Four Jaw Chuck and Adapter 3 Face Plates 4 Steady Rest 5 Follow Rest | 6 Oil Gun 7 Thread Chasing Dial 8 Operation Manual 9 One set of Wrenches 10 MT 7/5 Sleeve and MT 5 Center | |||
| SPECIAL ACCESSORIES | ||||
| Lathe machine C6251 C62561 Driving Plate 2 Quick Change Tool Post 3 Taper Tuming Attachment | ||||

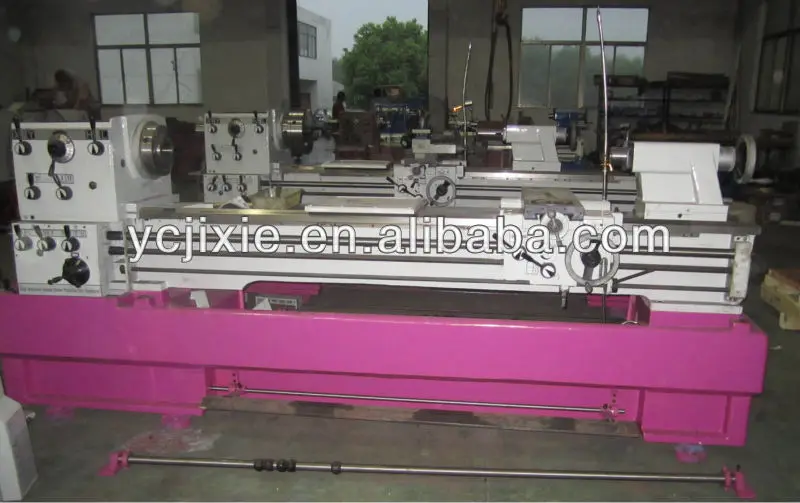

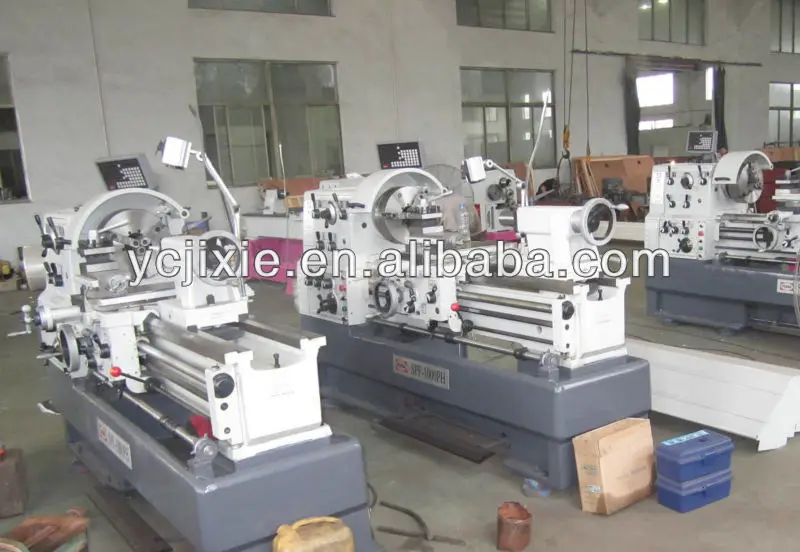

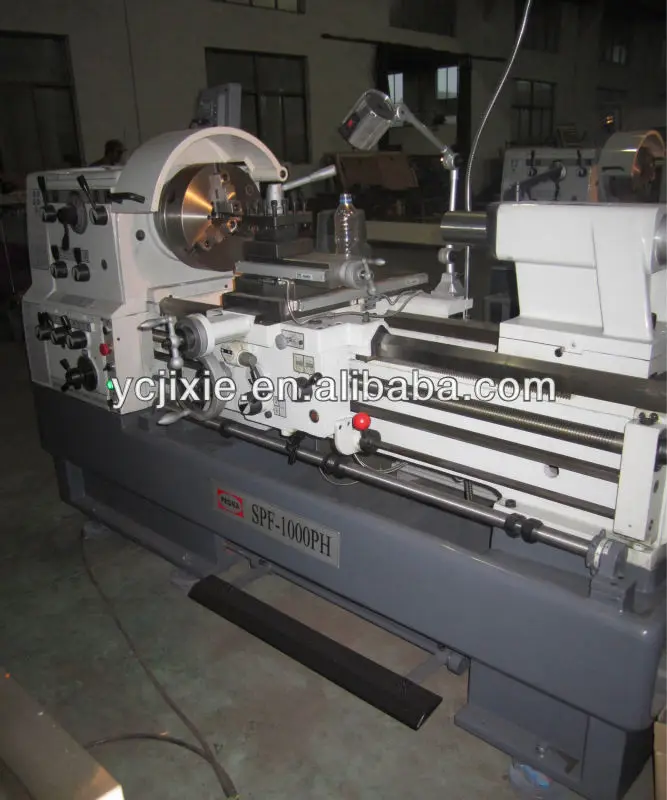

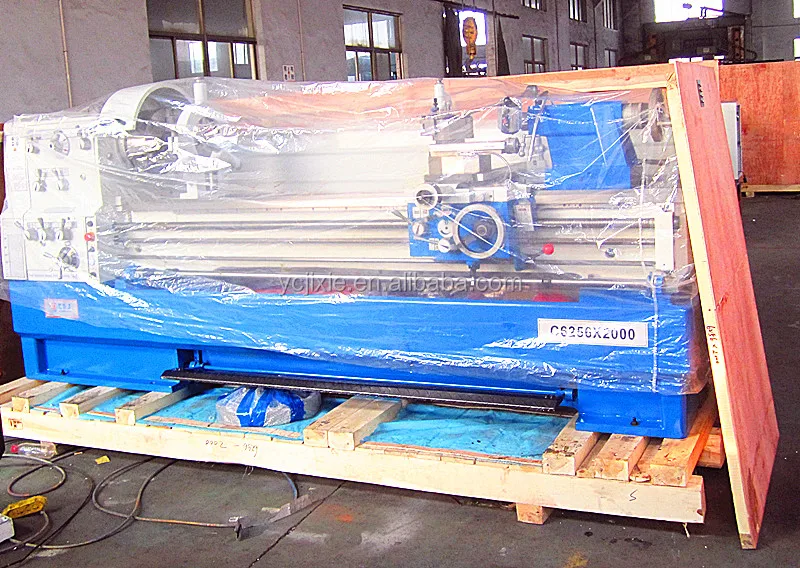

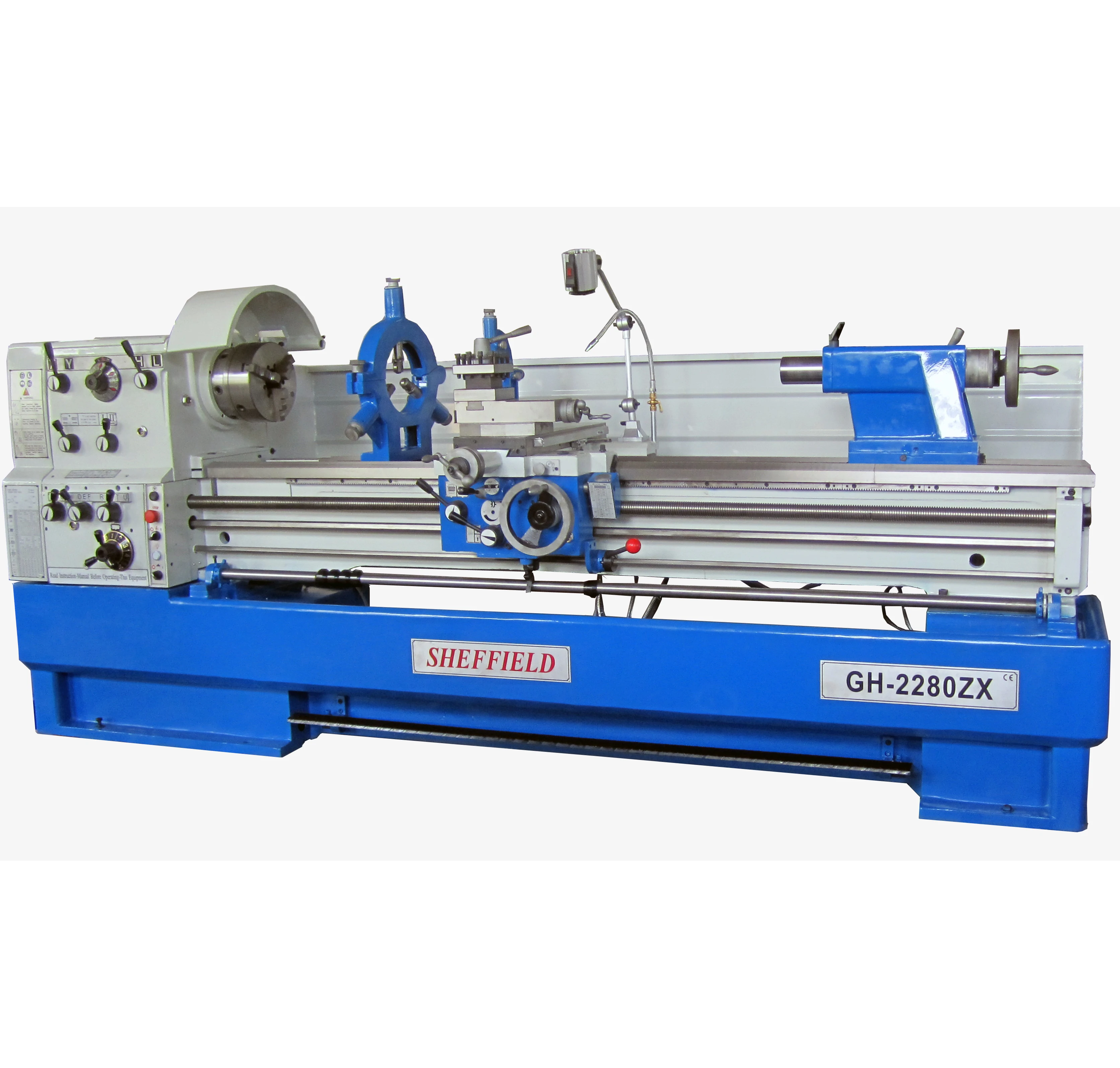

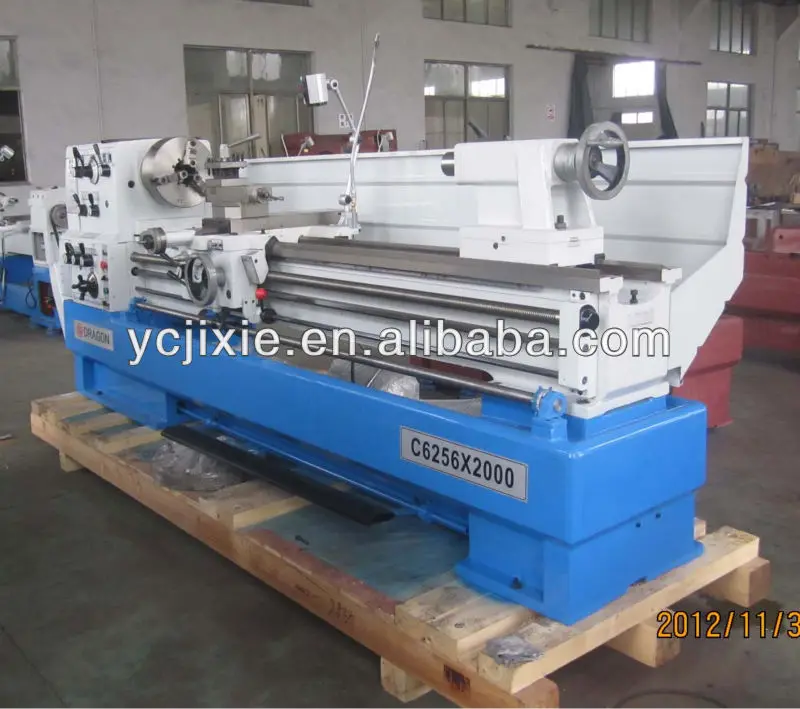

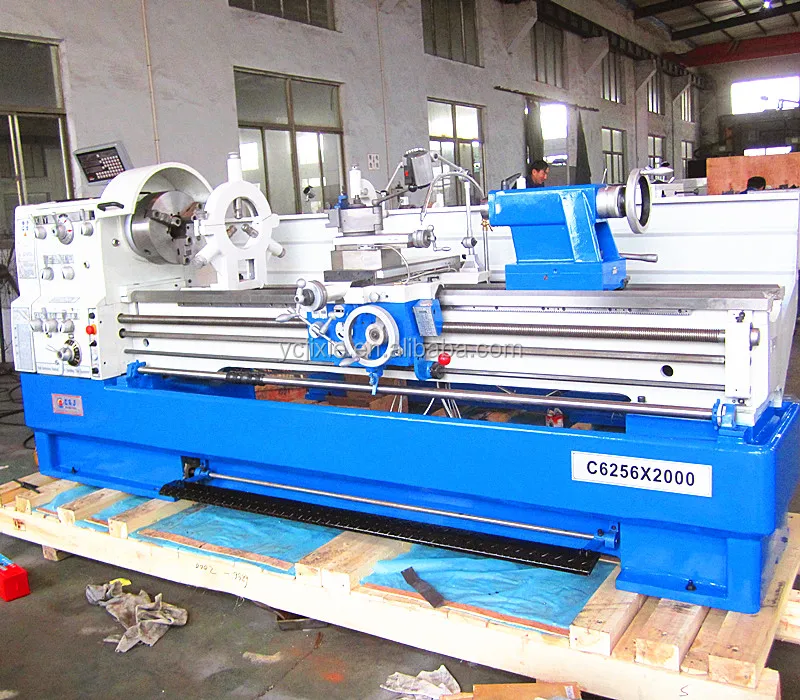

Machine photo:
Lathe machine C6251 C6256
