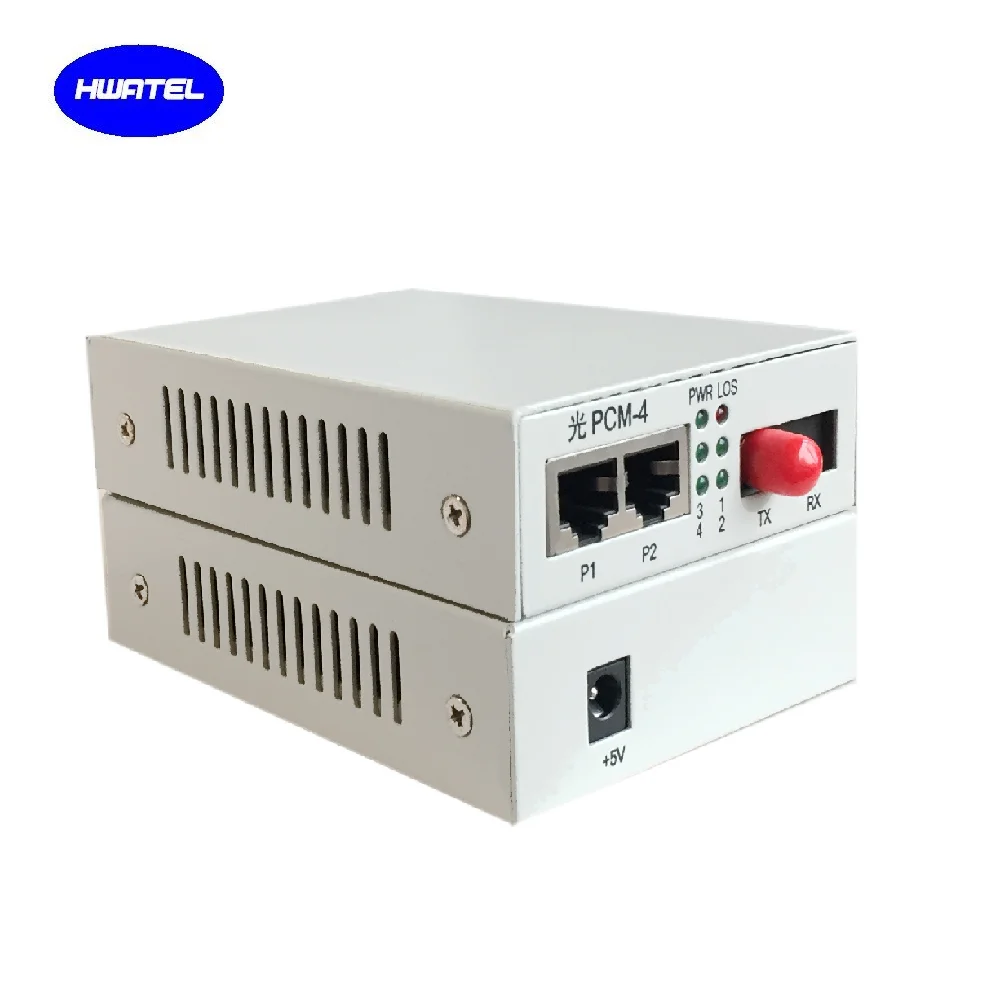

4 FXS FXO Ethernet and RS 232 over e1 pakistan vietnam india approved voice to fiber converter

Product Overview

Description

    In 1992 HWATEL  Co-Founder  has  finished R&D first generation PCM multiplexer in NOKIA Corp (Finland). In 1996 he  finished  second  Compact PCM with Very Large Scale Gate Array IC in HARRIS (USA). Reduce PCM  size from a 2 meter high shelf to a 3U 19 inch Rack. In 2002, at HARRIS-HWATEL Co-company. Our technical team finished 3rd generation High density high reliability Mil grade and Telecommunication grade PCM.

     HWATEL has produce over 100K sets PCM in past 10 years over 50 country.

     NOW HWATEL PCM/MAP OEM to Shanghai-Bell Alcatel, ZTE,  Emerson,NEC,WRI, D-link, and many taiwan company .

     Till now HWATEL has developed to 5th generation PCM ,  also called Multi Service Access Platform/Multiplexer (MAP) . With  Unified  back board Buss, Open Hardware/Software platform and Modular designing. HWATEL MAP/PCM Support : Voice, Data, Video .......

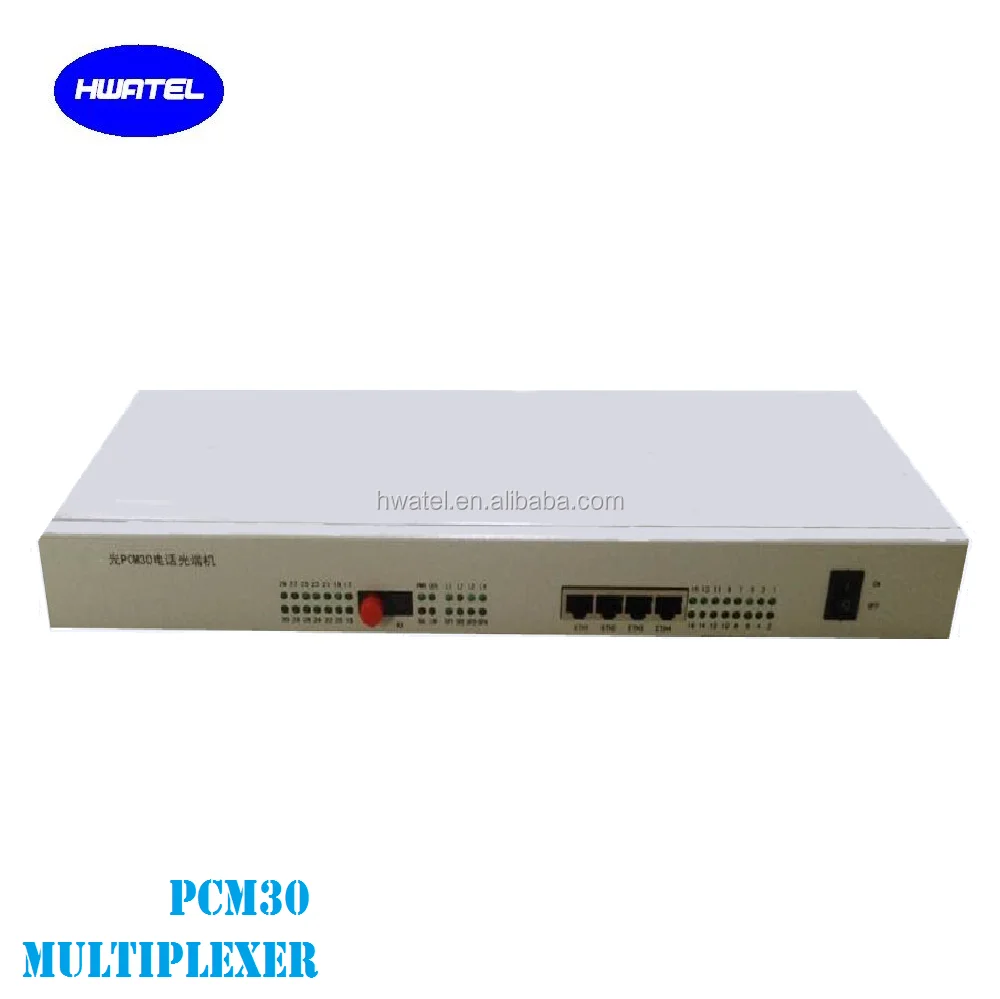

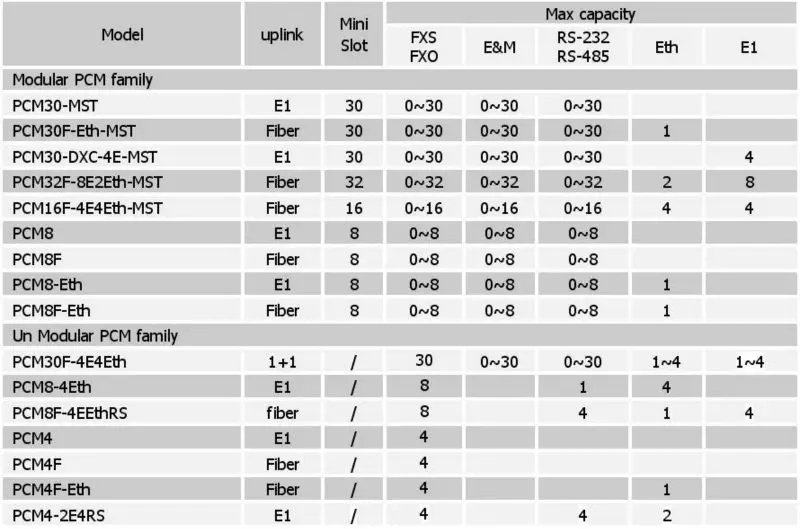

     HWATEL TDM(Time Division Multiplexer) /MAP (Multi service Access Platform) family consists of DM3300 MAP, PCM30-MST modular Multi service Multiplexer, PCM4/8/16 mini PCM Multiplexer and DXC Digital Cross Connection Device.





HT PCM4-2Eth4RS



Feature



- provide much better technical&quality parameter than ITU-T standard

- Standard 19 inch 1U chassis with 30 I/O card

- Integrated Ethernet, bandwidth N*64Kbps

- All modular are produced by HWATEL, which provide much better technical & performance parameter than ITU-T standard, support FXS-FXO-FXS analoguemulti link relay. All detail voice parameter can be customized

- PCM signaling: ITU-T G.732 PCM30 or PCM31 standard. TS 16 as signaling time slot

- 90V SINC Powerful Ring Module, Powerful Ring Module, support over 30 pcs terminal at power of 0.5 Watt for each line simultaneity ring

- caller ID supported

- In-band fax support for Group III fax machines complies with T.4 and T.30

- Support adjust the level of Lease line and E&M to compatible existing terminal

- Total distribute design ensure high reliability





Application Access Service
