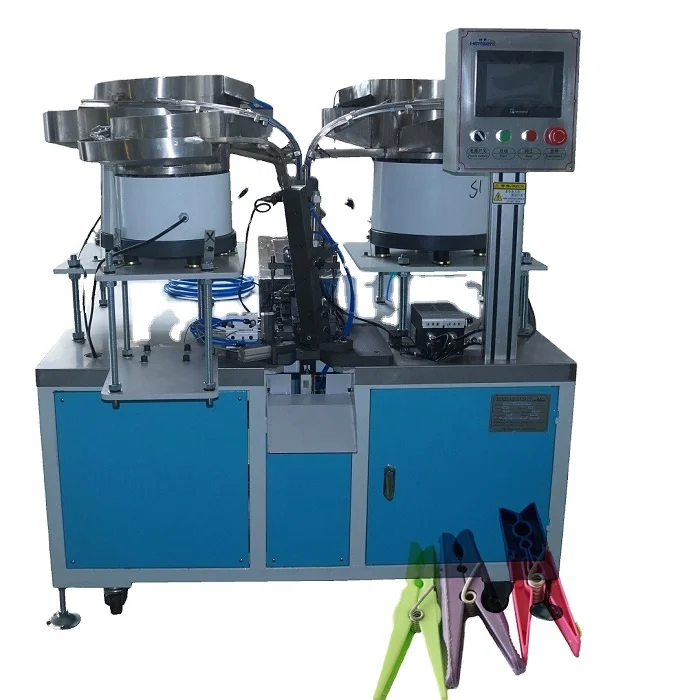

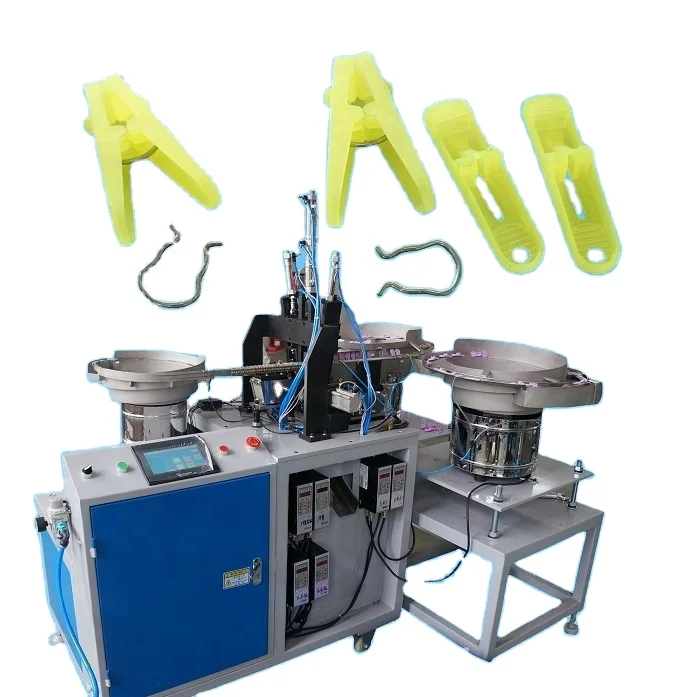

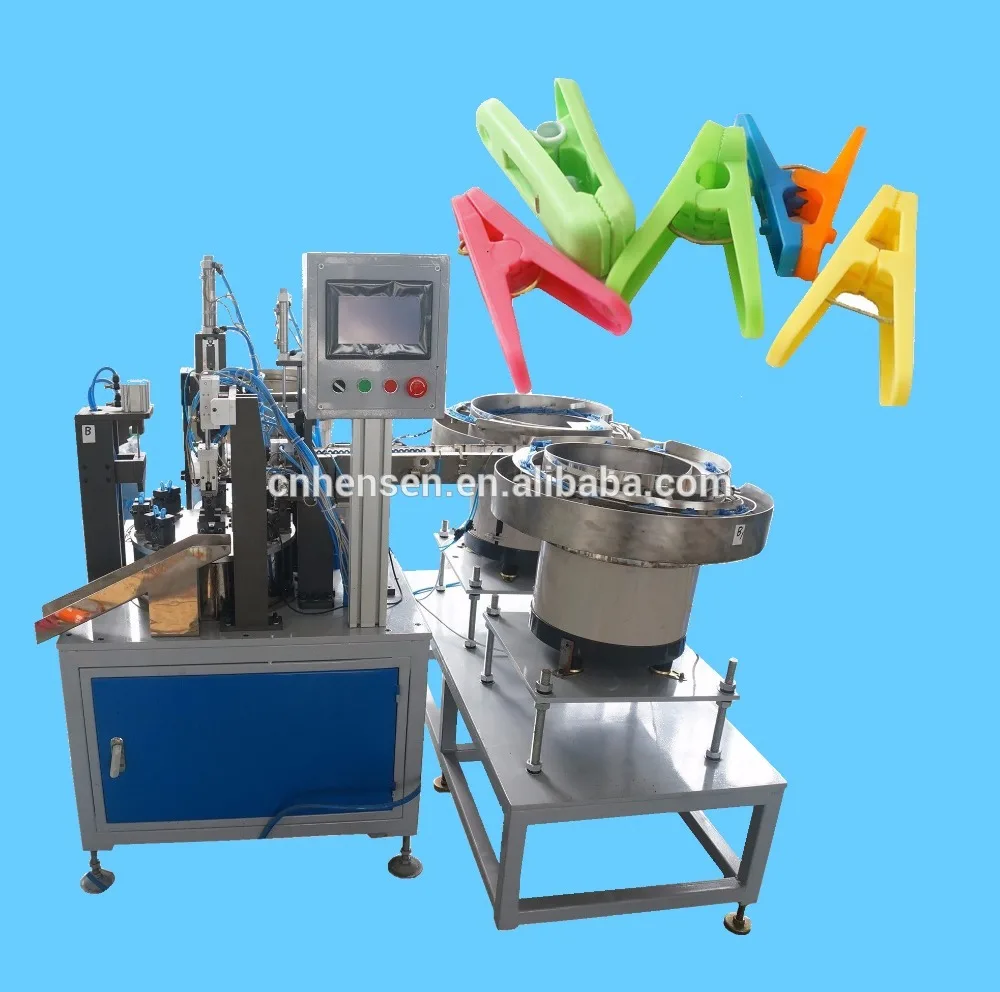

Clothes peg pins combining fixing machine, clothes peg machine

Product Overview

Description

 Cloth pegs combining machine/cloth pegs combining fixing machine



1. Features:

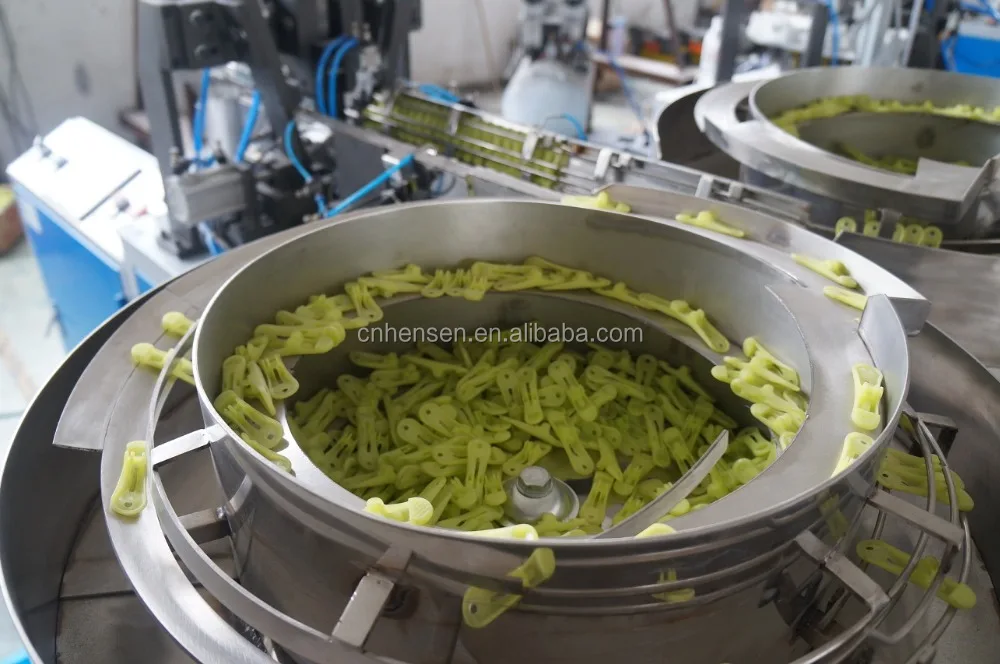

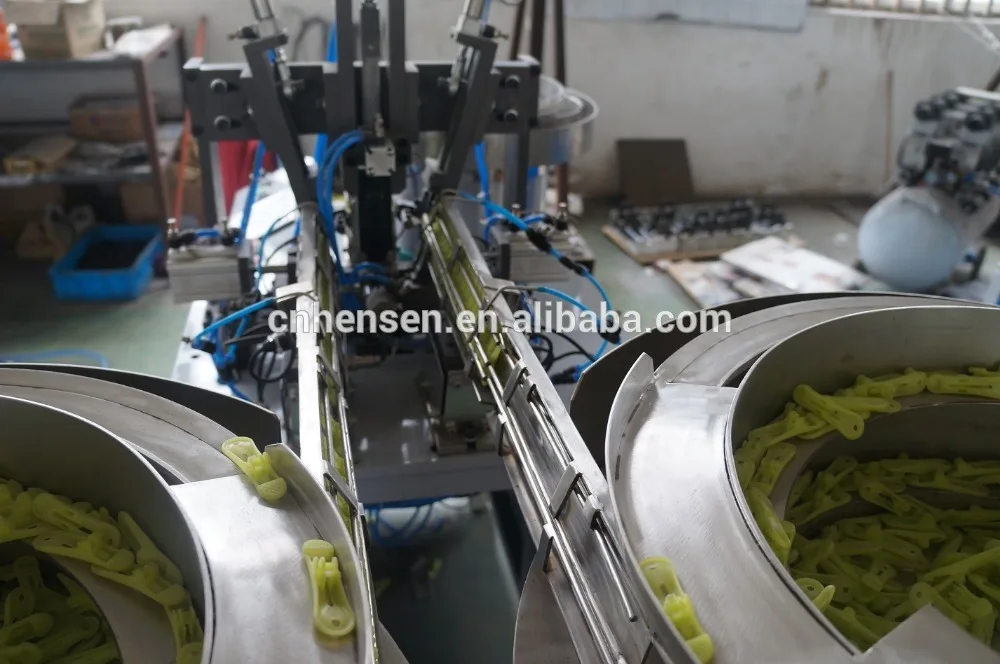

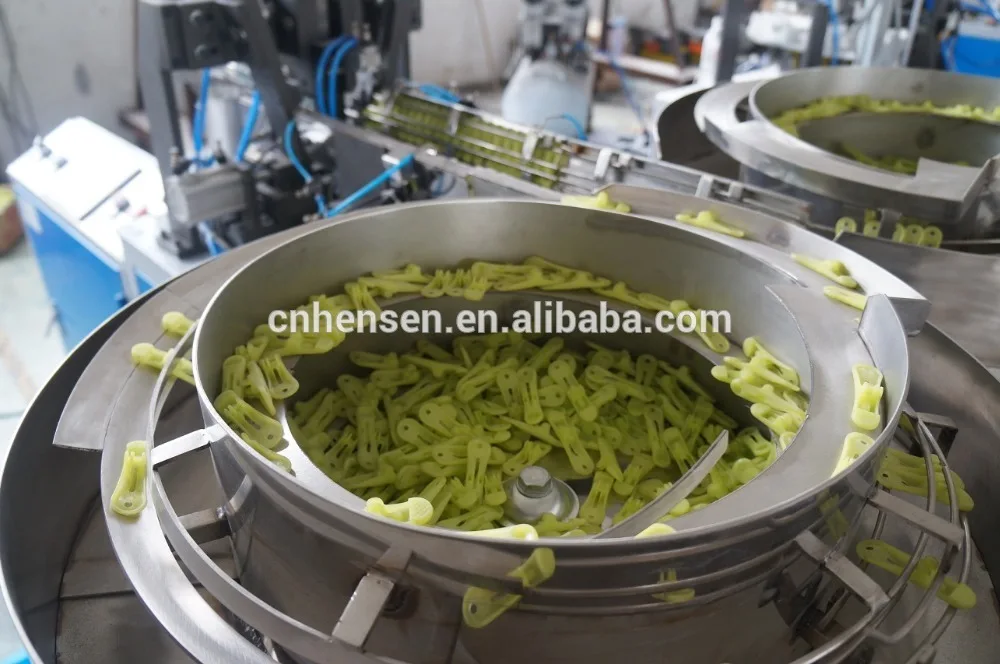

1. Automated delivery system, two sets of clip feeding system, one set spring feeding system

The machine with photo sensor and automatic assembly when the material is full.
3. This machine has automatic assembly counting function, automatically shut down when reach to set quantity
4. If the feed is not expected in time, after full material the machine will run automatically. after when lack of material of no material the machine will shutdown and alarm.
5. The machine with PLC program control system, easy to operate;
6. One operator can run more than one machine simultaneit
2. Technical Parameters:



Capacity	40-45pcs/min
Power supply	220V-50Hz
Clip vibrator	2 sets
Spring vibrator	1 set
Air supply	0.6-0.8Mp
Power	1.8Kw
Dimension	1350*1300*1500mm ( Lx Wx H:)
Humidity	20%-80%
Temperature	0°C-40°C
Platform height	700mm
P  L  C	Mitsubishi
operation interface	Touch screen
Weight	400kg
