triac dimmable 12v led driver transformer CV and CC for led strip light and MR16 spotlight

Product Overview

Description







triac dimmable 12v led driver transformer CV and CC for led strip light and MR16 spotlight

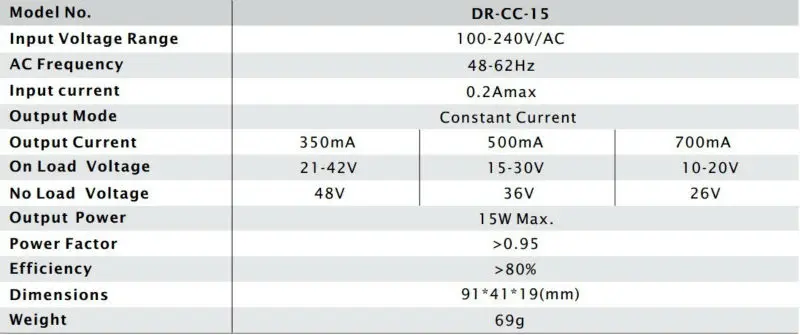

Constant Current



Input Voltage(V/AC):100~240V

Power(W): 15W
Output Voltage(V/DC):21~42 / 15~30 / 10~20

Output Current(mA):350 / 500 / 700
PF:>0.95
Efficiency((%):>82%
Dielectric Strength(V/AC):3000
Size(mm):91*41*19

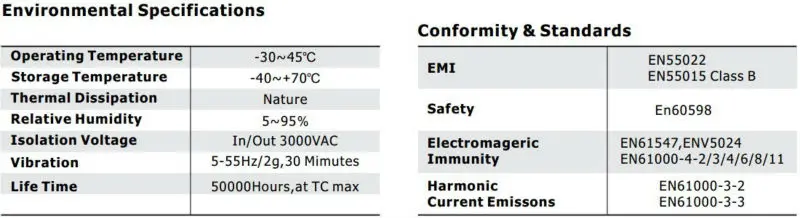

Operation Temperature:-30~45 degree
Storage Temperature:-40~70 degree
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max

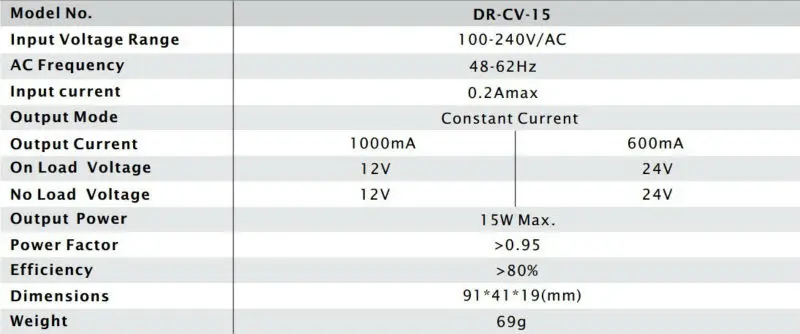

Constant Voltage

Input Voltage(V/AC):110V&230V
Power(W):15W
Output Voltage(V/DC):12/24
Output Current(mA):1000/600
PF:>0.95
Efficiency((%):>82%
Dielectric Strength(V/AC):3000
Size(mm):91*41*19
Operation Temperature:-30~45 degree
Storage Temperature:-40~70 degree
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max

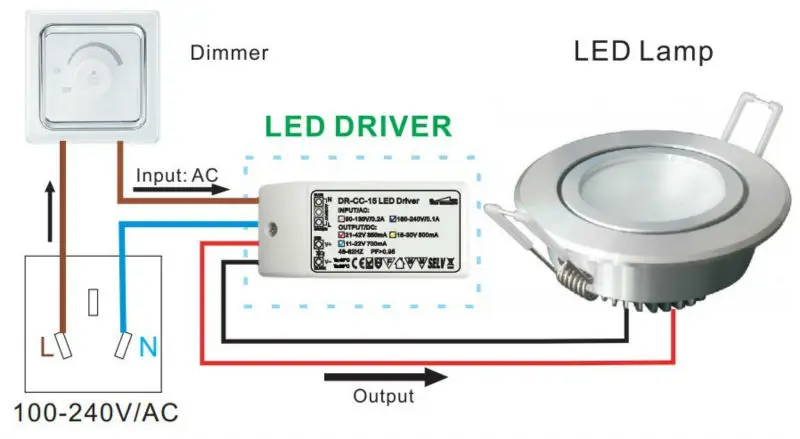

Installation Introduction

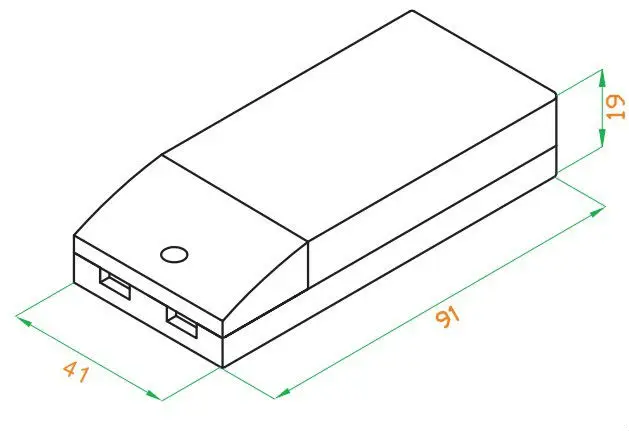

Dimensions Chart







Features
1.Advanced patent dimming technology
2.Suitable for leading edge or tailing edge dimmers
3.Short cicuirt and over current and over voltage protection
4.Recycle and no hazardous substance
5.Double isolation design for human safety
6.Conveniently connected terminals(screws)
7.Fireproof environmental protection PC plastic cover
8.3 years quality Warranty
