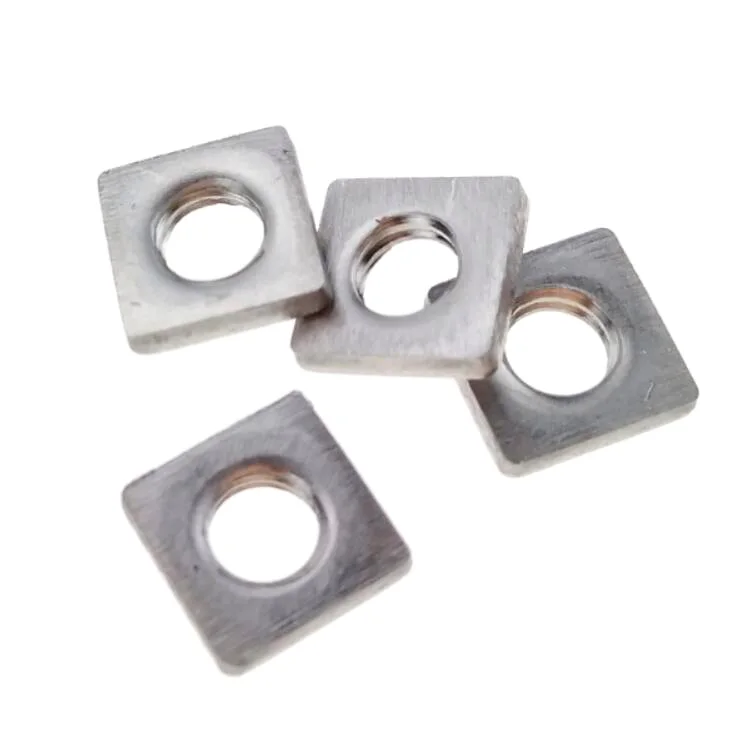

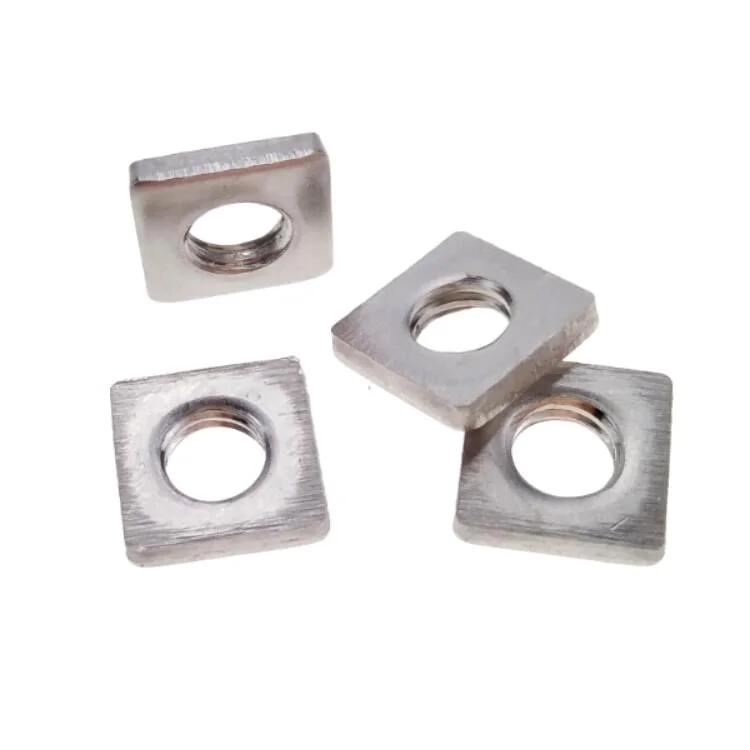

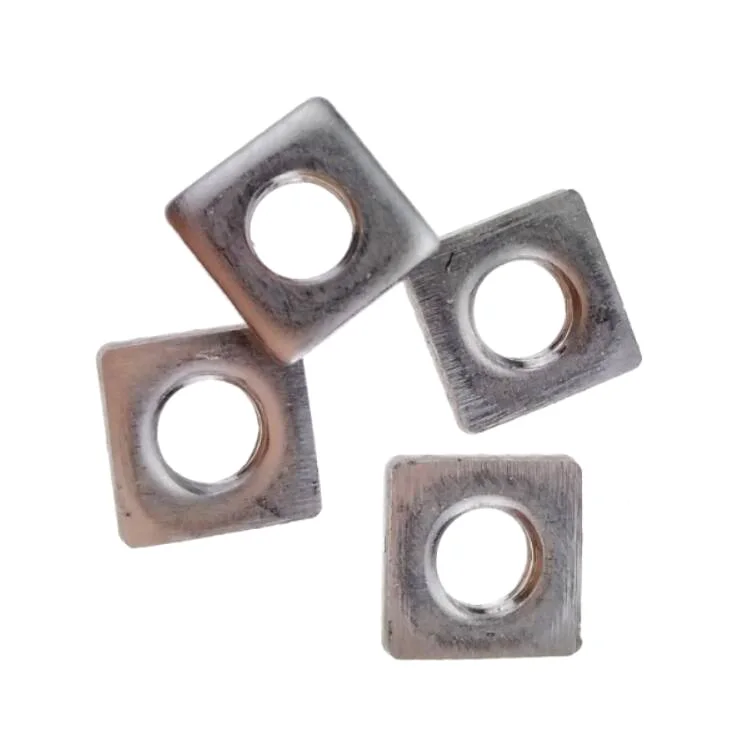

Custom Stainless Steel Thin Square Nuts for Screws M5 , Fastener Standard DIN 562
General Description
Stainless steel square nuts are made from austenite stainless steel grade A2-70 with tensile strength and good enlongation , thickness for square nuts are only 1.5 mm and width ups to 10 mm .
Threaded hole in centre of square nuts and one side with chamfered edge , polished surface for resistant corrosion and bright appearance .
Technical Data
Material
Stainless steel A2-70
Physical Properties
Hardness ( HV )
190
Yield Strength ( Mpa )
205
Elongation ( % )
40
Tensile Strength ( Mpa )
520
Torque
10
Reduction Area ( % )
60
Specification
d
M5
S
10
Pitch
0.8
K
1.5
Note : We provide standard square nuts as following
Thread
M3
M4
M5
M6
M8
M10
pitch
0.5
0.7
0.8
1
1.25
1.5
hieght
1.8
2.2
2.7
3.2
4
5
width
5.5
7
8
10
13
16
Finish
Type
Thickness ( um )
Salty Spray Hours
RoHS / REACH
Polish
2
72
RoHS
Product Features
1 . Resistance to corrosion
2 . Strict sizes
3 . Easy to operate
4 . Not easy to be looed
Applications
Stainless steel square nuts are used together with threaded rod like screws or bolts to secure objects . They are widely used to various fileds .
Tips for Use
1 . Make sure threads of object is same as square nuts .
2 . Take care thread direction before installation .
3 . Clean threads before installation .
Packing Details
Bulk ( Bags + Carton )
Pcs / Bag : 4
Kgs / CTN : 20
L X W X H : 25 X 20 X 15 cm
Boxes ( Boxes + Carton )
Kgs / Box : 1
Kgs / CTN : 12
L X W X H : 25 X 25 X 20 cm
Pallets
Kgs / Pallet : 1800
L X W X H : 1 X 1 X 2 m
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q. What products you produce ?
A. We are proudce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
