Multi-function concrete block making machine brick machine concrete interlock paver block machine







Main Specification



Production:                                          9pcs/mould, 13,000pcs/8 hours(Hollow block:400x200x200mm)

                                                              5pcs/mould, 37,000pcs/8 hours(interlock:240x130x60mm)

                                                              50pcs/mould, 75,000pcs/8 hours(solid block:240x115x53mm)

                                                              33pcs/mould, 49,000pcs/8 hours(paver block:200x100x60mm)

working cycle time :                           15-20s

Main machine dimension:                 3560x2600x2950mm

Main machine weight:                       10.5t

Main machine power:                        42kw

Vibration machine force:                  70kn

Pallet size:                                          1350x720x30mm

Factory area:                                       800 square meters

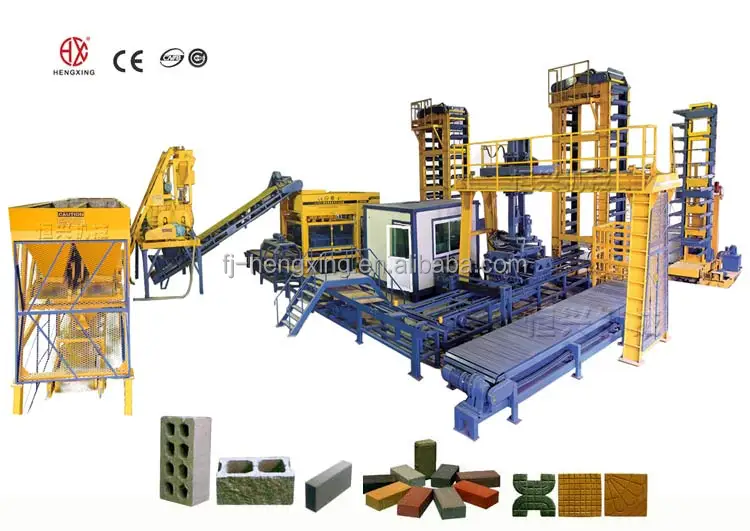

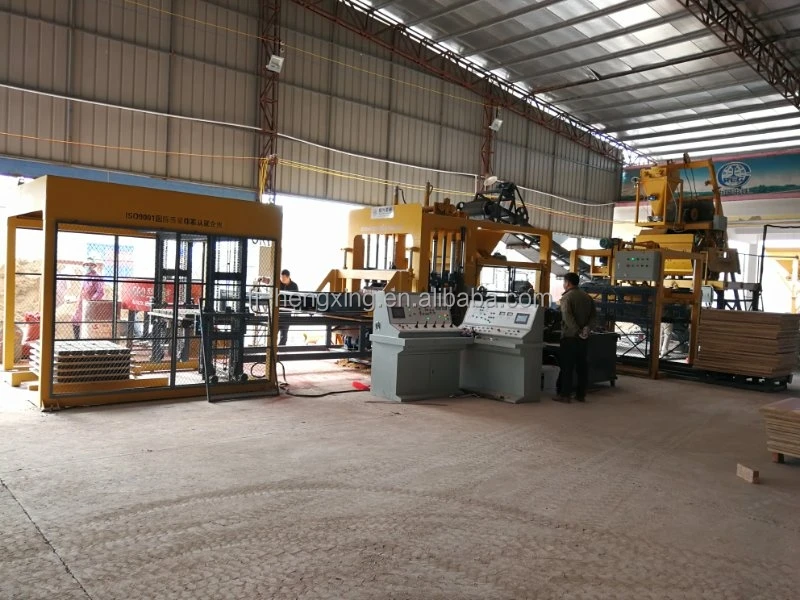

Semi-automatic production line

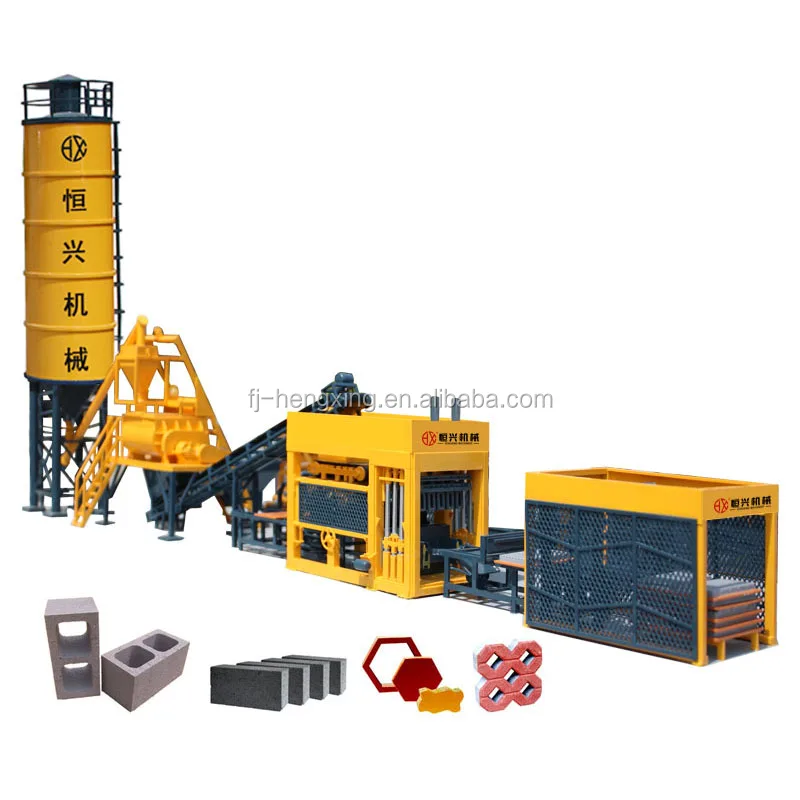

Fully automatic line

1. Automatic weighing system

 2. Twin shaft compulsory mixer

 3. Mitsubishi PLC, Touch screen control unit

 4. Hydraulic proportional relief valve automatically adjust the oil flow and speed

 5. Heave duty frame of steel structure for heave working

 6. Mould heat treatment with wire cutting

 7. One production line can make all kinds block, just only change the mould

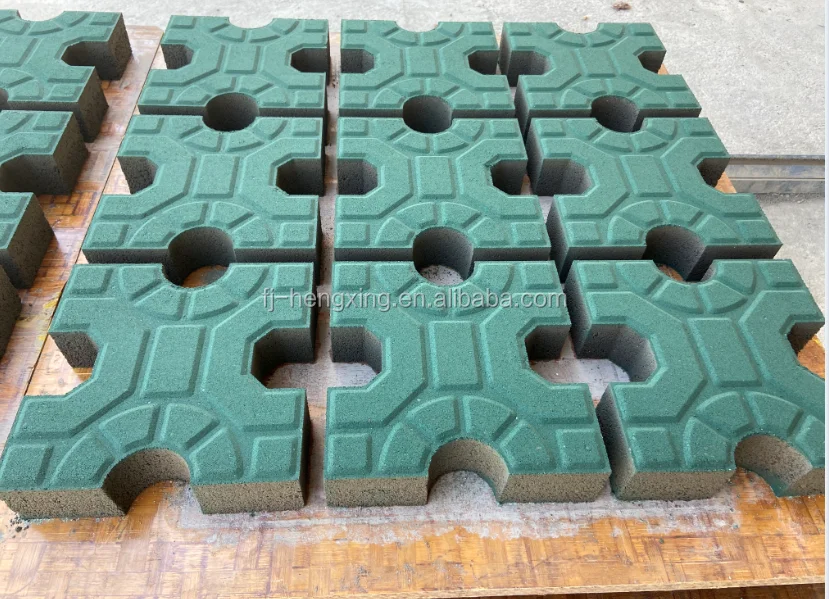

Block sample

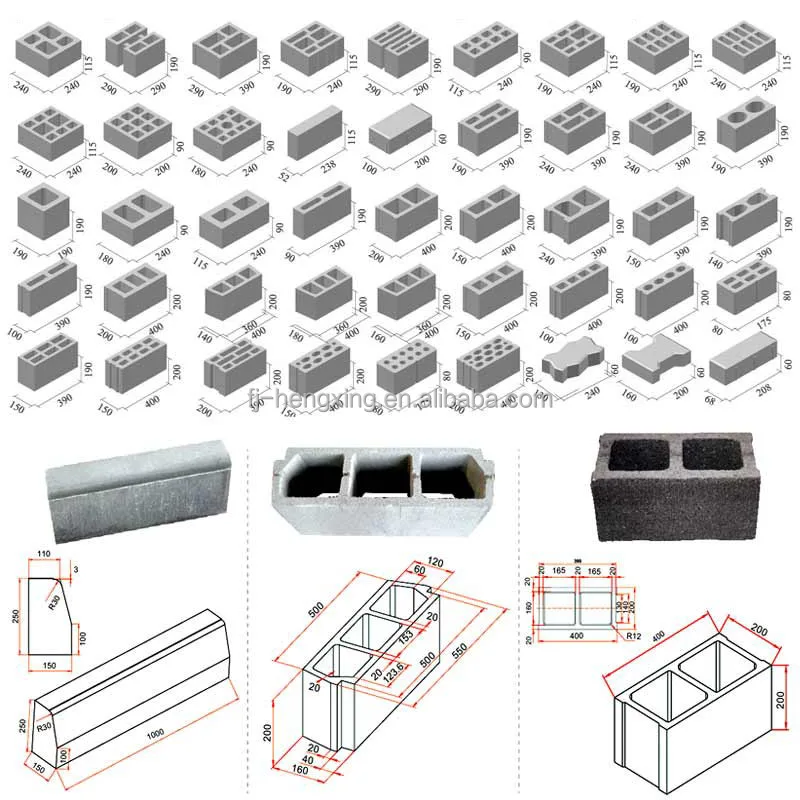

Change different moulds can make different blocks, we can design mould up to client required

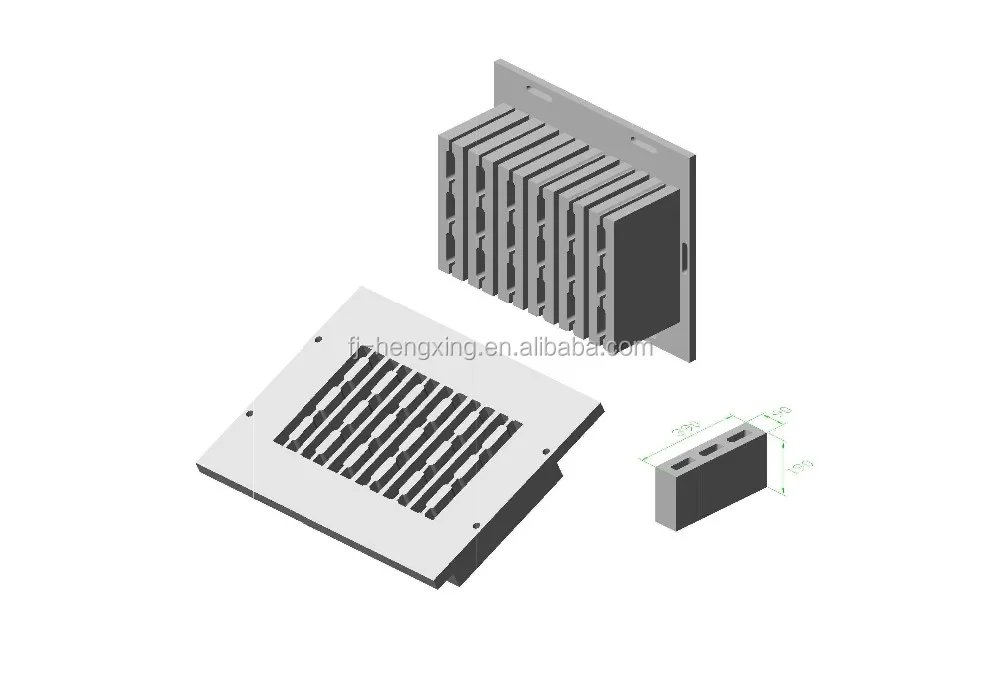

Mould

Heat treatment for the mould

A, use the 16# manganese steel,

B, heat treatment can reach HRC 61

 C, Working 150,000times



Control system

  A. Mitsubishi PLC, self diagnosed for Trouble shooting

 B. touch screen controller (Eview,Shenzhen), easy operation

C. International electrical components: Omron, Schneider

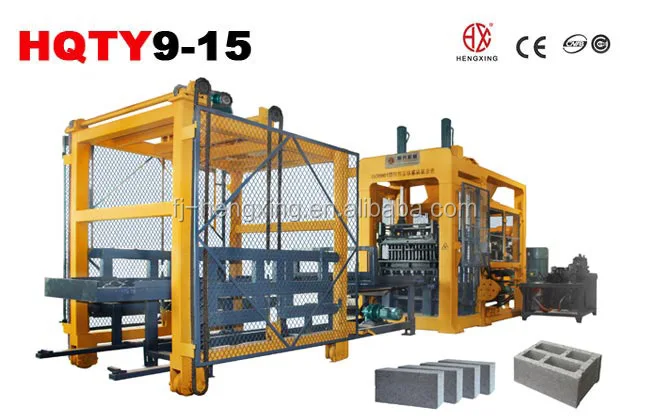

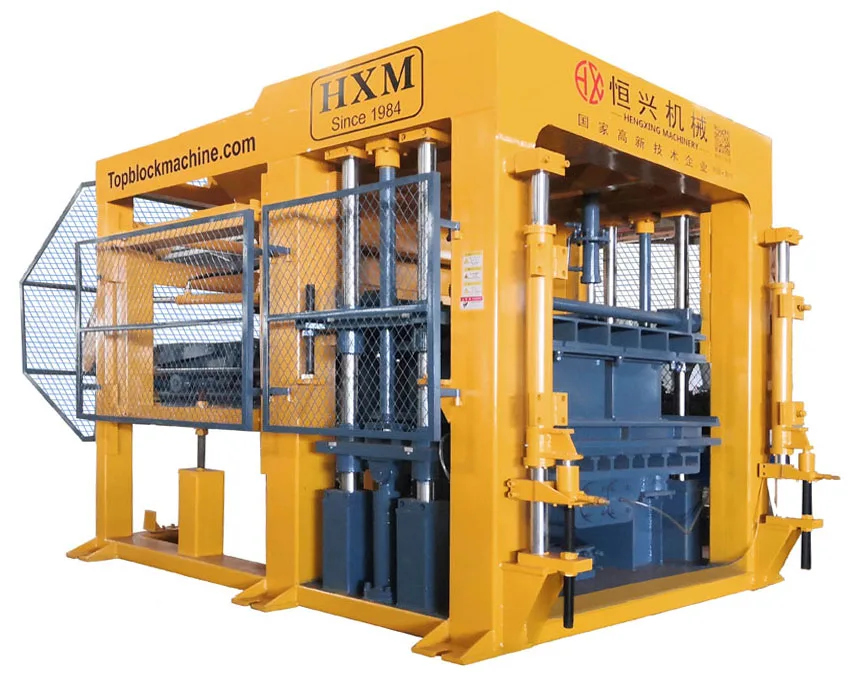

HQTY9-15 Block/Brick making machine is a multi-function block machine, such as hollow block making machine, solid block making machine, interlock making machine and paver block making machine. What's more it can make all kinds block, just only change the mould. Adopting table vibration plus head press vibration (the head press has three oil cylinders) to imorove the block of density and intensity. Using the Mitsubishi PLC and touch screen controller come from Japan and Taiwan, self diagnosed for trouble shooting.





More detailed information...please contact me,thanking you!
