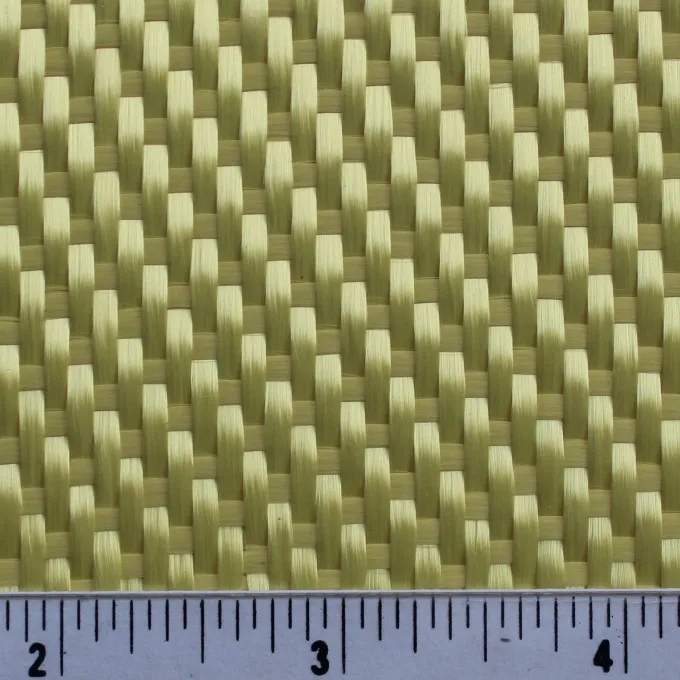

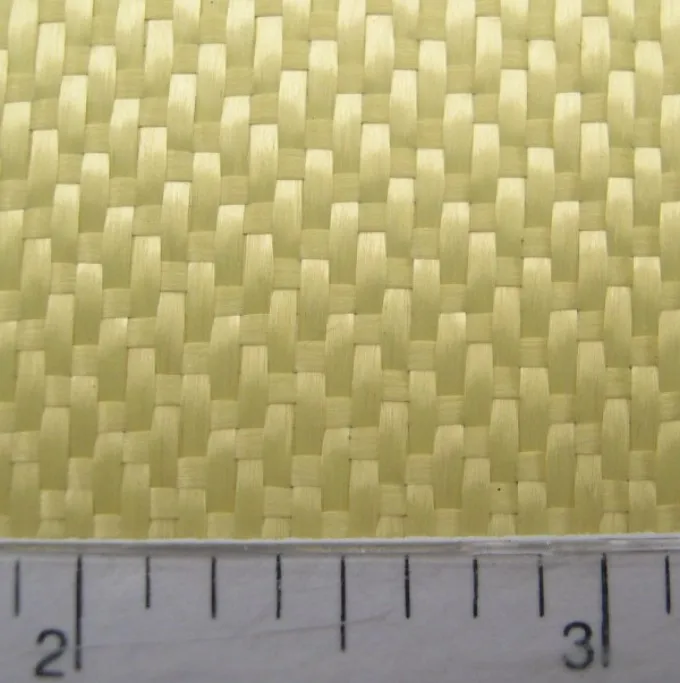

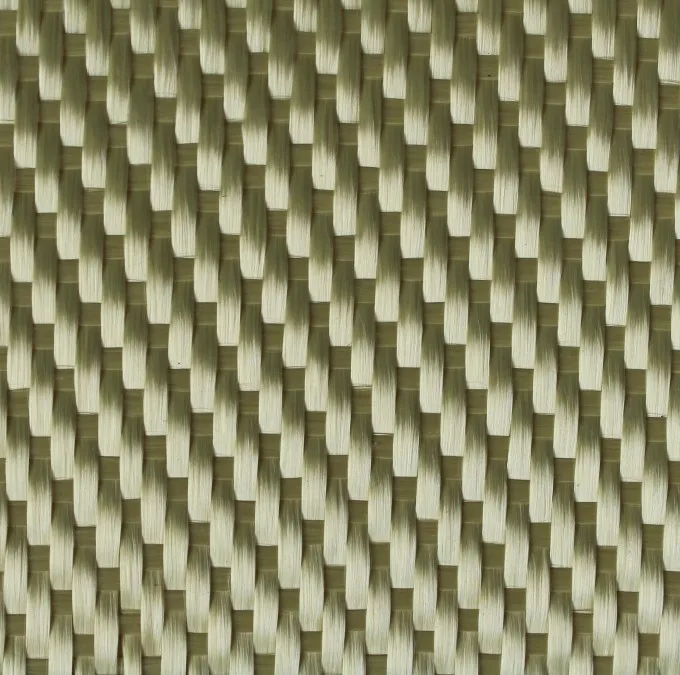

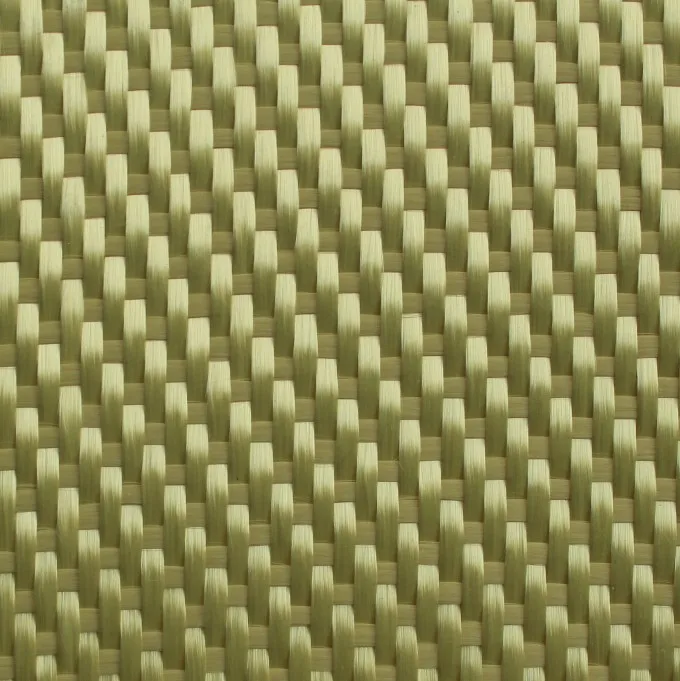

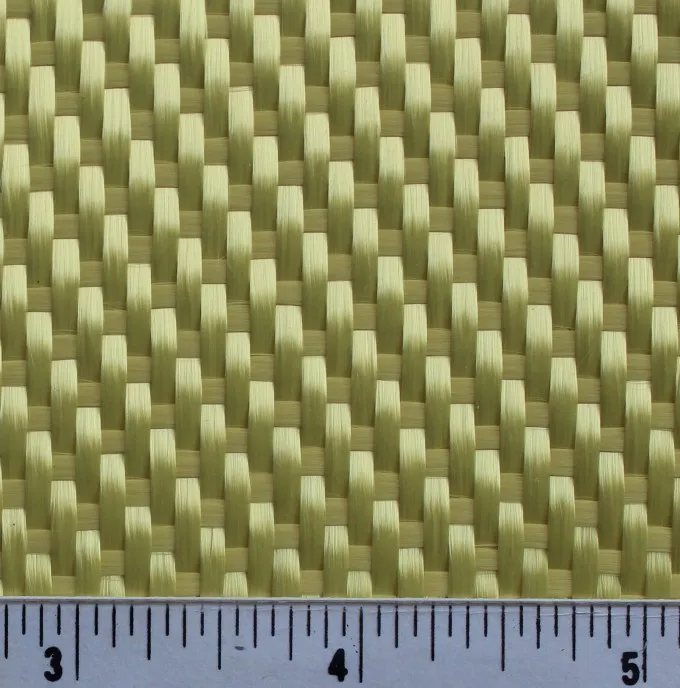

satin kevlar aramid fiber fabric

Product Overview

Description

We can supply the aramid  fiber fabrics.The fiber is from from Dupont USA or Japan.



aramid  fiber fabric

grade:K49

woven pattern satin 5HS

width: 100~152cm

FAW:300gsm



The applicaton are for

1.ballistic jacket

2.ballistic car parts

3.composite parts

4.electronic parts





If you need moe fetail information ,please visit our website

www.jinsor.com/jinsor-english-kevlar-fabric-spec.htm

and write down your e-mail address.

We will contact you soon.



Thanks



Oliver chou

JINSOR Kevlar fiber fabrics detail specifications

Code No (pictures) woven pattern thickness (mm) width(cm) weight  (g/m2) counts/inch fiber photos per inch warp weft warp weft JSKK 0201P Plain 0.1 100~152 57 32 32 200Dr Kevlar 200Dr Kevlar JSKK 0401P Plain 0.17 100~152 114 32 32 400Dr Kevlar 400Dr Kevlar JSKK 1001P Plain 0.28 100~152 190 21.5 21.5 1000Dr Kevlar 1000Dr Kevlar JSKK 1101P Plain 0.28 100~152 180 18.5 18.5 1100Dr Kevlar49 1100Dr Kevlar49 JSKK 1401P Plain 0.42 100~152 300 23 22.5 1420Dr Kevlar49 1420Dr Kevlar49 JSKK 1501P Plain 0.37 100~152 235 17 17 1500Dr Kevlar 1500Dr Kevlar JSKK 1502P Plain 0.3 100~152 180 13 13 1500Dr Kevlar 1500Dr Kevlar JSKK 1511T Twill 2x2 0.37 100~152 235 17 17 1500Dr Kevlar 1500Dr Kevlar JSKK 1521S 4HS Satin 0.37 100~152 242 18 18.5 1500Dr Kevlar 1500Dr Kevlar JSKK 2821S 5HS Satin 0.46 100~152 300 11.5 11.5 2840Dr Kevlar49 2840Dr Kevlar49 JSKK 3001P Plain 0.58 100~152 460 16.5 16.5 3000Dr Kevlar 3000Dr Kevlar JSKK 3012T Twill 2x2 0.42 100~152 300 10 10 3000Dr Kevlar 3000Dr Kevlar
