Text Display Size: height approx 18cms, thickness approx 3.2-4cms
LED bulb Red or Orange) display the following text:
“STOP” text with Red static in center on the same line of “FOLLOW ME” text
“FOLLOW ME” text with Yellow or Orange static
Display Left/Right ↔ sign with Red at front & rear of “FOLLOW ME” text on the same line of both sides; sign size approx: L15cms x W16-18cms x D8cms
Viewable Range: not less than 200m
Signboard Frame made of Stainless Steel, minimum 2mm thick
Panel made of transparent and strong, UV resistant material
Water and Humid resistant

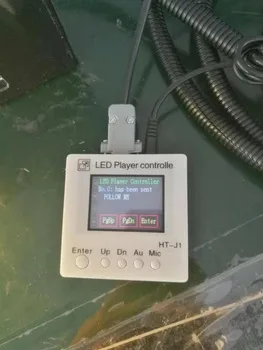

Installed Text and Sign controller inside the car in proper position as follow:
-Switch (ON-OFF-ON) to control STOP and FOLLOW ME text
Size
1600*300mm
color
red and orange
warranty
one year
certificate
ISO

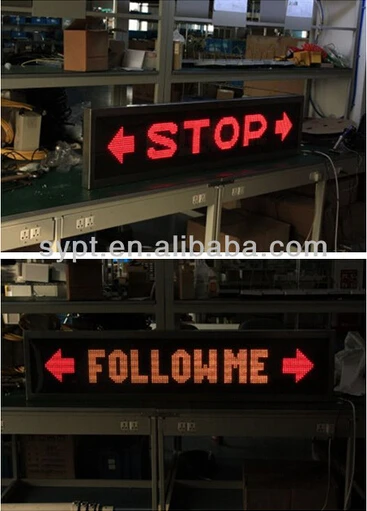

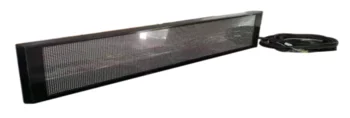

Follow me: LED sign board for airport vehicle
Features
1. Frame Size approx: 1,600 × 300 mm, made of minimum 2 mm. Stainless Steel
2. Fully lit characters LED Light in following Texts and Signs:
2.1 Red “STOP” wording, Steady Burn, centered position. Approx. Character Height: 18 cms. Approx. Character Width: 3.2 – 4 cms.
2.2 Amber or Orange “FOLLOW ME” wording, Steady Burn, on the same line and same size with “STOP” wording.
2.3 Red ↔ (Arrow) Sign, at Left & Right sides of “FOLLOW ME” wording. Approx Length of each Arrow: 15 cms. Height of Arrow Head: 16-18 cms. Width of stem: 8 cms. The Arrow will light up according to the vehicle’s Turn Signals and Hazard Warning Lights operation.
3. Horizontal Viewable Range: not less than 200 m in all climate condition and all sunlight direction from aircraft cockpit
4. The signboard must be rigidly covered on both front and back sides with transparent panel of strong and durable material
5. Water and Humid resistant
6. Complete with 3-position Switch (ON-OFF-ON) to control “STOP”and
Follow me: LED sign board for airport vehicle
Follow me: LED sign board for airport vehicle
Follow me: LED sign board for airport vehicle
Susan Liu
