Single Phase White Colour IP43 Hybrid Solar 1KVA 20KVA Light Online Outdoor UPS Power Supply System For Outdoor Use
- Category: >>>
- Supplier: Aerospace Baykee (Guangdong) Technology Co. Ltd.
Share on (813246860):
Product Overview
Description
VR
You may also like
Product Description

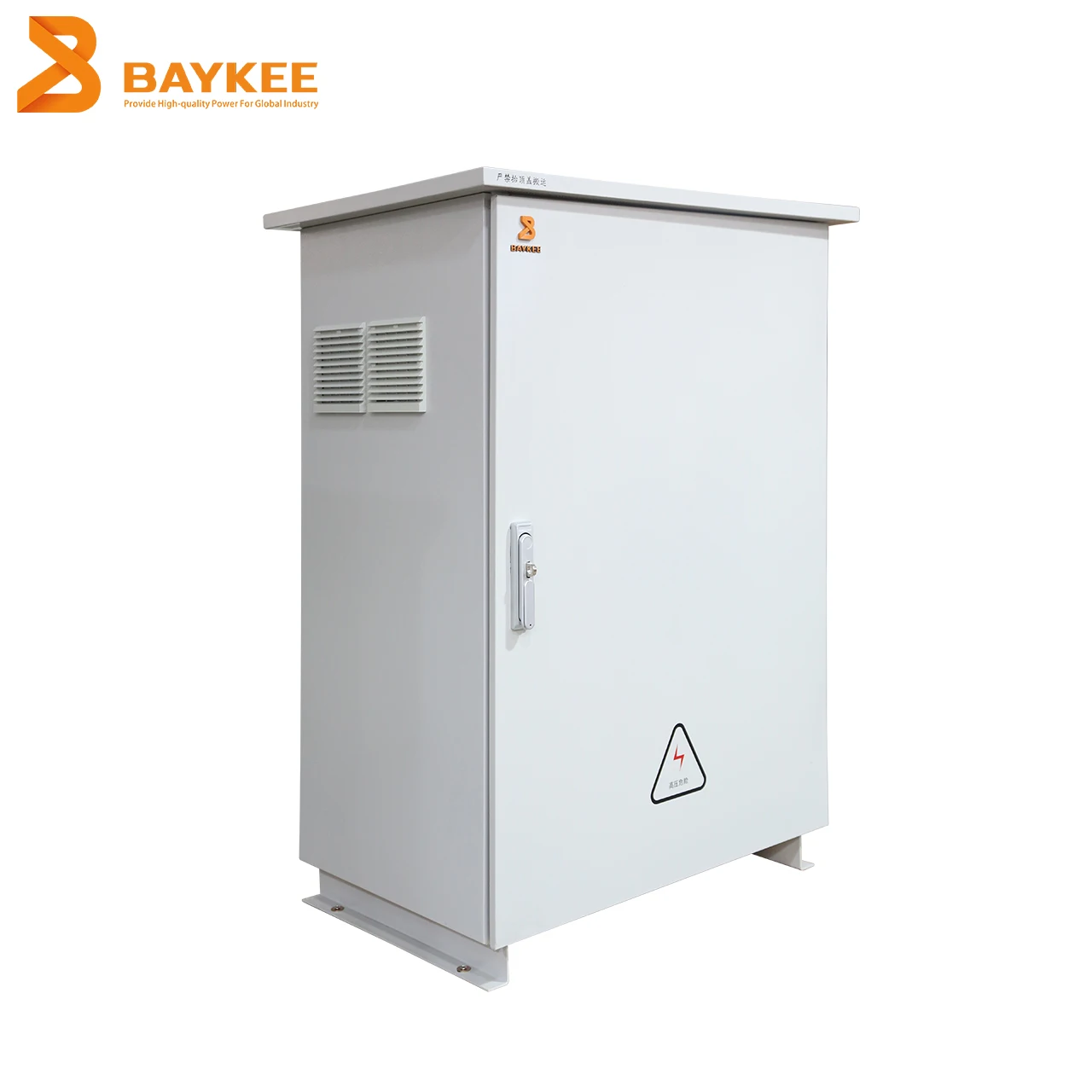

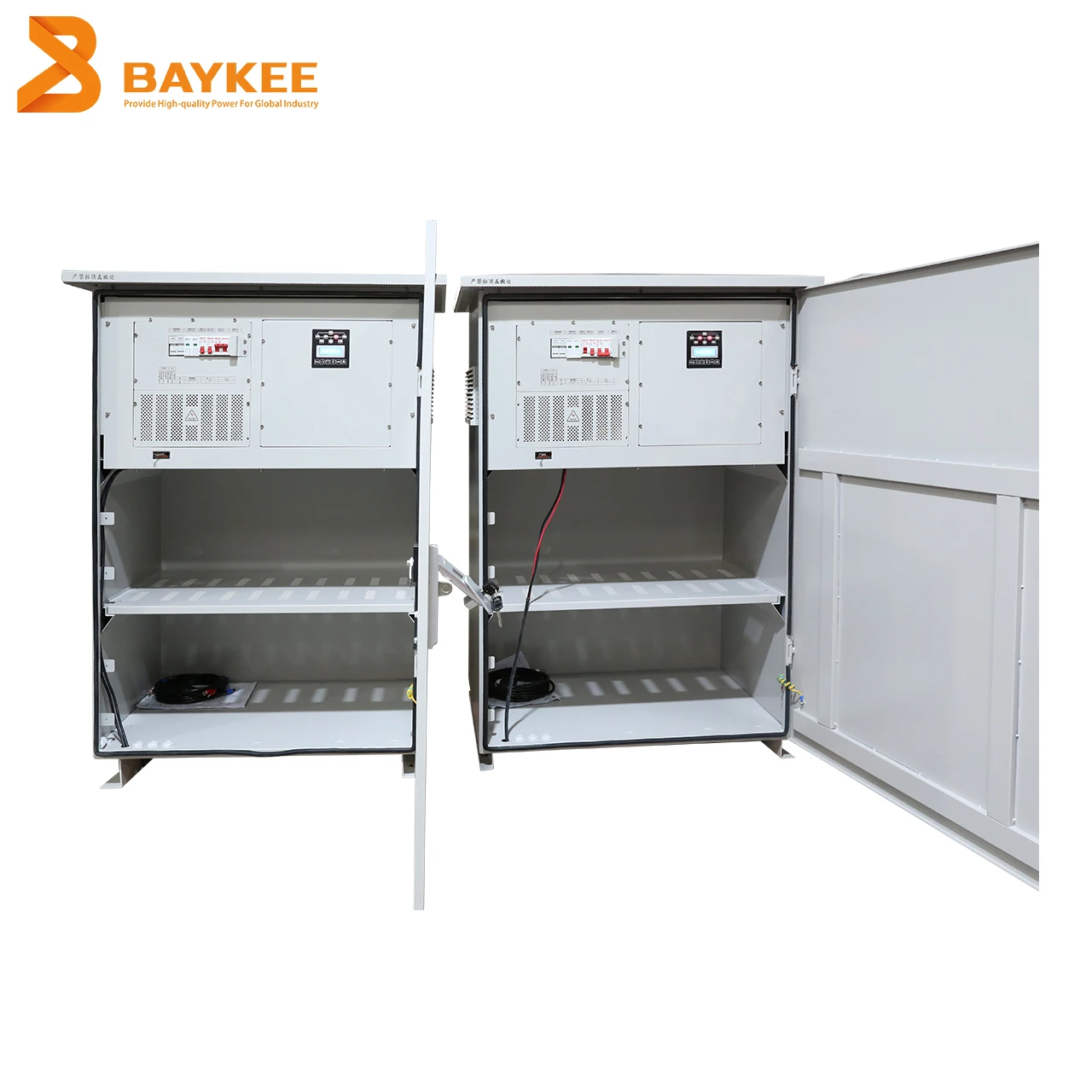

BK-HW Series Online Outdoor UPS
HW series online UPS is a smart multifunctional line interactive ups, consisting of inverters, automatic voltage regulator, conversion circuit, main control circuit and display alarm circuits, etc. It is base station special UPS, is the global newest period control component and more advanced software product uses the six generator low- loss large power IGBT and static switch to be power component, it fully adopt digital control technique with available online programmable high speed microprocessor(MCU), and it is the perfect performance in digital electric technique. HW series online UPS capacity range from 1kVA to 3kVA can extend to 20kVA, with 100% suitable grid environment. This type of outdoor ups used for the outdoor communication data base, railway, lighting system and some tunnel lighting backup system. The cabinet is IP65, Waterproof and dustproof, have longer using life.
Main Features:
Two types for choose: battery included/ battery excluded, different backup time can be configured
1. Advanced digital electric system super stable operation.
2. Battery intelligent management, durable and free from worry, extends usage of battery over 55%.
3. Intelligent detection system whole protection.
4. SNMP card, RS232 and RS485 communicate port really realize multi-purpose communication and remote monitoring.
5. Adopt high precision SMD technique, whole machine highly precision.
6. Basic on six generation IGBT and high speed static switch transform technique, high reliability.
7. Many protection, optional input harmonic filter.
8. Basic on six generation IGBT and high speed static switch transform technique, high reliability.
9. Super LED&LCD screen information processing technology, no restrict between user and UPS.
10. Super adapt to the reliability of the environment, characteristic under a harsh environment, stronger waterproof, dustproof, antifreeze, heat insulation and function makes is more reliable safety.
11. Super load characteristics, suitable from 0%-100% load jumping, and no need to change to bypass, and protect output stable.
12. Perfect protection function
13. Optional battery circuit module
14. Optional input harmonic filter
15. Personalized settings can choose UPS working patterns, ECO energy conservation work patterns, and EPS work patterns.
Application:
-Communications industry
-Outdoor communication base station
-High-speed rail
Two types for choose: battery included/ battery excluded, different backup time can be configured
1. Advanced digital electric system super stable operation.
2. Battery intelligent management, durable and free from worry, extends usage of battery over 55%.
3. Intelligent detection system whole protection.
4. SNMP card, RS232 and RS485 communicate port really realize multi-purpose communication and remote monitoring.
5. Adopt high precision SMD technique, whole machine highly precision.
6. Basic on six generation IGBT and high speed static switch transform technique, high reliability.
7. Many protection, optional input harmonic filter.
8. Basic on six generation IGBT and high speed static switch transform technique, high reliability.
9. Super LED&LCD screen information processing technology, no restrict between user and UPS.
10. Super adapt to the reliability of the environment, characteristic under a harsh environment, stronger waterproof, dustproof, antifreeze, heat insulation and function makes is more reliable safety.
11. Super load characteristics, suitable from 0%-100% load jumping, and no need to change to bypass, and protect output stable.
12. Perfect protection function
13. Optional battery circuit module
14. Optional input harmonic filter
15. Personalized settings can choose UPS working patterns, ECO energy conservation work patterns, and EPS work patterns.
Application:
-Communications industry
-Outdoor communication base station
-High-speed rail
Specification
Model | HW-1kVA | HW-2kVA | HW-3kVA | ||||||
Nominal capacity | 1kVA/0.8kW | 2kVA./1.6kW | 3kVA/2.4kW | ||||||
Working wave | Low frequency, double conversion, pure sine wave online | ||||||||
Phase | Single phase L+N+G | ||||||||
Input power factor | >0.90 | ||||||||
Rectifier | Input voltage | 220Vac; 230Vac; 240Vac( option 110Vac,120Vac ) | |||||||
Range | ±25% | ||||||||
Input frequency | 50Hz±10%; 60Hz±10%; | ||||||||
Soft startup | 0～100% 5sec | ||||||||
Charge | Charge mode | Constant current to constant voltage; with auto change | |||||||
Float voltage | 54VDC | ||||||||
Charge current | 5Amp ( option 10Amp) | ||||||||
Battery | Battery type | Maintenance-free lead acid battery | |||||||
Battery capacity | 7～999AH settable (according to the capacity) | ||||||||
Battery number | 4pcs 12V as 1pcs battery bank | ||||||||
Inverter | Phase | 1 phase | |||||||
Rated capacity | Rated capacity ×0.8 | ||||||||
Output voltage | 220Vac; 230Vac; 240Vac ( option 110Vac,120Vac ) | ||||||||
Output voltage distortion | ±1 %( Stable load); ±3%( fluctuant load) | ||||||||
Freq distortion | 50Hz 60Hz<±0.5% | ||||||||
Crest factor | >3:1 | ||||||||
Output THD | Sine wave ,linear load<3%;non-linear load<5% | ||||||||
Dynamic characteristic | Instant voltage<±5%(from 0 to100% ), instant recover time<10Ms | ||||||||
Imbalance load voltage | Output voltage <±5% | ||||||||
Overload protection | 115% 10min; 125% 1min ; 150% 1S | ||||||||
Efficiency | >93%(full load) | ||||||||
Bypass | Phase | Single phase+N | |||||||
Voltage | 220Vac; 230Vac; 240Vac ( option 110Vac,120Vac) | ||||||||
Transfer time | <1Ms( static switch with 0 S ) | ||||||||
Protection | Input protection | Input over/low voltage ;over frequency | |||||||
Output protection | Over current short circuit ; factor low | ||||||||
Battery protection | Over charge ; over-discharge | ||||||||
Temp protection | Environment over temp protection, inverter over temp protection | ||||||||
Hardware failure | Assistant power abnormal, breaker cut off, breaker overload, power components over current/over voltage etc protection | ||||||||
Cooling | Compulsive ventilation(with temperature control) | ||||||||
Communication | RS232/ RS485; (optional SNMP card) | ||||||||
Safety rate | IP65 | ||||||||
Physical parameter | Noise (dB) | 45~50 | |||||||
Size (W*D*H)mm | 890*640*1250 (Max. Built-in 8 pcs 12V100Ah batteries), usually according to battery quantity | ||||||||
Weight(kg) without putting the batteries | 105 | 115 | 135 | ||||||

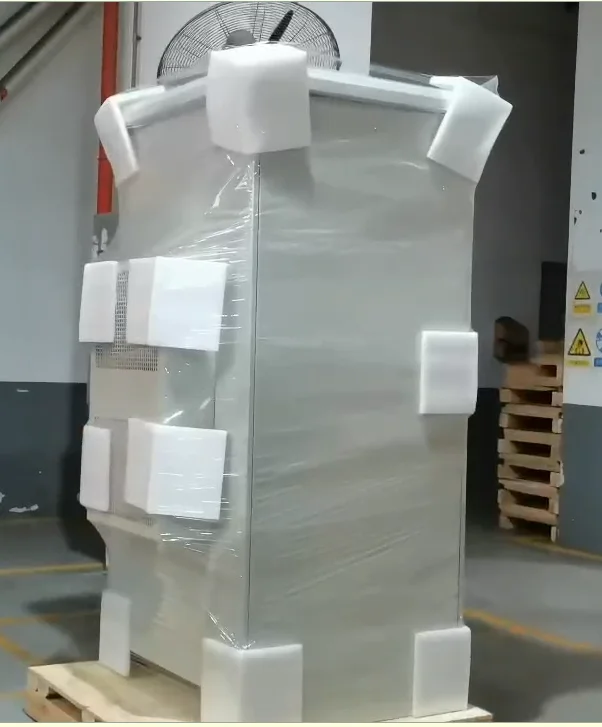

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Aerospace Baykee (Guangdong) Technology Co., Ltd. is a backbone enterprise engaged in the research and development of cutting-edge power supply technology under the China Aerospace Science and Technology Corporation and a pathfinder for the application of my country's power supply technology in the field of "advanced, precise and cutting-edge". Aerospace Baykee is established in 2007, a professional manufacturer and exporter with R&D in improving power quality products like uninterrupted power supply (UPS), EPS, solar inverters, modular data center, MPPT solar charge controller, energy storage system, etc. Headquarter in Foshan, the earliest cooperation in China power industry passed and approved by the ISO 9001 & ISO 14001, OHSMS 18001, CE, IEC, 3C, TCL and CQC quality standard. Aerospace Baykee also actively participates in the "One Belt, One Road" initiative by setting up branches and agents in Pakistan, Australia, Philippines, Vietnam, Yemen, and Nigeria to launch company's self-developed products. Currently, Aerospace Baykee is the first-line brand in Pakistan.

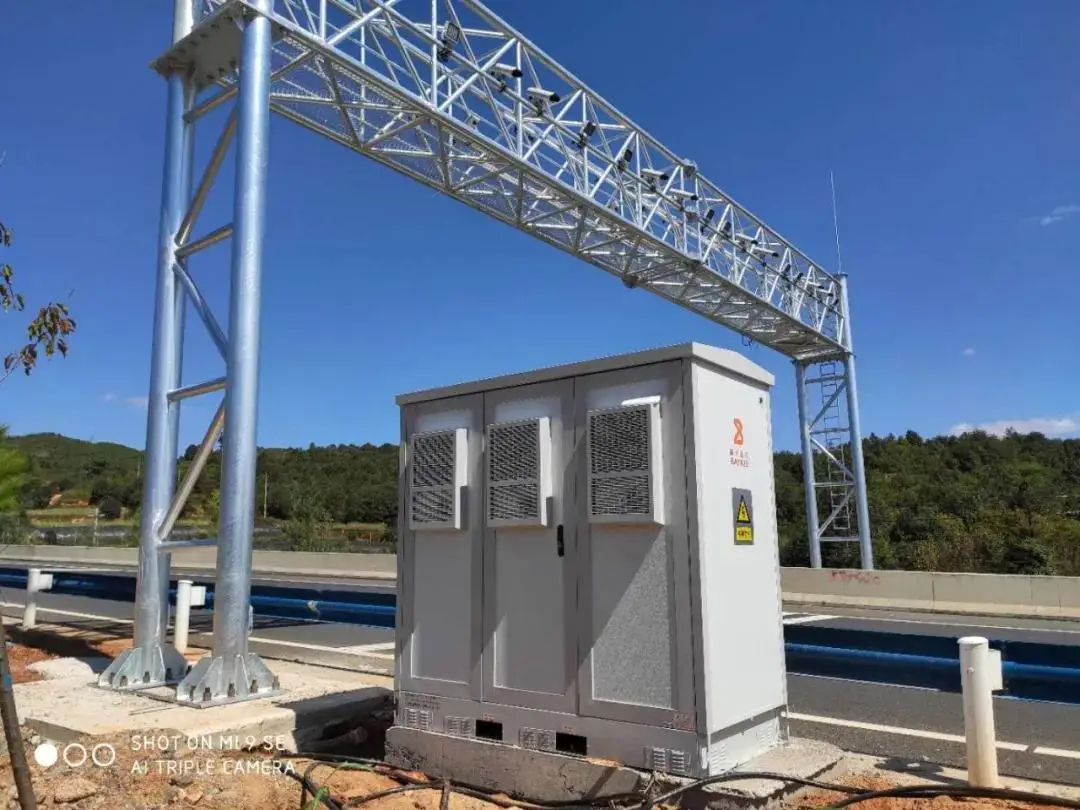

Application case
Exhibition
FAQ
Q: Why choose us?
A: We are China Leading UPS &solar system Manufacturer, 14 years experience in producing and marketing
UPS & solar products.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Good after-sale service: 1 years warranty and if possible we provide on-site installation and repairing.
All of our products have the CE certificate, ISO9001,ISO14001,OHSAS18000,TLC, IEC authentication, and Chinese energy conservation certification
Market covers the 100 cities and countries all over the world. Have branch office in Pakistan, Australia, etc.
If you have some problems about HW series solar charge controller , or want to know more details about 3 phase online UPS system, off grid solar inverter system, solar energy storage system, outdoor online UPS, lithium battery, MPPT solar charge controller ,etc. Welcome to contact us!
Looking forward to your inquiry in alibaba.
A: We are China Leading UPS &solar system Manufacturer, 14 years experience in producing and marketing
UPS & solar products.
100% QC inspection Before Shipment.
Best Quality & Best Service with Competitive price.
Good after-sale service: 1 years warranty and if possible we provide on-site installation and repairing.
All of our products have the CE certificate, ISO9001,ISO14001,OHSAS18000,TLC, IEC authentication, and Chinese energy conservation certification
Market covers the 100 cities and countries all over the world. Have branch office in Pakistan, Australia, etc.
If you have some problems about HW series solar charge controller , or want to know more details about 3 phase online UPS system, off grid solar inverter system, solar energy storage system, outdoor online UPS, lithium battery, MPPT solar charge controller ,etc. Welcome to contact us!
Looking forward to your inquiry in alibaba.
