Black Spring Steel Start Nuts Fastener Locking Insert Nuts for Plastic M6 Standard
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (813338975):
Product Overview
Description

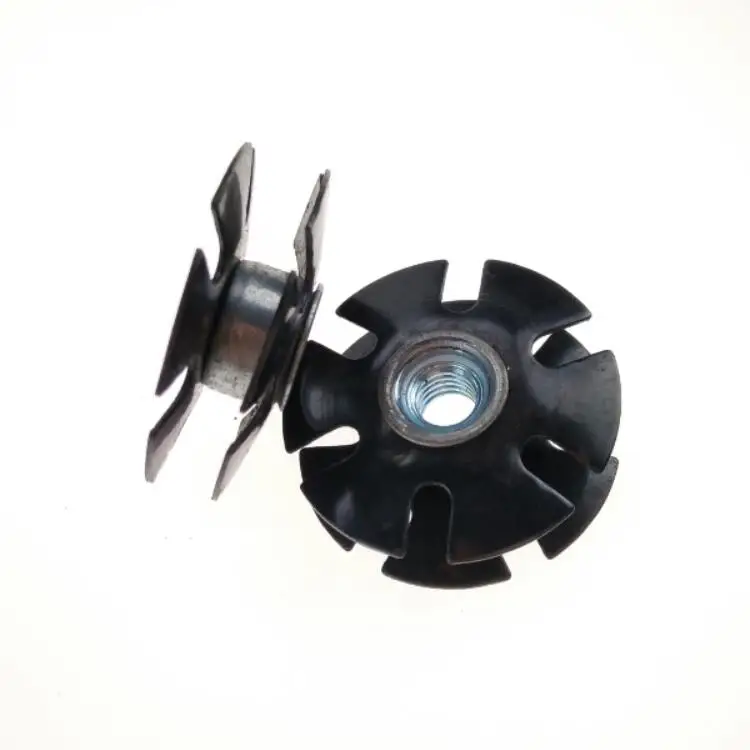

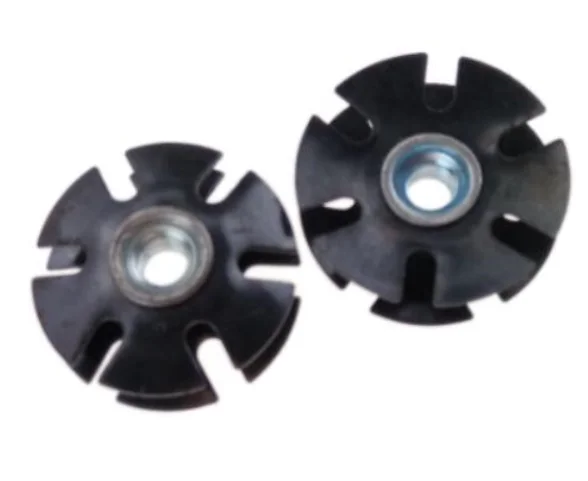

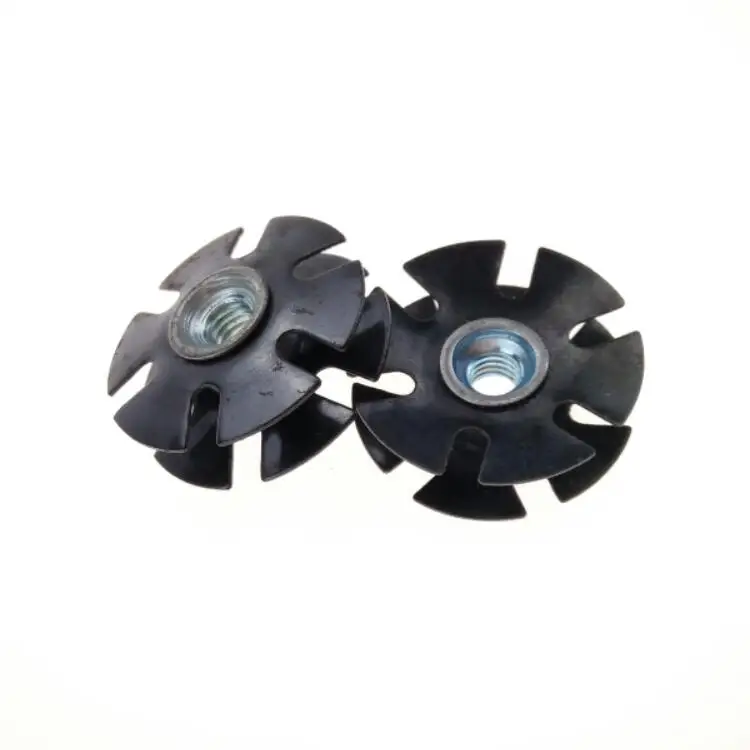

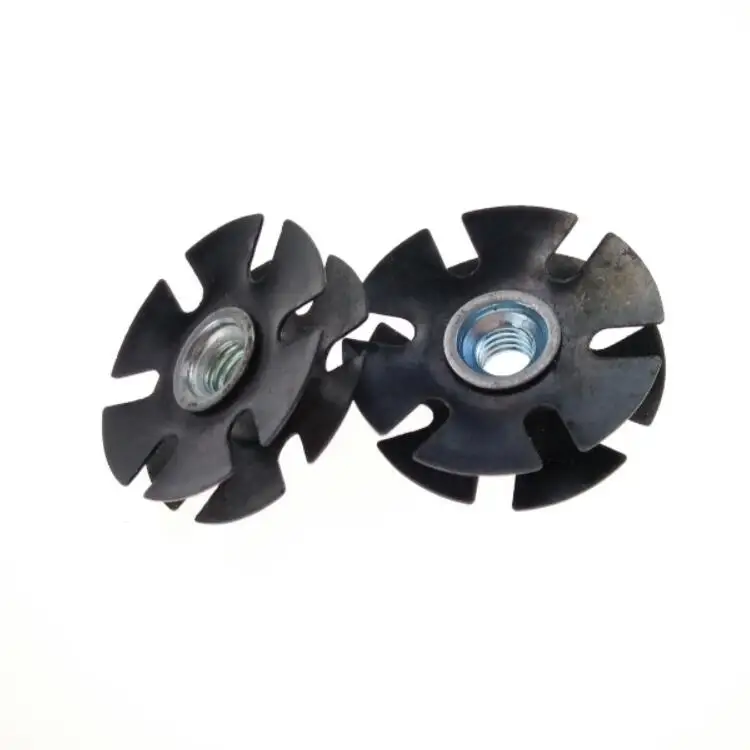

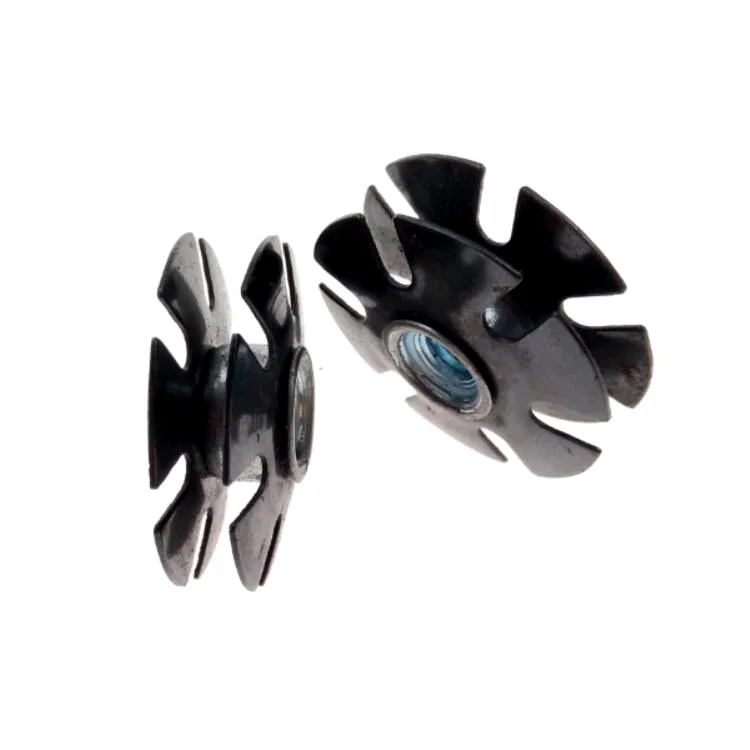

Black Spring Steel Start Nuts Fastener Locking Insert Nuts for Plastic M6 Standard
General Description
Start nut with a round boy and a full threaded through hole , it is also known as sping nuts , two same sizes of leavies on the both ends , and they are trened to same indication , usually , the body of start nut is made of steel material and the two leavies are made of spring steel and plated in different colors as spring steel with more tensile strength and flexiblity .
The leavies of the start nuts will be bended under the large pressure when the nuts was put into the hole of the workpiece , and these bended leavies prevent nut from backing out
Technical Data
Material
Spring steel
Physical Properties
Hardness ( HV ) | 450 | Yield Strength ( Mpa ) | 650 | Elongation ( % ) | 65 |
Tensile Strength ( Mpa ) | 980 | Torque | 4 | Reduction Area ( % ) | 45 |
Specification
Thread diameter | M6 | |
Thread Length | 8 | |
Pitch | 1.0 | |
Full Diameter | 14 | |
Full Height | 8 |
Finish
Type | Thickness | Salty Spray Hours | RoHS / REACH |
Oxidation | 5 | 12 | RoHS |
Product Features
1 . Harden material
Hardness for start nuts up to HRC 45
2 . Perfect Locking performance
Harden leaves of start nuts provide good locking for objects .
3 . Not easy to be broken
4 . Quick installation
5 . Easy operation
6 . Good flexibility .
Applications
Start nuts are used to secure objects for wooden , plastic etc .
Tips for Use
1 . Concave side should be faced to objects .
2 . Bolts thread specification should be same as the threaded hole of start nut
3 . Far from acid-base surroundings .
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
Pcs / Bag : 3 Kgs / CTN : 15 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kgs / Bag : 0.5 Kgs / CTN : 10 L X W X H : 25 X 25 X 20 cm | Pallets
Kgs / pallet : 1800
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one
