HIWIN Industrial Automation Precision Linear Actuator

Product Overview

Description

HIWIN Industrial Automation Precision Linear Actuator





1.Linear Actuator introduction

The HIWIN linear Actuator comprises a base combined with an LM Guide, a standardized top table, drive system, and so on. The free selection of main parts from a rich collection of options enables users to realize specifications optimal for particular applications.





2.Linear Actuator interpretation

Linear Actuator consist of linear guideway unit and ballscrew unit. For saving space, HIWIN product combine the carriage of linear guideway and nut of ballscrew to a integral Carriage-Nut. The carriage-nut cooperate with the U rail designed for high rigidity to achieve the high rigidity and high accuracy in the minimal space, especially to saving time of installation.
Moreover, the design of two rows with Gothic-arch groove and contact angle of 45°can bear four directional loading.





3.Linear Actuator drawing Show

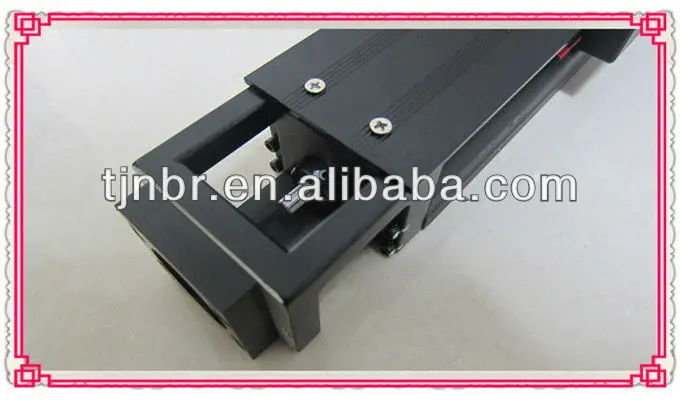

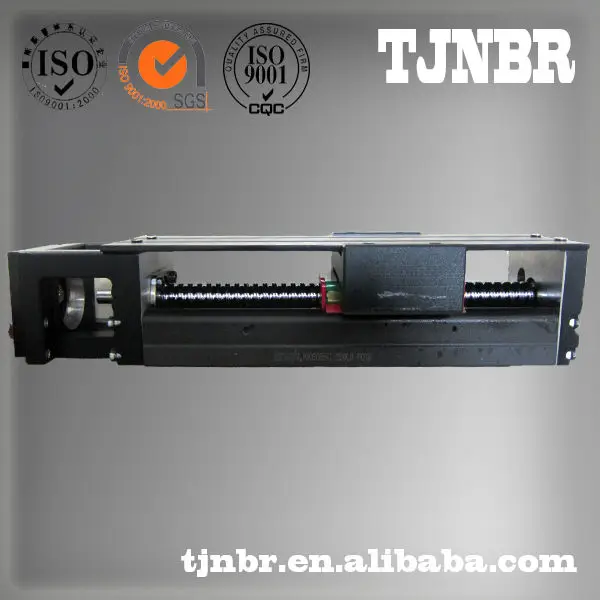

4.Linear Actuator actual image







Thanks for your visiting!!
