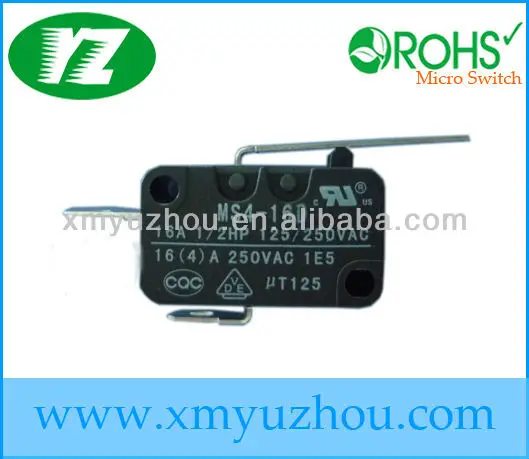

mechanical micro switch

Item

Value

Perating Speed

0.1mm~1m/s(Related with actuator forms)

Operating Frequency

Mechanical 60 cycles/min;Electrical 30 cycles/min

Insulation Resistance

100 MΩ (500VDC)

Contact resistance

<=30mΩ(Initial value)

Test Voltage

Between terminals of the same polarirty

AC1000V,50/60Hz,1min

Between current-carrying metal

And ground(case),and between

Each terminal and non-carrying

metal parts

AC2000V,50/60Hz,1min

Vibration resistance

10-55Hz,1.5mm Double amplitude

Shork Resistance

Destruction : OF>0.5N:1000m/s ²(approx.100G)max

           OF<=0.5N:500m/s ²(approx.50G)max

Malfunction: OF>0.5N:300m/s ²(approx.30G)max

           OF<=0.5N:200m/s ²(approx.20G)max

Life Expectancy

Mechnical>=5000000 cycles

Electrical>=50000 cycles

Degree of protection

IEC IP40

Degree of protection against electric shock

Class I

PTI(Tracking Resistance)

175

Ambient air temperature

125°C 60%RH below(No ice and dew)

Ambient air humidity

85% Rhbelow(about +5~+35°C)

Weight

Approx.5.95g(No lever)

1.

Degree of

Temperature

No Mark:T125

5.

Terminal Types

A:250 Quick-connect Terminal

B:187 Quick-connect terminal(Thick:0.8)

C: 187 Quick-connect terminal(Thick:0.5)

D:Solder/187 common terminal

E:Screw terminal

F:Solder terminal

G:250 Quick terminal No.2

Y:Not standard terminal

2.

Ratings

16:16(4)A250VAC/16A125VAC

1/2HP 125/250VAC

10:10(3)A250VAC/10A125VAC

6:6(2)A250VAC/6A125VAC

1:1(1)A250VAC/1A125VAC

6.

(max)

Operating Force

051:0.5N

025:0.25N

050:0.5N

100:1N

150:1.5N

200:2N

300:3N

400:4N

3.

Connect Forms

Z:SPDT

T:SPST-NO

D:SPST-NC

7

Plunger specs

No mark:Standard Plunger

A: Middle Plunger

B: Long Plunger

C: Abnormality Plunger

( see dirgram )

Notice:If adopt other not standard plunger,the indicate with the new spec(confirmed by our company)

4.

Acuator forms

0: No lever

A 1/1:Short lever

A 2/2:Long lever

A 3/3:Middle lever

A 4/4:Short Roller

A 5/5:Long Roller

A 6/6: Arc lever

A /:Not standard lever

Note:

1) A indicate the lever near to the

Plunger,no A indicate the lever far

Away from the plunger.

2) If lever is amounted besides,add letter”B” after the lever code.

3) / Indicate not standard lever

8.

Additional Specis Numbers

Apply to:

1)When used not standard parts such as not standard terminals;

2)When Customer has particular Operating value or other requirement

3) When the case is mot black,for example,grey shows as G.

Additional specs number shows by Arabic numerals or Latin.color code after the numbers.If there is no Additional numbers,the place is vacant
