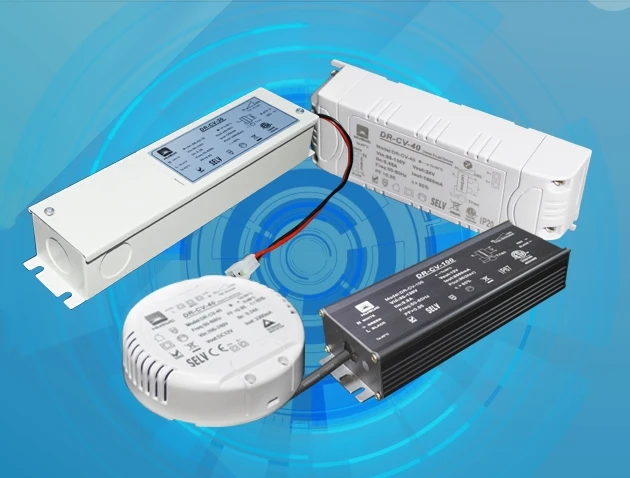

led driver 36v 1 10V/PWM Dimmable led switching power supply converter for high power led lighting led strip constant current

Product Overview

Description

1-10V/PWM Dimmable led switching power supply converter for high power led lighting led strip constant current



Constant Voltage
Input Voltage(V/AC):110/230
Power(W):60W
Output Voltage(V/DC):12/24
Output Current(mA):4000/2000
PF:>0.95
Efficiency((%):82%-86%
Dielectric Strength(V/AC):3000

Size(mm) :   123*79*35

Operation Temperature:-30~45 degree
Storage Temperature:-40~70 degree
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max



Constant Current
Input Voltage(V/AC):110/230
Power(W):60W
Output Voltage(V/DC):74/140
Output Current(mA):700/350
PF:>0.95
Efficiency((%):82%-86%
Dielectric Strength(V/AC):3000

Size(mm) :   123*79*35

Operation Temperature:-30~45 degree
Storage Temperature:-40~70 degree
Thermal Dissipation:Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55hZ/2G,30Minutes
Life time:50000H,AT tc max





Features
1.Advanced patent dimming technology
2.Suitable for leading edge or tailing edge dimmers
3.Short cicuirt and over current and over voltage protection
4.Recycle and no hazardous substance
5.Double isolation design for human safety
6.Conveniently connected terminals(screws)
7.Fireproof environmental protection PC plastic cover
8.3 years quality Warranty
