YT 4800 four Colour Flexographic used newspaper printing machine and cut machine for sale

Product Overview

Description

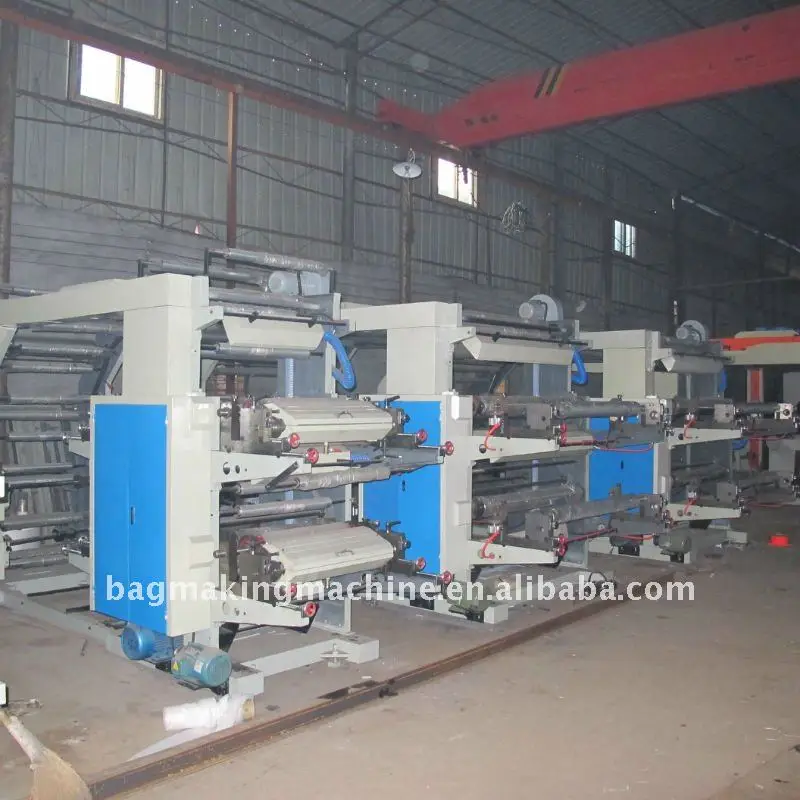

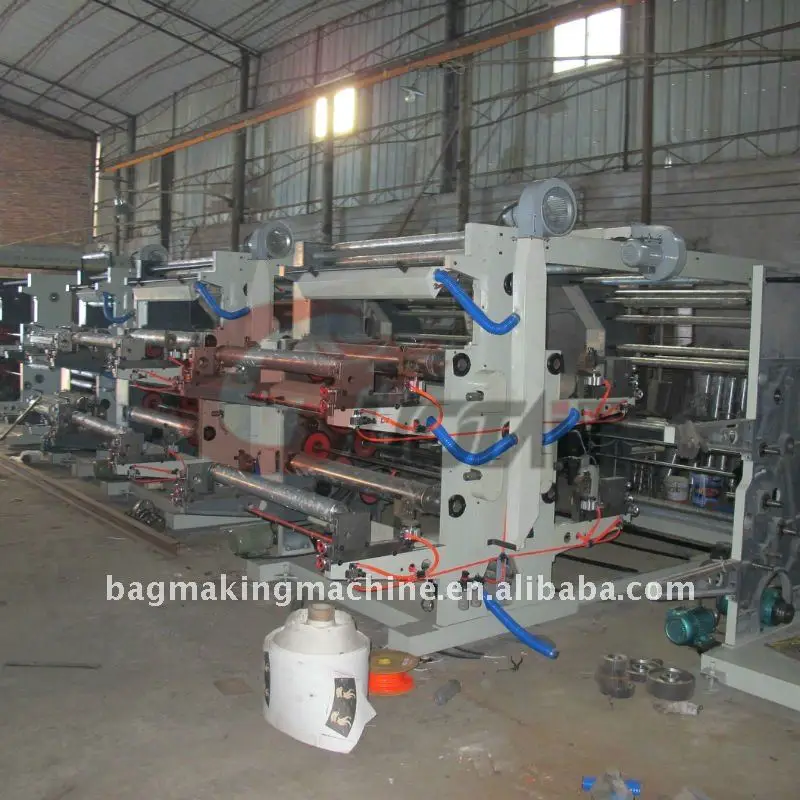

YT-4600/4800/41000 four Colour Flexographic Printing Machine



Use
This machine is suitable for printing such packing materials as polyethylene,polyethylene plastic bagglass paper and roll paperetc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.

Characteristics
1.Easy operation,flexible starting accurate colour register.
2.The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
3.Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting
4.The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6.3600 continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8.There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

YT-4600/4800/41000 four Colour Flexographic Printing Machine

Main Technical Variables:



Model of Machine	YT-4600	YT-4800	YT-41000
Max.Width of Printing Material	600mm	800mm	1000mm
Max.Printing With	560mm	760mm	960mm
Length Range of Printed Product	191-914mm	191-914mm	191-914mm
Max.Diameter of Roll Material	φ450mm	φ450mm	φ450mm
Printing Speed	5~50m/min	5~50m/min	5~50m/min
Thickness of plate(Including Two-sides Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	10.87kw	12.5kw	14.37kw
Weight of Machine	3000kg	3500kg	4000kg
Overall Dimensions	4200×1600×2400mm	4200×1800×2400mm	4200×2000×2400mm
300LPI ANILOX ROLLER	4 PCS OF PRINTING CYLINDERS
FOB:NINGBO PORT	USD:	USD:	USD:
PACKAGED BY	FILM
DELIVERY TIME	30DAYS



YT-4600/4800/41000 four Colour Flexographic Printing Machine
