Alloy steel Hex Wrench L Style for Hex Socket Fastener Standard Metric SIze M2 M32
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd.
Share on (817647775):
Product Overview
Description

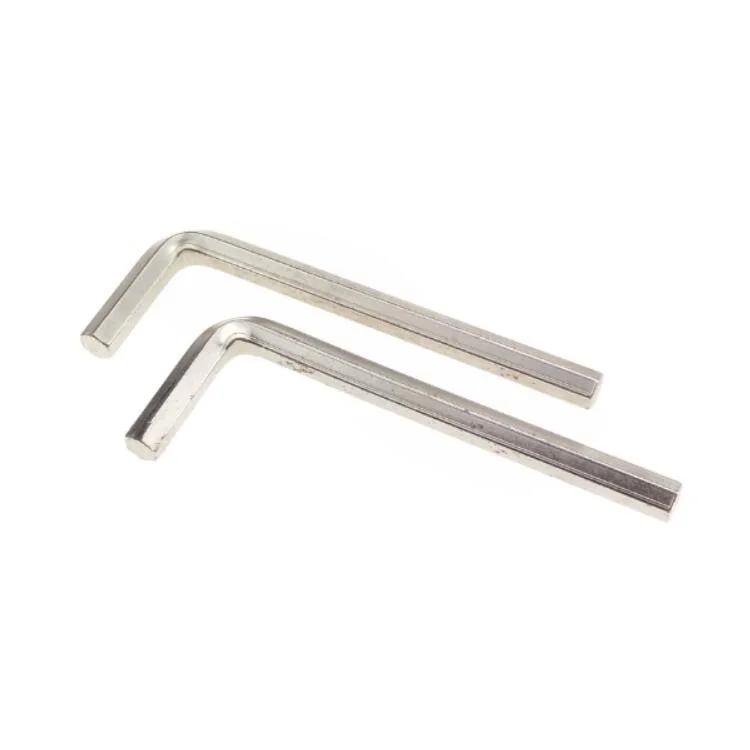

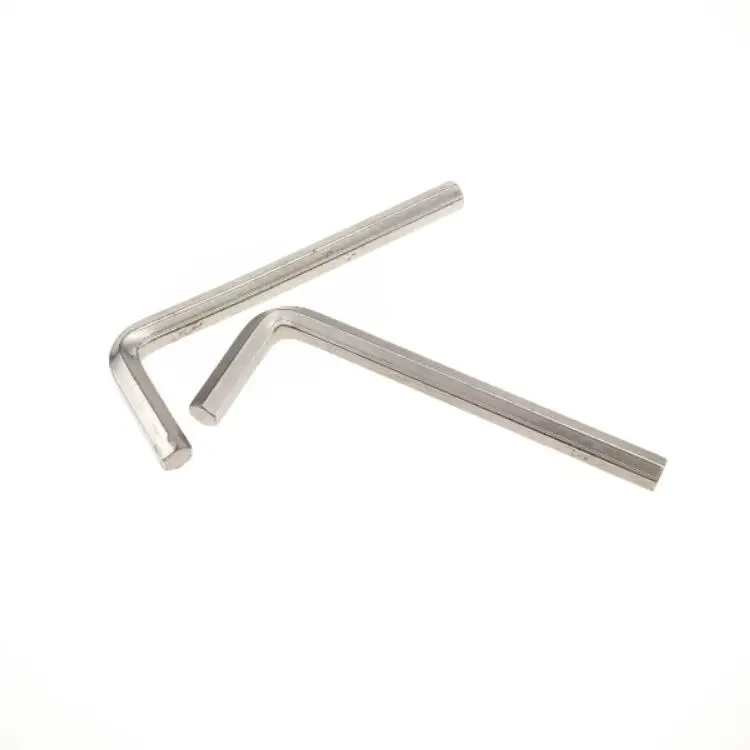

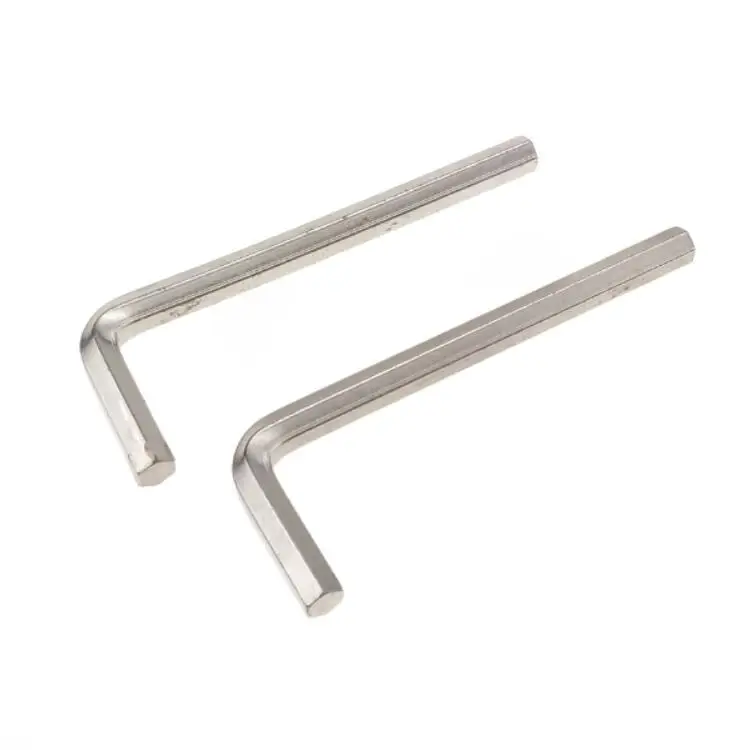

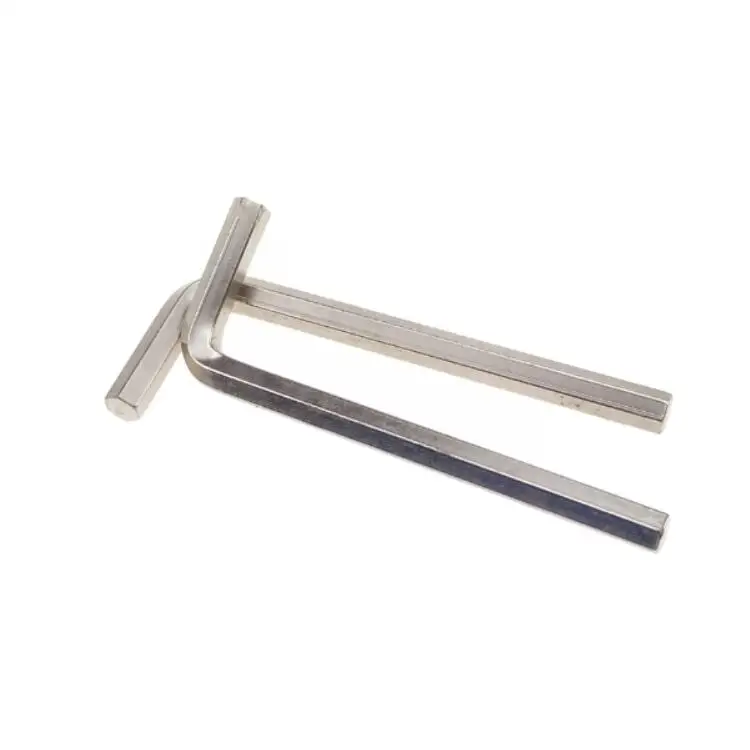

Alloy steel Hex Wrench L Style for Hex Socket Fastener Standard Metric SIze M2 - M22
General Description
L style hex wrench is known as hex allen key or hex key , it is made from alloy steel with harden treatment , hardness ups to HRC 50 , black oxide finish on surface for corrosion resistance , hex wrench normally used to drive hex socket screws by hand .
Technical Data
Material
Alloy steel
Optional materials : Tool steel , titanium
Physical Properties
Hardness ( HV ) | 500 | Yield Strength ( Mpa ) | 250 | Elongation ( % ) | 30 |
Tensile Strength ( Mpa ) | 350 | Torque |
| Reduction Area ( % ) | 45 |
Specification
Short length | 50 |
|
Long Length | 80 | |
Diameter | 1/4 | |
Drive | Hex |
Optional Specifications

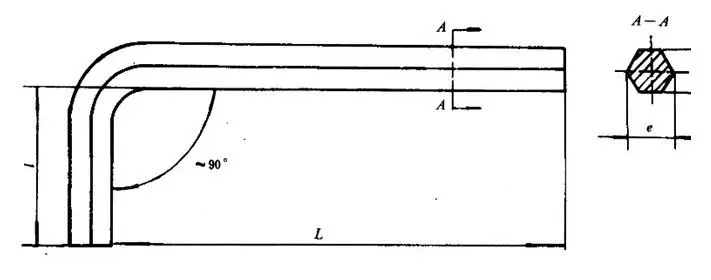

| szie | s | e | L | l |
| 2.5 | 2.5 | 2.82 | 56 | 18 |
| 3 | 3 | 3.35 | 63 | 20 |
| 4 | 4 | 4.53 | 70 | 25 |
| 5 | 5 | 5.67 | 80 | 28 |
| 6 | 6 | 6.81 | 90 | 32 |
| 8 | 8 | 9.0 | 100 | 36 |
| 10 | 10 | 11.3 | 112 | 40 |
| 12 | 12 | 13.5 | 125 | 45 |
| 14 | 14 | 15.8 | 140 | 56 |
| 17 | 17 | 19.3 | 160 | 63 |
Finish
Type | Thickness | Salty Spray Hours | RoHS / REACH |
Oxide | 8 | 12 | RoHS |
Product Features
1 . Harden material
Hardness for hex wrench ups to HRC 50
2 . Easy to be oprated
Operated by hand
3 . Smooth operation
Short arm and long arm for different operation styles .
4 . Not easy to be broken
5 . Can be recyclabe
Applications
Hex wrench is used for drive hex socket screws or bolts by hand .
Tips for Use
1 . Only used for hex socket screws or bolts .
2 . Far from fire and strong acid-base conditions
3 . Operated by hand .
Packing Details
 |  |  |
Boxes ( Boxes + Carton )
Kg / Box : 1 Kg / CTN : 15 L X W X H : 25 x 25 x 15 cm | Bulk ( Bag + Carton )
Kg / Bag : 1 Kg / CTN : 15 L X W X H : 20 x 20 x 15 cm | Pallets
Kg / Pallet : 1500
L X W X H : 1 x 1 x 1.2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q. What products you produce ?
A. We are proudce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
