BX Model 270 Degree Rotating 1 Ton Wall Jib Crane
- Category: >>>
- Supplier: Henan Dongqi Machinery Co. Ltd.
Share on (817714505):
Product Overview
Description
BX Model 270 Degree Rotating 1 Ton Wall Jib Crane
Advanced technique and complete quality supervision system wall jib crane

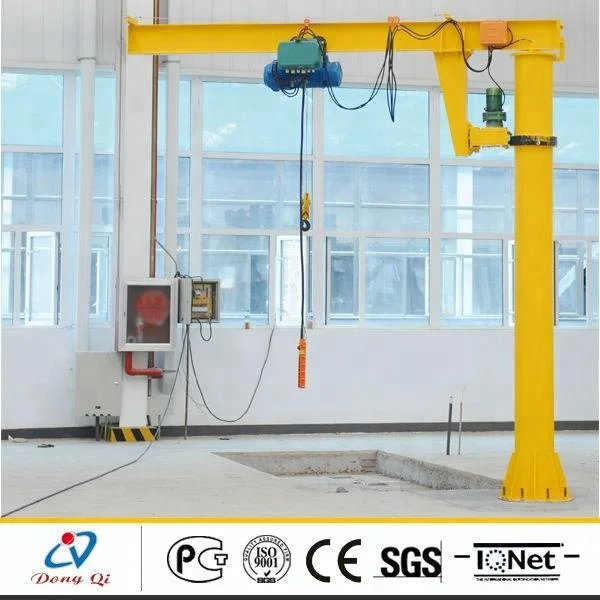

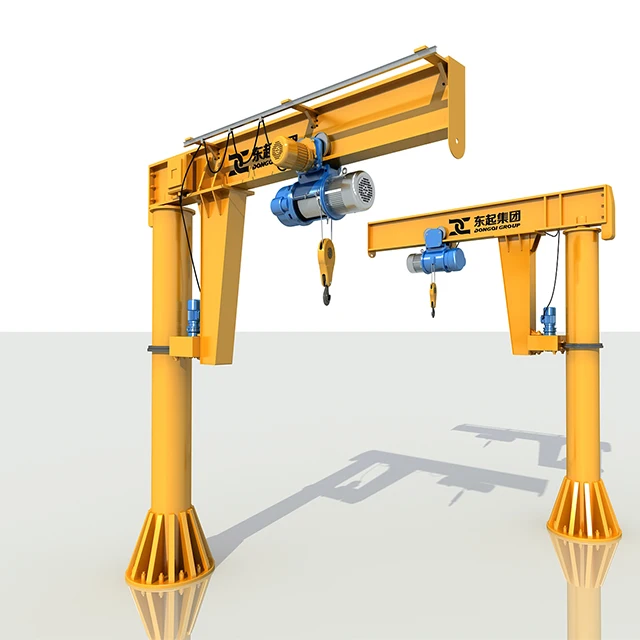

| Pictures of wall jib crane | Henan Dongqi Machinery Co., Ltd. |

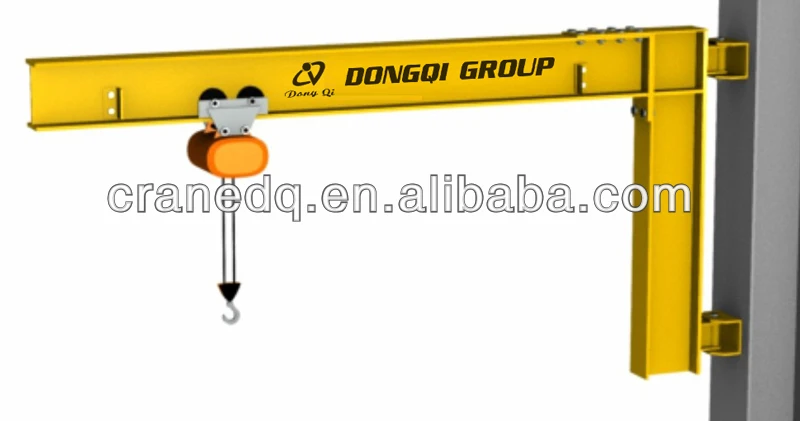

| Pictures of wall jib crane | Henan Dongqi Machinery Co., Ltd. |

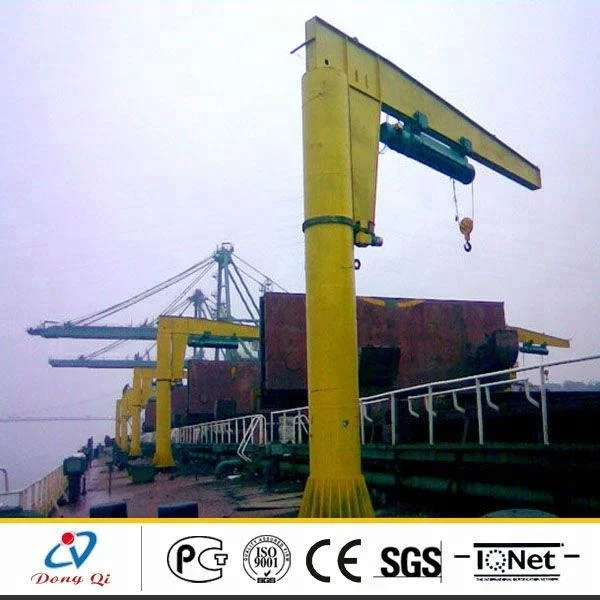

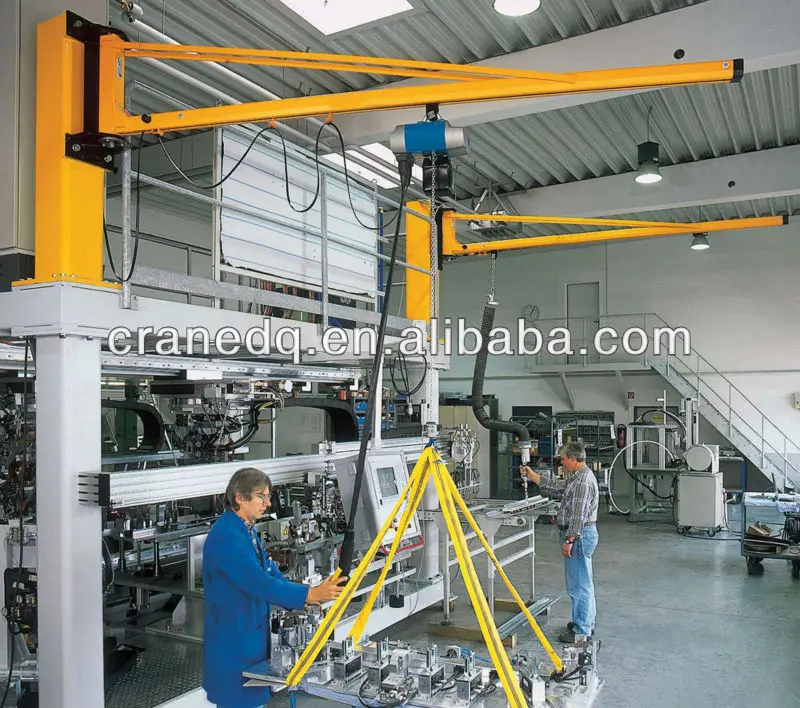

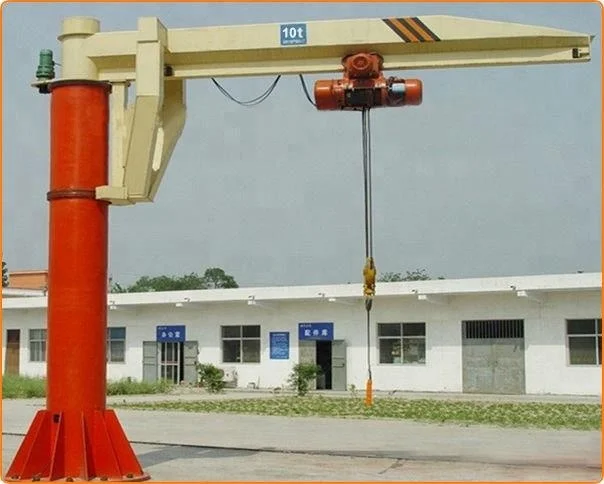

| Application of wall jib crane | Henan Dongqi Machinery Co., Ltd. |
This product is widely used to transport, assemble, check and repair as well as load and unload at workshop, warehouses, goods yard, outside area, etc. With characteristics of unique structure, high efficiency, energy-saving, time-saving, effort -saving and flexibility. It can work under three- dimensional space. It is especially advanced in the cases of short distance, concentrated lifting.
| Advantages of wall jib crane | Henan Dongqi Machinery Co., Ltd. |
1.Simple installation: Wall mounted jib cranes can be mounted on wall, no special floor space required.
2.Shorten loading time, improve work efficiency: With a jib crane, workers can lift, quickly transport and precisely deposit all kinds of work pieces at any time.
3.Easy handing, lighten laboring work: It can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handing heavy or unwieldy parts is considerably reduced.
4.High quality with good price: All of our cranes are ending with full load factory testing of every part, certifies the functionality and quality to customers. We will offer you the most adequate equipments for your needs through good communication.
3.Easy handing, lighten laboring work: It can relieve the strain of physically demanding work on your staff. The risk of injuries or accidents when handing heavy or unwieldy parts is considerably reduced.
4.High quality with good price: All of our cranes are ending with full load factory testing of every part, certifies the functionality and quality to customers. We will offer you the most adequate equipments for your needs through good communication.
5.Quality guaranty
The quality of our crane would be guaranteed for one year, in this period, if any quality problem happens under correct operation, we will be responsible for repairing of replacing it for free.
Low charge for maintenance when warranty is expired.
The quality of our crane would be guaranteed for one year, in this period, if any quality problem happens under correct operation, we will be responsible for repairing of replacing it for free.
Low charge for maintenance when warranty is expired.
| Features of wall jib crane | Henan Dongqi Machinery Co., Ltd. |
1. Light compact structure, few demand to architecture.
2. Whole structure light,conform to the state standards
3.The installation uses high strength bolt connection
4. Convenient in operation, and turn to flexible
5. Novel structure, reasonable and simple
6. Light weight, moving flexible
2. Whole structure light,conform to the state standards
3.The installation uses high strength bolt connection
4. Convenient in operation, and turn to flexible
5. Novel structure, reasonable and simple
6. Light weight, moving flexible
| Parameters of wall jib crane | Henan Dongqi Machinery Co., Ltd. |
| Capacity/Lifting Weight | T | 0.125 | 0.25 | 0.5 | 1 | |
| Type | BXQ0.125 | BXQ0.25 | BXQ0.5 | BXQ1 | ||
| Rotate Mode | Electricity/Manual | |||||
| Lifting Speed | m/min | Electricity | 8/2 | 4/1, 10/2.5 | 5/1.25, 10/2.5 | 5/1.25, 8/2 |
| Manual | 8/2 | 4/1, 10/2.5 | 5/1.25, 10/2.5 | |||
| Maximum Swing Radius | m | 3/4/5/6 | 3/4/5/6 | 3/4/5/6 | 3/4/5/6 | |
| Maximum working Radius | m | L-200mm | ||||
| Minium Working Radius | m | 1 | 1 | 1 | 1 | |
| Lifting Height | m | 3 | 3 | 3 | 3 | |
| Travelling Speed | m/min | 7/14/28 | ||||
| Motor Capacity | kw | Up-down Motor | 0.2/0.05 | 0.2/0.05, 0.5/0.13 | 0.5/0.13, 1.0/0.25 | 1.0/0.25, 1.5/0.35 |
| kw | Rotation Motor | 0.37 | 0.37 | 0.37/0.55 | 0.37/0.56 | |
| kw | Driving Motor | 0.14 | 0.14 | 0.14 | 0.2 | |
| Rotating Speed | R/min | 0.8 | ||||

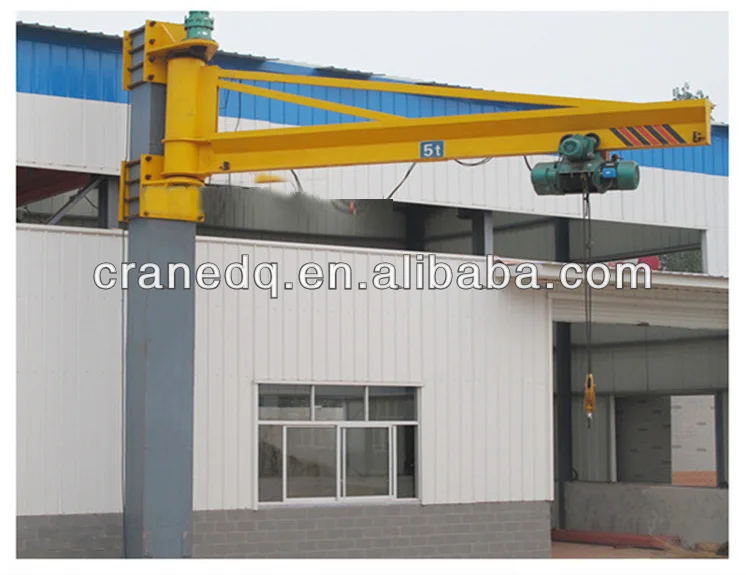

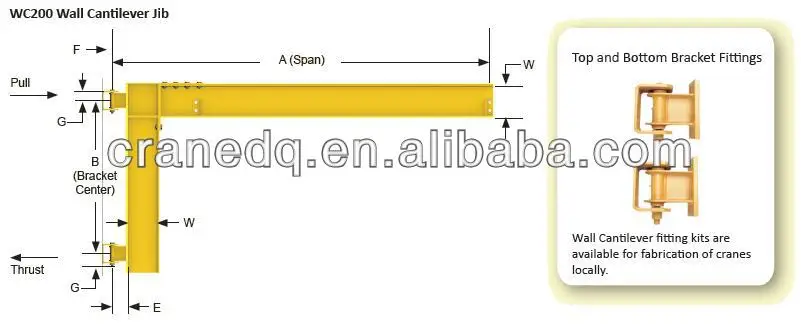

| Detail Images wall jib crane | Henan Dongqi Machinery Co., Ltd. |

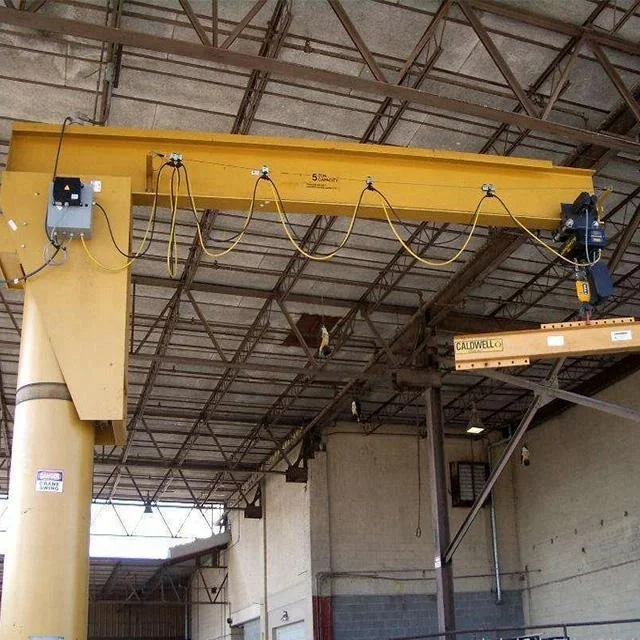

| Detail Images wall jib crane | Henan Dongqi Machinery Co., Ltd. |

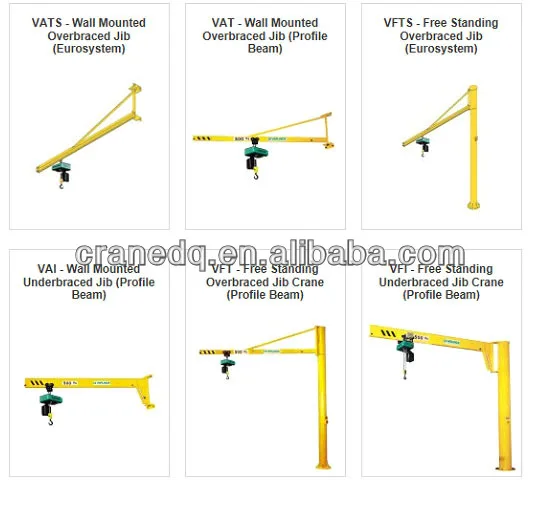

| Detail Images wall jib crane | Henan Dongqi Machinery Co., Ltd. |

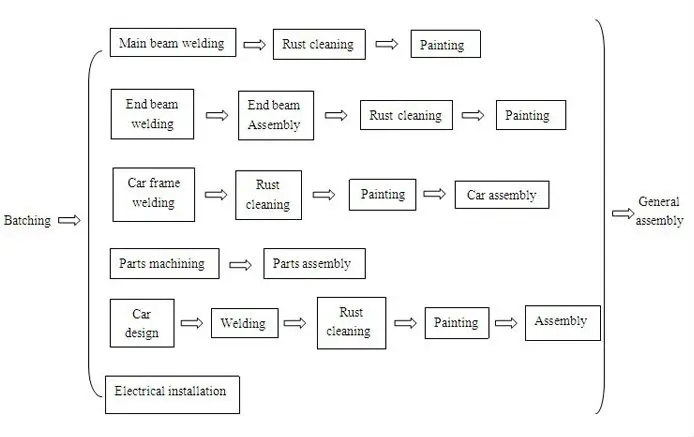

| The production process | Henan Dongqi Machinery Co., Ltd. |

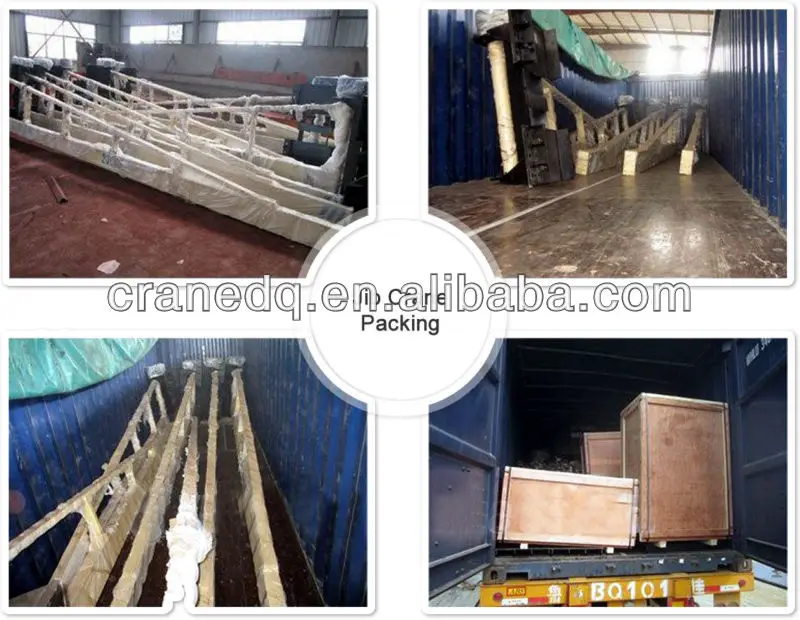

| The packing and shipping | Henan Dongqi Machinery Co., |
| About | Henan Dongqi Machinery Co., Ltd. |
HENAN DONGQI MACHINERY CO., LTD is a Sino-New Zealand joint venture; covers an area of 240,000 square meters; total investment is 240 million RMB, and registered capital 108 million RMB. There are over 3600 employees, among them 500 technicians,and over 70 senior engineers at present. All kinds of manufacturing and detection devices total 2000 sets. Annual comprehensive crane production capacity reaches more than 10.000 sets, and output values climbs 1.5 billion RMB. The company has the technological cooperation with many famous European machinery manufacturers such as Britain SZW, German NORD and SIEMENS and French Schneider, etc. The company is committed to technological innovation and development, and makes great efforts in building DONGQI crane into international and domestic famous brand.
| Certificate | Henan Dongqi Machinery Co., Ltd. |
| Customers to visit the company | Henan Dongqi Machinery Co., Ltd. |

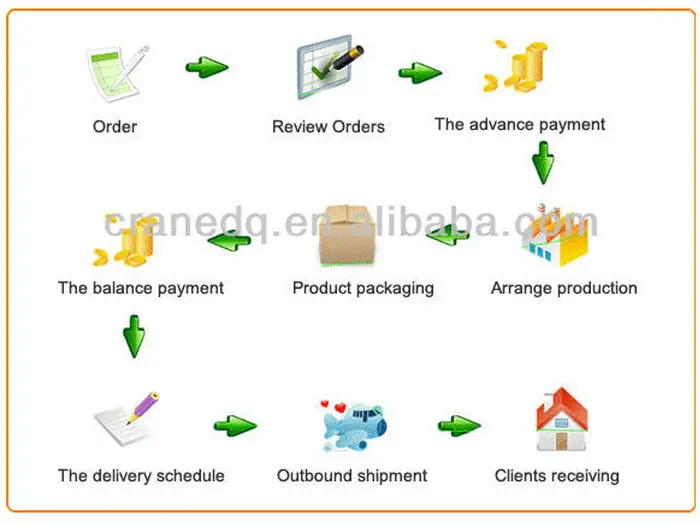

| Order process | Henan Dongqi Machinery Co., Ltd. |
| Contact Us | Henan Dongqi Machinery Co., Ltd. |
Notice:
As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. lifting capacity.
2. lifting height.(hook center to ground)
3. valid radius or total cantilever length
3. Power supply: Voltage.
For detailed product information, please contact me!
