BQ1226/8 Plywood machinery Veneer rotary peeling lathe
- Category: >>>
- Supplier: Shandong BSY Group Co. Ltd.
Share on (817965049):
Product Overview
Description

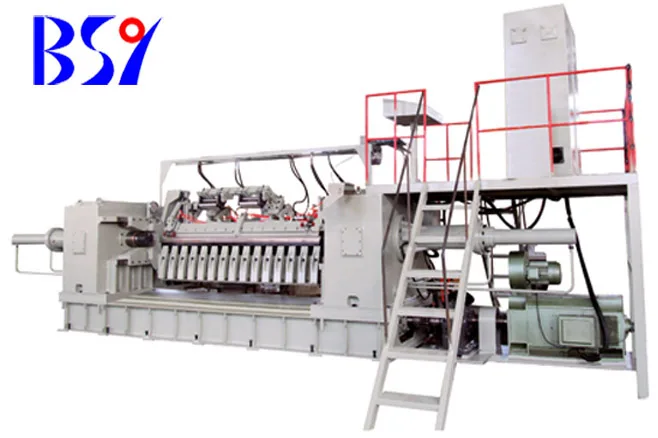

Plywood machinery Veneer rotary peeling lathe
This machine is used to peel big diameter log with single spindle into veneer. The thickness is 0.35-3.9mm, special for peeling face veneer. We have serval models for peeling 800mm, 1100mm, 1300mm and 1500mm, also 4ft, 6ft and 8ft, you can choose it accroding to you requirement.
1. Auto knife installation system, auto tool carriage feeding system
2. Hydraulic clamping, feeding.
3. Auto anti-bend roller
4.Electric rear angle adjustment
5. Both soft and hard wood are available.
We have 6f and 8f to meet different requirement. You can choose it according to your demand
MODEL | BQ1226/8E(E1) | BQ1226/8F(F1) | BQ1220/8 | BQ1215/8(A1) |
Max.cutting diameter(mm) | 170-800 | 170-800 | 170-800 | 170-800 |
Max,cutting length(mm) | 2150-2700 | 2150-2700 | 1600-2000 | 1000-1500 |
Range of veneer thickness(mm) | 0.35-3.9 | 0.35-4.2 | 0.35-4.2 | 0.35 - 4.2 |
Chuck diameter(mm) | 100 | 130 | 100 | 85( 100 ) |
Max.rotating speed of spindel(rpm) | 0-200 | 0-200 | 160 | 0-160 |
Quick forward and backward speed of tool cartridge(m/min) | 1.8 | 1.8 | 2.35 | 1.8 |
Main motor power(kw) | 75 | 75 | 75 | 45 |
Rapid feed motor power(kw) | 4 | 4 | 4 | 4 |
Hydraulic motor power(kw) | 7.5 | 7.5 | 7.5 | 7.5 |
Grinding angle of appropriate tool cartridge | 18o-22o | 18o-22o | 18o-22o | 18- 22 |
General motor(kw) | 89.5 | 89.5 | 89.5 | 57.658.35 |
Overall dimensions(mm) | 8250×2855×1554 | 8250×2855×1554 | 7945×1770×1909 | 7295×1770×1909 |
Weight(kg) | 16500 | 16500 | 16000 | 12000 |

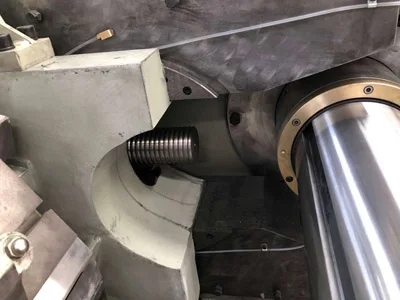

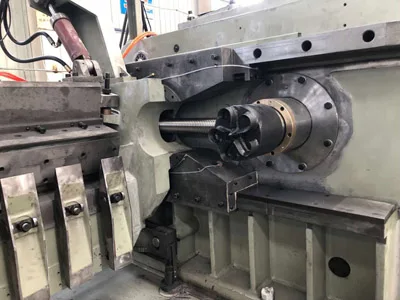

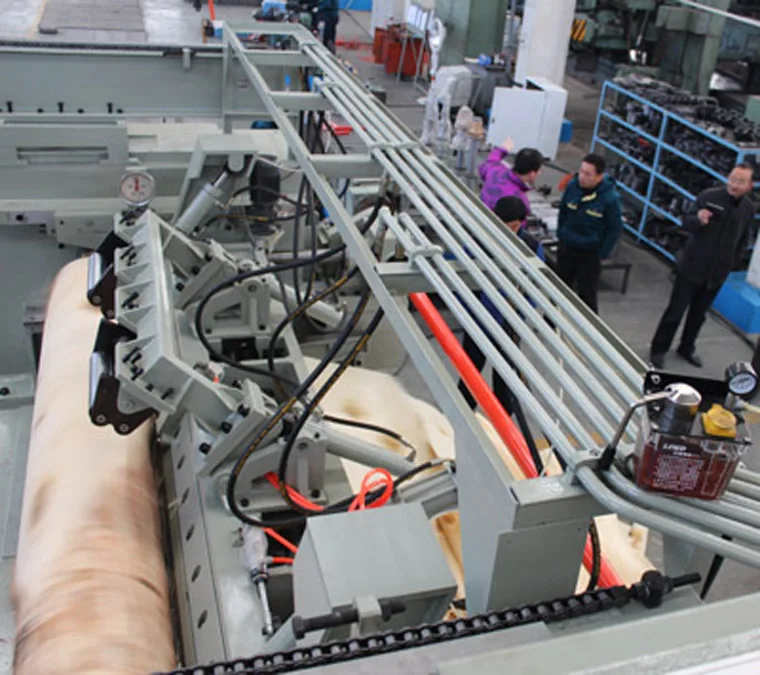

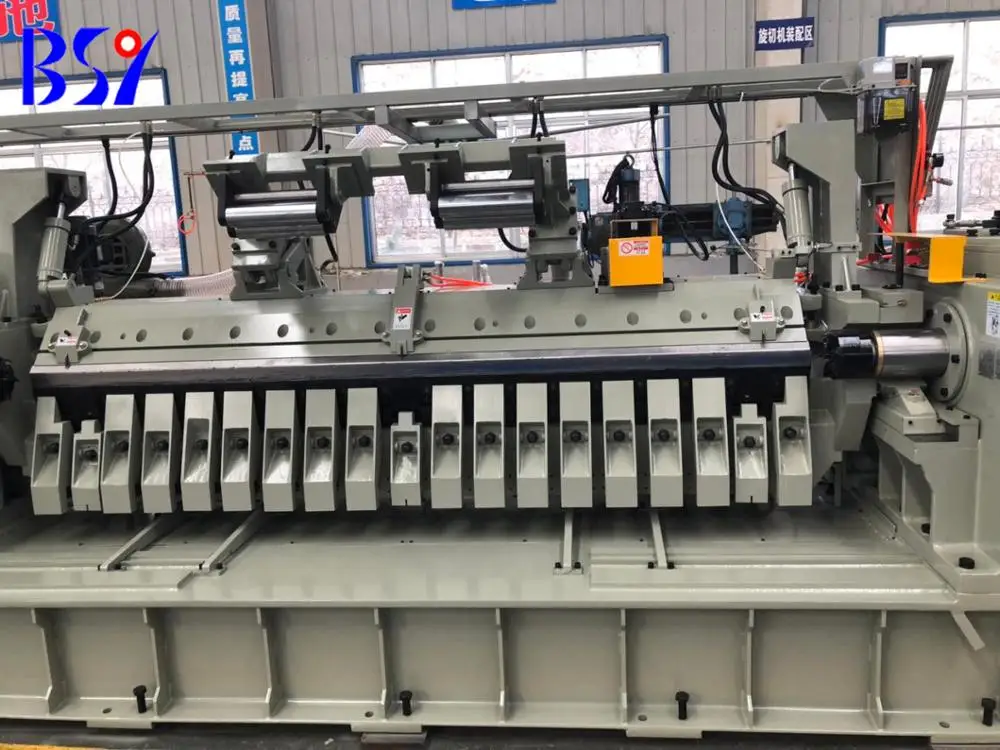

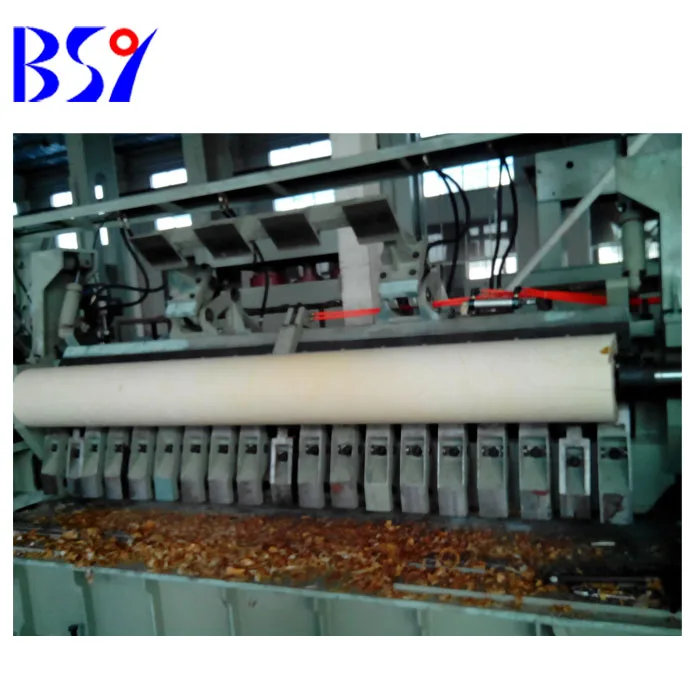

Detailed Images
Our Services
Our technicians can go to custmer's factory to install and test running, also can train operators for them. Warranty One Year, out of warranty period we offer technical service.
Company Information
We are the leading manufacturer of woodworking machinery in China, found in 1956 specialized in the production of plywood equipment, we can offer the first class plywood production line. The main productions include: log debarker, log charger, veneer peeling lathe, veneer clipper, press machine, veneer dryer, glue spreader, size trimming saw, sanding machine etc. If you show us the details you want, our engineer will design the suitable production as your requirement, especially.If you are interested in our machines, please let me know.
