Plastic Nylon Hex Bolts Nuts Fastener Fiber Glass PA 66 Standard DIN 933 M8 Thread
- Category: >>>
- Supplier: Dongguan City Zhaoming Hardware Co. Ltd. [Guangdong China]Dongguan
Share on (818228332):
Product Overview
Description
Plastic Nylon Hex Bolts Nuts Fastener Fiber Glass PA 66 Standard DIN 933 M8 Thread
General Description
Plastic hex bolts are named plastic allen screws or plastic hex screws , and made from nylon grade 66 , full threads and flat point , chamfered hex head bolts , nylon hex bolts are insulated and good resistant corrosion .Generally , plastic hex bolts to lock objects together with nuts or washers . they are suitable for heavy duty installation as harden fiber glass .
Technical Data
Material
Plastic nylon
Physical Properties
| Tensile strength MPa | 60~80 |
| Elongation at break % | 2.2 |
| Bending strength MPa | 100~120 |
| Modulus of elasticity for bending MPa | 2000 ~3000 |
| Notched Impact Strength(J/m) | 60~100 |
| HR hardness | 118 |

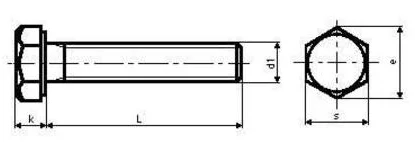

Specification
d1 | M8 |
|
L | 50 | |
Pitch | 1.25 | |
K | 5.3 | |
S | 13 | |
e | 14.3 |
Optional Specifications
| M | k | s | e |
| 2 | 1.4 | 4 | 4.32 |
| 3 | 2 | 5.5 | 6.01 |
| 3.5 | 2.4 | 6 | 6.58 |
| 4 | 2.8 | 7 | 7.66 |
| 5 | 3.5 | 8 | 8.79 |
| 6 | 4 | 10 | 11.05 |
| 7 | 4.8 | 11 | 12.12 |
| 8 | 5.3 | 13 | 14.38 |
| 10 | 6.4 | 17 | 18.9 |
| 12 | 7.5 | 19 | 21.1 |
Product Features
1. Perfect elastic resilience .
Melting point of the nylon material is 260°, this make nylon has a good elastic resilience .
2 . Strong abrasive resistance .
3 . Fire retardancy
Fire proof grade meets UL 94V-2
4 Crrosion proofing,
Nylon hex bolts are not dissolved into water and acid .
5 . Antiageing,
6 . Not easy broekn
Nylon hex bolts with good flexibility
7 . Firm structure
8. Reliable work
9 . Conduct insulativity
Applications
Nylon hex bolts are often used to industrial areas with light duty .
1. Car industry
Nylon hex bolts are good on heat and corrossion resitance and strong tension and convienet to process.
2 . Electronics
Nylon hex bolts can be used for pieces that must to be conduct insulativity , precise electronics equipments , lighting and so on ,
3 . Mechanical equipments
Especially for ocean and oil equipments .
4. Household appliances
5 . Building
6 . Furniture
Tips for Use
1 . Do not put nylon hex bolts under high temeprature for longer service
2 . Do not put over torque
3 . Far from fire .
Packing Details
 |  |  |
| Bulk ( Bags + Carton )
Pcs / Bag : 3 Kgs / CTN : 12 L X W X H : 25 X 20 X 15 cm | Boxes ( Boxes + Carton )
Kgs / Box : 0.5 Kgs / CTN : 12 L X W X H : 25 X 25 X 20 cm | Pallets
Kgs / Pallet : 1800
L X W X H : 1 X 1 X 2 m |
Remark : Custom packing is acceptable . Above packings are reference only , items showed in the pictures maybe not described one .
Our Services
We are one of hardware spare parts manufacturers in China , we provide various metal and non-metal parts with standards and customizations , eg. Fastener Screws ( including Stainless steel screws ) , Spacers Washers , Fastener Nuts bolts , Fastener Pins , Fastener Rivets , Metal Stamping Parts , Metal Machined Parts , Plastic Injection molding Parts . and Fastener Tools . We trade with buyers , wholesalers and retailers from different countries . We accept OEM and ODM service as well . Please contact us if you have any enquiry .
FAQ's
Q What is your production capacity ?
A. We are able to finish up to 2000 tons raw material every year , generally , one full 20 feet container ( about 20 tons) can be done in 20- 25 days .
Q.How long I can get samples for approval before placing order ?
A. Just in one week for new samples that need to be done in new tools , and we can deliver samples within 24 hours for exsiting samples once received your request .
Q.What are your popular payement menthods ?
A. T/T is our prior choose for all , of course , we are also accept L/C , Westunion , paypall .
Q . Can you provide custom service ?
A . Yes , we provide standard and custom service for all our products .
Q. What products you produce ?
A. We are produce different hardware spare parts , stamping part , plastic injeciton molding parts and fasteners like screws , bolt , nuts , pins , rivets and spacers washers etc
