300kw MS electric resistance welded pipe making machine High Frequency welding equipment

Product Overview

Description

300kw MS electric resistance welded pipe making machine High Frequency welding equipment

Soft Water Wooling System 100kw electric resistance welded pipe making machine

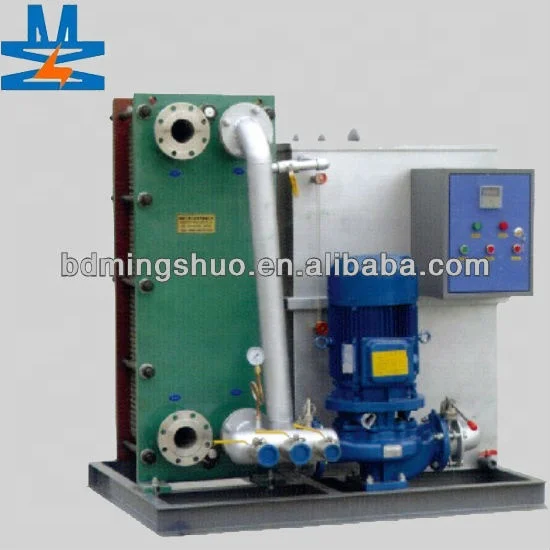

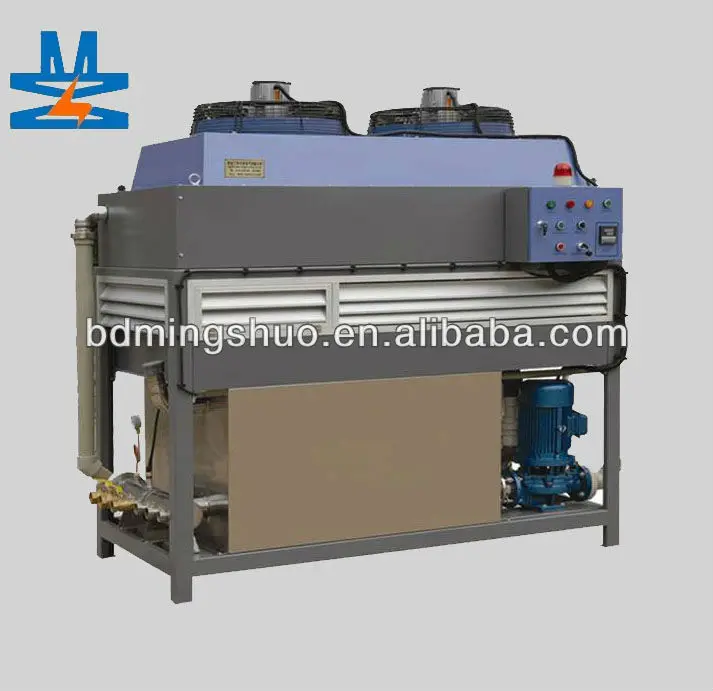

Circulation soft water cooling system (air-water cooler)

Model GPKL-II circulation soft water cooling system adopts closed cooling tower structure.Cooling soft water flow in sealed water tank and cooling pipes.The inner circulation soft water is cooled by overhead fan and water-spray method using the principle of absorbing heat when evaporation.The spray water store at the bottom of cooling tower,soft water circulate inside the closed cooling tower’s heat dissipation pipe,spray-water spray at pipes’s surface by spray-water distribution system and sprayer through spray system,some heat is taken by dissipation and soft water temperature, inside the pipe go down accordingly. The cut board stops water in hot air and undissipated water, make them flow through PVC heat exchange layer ,the water in the layer in cooled by air,then temperature goes down and fall down to the bottom of the tower.

Apply range:60kw-1200kW induction heating powersupply

Model	Refrigeration capacity(KW)	Heat-exchanging Area	Size mm
			L	W	H
FST-60	20KW	3 m2	2000	1100	1800
FST-100	3KW	4 m2	2000	1100	2000
FST-150	45KW	5 m2	2000	1100	2000
FST-200	62KW	6 m2	2300	1160	2000
FST-250	78KW	8 m2	2300	1160	2000
FST-300	95KW	10 m2	2360	1160	2200
FST-400	125KW	12 m2	2900	1160	2200
FST-500	156KW	15 m2	2900	1250	2200
FST-600	185KW	18 m2	3000	1250	2200
FST-800	256KW	23 m2	3000	1800	2200
FST-1000	313KW	31 m2	3000	1800	2400
FST-2000	623KW	62 m2	3500	2000	2400
FST-2500	800KW	80 m2	3500	2000	2500
FST-3000	1000KW	100 m2	3500	2000	3000
FST-4000	1300KW	120 m2	4000	2100	3300
FST-5000	1500KW	150 m2	4500	2300	3400
FST-6000	2000KW	180 m2	4500	4000	3500
